GFB EX50 50mm V-Band External Wastegate

Go Fast Bits SKU: GFB7001
Price
20% OFF
/
Currently on Backorder – Contact Us for Availability
Shipping calculated at checkout.

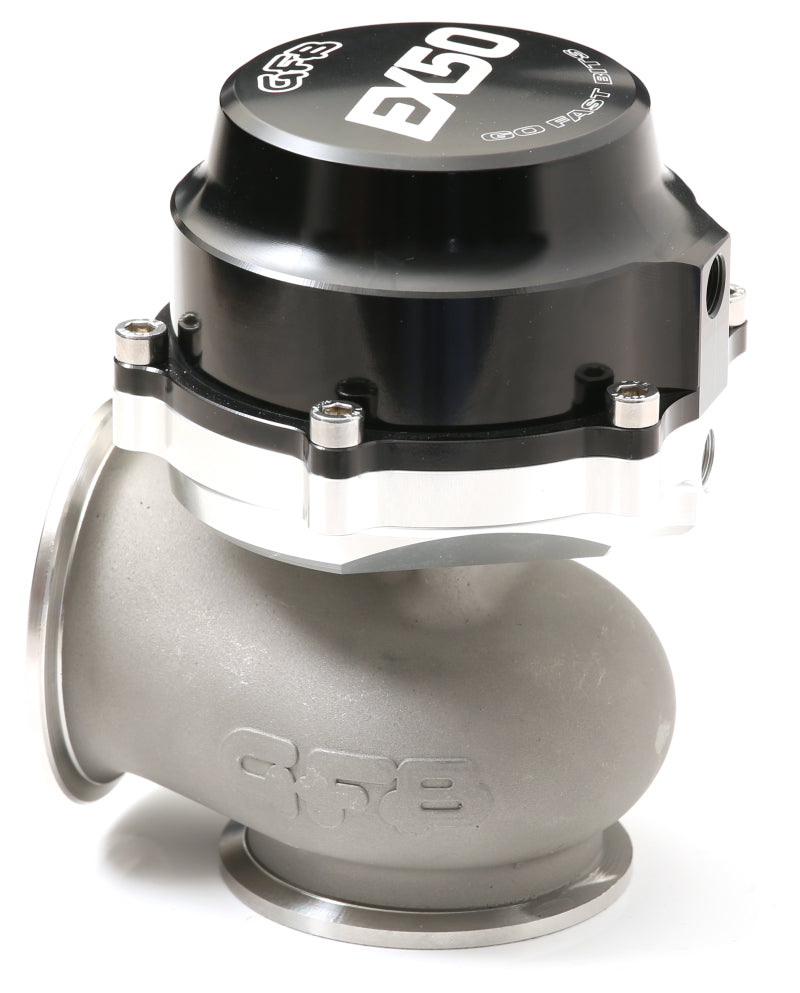

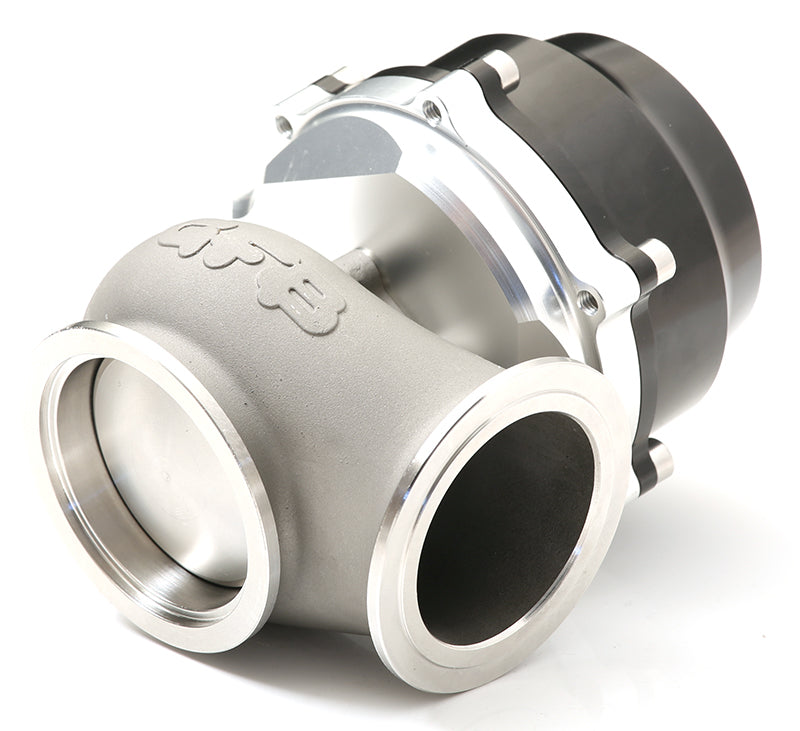

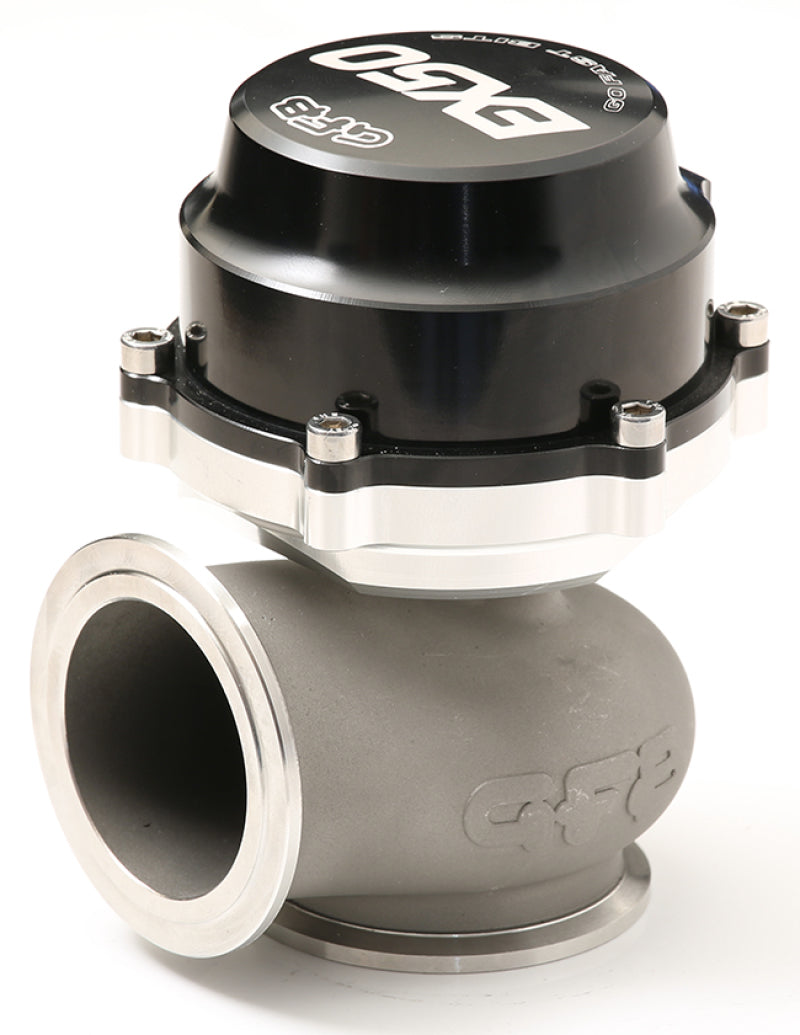

GFB EX50 (7001) 50mm V-band external wastegate, the largest in the range, with body, valve, seat and mounting hardware CNC-machined from high-temp 253MA stainless steel and an actuator housing machined from billet 6061-T6 aluminium. Nomex-reinforced diaphragm; V-band inlet and outlet. Supplied with a 13psi (outer) spring; optional 7psi (inner) and 9psi (middle) springs combine for base boost of 7, 9, 13, 16, 20, 22 or 29psi. 133mm overall height. Made in Australia under ISO 9001.

Specifications

Type External wastegate
Valve 50mm
Flanges V-band inlet/outlet
Body CNC 253MA stainless; billet 6061-T6 actuator housing
Springs 13psi incl.; 7-29psi range
Height 133mm

Documents: Installation Instructions (PDF)
