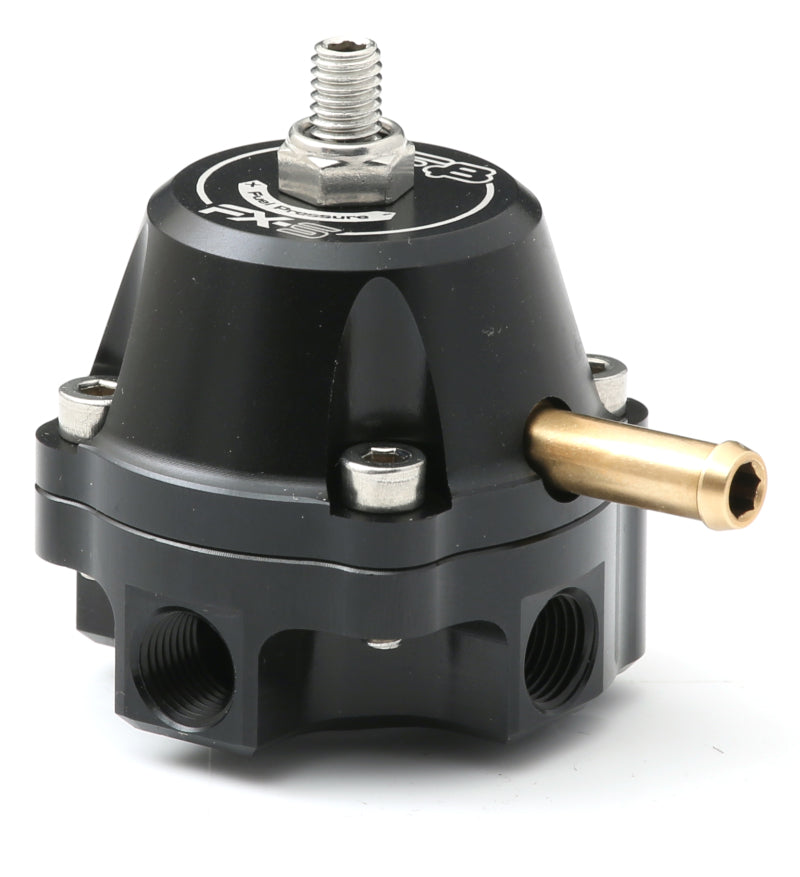

GFB FX-S Street Fuel Pressure Regulator - Up To 800hp

Go Fast Bits SKU: GFB8050
Price
20% OFF
/
Currently on Backorder – Contact Us for Availability
Shipping calculated at checkout.

The GFB FX-S Street is an adjustable fuel pressure regulator for EFI systems supporting up to 800hp. It flows up to 750 lph @ 25psi and offers a wide 25-80 psi static adjustment range.

The FX-S features 4x 1/8in NPT body ports usable for any combination of fuel inlet, gauge or ECU sensor, plus a 1/8in NPT return. A double-reinforced diaphragm rated beyond 500psi burst, Teflon co-polymer seat and spherical stainless valve deliver a precise 1:1 rise rate, compatible with all fuels including E85.

Specifications

Brand Go Fast Bits
Series FX-S
Type Adjustable fuel pressure regulator
Ports 4x 1/8in NPT body, 1x 1/8in NPT return
Flow Up to 750 lph @ 25psi
Base Pressure 25-80 psi, adjustable
Rise Rate 1:1
Diaphragm Double-reinforced, 500+ psi burst
System Capacity Up to 800 hp
Fuel Compatibility All fuels incl. E85
