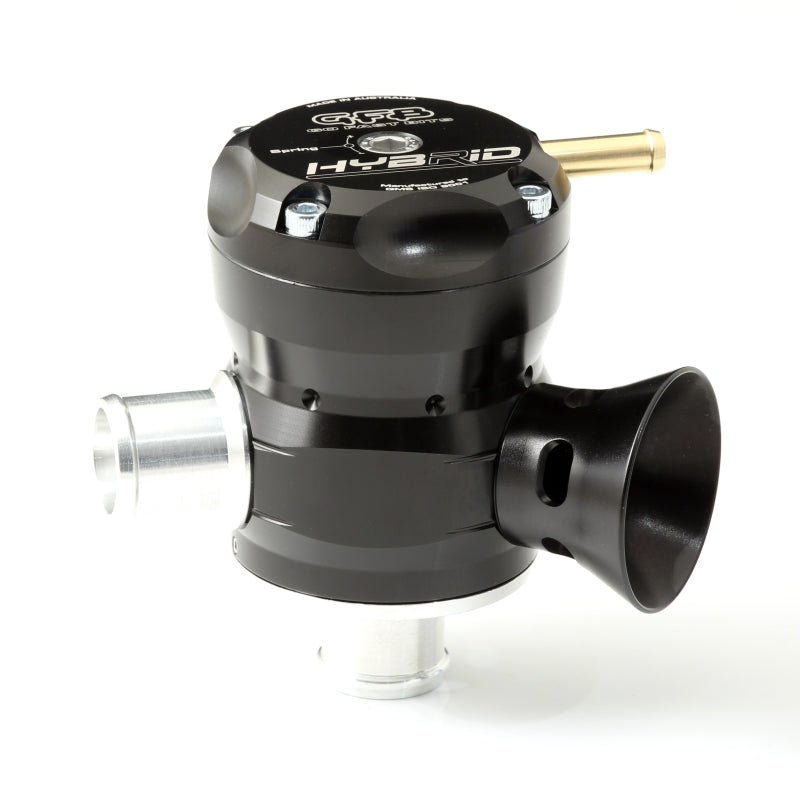

Go Fast Bits Hybrid TMS Dual Port Valve, angled view with clamp

Go Fast Bits Hybrid Blow Off Valve for Toyota Supra / Mazda Miata 1993-2005

Go Fast Bits SKU: GFBT9220
Price
Regular price $195.68
Regular price $260.90 Sale price $195.68
25% OFF
Only 2 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandGo Fast Bits
SKUGFBT9220
GTIN / UPC9328022002811
Manufacturer Part NumberT9220

Product Information

A dual-outlet blow off valve that replaces the factory valve and can be set up to recirculate fully, vent 50/50 or vent fully to atmosphere with the supplied plugs and trumpet. The two outlets are staged so the recirculation port opens first, which helps avoid backfiring and stalling on engines with an airflow meter while still giving a blow-off sound when driven hard. The valve is larger than some factory valves, so it may have to be mounted elsewhere in the engine bay with the factory hoses extended (see Fitment Notes).

Specifications

Type Dual-outlet blow off / diverter valve (recirculating and atmosphere), factory valve replacement
What's in the Box
  • Hybrid valve
  • Trumpet
  • Threaded plug
  • Hose plug
  • 5 mm hex key for spring preload
Flange / Mount Hose mount, inlet and outlet suit 3/4 in (19 mm) inside diameter hose
Operation Staged dual outlets, recirculation port opens first; full recirculation, 50/50 or full atmosphere
Fitment Notes Toyota Supra: 2JZ-GTE twin turbo only, not a direct bolt-on; the factory hoses need modifying to mount the valve elsewhere in the engine bay. Also listed by GFB for non-US Subaru WRX STi (MY94-96) and Impreza 2.0 Turbo GT EJ20T (MY94-00, hose modification needed)
Warranty Limited lifetime (requires product registration)

This part fits:

Year Make Model Submodel
1993-1998 Toyota Supra Twin Turbo
2004-2005 Mazda Miata Mazdaspeed

Documents: Installation Instructions (PDF)

What if the engine backfires or stalls with full atmosphere venting?

  • Switch to 50/50 or full recirculation. Some setups need part of the vented air returned to the intake to run cleanly.

How are the hoses connected?

  • Boost pressure goes to the bottom inlet and the side outlet returns to the turbo intake. The vacuum hose runs from the intake manifold after the throttle to the top port, with at least 4 mm inside diameter.

Can the vacuum hose share a line with other devices?

  • No. Do not connect it to boost control, fuel pressure regulator or brake booster hoses.
