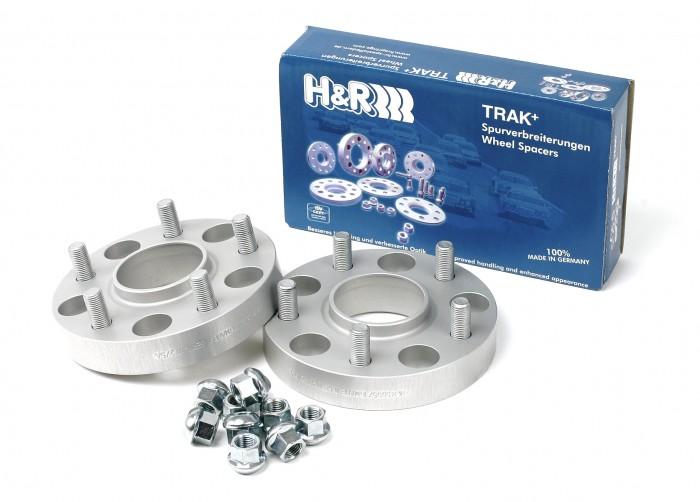

H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag

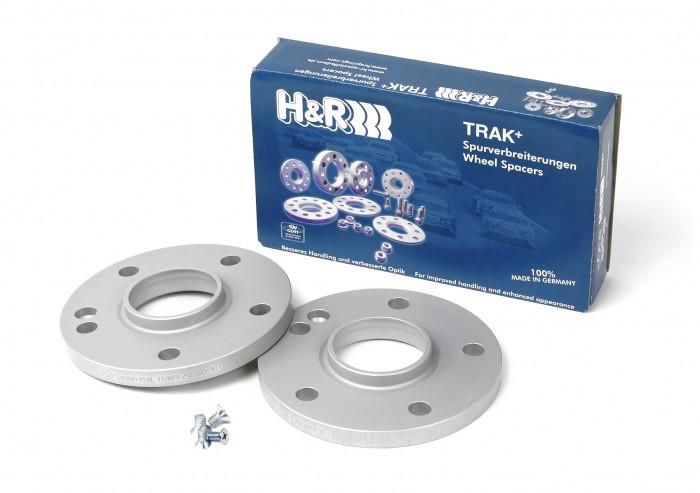

H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out
H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag
H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out

H&R Trak+ DR Wheel Spacers - 10mm - 5x108 - 63.3mm CB - 14x1.5 - Volvo S90 2017-2025 - Pair

H&R SKU: HRS20356330
Price
10% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandH&R
SKUHRS20356330
GTIN / UPC20356330
Manufacturer Part Number20356330

Product Information

H&R Trak+ DR wheel spacers push each 5x108 wheel outward 10mm per side for a flush fender fit, staying hubcentric on the 63.3mm bore. Machined from a proprietary alloy with higher tensile strength than 6061-T6 billet aluminum, the full-contact hub spreads load evenly like the factory hub. DR spacers sit between the hub and the wheel, so longer wheel bolts or studs are required and sold separately; sold as a pair.

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Hubcentric wheel spacer (H&R Trak+ DR), bolt-through
Series TRAK+ Wheel Spacer
Thickness 10mm
Bolt Pattern 5x108
Center Bore 63.3mm
Material Proprietary alloy (stronger than 6061-T6 billet aluminum)
Hardware Longer wheel bolts required, sold separately
Spacer Type DR
Spacer Width 10mm
Quantity Pair
Finish Silver
Thread 14x1.5
Fitment Notes All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).; Careful attention must be paid to the vehicle hub height and inner wheel bevel measurements. Failure to follow the measurement guidelines below can result in serious damage to wheel spacers, wheels, and mounting hardware. Part Num. System Widening Per Side Maximum Hub Height Inner Wheel Bevel 1465605 DR / 7 8.00mm 4.0 x 45 degrees 162345712 DR / 8 14.00mm 7.0 x 45 degrees 162555716 DR / 8 14.00mm 7.0 x 45 degrees 1655572 DR / 8 14.00mm 7.0 x 45 degrees 1655573 DR / 8 12.00mm 6.0 x 45 degrees 1655577 DR / 8 12.00mm 6.0 x 45 degrees 1655668 DR / 8 13.50mm 6.5 x 45 degrees 1665673MZ5 DRS-MZ / 8 9.00mm 3.0 x 45 degrees 202345714 DR / 10 16.00mm 7.0 x 45 degrees 20245410 DRS / 10 11.00mm 2.0 x 45 degrees 202454101 DRS / 10 11.00mm 2.0 x 45 degrees 20245414 DRS / 10 11.00mm 2.0 x 45 degrees 20245616 DRS / 10 10.00mm 2.0 x 45 degrees 2025541 DRS / 10 10.00mm 2.0 x 45 degrees 20255571 DR / 10 16.00mm 7.0 x 45 degrees 202555712A DR / 10 16.00mm 7.0 x 45 degrees 202555712B DR / 10 14.00mm 5.0 x 45 degrees 20346331 DRS / 10 11.00mm 2.0 x 45 degrees 20356330 DR / 10 11.00mm 2.0 x 45 degrees 20356331 DRS / 10 11.00mm 2.0 x 45 degrees 2035650 DR / 10 11.00mm 2.0 x 45 degrees 20365601 DR / 10 11.00mm 2.0 x 45 degrees 2055571A DR / 10 15.50mm 6.5 x 45 degrees 2055571B DR / 10 12.00mm 4.0 x 45 degrees 2055573A DR / 10 15.00mm 6.0 x 45 degrees 2055573B DR / 10 12.00mm 4.0 x 45 degrees 2055577A DR / 10 15.00mm 6.0 x 45 degrees 2055577B DR / 10 12.00mm 4.0 x 45 degrees 2055665 DR / 10 9.00mm 90 degrees 20556650 DR / 10 10.00mm 90 degrees 2055668 DR / 10 13.50mm 5.0 x 45 degrees 2064640 DRS / 10 11.00mm 2.0 x 45 degrees 2064662 DRS / 10 10.00mm 2.0 x 45 degrees 20656014 DRS / 10 11.00mm 2.0 x 45 degrees 2065640 DRS / 10 11.00mm 2.0 x 45 degrees 2065642MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees tr> 2065643MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees 2065662 DRS / 10 10.00mm 2.0 x 45 degrees 2065700 DRS / 10 11.00mm 2.0 x 45 degrees 2075664 DR / 10 11.00mm 90 degrees 2075725 DR / 10 12.00mm 4.0 x 45 degrees 2075726 DR / 10 12.00mm 4.0 x 45 degrees 2075740 DR / 10 11.00mm 2.0 x 45 degrees 2255664 DR / 11 11.00mm 90 degrees 22556659 DR / 11 9.00mm 90 degrees 2265681CR DR / 11 20.00mm N/A 24255571 DR / 12 15.00mm 5.0 x 45 degrees 2435650 DR / 12 10.00mm 2.0 x 45 degrees 2455571 DR / 12 15.00mm 5.0 x 45 degrees 2455577 DR / 12 15.00mm 5.0 x 45 degrees 2455664 DR / 12 11.50mm 90 degrees 2455665 DR / 12 10.00mm 90 degrees 24556650 DR / 12 11.00mm 90 degrees 2455668 DR / 12 13.50mm 4.0 x 45 degrees 2475664 DR / 12 11.50mm 90 degrees 2475725 DR / 12 12.00mm 2.0 x 45 degrees 2475726 DR / 12 12.00mm 2.0 x 45 degrees 2475740 DR / 12 12.00mm 2.0 x 45 degrees 2655664 DR / 13 12.00mm 90 degrees 2655665 DR / 13 12.50mm 90 degrees 2655669 DR / 13 14.00mm 2.0 x 45 degrees 26556650 DR / 13 11.50mm 90 degrees 2675726 DR / 13 14.50mm 2.0 x 45 degrees 2865642MZ5 DRS-MZ / 14 14.00mm 2.0 x 45 degrees 3055668 DR / 15 17.00mm 4.0 x 45 degrees 4065642 DRM / 20 9.00mm 2.0 x 45 degrees
Part Number 20356330

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2019-2025 Volvo S60
2023-2025 Volvo S60 B5 Core
2022 Volvo S60 B5 Inscription
2022 Volvo S60 B5 Momentum
2023-2025 Volvo S60 B5 Plus
2022 Volvo S60 B5 R-Design
2023-2024 Volvo S60 B5 Ultimate
2025 Volvo S60 B5 Ultra
2025 Volvo S60 B5 Ultra Black Edition
2019-2024 Volvo S60 D3 / D4
2019-2023 Volvo S60 D3/D4/D5 Diesel
2021 Volvo S60 Recharge R-Design
2019-2025 Volvo S60 T4 / T5 / T6 petrol, non-hybrid
2019-2023 Volvo S60 T4/T5/T6 Petrol
2019-2021 Volvo S60 T5 Inscription
2019-2021 Volvo S60 T5 Momentum
2019-2021 Volvo S60 T5 R-Design
2019-2023 Volvo S60 T6 / T8
2019-2021 Volvo S60 T6 Inscription
2019-2021 Volvo S60 T6 Momentum
2019-2020 Volvo S60 T6 R Design
2019-2021 Volvo S60 T6 R-Design
2019-2025 Volvo S60 T8
2025 Volvo S60 T8 Core
2019-2020 Volvo S60 T8 Inscription
2025 Volvo S60 T8 Plus
2020 Volvo S60 T8 Polestar
2019-2020 Volvo S60 T8 R-Design
2023-2024 Volvo S60 T8 Recharge Core
2021-2022 Volvo S60 T8 Recharge Inscription
2023-2024 Volvo S60 T8 Recharge Plus
2021-2023 Volvo S60 T8 Recharge Polestar
2021-2022 Volvo S60 T8 Recharge R-Design
2021-2022 Volvo S60 T8 Recharge R-Design Expression
2023-2024 Volvo S60 T8 Recharge Ultimate
2025 Volvo S60 T8 Ultra
2025 Volvo S60 T8 Ultra Black Edition
2019-2024 Volvo S60 / V60 (SPA) D3 / D4
2019-2025 Volvo S60 / V60 (SPA) T4 / T5 / T6 non-hybrid
2019-2025 Volvo S60 / V60 (SPA) T6 Hybrid / T8 Hybrid
2017 Volvo S90 T5 Inscription
2017-2019 Volvo S90 T5 Momentum
2017-2019 Volvo S90 T6 Inscription
2017-2019 Volvo S90 T6 Momentum
2018-2019 Volvo S90 T8 Inscription
2018-2019 Volvo S90 T8 Momentum
2020 Volvo V60
2020 Volvo V60 D3 / D4
2020 Volvo V60 D3/D4/D5 Diesel
2020 Volvo V60 T4 / T5 / T6 petrol, non-hybrid
2020 Volvo V60 T4/T5/T6 Petrol
2020 Volvo V60 T5 Inscription
2020 Volvo V60 T5 Momentum
2020 Volvo V60 T5 R-Design
2020 Volvo V60 T6 / T8
2020 Volvo V60 T8
2020 Volvo V60 T8 Polestar
2020 Volvo V60 Cross Country
2020 Volvo V60 Cross Country T5
2018-2019 Volvo V90 T5 Inscription
2018-2019 Volvo V90 T5 R-Design
2018-2019 Volvo V90 T6 Inscription
2018-2019 Volvo V90 T6 R-Design
2018-2019 Volvo V90 Cross Country T5
2017-2019 Volvo V90 Cross Country T6
2018-2019 Volvo V90 Cross Country T6 Ocean Race
2022-2025 Volvo XC60
2023-2025 Volvo XC60 B5 Core
2022 Volvo XC60 B5 Inscription
2022 Volvo XC60 B5 Momentum
2023-2025 Volvo XC60 B5 Plus
2022 Volvo XC60 B5 R-Design
2023-2024 Volvo XC60 B5 Ultimate
2025 Volvo XC60 B5 Ultra
2025 Volvo XC60 B5 Ultra Black Edition
2022 Volvo XC60 B6 Inscription
2022 Volvo XC60 B6 R-Design
2023 Volvo XC60 B6 Ultimate
2022-2023 Volvo XC60 D3/D4/D5 Diesel
2022-2024 Volvo XC60 D4 / D5
2022-2025 Volvo XC60 T4 / T5 / T6 petrol, non-hybrid
2022-2023 Volvo XC60 T4/T5/T6 Petrol
2022-2025 Volvo XC60 T5 AWD
2022-2023 Volvo XC60 T6 / T8
2022-2025 Volvo XC60 T6 AWD
2022-2025 Volvo XC60 T8
2025 Volvo XC60 T8 Core
2025 Volvo XC60 T8 Plus
2025 Volvo XC60 T8 Polestar
2023-2024 Volvo XC60 T8 Recharge Core
2022 Volvo XC60 T8 Recharge Inscription
2022 Volvo XC60 T8 Recharge Inscription Expression
2023-2024 Volvo XC60 T8 Recharge Plus
2022-2024 Volvo XC60 T8 Recharge Polestar
2022 Volvo XC60 T8 Recharge R-Design
2023-2024 Volvo XC60 T8 Recharge Ultimate
2025 Volvo XC60 T8 Ultra
2025 Volvo XC60 T8 Ultra Black Edition
2022-2025 Volvo XC60 T8 eAWD
2022-2024 Volvo XC60 (SPA) D4 / D5
2022-2025 Volvo XC60 (SPA) T4 / T5 / T6 non-hybrid
2022-2025 Volvo XC60 (SPA) T6 Hybrid / T8 Hybrid

Which vehicles does this fit?

  • It fits the Volvo S60 2019-2025, Volvo S60 / V60 (SPA) 2019-2025, Volvo S90 2017-2019, Volvo V60 2020, Volvo V60 Cross Country 2020, Volvo V90 2018-2019 and 3 more models. The full year, make, model and submodel list is in the fitment table on this page.

How many are in one order?

  • Pair.

What is it made of?

  • Proprietary alloy (stronger than 6061-T6 billet aluminum).
