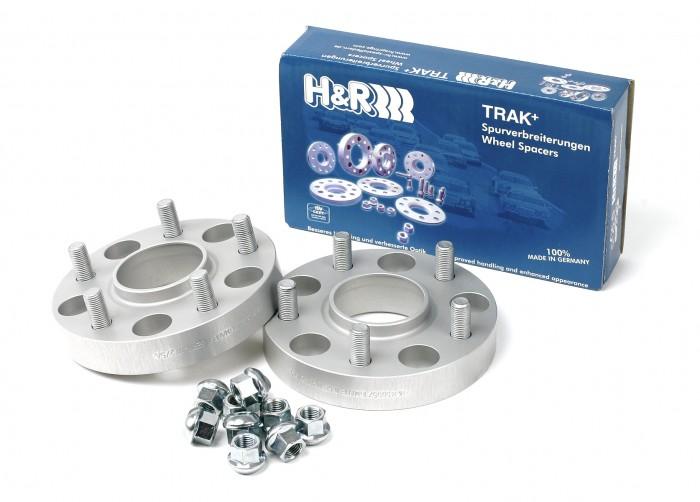

H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag

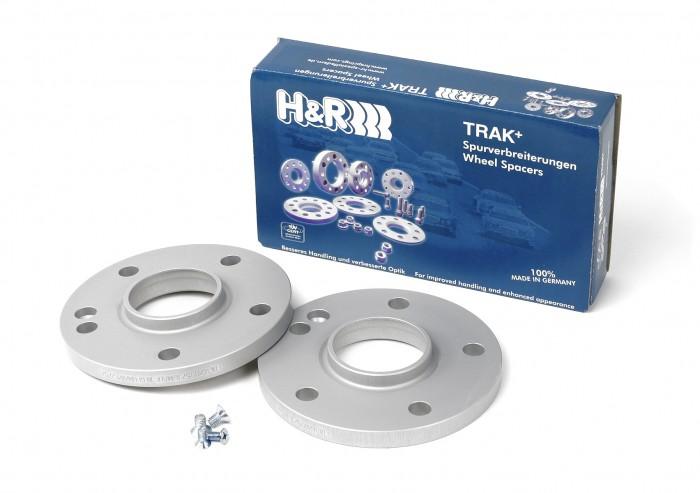

H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out
H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag
H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out

H&R Trak+ DR Wheel Spacers - 10mm - 5x120 - 72.5mm CB - BMW M3 / M4 / M2 2011-2025 - Pair

H&R SKU: HRS2075726
Price
10% OFF
Only 4 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandH&R
SKUHRS2075726
Manufacturer Part Number2075726

Product Information

H&R Trak+ DR wheel spacers push each 5x120 wheel outward 10mm per side for a flush fender fit, staying hubcentric on the 72.5mm bore. Machined from a proprietary alloy with higher tensile strength than 6061-T6 billet aluminum, the full-contact hub spreads load evenly like the factory hub. DR spacers sit between the hub and the wheel, so longer wheel bolts or studs are required and sold separately; sold as a pair.

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Hubcentric wheel spacer (H&R Trak+ DR), bolt-through
Series TRAK+ Wheel Spacer
Thickness 10mm
Bolt Pattern 5x120
Center Bore 72.5mm
Material Proprietary alloy (stronger than 6061-T6 billet aluminum)
Thread 12x1.5 / 14x1.25 / 14x1.5
Hardware Longer wheel bolts required, sold separately
Spacer Type DR
Spacer Width 10mm
Quantity Pair
Finish Silver
Fitment Notes Front only; All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).; Careful attention must be paid to the vehicle hub height and inner wheel bevel measurements. Failure to follow the measurement guidelines below can result in serious damage to wheel spacers, wheels, and mounting hardware. Part Num. System Widening Per Side Maximum Hub Height Inner Wheel Bevel 1465605 DR / 7 8.00mm 4.0 x 45 degrees 162345712 DR / 8 14.00mm 7.0 x 45 degrees 162555716 DR / 8 14.00mm 7.0 x 45 degrees 1655572 DR / 8 14.00mm 7.0 x 45 degrees 1655573 DR / 8 12.00mm 6.0 x 45 degrees 1655577 DR / 8 12.00mm 6.0 x 45 degrees 1655668 DR / 8 13.50mm 6.5 x 45 degrees 1665673MZ5 DRS-MZ / 8 9.00mm 3.0 x 45 degrees 202345714 DR / 10 16.00mm 7.0 x 45 degrees 20245410 DRS / 10 11.00mm 2.0 x 45 degrees 202454101 DRS / 10 11.00mm 2.0 x 45 degrees 20245414 DRS / 10 11.00mm 2.0 x 45 degrees 20245616 DRS / 10 10.00mm 2.0 x 45 degrees 2025541 DRS / 10 10.00mm 2.0 x 45 degrees 20255571 DR / 10 16.00mm 7.0 x 45 degrees 202555712A DR / 10 16.00mm 7.0 x 45 degrees 202555712B DR / 10 14.00mm 5.0 x 45 degrees 20346331 DRS / 10 11.00mm 2.0 x 45 degrees 20356330 DR / 10 11.00mm 2.0 x 45 degrees 20356331 DRS / 10 11.00mm 2.0 x 45 degrees 2035650 DR / 10 11.00mm 2.0 x 45 degrees 20365601 DR / 10 11.00mm 2.0 x 45 degrees 2055571A DR / 10 15.50mm 6.5 x 45 degrees 2055571B DR / 10 12.00mm 4.0 x 45 degrees 2055573A DR / 10 15.00mm 6.0 x 45 degrees 2055573B DR / 10 12.00mm 4.0 x 45 degrees 2055577A DR / 10 15.00mm 6.0 x 45 degrees 2055577B DR / 10 12.00mm 4.0 x 45 degrees 2055665 DR / 10 9.00mm 90 degrees 20556650 DR / 10 10.00mm 90 degrees 2055668 DR / 10 13.50mm 5.0 x 45 degrees 2064640 DRS / 10 11.00mm 2.0 x 45 degrees 2064662 DRS / 10 10.00mm 2.0 x 45 degrees 20656014 DRS / 10 11.00mm 2.0 x 45 degrees 2065640 DRS / 10 11.00mm 2.0 x 45 degrees 2065642MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees tr> 2065643MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees 2065662 DRS / 10 10.00mm 2.0 x 45 degrees 2065700 DRS / 10 11.00mm 2.0 x 45 degrees 2075664 DR / 10 11.00mm 90 degrees 2075725 DR / 10 12.00mm 4.0 x 45 degrees 2075726 DR / 10 12.00mm 4.0 x 45 degrees 2075740 DR / 10 11.00mm 2.0 x 45 degrees 2255664 DR / 11 11.00mm 90 degrees 22556659 DR / 11 9.00mm 90 degrees 2265681CR DR / 11 20.00mm N/A 24255571 DR / 12 15.00mm 5.0 x 45 degrees 2435650 DR / 12 10.00mm 2.0 x 45 degrees 2455571 DR / 12 15.00mm 5.0 x 45 degrees 2455577 DR / 12 15.00mm 5.0 x 45 degrees 2455664 DR / 12 11.50mm 90 degrees 2455665 DR / 12 10.00mm 90 degrees 24556650 DR / 12 11.00mm 90 degrees 2455668 DR / 12 13.50mm 4.0 x 45 degrees 2475664 DR / 12 11.50mm 90 degrees 2475725 DR / 12 12.00mm 2.0 x 45 degrees 2475726 DR / 12 12.00mm 2.0 x 45 degrees 2475740 DR / 12 12.00mm 2.0 x 45 degrees 2655664 DR / 13 12.00mm 90 degrees 2655665 DR / 13 12.50mm 90 degrees 2655669 DR / 13 14.00mm 2.0 x 45 degrees 26556650 DR / 13 11.50mm 90 degrees 2675726 DR / 13 14.50mm 2.0 x 45 degrees 2865642MZ5 DRS-MZ / 14 14.00mm 2.0 x 45 degrees 3055668 DR / 15 17.00mm 4.0 x 45 degrees 4065642 DRM / 20 9.00mm 2.0 x 45 degrees
Part Number 2075726

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2011 BMW 1 Series M Base
2014-2016 BMW 228i Base
2017-2021 BMW 230i Base
2013-2018 BMW 320i Base
2013-2018 BMW 320i xDrive Base
2014-2019 BMW 328d xDrive Base
2012-2016 BMW 328i Base
2014-2016 BMW 328i GT xDrive Base
2013-2016 BMW 328i xDrive Base
2017-2019 BMW 330i Base
2017-2019 BMW 330i GT xDrive Base
2017-2019 BMW 330i xDrive Base
2012-2015 BMW 335i Base
2014-2016 BMW 335i GT xDrive Base
2013-2015 BMW 335i xDrive Base
2016-2018 BMW 340i Base
2017-2019 BMW 340i GT xDrive Base
2016-2018 BMW 340i xDrive Base
2014-2016 BMW 428i Base
2015-2016 BMW 428i Gran Coupe Base
2014-2016 BMW 428i xDrive Base
2015-2016 BMW 428i xDrive Gran Coupe Base
2017-2020 BMW 430i Base
2017-2020 BMW 430i Gran Coupe Base
2017-2020 BMW 430i xDrive Base
2017-2020 BMW 430i xDrive Gran Coupe Base
2014-2016 BMW 435i Base
2015-2016 BMW 435i Gran Coupe Base
2014-2016 BMW 435i xDrive Base
2015-2016 BMW 435i xDrive Gran Coupe Base
2017-2020 BMW 440i Base
2017-2020 BMW 440i Gran Coupe Base
2017-2020 BMW 440i xDrive Base
2017-2020 BMW 440i xDrive Gran Coupe Base
2016-2018 BMW M2 Base
2020 BMW M2 CS
2019-2020 BMW M2 Competition
2014-2016 BMW M235i Base
2015-2016 BMW M235i xDrive Base
2017-2020 BMW M240i Base
2017-2020 BMW M240i xDrive Base
2015-2018 BMW M3 Base
2015-2020 BMW M4 Base
2019 BMW M4 CS
2016 BMW M4 GTS
2012-2016 BMW M5 Base
2013-2018 BMW M6 Base
2014-2019 BMW M6 Gran Coupe Base
2022-2025 Land Rover Range Rover Autobiography
2022 Land Rover Range Rover Base
2022-2023 Land Rover Range Rover First Edition
2022-2025 Land Rover Range Rover LK
2022-2025 Land Rover Range Rover SE
2022-2025 Land Rover Range Rover SV
2022 Land Rover Range Rover SV Autobiography
2022 Land Rover Range Rover SV Autobiography Dynamic
2022 Land Rover Range Rover SV Autobiography Dynamic Black Edition
2022 Land Rover Range Rover Westminster Edition
2022-2025 Land Rover Range Rover Evoque
2024-2025 Land Rover Range Rover Evoque Dynamic SE
2022-2023 Land Rover Range Rover Evoque HST
2022-2023 Land Rover Range Rover Evoque R-Dynamic S
2022-2023 Land Rover Range Rover Evoque R-Dynamic SE
2022-2025 Land Rover Range Rover Evoque S
2022-2025 Land Rover Range Rover Evoque S / SE / Dynamic SE / R-Dynamic S/SE/HSE / HST / First Edition
2022-2023 Land Rover Range Rover Evoque SE
2023-2025 Land Rover Range Rover Sport Autobiography
2022 Land Rover Range Rover Sport Autobiography Dynamic
2023 Land Rover Range Rover Sport First Edition
2022 Land Rover Range Rover Sport HSE Dynamic
2022 Land Rover Range Rover Sport HSE Silver Edition
2022 Land Rover Range Rover Sport HST
2023-2025 Land Rover Range Rover Sport L1
2022-2025 Land Rover Range Rover Sport SE
2023-2025 Land Rover Range Rover Sport SE Dynamic
2024 Land Rover Range Rover Sport SV Edition One
2025 Land Rover Range Rover Sport SV Edition Two
2022 Land Rover Range Rover Sport SVR
2022 Land Rover Range Rover Sport SVR Carbon Edition
2022 Land Rover Range Rover Sport SVR Ultimate Edition
2022-2025 Land Rover Range Rover Velar
2024-2025 Land Rover Range Rover Velar Dynamic HSE
2024-2025 Land Rover Range Rover Velar Dynamic SE
2023 Land Rover Range Rover Velar HST
2022 Land Rover Range Rover Velar R-Dynamic HSE
2022-2023 Land Rover Range Rover Velar R-Dynamic S
2022-2025 Land Rover Range Rover Velar S
2013-2016 Mini Cooper Paceman Base
2013-2016 Mini Cooper Paceman John Cooper Works ALL4
2013-2016 Mini Cooper Paceman S
2013-2016 Mini Cooper Paceman S ALL4
