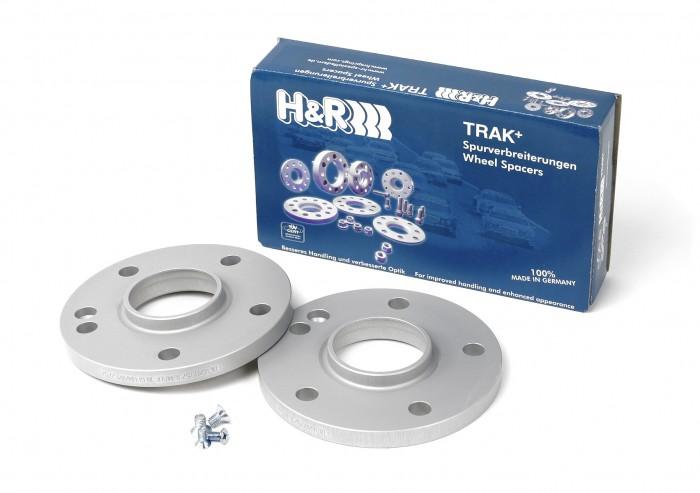

H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag

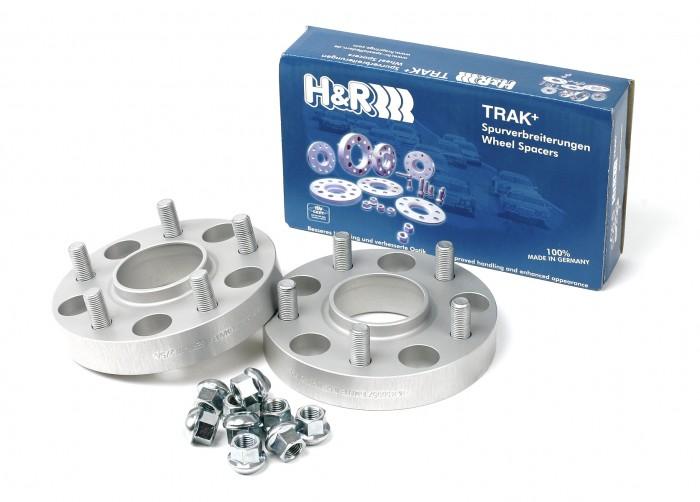

H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out
H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag
H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out

H&R Trak+ DR Wheel Spacers - 12mm - 5x120 - 72.5mm CB - BMW M3 / M5 / 335i 1982-2018 - Pair

H&R SKU: HRS2475725
Price
10% OFF
Only 3 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandH&R
SKUHRS2475725
Manufacturer Part Number2475725

Product Information

H&R Trak+ DR wheel spacers push each 5x120 wheel outward 12mm per side for a flush fender fit, staying hubcentric on the 72.5mm bore. Machined from a proprietary alloy with higher tensile strength than 6061-T6 billet aluminum, the full-contact hub spreads load evenly like the factory hub. DR spacers sit between the hub and the wheel, so longer wheel bolts or studs are required and sold separately; sold as a pair.

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Hubcentric wheel spacer (H&R Trak+ DR), bolt-through
Series TRAK+ Wheel Spacer
Thickness 12mm
Bolt Pattern 5x120
Center Bore 72.5mm
Material Proprietary alloy (stronger than 6061-T6 billet aluminum)
Thread 12x1.5 / 14x1.25 / 14x1.5
Hardware Longer wheel bolts required, sold separately
Spacer Type DR
Spacer Width 12mm
Quantity Pair
Finish Silver
Fitment Notes Rear only; All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).; Careful attention must be paid to the vehicle hub height and inner wheel bevel measurements. Failure to follow the measurement guidelines below can result in serious damage to wheel spacers, wheels, and mounting hardware. Part Num. System Widening Per Side Maximum Hub Height Inner Wheel Bevel 1465605 DR / 7 8.00mm 4.0 x 45 degrees 162345712 DR / 8 14.00mm 7.0 x 45 degrees 162555716 DR / 8 14.00mm 7.0 x 45 degrees 1655572 DR / 8 14.00mm 7.0 x 45 degrees 1655573 DR / 8 12.00mm 6.0 x 45 degrees 1655577 DR / 8 12.00mm 6.0 x 45 degrees 1655668 DR / 8 13.50mm 6.5 x 45 degrees 1665673MZ5 DRS-MZ / 8 9.00mm 3.0 x 45 degrees 202345714 DR / 10 16.00mm 7.0 x 45 degrees 20245410 DRS / 10 11.00mm 2.0 x 45 degrees 202454101 DRS / 10 11.00mm 2.0 x 45 degrees 20245414 DRS / 10 11.00mm 2.0 x 45 degrees 20245616 DRS / 10 10.00mm 2.0 x 45 degrees 2025541 DRS / 10 10.00mm 2.0 x 45 degrees 20255571 DR / 10 16.00mm 7.0 x 45 degrees 202555712A DR / 10 16.00mm 7.0 x 45 degrees 202555712B DR / 10 14.00mm 5.0 x 45 degrees 20346331 DRS / 10 11.00mm 2.0 x 45 degrees 20356330 DR / 10 11.00mm 2.0 x 45 degrees 20356331 DRS / 10 11.00mm 2.0 x 45 degrees 2035650 DR / 10 11.00mm 2.0 x 45 degrees 20365601 DR / 10 11.00mm 2.0 x 45 degrees 2055571A DR / 10 15.50mm 6.5 x 45 degrees 2055571B DR / 10 12.00mm 4.0 x 45 degrees 2055573A DR / 10 15.00mm 6.0 x 45 degrees 2055573B DR / 10 12.00mm 4.0 x 45 degrees 2055577A DR / 10 15.00mm 6.0 x 45 degrees 2055577B DR / 10 12.00mm 4.0 x 45 degrees 2055665 DR / 10 9.00mm 90 degrees 20556650 DR / 10 10.00mm 90 degrees 2055668 DR / 10 13.50mm 5.0 x 45 degrees 2064640 DRS / 10 11.00mm 2.0 x 45 degrees 2064662 DRS / 10 10.00mm 2.0 x 45 degrees 20656014 DRS / 10 11.00mm 2.0 x 45 degrees 2065640 DRS / 10 11.00mm 2.0 x 45 degrees 2065642MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees tr> 2065643MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees 2065662 DRS / 10 10.00mm 2.0 x 45 degrees 2065700 DRS / 10 11.00mm 2.0 x 45 degrees 2075664 DR / 10 11.00mm 90 degrees 2075725 DR / 10 12.00mm 4.0 x 45 degrees 2075726 DR / 10 12.00mm 4.0 x 45 degrees 2075740 DR / 10 11.00mm 2.0 x 45 degrees 2255664 DR / 11 11.00mm 90 degrees 22556659 DR / 11 9.00mm 90 degrees 2265681CR DR / 11 20.00mm N/A 24255571 DR / 12 15.00mm 5.0 x 45 degrees 2435650 DR / 12 10.00mm 2.0 x 45 degrees 2455571 DR / 12 15.00mm 5.0 x 45 degrees 2455577 DR / 12 15.00mm 5.0 x 45 degrees 2455664 DR / 12 11.50mm 90 degrees 2455665 DR / 12 10.00mm 90 degrees 24556650 DR / 12 11.00mm 90 degrees 2455668 DR / 12 13.50mm 4.0 x 45 degrees 2475664 DR / 12 11.50mm 90 degrees 2475725 DR / 12 12.00mm 2.0 x 45 degrees 2475726 DR / 12 12.00mm 2.0 x 45 degrees 2475740 DR / 12 12.00mm 2.0 x 45 degrees 2655664 DR / 13 12.00mm 90 degrees 2655665 DR / 13 12.50mm 90 degrees 2655669 DR / 13 14.00mm 2.0 x 45 degrees 26556650 DR / 13 11.50mm 90 degrees 2675726 DR / 13 14.50mm 2.0 x 45 degrees 2865642MZ5 DRS-MZ / 14 14.00mm 2.0 x 45 degrees 3055668 DR / 15 17.00mm 4.0 x 45 degrees 4065642 DRM / 20 9.00mm 2.0 x 45 degrees
Part Number 2475725

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2008-2013 BMW 128i Base
2008-2013 BMW 135i Base
2013 BMW 135is Base
1992-1999 BMW 318i Base
1992-1998 BMW 318is Base
1995-1998 BMW 318ti Base
1999-2005 BMW 323Ci Base
1999-2005 BMW 323i Base
1999-2013 BMW 325Ci Base
1992-2012 BMW 325i Base
1992-1998 BMW 325is Base
2001-2006 BMW 325xi Base
1999-2013 BMW 328Ci Base
1992-2013 BMW 328i Base
1992-1998 BMW 328is Base
2007-2013 BMW 328xi Base
1999-2013 BMW 330Ci Base
1999-2006 BMW 330i Base
2001-2006 BMW 330xi Base
2006-2013 BMW 335Ci Convertible E93 Cabrio
2008-2011 BMW 335d Base
2007-2013 BMW 335i Base
2007-2013 BMW 335is Base
2007-2013 BMW 335xi Base
1990-1995, 2004-2007 BMW 525i Base
2004-2010 BMW 525xi Base
1982-1988 BMW 528e Base
2008-2016 BMW 528i Base
1993-1995, 2004-2007 BMW 530i Base
2004-2010 BMW 530xi Base
2014-2016 BMW 535d Base
1985-1993, 2008-2016 BMW 535i Base
2010-2016 BMW 535i GT Base
2011-2016 BMW 535i GT xDrive Base
1982-1988 BMW 535is Base
2004-2010 BMW 535xi Base
1993-1995 BMW 540i Base
2004-2006 BMW 545i Base
2006-2016 BMW 550i Base
2010-2015 BMW 550i GT Base
2010-2016 BMW 550i GT xDrive Base
1983-1990 BMW 633i E24
1983-1990 BMW 635i E24
2012-2018 BMW 640i Base
2014-2018 BMW 640i xDrive Base
2004-2011 BMW 645Ci Base
2006-2010, 2012-2018 BMW 650i Base
2012-2018 BMW 650i xDrive Base
1995-2001 BMW 730i E38
1995-2001 BMW 730iL E38
1983-1987 BMW 733i Base
1988-1994 BMW 735i Base
1989-1994 BMW 735iL Base
2011-2015 BMW 740Li Base
2013-2015 BMW 740Li xDrive Base
1988-2001, 2009-2015 BMW 740i Base
1989-2001 BMW 740iL Base
2002-2008 BMW 745Li Base
2002-2008 BMW 745i Base
2011-2012 BMW 750Li ActiveHybrid
2006-2015 BMW 750Li Base
2010-2015 BMW 750Li xDrive Base
2011-2012 BMW 750i ActiveHybrid
2006-2015 BMW 750i Base
2010-2015 BMW 750i xDrive Base
1988-1994, 1997-2001 BMW 750iL Base
2003-2006, 2009-2015 BMW 760Li Base
2003-2006 BMW 760i Base
1990-1997 BMW 840Ci Base
1990-1997 BMW 840i E31
1990-1997 BMW 840i G14/G15/G16
1990-1997 BMW 850Ci Base
1990-1997 BMW 850i Base
1998-2002 BMW M-Coupe MRC
1998-2002 BMW M-Roadster MRC
1988-1991, 1995-1999, 2001-2006, 2008-2013 BMW M3 Base
1995 BMW M3 Lightweight
1990-1995, 2005-2010 BMW M5 Base
2005-2011 BMW M6 Base
2013-2015 BMW X1 sDrive28i
2013-2015 BMW X1 xDrive28i
2004-2005 BMW X3 2.5i
2004-2006 BMW X3 3.0i
2007-2008 BMW X3 3.0si
2015-2017 BMW X3 sDrive28i
2015-2017 BMW X3 xDrive28d
2011-2017 BMW X3 xDrive28i
2009-2010 BMW X3 xDrive30i
2011-2017 BMW X3 xDrive35i
2017-2018 BMW X4 M40i
2015-2018 BMW X4 xDrive28i
2015-2016 BMW X4 xDrive35i
2001-2006 BMW X5 3.0i
2000-2006 BMW X5 4.4i
2002-2003 BMW X5 4.6is
2004-2006 BMW X5 4.8is
2010-2013 BMW X5 M
2010-2011 BMW X6 ActiveHybrid
2010-2014 BMW X6 M
2008-2014 BMW X6 xDrive35i
2008-2014 BMW X6 xDrive50i
1999-2002 BMW Z3 Coupe
1999-2002 BMW Z3 M Coupe
1998-2002 BMW Z3 M Roadster
1996-2002 BMW Z3 Roadster
2003-2005 BMW Z4 2.5i
2003-2005 BMW Z4 3.0i
2006-2008 BMW Z4 Coupe 3.0si
2006-2008 BMW Z4 M Coupe
2006-2008 BMW Z4 M Roadster
2006-2008 BMW Z4 Roadster 3.0i
2006-2008 BMW Z4 Roadster 3.0si
2009-2011 BMW Z4 sDrive30i
2009-2016 BMW Z4 sDrive35i
2011-2016 BMW Z4 sDrive35is
2003 BMW Z8 Alpina
2000-2003 BMW Z8 Base
2011-2016 Mini Cooper Countryman Base
2013-2016 Mini Cooper Countryman John Cooper Works ALL4
2011-2016 Mini Cooper Countryman S
2011-2016 Mini Cooper Countryman S ALL4
2013-2014 Mini Cooper Paceman Base
