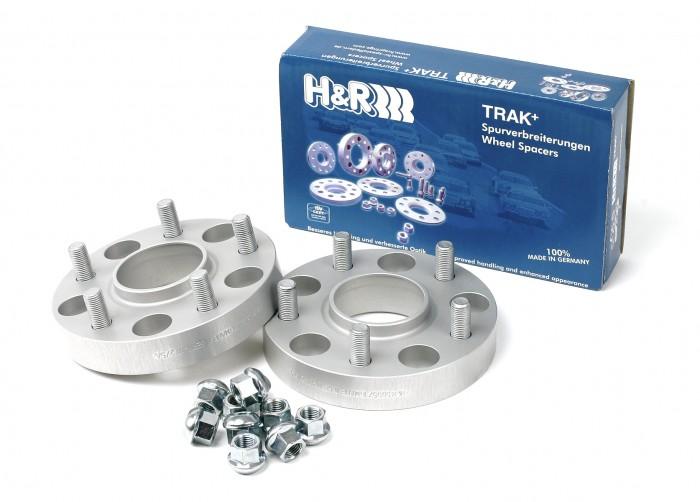

H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag
H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out
H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag
H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out

H&R Trak+ DR Wheel Spacers - 15mm - 5x108 - 65mm CB - Volvo S60 1993-2009 - Pair

H&R SKU: HRS3035650
Price
10% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandH&R
SKUHRS3035650
Manufacturer Part Number3035650

Product Information

H&R Trak+ DR wheel spacers push each 5x108 wheel outward 15mm per side for a flush fender fit, staying hubcentric on the 65mm bore. Machined from a proprietary alloy with higher tensile strength than 6061-T6 billet aluminum, the full-contact hub spreads load evenly like the factory hub. DR spacers sit between the hub and the wheel, so longer wheel bolts or studs are required and sold separately; sold as a pair.

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Hubcentric wheel spacer (H&R Trak+ DR), bolt-through
Series TRAK+ Wheel Spacer
Thickness 15mm
Bolt Pattern 5x108
Center Bore 65mm
Material Proprietary alloy (stronger than 6061-T6 billet aluminum)
Thread 12x1.75 / 14x1.5
Hardware Longer wheel bolts required, sold separately
Spacer Type DR
Spacer Width 15mm
Fitment Notes All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).
Quantity Pair
Finish Silver
Part Number 3035650

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
1994-1997 Volvo 850 Base
1993-1997 Volvo 850 GLT
1996-1997 Volvo 850 R
1997 Volvo 850 T-5
1995 Volvo 850 T-5R
1994-1996 Volvo 850 Turbo
1998-2004 Volvo C70 Base
2004-2005 Volvo S60 2.4
2001-2003 Volvo S60 2.4T
2004-2009 Volvo S60 2.5T
2004-2005 Volvo S60 2.5T AWD
2002-2003 Volvo S60 AWD
2001-2003 Volvo S60 Base
2004-2007 Volvo S60 R
2001-2009 Volvo S60 T5
1998 Volvo S70 Base
1998 Volvo S70 GLT
1998 Volvo S70 T5
2004-2006 Volvo S80 2.5T
2004-2006 Volvo S80 2.5T AWD
1999-2004 Volvo S80 2.9
1999-2005 Volvo S80 T6
2005 Volvo S80 T6 Premier
2004-2007 Volvo V70 2.4
2001-2003 Volvo V70 2.4T
2004-2007 Volvo V70 2.5T
2004 Volvo V70 2.5T AWD
1998-1999, 2002-2003 Volvo V70 AWD
1998-2003 Volvo V70 Base
1998-2000 Volvo V70 GLT
2000 Volvo V70 GLT SE
1998, 2004-2007 Volvo V70 R
1999-2000 Volvo V70 R AWD
1998-2005 Volvo V70 T5
2001-2002 Volvo V70 X/C
1998-2000 Volvo V70 X/C AWD
2000 Volvo V70 X/C AWD SE

Which vehicles does this fit?

  • It fits the Volvo 850 1993-1997, Volvo C70 1998-2004, Volvo S60 2001-2009, Volvo S70 1998, Volvo S80 1999-2006, Volvo V70 1998-2007. The full year, make, model and submodel list is in the fitment table on this page.

How many are in one order?

  • Pair.

What is it made of?

  • Proprietary alloy (stronger than 6061-T6 billet aluminum).
