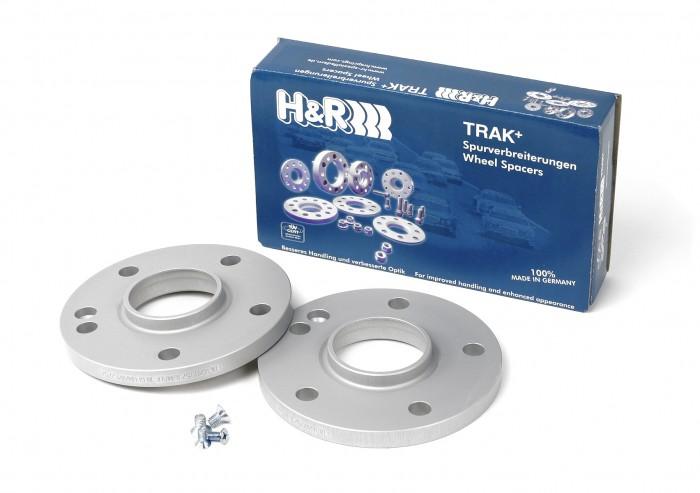

H&R Trak+ DR Wheel Spacers, boxed pair, flat discs, angled view

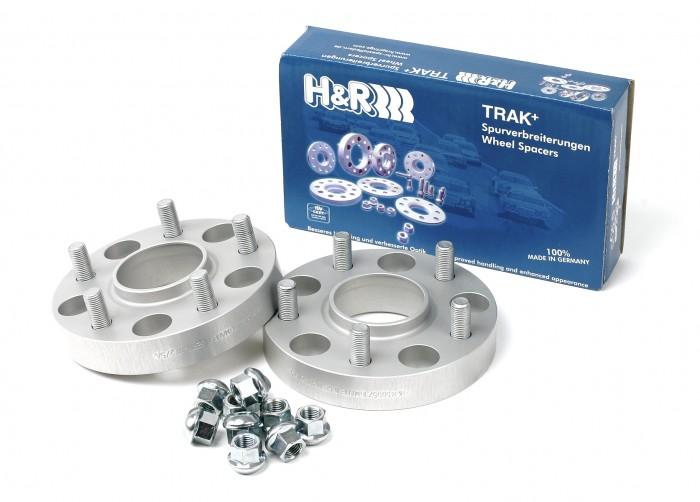

H&R Trak+ DR Wheel Spacers, boxed pair with studs and bolts
H&R Trak+ DR Wheel Spacers, boxed pair, flat discs, angled view
H&R Trak+ DR Wheel Spacers, boxed pair with studs and bolts

H&R Trak+ DR Wheel Spacers - 5mm - 4x100 / 4x108 - 57.1mm CB - VW Jetta / Golf 1980-2002 - Pair

H&R SKU: HRS10234571
Price
10% OFF
Only 3 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandH&R
SKUHRS10234571
Manufacturer Part Number10234571

Product Information

H&R Trak+ DR wheel spacers push each 4x100 / 4x108 wheel outward 5mm per side for a flush fender fit, staying hubcentric on the 57.1mm bore. Machined from a proprietary alloy with higher tensile strength than 6061-T6 billet aluminum, the full-contact hub spreads load evenly like the factory hub. DR spacers sit between the hub and the wheel, so longer wheel bolts or studs are required and sold separately; sold as a pair.

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Hubcentric wheel spacer (H&R Trak+ DR), bolt-through
Series TRAK+ Wheel Spacer
Thickness 5mm
Bolt Pattern 4x100 / 4x108
Center Bore 57.1mm
Material Proprietary alloy (stronger than 6061-T6 billet aluminum)
Thread 12x1.5 / 14x1.5
Hardware Longer wheel bolts required, sold separately
Spacer Type DR
Spacer Width 5mm
Quantity Pair
Finish Silver
Fitment Notes All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).; These are hub-centric flat disc type spacers which require the factory hub to center the wheels. Please measure the vehicle hub to verify sufficient height will remain to center the wheel after spacer installation.
Part Number 10234571

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
1989-1993 Audi 100 Base
1992-1994 Audi 100 CS
1989 Audi 100 E
1992-1994 Audi 100 S
1989-1990 Audi 100 Quattro Base
1989-1991 Audi 200 Base
1991 Audi 200 Quattro 20v Avant
1991 Audi 200 Quattro Avant
1989-1990 Audi 200 Quattro Base
1986-1987 Audi 4000 Quattro CS
1984-1985 Audi 4000 Quattro S
1986-1988 Audi 5000 CS
1985 Audi 5000 CS Turbo
1984-1988 Audi 5000 S
1984-1985 Audi 5000 S Turbo
1986-1988 Audi 5000 Quattro CS
1987-1988 Audi 5000 Quattro S
1989-1991 Audi 90 Quattro 20v
1983-1985 Audi Quattro Base
1984-1985, 1991 BMW 318i Base
1990-1991 BMW 318is Base
1985-1991 BMW 325e Base
1985-1991 BMW 325i Base
1987-1990 BMW 325iX Base
1985-1991 BMW 325is Base
1995-1999 Volkswagen Cabrio Base
1998, 2000-2002 Volkswagen Cabrio GL
1998-2002 Volkswagen Cabrio GLS
2001-2002 Volkswagen Cabrio GLX
1997 Volkswagen Cabrio High Line
1985-1993 Volkswagen Cabriolet Base
1988-1990 Volkswagen Cabriolet Bestseller
1988-1990 Volkswagen Cabriolet Boutique
1991-1992 Volkswagen Cabriolet Carat
1992-1993 Volkswagen Cabriolet Classic
1991 Volkswagen Cabriolet Etienne Aigner
1987, 1989, 1992 Volkswagen Cabriolet Wolfsburg Edition
1990-1993 Volkswagen Corrado G60
1985-1986, 1988-1989 Volkswagen Golf Base
1995 Volkswagen Golf Celebration Edition
1995 Volkswagen Golf City
1987-1998 Volkswagen Golf GL
1987-1988 Volkswagen Golf GT
1985-1987, 1994, 1996-1998 Volkswagen Golf GTI
1987-1992 Volkswagen Golf GTI 16-Valve
1990-1992 Volkswagen Golf GTI 8-Valve
1995-1998 Volkswagen Golf GTI VR6
1997 Volkswagen Golf Jazz
1997-1998 Volkswagen Golf K2
1994 Volkswagen Golf Limited Edition
1995 Volkswagen Golf Sport
1997 Volkswagen Golf Trek
1980-1989 Volkswagen Jetta Base
1988-1992 Volkswagen Jetta Carat
1995 Volkswagen Jetta Celebration Edition
1995 Volkswagen Jetta City
1984-1998 Volkswagen Jetta GL
1984-1987 Volkswagen Jetta GLI
1987-1992 Volkswagen Jetta GLI 16-Valve
1994-1998 Volkswagen Jetta GLS
1994-1998 Volkswagen Jetta GLX
1997-1998 Volkswagen Jetta GT
1997 Volkswagen Jetta Jazz
1998 Volkswagen Jetta K2
1994 Volkswagen Jetta Limited Edition
1981 Volkswagen Jetta Special Edition
1997-1998 Volkswagen Jetta TDI
1996 Volkswagen Jetta Trek
1983, 1987, 1996, 1998 Volkswagen Jetta Wolfsburg Edition
1992 Volkswagen Passat CL
1990-1994 Volkswagen Passat CL / GL / GL TDI / GLS / GLS 4 Motion / GLS TDI / GLX / TDI / TDI SE / TDI SEL / TDI SEL Premium
1990-1994 Volkswagen Passat CL / GL / GLS
1990-1993 Volkswagen Passat GL
1993-1994 Volkswagen Passat GLX
1993-1994 Volkswagen Passat GLX / GLS / GL
1980-1982 Volkswagen Rabbit Base
1980 Volkswagen Rabbit Custom
1980 Volkswagen Rabbit Deluxe
1983-1984 Volkswagen Rabbit GL
1983-1984 Volkswagen Rabbit GTI
1981-1984 Volkswagen Rabbit L
1981 Volkswagen Rabbit L Custom
1981-1983 Volkswagen Rabbit LS
1982 Volkswagen Rabbit Limited Edition
1981 Volkswagen Rabbit Ls Deluxe
1981-1982 Volkswagen Rabbit S
1983-1984 Volkswagen Rabbit Wolfsburg Edition
1986-1988 Volkswagen Scirocco 16-Valve
1980-1987 Volkswagen Scirocco Base
1982-1983 Volkswagen Scirocco GL
1980-1981 Volkswagen Scirocco S
