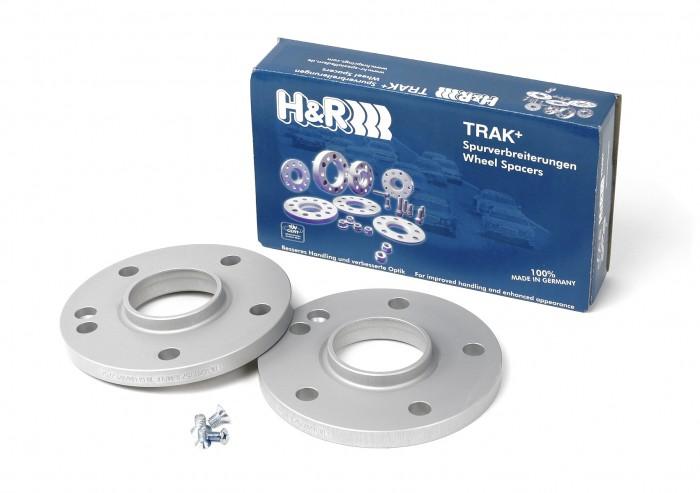

H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag

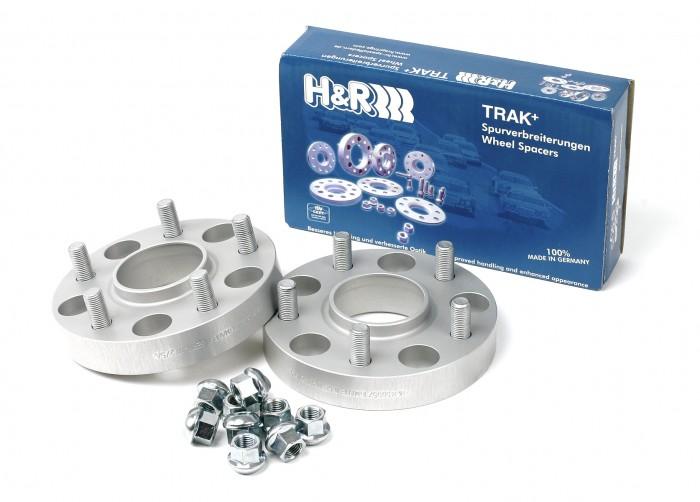

H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out
H&R Trak+ DR Wheel Spacers, boxed pair, small hardware bag
H&R Trak+ DR Wheel Spacers, boxed pair, bolts laid out

H&R Trak+ DR Wheel Spacers - 7mm - 5x130 - 71.6mm CB - 14x1.5 - Porsche 911 / Cayman / Boxster 1997-2020 - Pair

H&R SKU: HRS14957161
Price
10% OFF
Only 1 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandH&R
SKUHRS14957161
GTIN / UPC14957161
Manufacturer Part Number14957161

Product Information

H&R Trak+ DR wheel spacers push each 5x130 wheel outward 7mm per side for a flush fender fit, staying hubcentric on the 71.6mm bore. Machined from a proprietary alloy with higher tensile strength than 6061-T6 billet aluminum, the full-contact hub spreads load evenly like the factory hub. DR spacers sit between the hub and the wheel, so longer wheel bolts or studs are required and sold separately; sold as a pair.

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Hubcentric wheel spacer (H&R Trak+ DR), bolt-through
Series TRAK+ Wheel Spacer
Thickness 7mm
Bolt Pattern 5x130
Center Bore 71.6mm
Material Proprietary alloy (stronger than 6061-T6 billet aluminum)
Thread 14x1.5
Hardware Longer wheel bolts required, sold separately
Spacer Type DR
Spacer Width 7mm
Quantity Pair
Finish Silver
Fitment Notes All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).; These are hub-centric flat disc type spacers which require the factory hub to center the wheels. Please measure the vehicle hub to verify sufficient height will remain to center the wheel after spacer installation.; Careful attention must be paid to the vehicle hub height and inner wheel bevel measurements. Failure to follow the measurement guidelines below can result in serious damage to wheel spacers, wheels, and mounting hardware. Part Num. System Widening Per Side Maximum Hub Height Inner Wheel Bevel 1465605 DR / 7 8.00mm 4.0 x 45 degrees 162345712 DR / 8 14.00mm 7.0 x 45 degrees 162555716 DR / 8 14.00mm 7.0 x 45 degrees 1655572 DR / 8 14.00mm 7.0 x 45 degrees 1655573 DR / 8 12.00mm 6.0 x 45 degrees 1655577 DR / 8 12.00mm 6.0 x 45 degrees 1655668 DR / 8 13.50mm 6.5 x 45 degrees 1665673MZ5 DRS-MZ / 8 9.00mm 3.0 x 45 degrees 202345714 DR / 10 16.00mm 7.0 x 45 degrees 20245410 DRS / 10 11.00mm 2.0 x 45 degrees 202454101 DRS / 10 11.00mm 2.0 x 45 degrees 20245414 DRS / 10 11.00mm 2.0 x 45 degrees 20245616 DRS / 10 10.00mm 2.0 x 45 degrees 2025541 DRS / 10 10.00mm 2.0 x 45 degrees 20255571 DR / 10 16.00mm 7.0 x 45 degrees 202555712A DR / 10 16.00mm 7.0 x 45 degrees 202555712B DR / 10 14.00mm 5.0 x 45 degrees 20346331 DRS / 10 11.00mm 2.0 x 45 degrees 20356330 DR / 10 11.00mm 2.0 x 45 degrees 20356331 DRS / 10 11.00mm 2.0 x 45 degrees 2035650 DR / 10 11.00mm 2.0 x 45 degrees 20365601 DR / 10 11.00mm 2.0 x 45 degrees 2055571A DR / 10 15.50mm 6.5 x 45 degrees 2055571B DR / 10 12.00mm 4.0 x 45 degrees 2055573A DR / 10 15.00mm 6.0 x 45 degrees 2055573B DR / 10 12.00mm 4.0 x 45 degrees 2055577A DR / 10 15.00mm 6.0 x 45 degrees 2055577B DR / 10 12.00mm 4.0 x 45 degrees 2055665 DR / 10 9.00mm 90 degrees 20556650 DR / 10 10.00mm 90 degrees 2055668 DR / 10 13.50mm 5.0 x 45 degrees 2064640 DRS / 10 11.00mm 2.0 x 45 degrees 2064662 DRS / 10 10.00mm 2.0 x 45 degrees 20656014 DRS / 10 11.00mm 2.0 x 45 degrees 2065640 DRS / 10 11.00mm 2.0 x 45 degrees 2065642MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees tr> 2065643MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees 2065662 DRS / 10 10.00mm 2.0 x 45 degrees 2065700 DRS / 10 11.00mm 2.0 x 45 degrees 2075664 DR / 10 11.00mm 90 degrees 2075725 DR / 10 12.00mm 4.0 x 45 degrees 2075726 DR / 10 12.00mm 4.0 x 45 degrees 2075740 DR / 10 11.00mm 2.0 x 45 degrees 2255664 DR / 11 11.00mm 90 degrees 22556659 DR / 11 9.00mm 90 degrees 2265681CR DR / 11 20.00mm N/A 24255571 DR / 12 15.00mm 5.0 x 45 degrees 2435650 DR / 12 10.00mm 2.0 x 45 degrees 2455571 DR / 12 15.00mm 5.0 x 45 degrees 2455577 DR / 12 15.00mm 5.0 x 45 degrees 2455664 DR / 12 11.50mm 90 degrees 2455665 DR / 12 10.00mm 90 degrees 24556650 DR / 12 11.00mm 90 degrees 2455668 DR / 12 13.50mm 4.0 x 45 degrees 2475664 DR / 12 11.50mm 90 degrees 2475725 DR / 12 12.00mm 2.0 x 45 degrees 2475726 DR / 12 12.00mm 2.0 x 45 degrees 2475740 DR / 12 12.00mm 2.0 x 45 degrees 2655664 DR / 13 12.00mm 90 degrees 2655665 DR / 13 12.50mm 90 degrees 2655669 DR / 13 14.00mm 2.0 x 45 degrees 26556650 DR / 13 11.50mm 90 degrees 2675726 DR / 13 14.50mm 2.0 x 45 degrees 2865642MZ5 DRS-MZ / 14 14.00mm 2.0 x 45 degrees 3055668 DR / 15 17.00mm 4.0 x 45 degrees 4065642 DRM / 20 9.00mm 2.0 x 45 degrees
Part Number 14957161

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2017-2020 Porsche 718 Boxster Base
2018-2019 Porsche 718 Boxster GTS
2017-2020 Porsche 718 Boxster S
2017-2020 Porsche 718 Cayman Base
2020 Porsche 718 Cayman GT4
2018-2019 Porsche 718 Cayman GTS
2017-2020 Porsche 718 Cayman S
1998-2020 Porsche 911 Carrera
1999-2004, 2006-2019 Porsche 911 Carrera 4
2002-2004, 2006-2020 Porsche 911 Carrera 4S
2015-2016, 2018-2019 Porsche 911 Carrera GTS
2012-2020 Porsche 911 Carrera S
2004-2005, 2007-2008, 2010-2011 Porsche 911 GT3
2014-2019 Porsche 911 Targa 4
2014-2019 Porsche 911 Targa 4S
2001-2005, 2007-2008, 2010-2012, 2014-2019 Porsche 911 Turbo
2014-2019 Porsche 911 Turbo S
1997-1999, 2004-2016 Porsche Boxster Base
2016 Porsche Boxster Black Edition
2015-2016 Porsche Boxster GTS
2008 Porsche Boxster Limited Edition
2008 Porsche Boxster RS 60 Spyder
2000-2003 Porsche Boxster Roadster
2000-2003 Porsche Boxster Roadster S
2004-2016 Porsche Boxster S
2012 Porsche Boxster S Black Edition
2008 Porsche Boxster S Limited Edition
2009 Porsche Boxster S Porsche Design 2
2004 Porsche Boxster S Special Edition
2011-2012, 2016 Porsche Boxster Spyder
2007-2012, 2014-2016 Porsche Cayman Base
2016 Porsche Cayman Black Edition
2016 Porsche Cayman GT4
2015-2016 Porsche Cayman GTS
2012 Porsche Cayman R
2006-2012, 2014-2016 Porsche Cayman S
2011-2020 Porsche Panamera 4
2016 Porsche Panamera 4 Edition
2017-2020 Porsche Panamera 4 Executive
2010-2020 Porsche Panamera 4S
2014-2020 Porsche Panamera 4S Executive
2011-2016 Porsche Panamera Base
2016 Porsche Panamera Edition
2016 Porsche Panamera Exclusive
2013-2016 Porsche Panamera GTS
2010-2016 Porsche Panamera S
2014-2016 Porsche Panamera S E-Hybrid
2012-2013 Porsche Panamera S Hybrid
2010-2020 Porsche Panamera Turbo
2014-2020 Porsche Panamera Turbo Executive
2012-2016 Porsche Panamera Turbo S
2014-2016 Porsche Panamera Turbo S Executive
