H&R Trak+ DR Wheel Spacers - 10mm - 5x130 - 71.6mm CB - 14x1.5 - Porsche Cayman / Boxster / Cayenne 2017-2026 - Pair

H&R SKU: HRS20957160Z
Price
10% OFF
Only 4 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

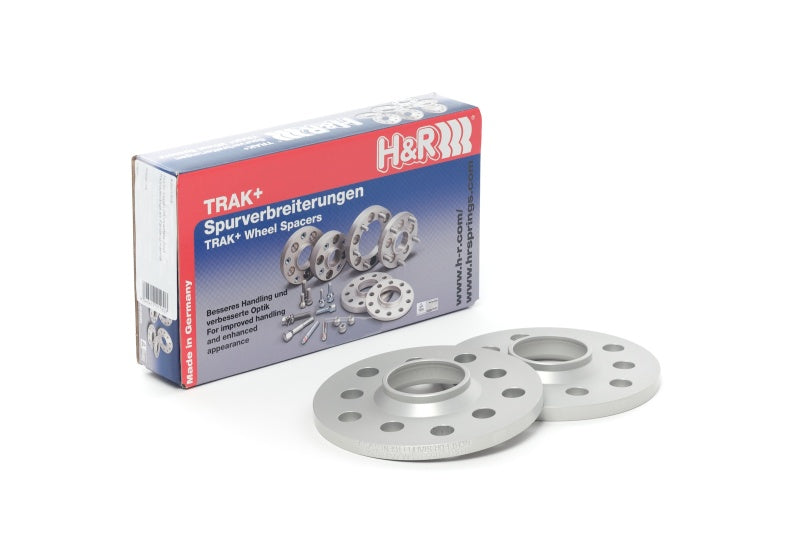

H&R Trak+ DR wheel spacers add 10mm per side for 20mm of extra track across the axle, and are machined from a proprietary aluminum and magnesium alloy that H&R rates above 6061-T6 billet for tensile strength. The DR design sits between the hub face and the wheel and carries a full contact hubcentric register on a 71.6mm center bore with a 5x130 bolt pattern, so wheel load is taken by the hub rather than by the fasteners. Fitment uses longer 14x1.5 wheel bolts, which are ordered separately. The spacers are hard anodized in silver and produced in Germany.

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Hubcentric wheel spacer (Trak+ DR Series)
Series TRAK+ Wheel Spacer
Width 10mm per spacer (20mm per axle)
Bolt Pattern 5x130
Center Bore 71.6mm
Bolt Thread 14x1.5
Material Proprietary aluminum and magnesium alloy
Finish Hard anodized silver
Hardware Longer wheel bolts required, sold separately
Manufactured In Germany
Spacer Type DR
Spacer Width 10mm
Fitment Notes All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).
Quantity Pair (2 spacers)
Part Number 20957160Z

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2021-2022 Porsche 718 Boxster 25 Years
2017-2025 Porsche 718 Boxster Base
2018-2019 Porsche 718 Boxster GTS
2021-2025 Porsche 718 Boxster GTS 4.0
2017-2025 Porsche 718 Boxster S
2024-2025 Porsche 718 Boxster Style Edition
2020-2023 Porsche 718 Boxster T
2017-2025 Porsche 718 Cayman Base
2020-2023 Porsche 718 Cayman GT4
2022-2025 Porsche 718 Cayman GT4 RS
2018-2019 Porsche 718 Cayman GTS
2021-2025 Porsche 718 Cayman GTS 4.0
2017-2025 Porsche 718 Cayman S
2024-2025 Porsche 718 Cayman Style Edition
2020-2023 Porsche 718 Cayman T
2020-2023 Porsche 718 Spyder Base
2024-2025 Porsche 718 Spyder RS
2021-2024 Porsche 911 992
2022-2023 Porsche 911 992 Carrera 4 GTS / Targa 4
2021-2026 Porsche 911 Carrera
2021-2024 Porsche 911 Carrera (992.1)
2021-2024 Porsche 911 Carrera / 4 / S / 4S (992.1)
2025 Porsche 911 Carrera / T / S / 4S (992.2)
2021-2024 Porsche 911 Carrera 4
2021-2024 Porsche 911 Carrera 4 (992.1)
2022-2026 Porsche 911 Carrera 4 GTS
2021-2024 Porsche 911 Carrera 4 GTS (992.1)
2021-2024 Porsche 911 Carrera 4S
2021-2024 Porsche 911 Carrera 4S (992.1)
2022-2026 Porsche 911 Carrera GTS
2021-2024 Porsche 911 Carrera GTS (992.1)
2021-2024 Porsche 911 Carrera GTS / 4 GTS (992.1)
2021-2026 Porsche 911 Carrera S
2021-2024 Porsche 911 Carrera S (992.1)
2023-2026 Porsche 911 Carrera T
2023-2024 Porsche 911 Dakar
2023 Porsche 911 Edition 50 Years Porsche Design
2022-2026 Porsche 911 GT3
2023-2026 Porsche 911 GT3 Touring Package
2024-2025 Porsche 911 S/T
2026 Porsche 911 Spirit 70
2023 Porsche 911 Sport Classic
2021-2024 Porsche 911 Targa 4
2022-2026 Porsche 911 Targa 4 GTS
2021-2024 Porsche 911 Targa 4S
2021 Porsche 911 Targa 4S Heritage Design Edition
2021-2025 Porsche 911 Turbo
2021-2024 Porsche 911 Turbo (992.1)
2021-2024 Porsche 911 Turbo / Turbo S (992)
2021-2024 Porsche 911 Turbo / Turbo S (992.1)
2025 Porsche 911 Turbo 50 Years
2021-2025 Porsche 911 Turbo S
2021-2024 Porsche 911 Turbo S (992.1)
2021-2026 Porsche 911 (992) Carrera
2021-2026 Porsche 911 (992) Carrera 4
2021-2026 Porsche 911 (992) Carrera 4 GTS
2021-2026 Porsche 911 (992) Carrera 4S
2021-2026 Porsche 911 (992) Carrera GTS
2021-2026 Porsche 911 (992) Carrera S
2021-2024 Porsche 911 (992.1) Carrera
2021-2024 Porsche 911 (992.1) Carrera / Carrera 4 / Carrera S / Carrera 4S / Carrera GTS / Carrera 4 GTS
2021-2024 Porsche 911 (992.1) Carrera 4
2021-2024 Porsche 911 (992.1) Carrera 4 GTS
2021-2024 Porsche 911 (992.1) Carrera 4S
2021-2024 Porsche 911 (992.1) Carrera GTS
2021-2024 Porsche 911 (992.1) Carrera S
2021-2024 Porsche 911 (992.1) Dakar
2021-2024 Porsche 911 (992.1) Turbo
2021-2024 Porsche 911 (992.1) Turbo / Turbo S
2021-2024 Porsche 911 (992.1) Turbo / Turbo S / Carrera / Carrera 4 / Carrera S / Carrera 4S / Carrera GTS / Carrera 4 GTS
2021-2024 Porsche 911 (992.1) Turbo S
2021-2026 Porsche 911 (992.2) Carrera
2025-2026 Porsche 911 (992.2) Carrera / Carrera T / Carrera S / Carrera 4S
2021-2026 Porsche 911 (992.2) Carrera 4S
2021-2026 Porsche 911 (992.2) Carrera S
2021-2026 Porsche 911 (992.2) Carrera T
2021-2024 Porsche 911 Turbo 992 (3.8TT)
2021-2024 Porsche 911 Turbo S 992 (3.8TT)
2019-2025 Porsche Cayenne Base
2020-2025 Porsche Cayenne Coupe
2023 Porsche Cayenne Coupe Platinum Edition
2019-2025 Porsche Cayenne E-Hybrid
2020-2025 Porsche Cayenne E-Hybrid Coupe
2023 Porsche Cayenne E-Hybrid Coupe Platinum Edition
2023 Porsche Cayenne E-Hybrid Platinum Edition
2021-2023, 2025 Porsche Cayenne GTS
2021-2023, 2025 Porsche Cayenne GTS Coupe
2022-2023 Porsche Cayenne Platinum Edition
2019-2025 Porsche Cayenne S
2020-2025 Porsche Cayenne S Coupe
2023 Porsche Cayenne S Coupe Platinum Edition
2024-2025 Porsche Cayenne S E-Hybrid
2024-2025 Porsche Cayenne S E-Hybrid Coupe
2022-2023 Porsche Cayenne S Platinum Edition
2019-2023 Porsche Cayenne Turbo
2020-2023 Porsche Cayenne Turbo Coupe
2024-2025 Porsche Cayenne Turbo E-Hybrid
2024-2025 Porsche Cayenne Turbo E-Hybrid Coupe
2022-2025 Porsche Cayenne Turbo GT Coupe
2020-2023 Porsche Cayenne Turbo S E-Hybrid
2020-2023 Porsche Cayenne Turbo S E-Hybrid Coupe

Which vehicles does this fit?

  • It fits the Porsche 718 Boxster 2017-2025, Porsche 718 Cayman 2017-2025, Porsche 718 Spyder 2020-2025, Porsche 911 2021-2026, Porsche 911 (992) 2021-2026, Porsche 911 (992.1) 2021-2024 and 4 more models. The full year, make, model and submodel list is in the fitment table on this page.

How many are in one order?

  • Pair (2 spacers).

What is it made of?

  • Proprietary aluminum and magnesium alloy.
