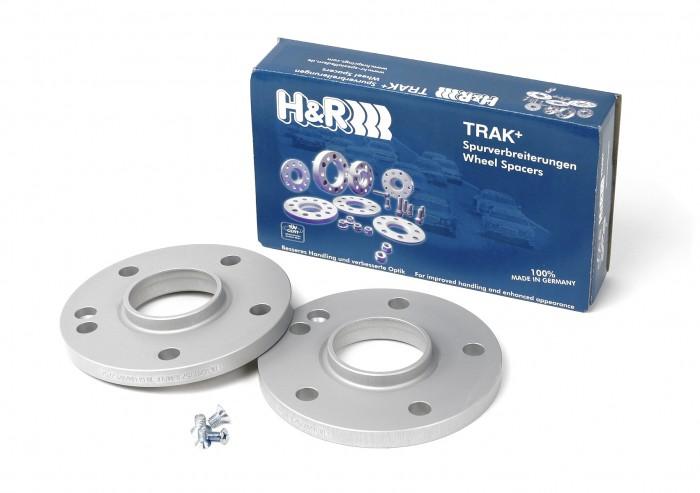

H&R Trak+ DR Wheel Spacers, box and two thin spacers
H&R Trak+ DR Wheel Spacers, two silver spacers, blue box
H&R Trak+ DR Wheel Spacers, thick spacers and nuts, blue box

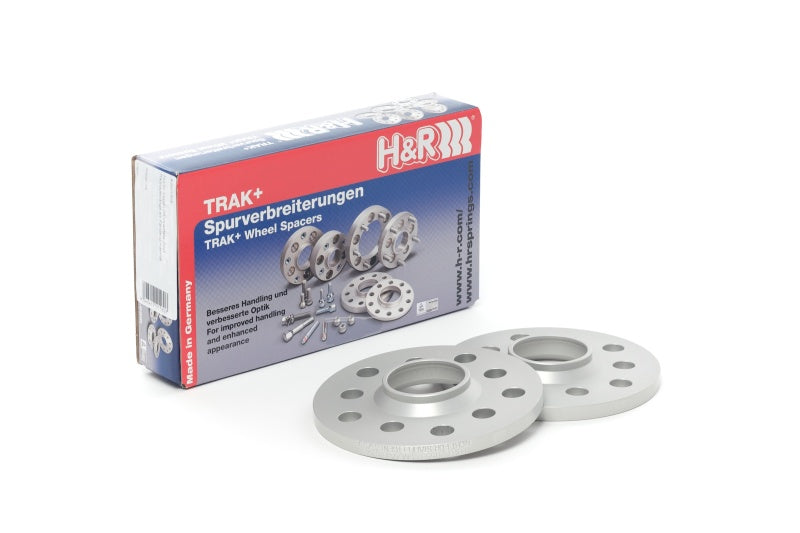

H&R Trak+ DR Wheel Spacers, box and two thin spacers
H&R Trak+ DR Wheel Spacers, two silver spacers, blue box
H&R Trak+ DR Wheel Spacers, thick spacers and nuts, blue box

H&R Trak+ DR Wheel Spacers - 12mm - 5x100 / 5x112 - 57.1mm CB - 14x1.5 - VW Jetta / Golf / Passat 1990-2010 - Black - Pair

H&R SKU: HRS24255571SW
Price
10% OFF
Only 3 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandH&R
SKUHRS24255571SW
Manufacturer Part Number24255571SW

Product Information

H&R Trak+ DR wheel spacers in black push each 5x100 / 5x112 wheel outward 12mm per side for a flush fender fit, staying hubcentric on the 57.1mm bore. Machined from a proprietary alloy with higher tensile strength than 6061-T6 billet aluminum, the full-contact hub spreads load evenly like the factory hub. DR spacers sit between the hub and the wheel, so longer wheel bolts or studs are required and sold separately; sold as a pair.

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Hubcentric wheel spacer (H&R Trak+ DR), bolt-through
Series TRAK+ Wheel Spacer
Thickness 12mm
Bolt Pattern 5x100 / 5x112
Center Bore 57.1mm
Material Proprietary alloy (stronger than 6061-T6 billet aluminum)
Finish Black
Thread 14x1.5
Hardware Longer wheel bolts required, sold separately
Spacer Type DR
Spacer Width 12mm
Quantity Pair
Fitment Notes Black; All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).; Careful attention must be paid to the vehicle hub height and inner wheel bevel measurements. Failure to follow the measurement guidelines below can result in serious damage to wheel spacers, wheels, and mounting hardware. Part Num. System Widening Per Side Maximum Hub Height Inner Wheel Bevel 1465605 DR / 7 8.00mm 4.0 x 45 degrees 162345712 DR / 8 14.00mm 7.0 x 45 degrees 162555716 DR / 8 14.00mm 7.0 x 45 degrees 1655572 DR / 8 14.00mm 7.0 x 45 degrees 1655573 DR / 8 12.00mm 6.0 x 45 degrees 1655577 DR / 8 12.00mm 6.0 x 45 degrees 1655668 DR / 8 13.50mm 6.5 x 45 degrees 1665673MZ5 DRS-MZ / 8 9.00mm 3.0 x 45 degrees 202345714 DR / 10 16.00mm 7.0 x 45 degrees 20245410 DRS / 10 11.00mm 2.0 x 45 degrees 202454101 DRS / 10 11.00mm 2.0 x 45 degrees 20245414 DRS / 10 11.00mm 2.0 x 45 degrees 20245616 DRS / 10 10.00mm 2.0 x 45 degrees 2025541 DRS / 10 10.00mm 2.0 x 45 degrees 20255571 DR / 10 16.00mm 7.0 x 45 degrees 202555712A DR / 10 16.00mm 7.0 x 45 degrees 202555712B DR / 10 14.00mm 5.0 x 45 degrees 20346331 DRS / 10 11.00mm 2.0 x 45 degrees 20356330 DR / 10 11.00mm 2.0 x 45 degrees 20356331 DRS / 10 11.00mm 2.0 x 45 degrees 2035650 DR / 10 11.00mm 2.0 x 45 degrees 20365601 DR / 10 11.00mm 2.0 x 45 degrees 2055571A DR / 10 15.50mm 6.5 x 45 degrees 2055571B DR / 10 12.00mm 4.0 x 45 degrees 2055573A DR / 10 15.00mm 6.0 x 45 degrees 2055573B DR / 10 12.00mm 4.0 x 45 degrees 2055577A DR / 10 15.00mm 6.0 x 45 degrees 2055577B DR / 10 12.00mm 4.0 x 45 degrees 2055665 DR / 10 9.00mm 90 degrees 20556650 DR / 10 10.00mm 90 degrees 2055668 DR / 10 13.50mm 5.0 x 45 degrees 2064640 DRS / 10 11.00mm 2.0 x 45 degrees 2064662 DRS / 10 10.00mm 2.0 x 45 degrees 20656014 DRS / 10 11.00mm 2.0 x 45 degrees 2065640 DRS / 10 11.00mm 2.0 x 45 degrees 2065642MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees tr> 2065643MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees 2065662 DRS / 10 10.00mm 2.0 x 45 degrees 2065700 DRS / 10 11.00mm 2.0 x 45 degrees 2075664 DR / 10 11.00mm 90 degrees 2075725 DR / 10 12.00mm 4.0 x 45 degrees 2075726 DR / 10 12.00mm 4.0 x 45 degrees 2075740 DR / 10 11.00mm 2.0 x 45 degrees 2255664 DR / 11 11.00mm 90 degrees 22556659 DR / 11 9.00mm 90 degrees 2265681CR DR / 11 20.00mm N/A 24255571 DR / 12 15.00mm 5.0 x 45 degrees 2435650 DR / 12 10.00mm 2.0 x 45 degrees 2455571 DR / 12 15.00mm 5.0 x 45 degrees 2455577 DR / 12 15.00mm 5.0 x 45 degrees 2455664 DR / 12 11.50mm 90 degrees 2455665 DR / 12 10.00mm 90 degrees 24556650 DR / 12 11.00mm 90 degrees 2455668 DR / 12 13.50mm 4.0 x 45 degrees 2475664 DR / 12 11.50mm 90 degrees 2475725 DR / 12 12.00mm 2.0 x 45 degrees 2475726 DR / 12 12.00mm 2.0 x 45 degrees 2475740 DR / 12 12.00mm 2.0 x 45 degrees 2655664 DR / 13 12.00mm 90 degrees 2655665 DR / 13 12.50mm 90 degrees 2655669 DR / 13 14.00mm 2.0 x 45 degrees 26556650 DR / 13 11.50mm 90 degrees 2675726 DR / 13 14.50mm 2.0 x 45 degrees 2865642MZ5 DRS-MZ / 14 14.00mm 2.0 x 45 degrees 3055668 DR / 15 17.00mm 4.0 x 45 degrees 4065642 DRM / 20 9.00mm 2.0 x 45 degrees; If the hub face of your vehicle is 150mm (most vehicles have 135mm hub face), alternative spacers are available. Please see list below. DR = 8mm 162555719 DR = 10mm 202555713A DR = 12mm 242555713 DR = 15mm 302555716 DR = 20mm 402555716 DRA = 20mm 4025572 DRA = 25mm 50255712 DRA = 30mm 60255712
Part Number 24255571SW

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2000-2006 Audi TT Base
2002 Audi TT Quattro ALMS Edition
2000-2006 Audi TT Quattro Base
2006 Audi TT Quattro Special Edition
2006-2007 Volkswagen Beetle 2.5
1998, 2009-2010 Volkswagen Beetle Base
1999-2005 Volkswagen Beetle GL
1999-2005 Volkswagen Beetle GLS
2005 Volkswagen Beetle GLS TDI
1999-2004 Volkswagen Beetle GLX
2008 Volkswagen Beetle S
2008 Volkswagen Beetle SE
2001-2002 Volkswagen Beetle Sport
1998, 2006 Volkswagen Beetle TDI
2002-2004 Volkswagen Beetle Turbo S
1998-2005 Volkswagen Golf GL
2004 Volkswagen Golf GL TDI
1999-2005 Volkswagen Golf GLS
2004 Volkswagen Golf GLS TDI
1998-1999 Volkswagen Golf GTI
2002-2005 Volkswagen Golf GTI 1.8T
2003 Volkswagen Golf GTI 20th Anniversary
2002 Volkswagen Golf GTI 337
2000-2001 Volkswagen Golf GTI GLS
2000-2001 Volkswagen Golf GTI GLX
1998, 2002-2005 Volkswagen Golf GTI VR6
1998 Volkswagen Golf K2
1999, 2005 Volkswagen Golf TDI
1999 Volkswagen Golf Wolfsburg Edition
2003 Volkswagen Golf GTI 1.8T / 2.8L VR6 / 2.3L
2003 Volkswagen Golf GTI Base
2005 Volkswagen Jetta 2.5
1998-2005 Volkswagen Jetta GL
2005 Volkswagen Jetta GL TDI
2002-2005 Volkswagen Jetta GLI
1998-2005 Volkswagen Jetta GLS
2005 Volkswagen Jetta GLS TDI
1998-2003 Volkswagen Jetta GLX
1998 Volkswagen Jetta GT
1998 Volkswagen Jetta K2
1998-2005 Volkswagen Jetta TDI
1998-1999, 2001, 2003 Volkswagen Jetta Wolfsburg Edition
2000 Volkswagen Passat 4 Motion
1992 Volkswagen Passat CL
1990-1993, 2003-2005 Volkswagen Passat GL
2004-2005 Volkswagen Passat GL TDI
1995-1996, 1998-2005 Volkswagen Passat GLS
2001-2002, 2004-2005 Volkswagen Passat GLS 4 Motion
2004-2005 Volkswagen Passat GLS TDI
1993-2005 Volkswagen Passat GLX
2001-2005 Volkswagen Passat GLX 4 Motion
1996-1997 Volkswagen Passat TDI
2002-2004 Volkswagen Passat W8
2004 Volkswagen R32 Base

Which vehicles does this fit?

  • It fits the Audi TT 2000-2006, Audi TT Quattro 2000-2006, Volkswagen Beetle 1998-2010, Volkswagen Golf 1998-2005, Volkswagen Golf GTI 2003, Volkswagen Jetta 1998-2005 and 2 more models. The full year, make, model and submodel list is in the fitment table on this page.

How many are in one order?

  • Pair.

What is it made of?

  • Proprietary alloy (stronger than 6061-T6 billet aluminum).
