H&R Trak+ DR Wheel Spacers - 3mm - 5x112 - 66.5mm CB - 14x1.5 - Mercedes AMG GLB 35 4MATIC / GLB 250 2020-2025 - Black - Pair

H&R Trak+ DR Wheel Spacers - 3mm - 5x112 - 66.5mm CB - 14x1.5 - Mercedes AMG GLB 35 4MATIC / GLB 250 2020-2025 - Black - Pair

H&R SKU: HRS06556650SW
Price
10% OFF
Only 2 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

H&R Trak+ DR Series wheel spacers move each wheel outward 3mm, widening track by 6mm across the axle so the wheel and tire sit closer to the fender edge. Each spacer is machined from a proprietary aluminum/magnesium alloy that H&R rates stronger than 6061-T6 billet aluminum, then hard anodized black for corrosion resistance and surface hardness. The mounting face is hub-centric with a full contact hub that mirrors the factory hub, so load force is distributed evenly and the wheel keeps lateral support. DR System spacers install between the wheel and the hub and require longer wheel bolts, which are ordered separately.

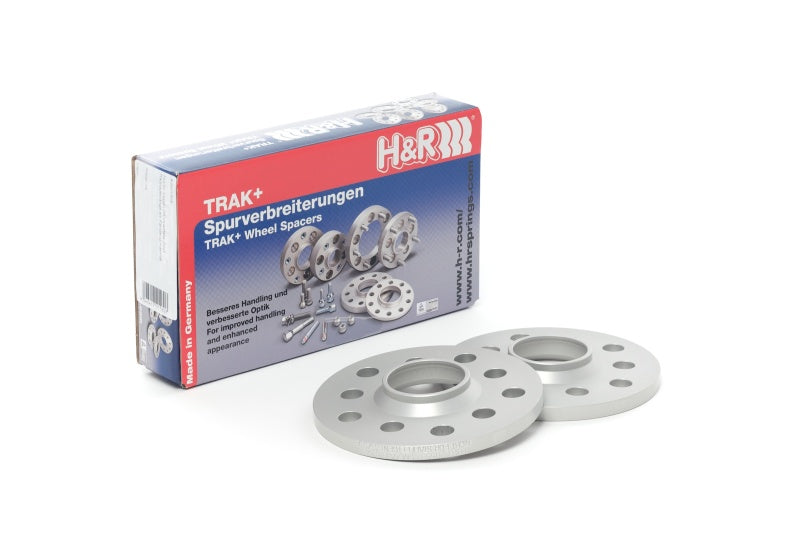

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Trak+ DR System hub-centric wheel spacer
Series TRAK+ Wheel Spacer
Thickness 3mm per side (6mm total track increase)
Bolt Pattern 5x112
Center Bore 66.5mm
Bolt Thread 14x1.5
Material Proprietary aluminum/magnesium alloy, stronger than 6061-T6 billet aluminum
Finish Hard anodized black
Hardware Longer wheel bolts required, sold separately
Spacer Type DR
Spacer Width 3mm
Quantity Pair (2 spacers, one axle)
Fitment Notes Black; All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).; These are hub-centric flat disc type spacers which require the factory hub to center the wheels. Please measure the vehicle hub to verify sufficient height will remain to center the wheel after spacer installation.
Part Number 06556650SW

This part fits:

Year Make Model Submodel
2021-2025 Mercedes-Benz AMG GLB 35 4MATIC X247
2020-2023 Mercedes-Benz GLB 250 X247, 2WD
2020-2022 Mercedes-Benz GLB 250 4MATIC X247

Which vehicles does this fit?

  • It fits the Mercedes-Benz AMG GLB 35 4MATIC 2021-2025, Mercedes-Benz GLB 250 2020-2023, Mercedes-Benz GLB 250 4MATIC 2020-2022. The full year, make, model and submodel list is in the fitment table on this page.

How many are in one order?

  • Pair (2 spacers, one axle).

What is it made of?

  • Proprietary aluminum/magnesium alloy, stronger than 6061-T6 billet aluminum.
