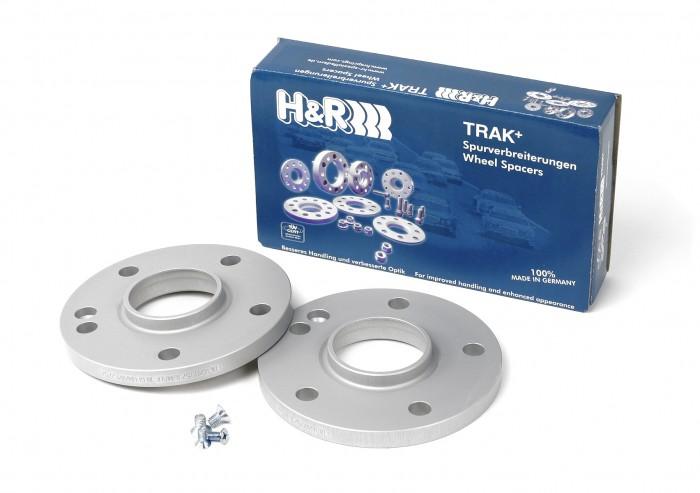

H&R Trak+ DRM Wheel Spacers, thin pair with box, angled view
H&R Trak+ DRM Wheel Spacers, thick pair with bolts, boxed
H&R Trak+ DRM Wheel Spacers, thin pair with box, angled view
H&R Trak+ DRM Wheel Spacers, thick pair with bolts, boxed

H&R Trak+ DRM Wheel Spacers - 20mm - 5x114.3 - 64.1mm CB - 14x1.5 - Tesla 3 2018-2026 - Black - Pair

H&R SKU: HRS4065642SW
Price
10% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandH&R
SKUHRS4065642SW
Manufacturer Part Number4065642SW

Product Information

H&R Trak+ DRM wheel adapters bolt to the factory 5x114.3 hub and provide a fresh 5x114.3 wheel mounting face 20mm further out per side, staying hubcentric on the 64.1mm bore. Machined from a proprietary alloy stronger than 6061-T6 billet aluminum, each adapter uses a full-contact hub for even load distribution. Hub nuts are included and the wheel mounts on the spacer studs; sold as a pair.

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Hubcentric wheel adapter (H&R Trak+ DRM), bolt-on
Series TRAK+ Wheel Spacer
Thickness 20mm
Bolt Pattern 5x114.3
Center Bore 64.1mm
Material Proprietary alloy (stronger than 6061-T6 billet aluminum)
Finish Black
Hardware Hub nuts included; wheel mounts on the spacer studs
Spacer Type DRM
Spacer Width 20mm
Quantity Pair
Thread 14x1.5
Fitment Notes Black; Careful attention must be paid to the vehicle hub height and inner wheel bevel measurements. Failure to follow the measurement guidelines below can result in serious damage to wheel spacers, wheels, and mounting hardware. Part Num. System Widening Per Side Maximum Hub Height Inner Wheel Bevel 1465605 DR / 7 8.00mm 4.0 x 45 degrees 162345712 DR / 8 14.00mm 7.0 x 45 degrees 162555716 DR / 8 14.00mm 7.0 x 45 degrees 1655572 DR / 8 14.00mm 7.0 x 45 degrees 1655573 DR / 8 12.00mm 6.0 x 45 degrees 1655577 DR / 8 12.00mm 6.0 x 45 degrees 1655668 DR / 8 13.50mm 6.5 x 45 degrees 1665673MZ5 DRS-MZ / 8 9.00mm 3.0 x 45 degrees 202345714 DR / 10 16.00mm 7.0 x 45 degrees 20245410 DRS / 10 11.00mm 2.0 x 45 degrees 202454101 DRS / 10 11.00mm 2.0 x 45 degrees 20245414 DRS / 10 11.00mm 2.0 x 45 degrees 20245616 DRS / 10 10.00mm 2.0 x 45 degrees 2025541 DRS / 10 10.00mm 2.0 x 45 degrees 20255571 DR / 10 16.00mm 7.0 x 45 degrees 202555712A DR / 10 16.00mm 7.0 x 45 degrees 202555712B DR / 10 14.00mm 5.0 x 45 degrees 20346331 DRS / 10 11.00mm 2.0 x 45 degrees 20356330 DR / 10 11.00mm 2.0 x 45 degrees 20356331 DRS / 10 11.00mm 2.0 x 45 degrees 2035650 DR / 10 11.00mm 2.0 x 45 degrees 20365601 DR / 10 11.00mm 2.0 x 45 degrees 2055571A DR / 10 15.50mm 6.5 x 45 degrees 2055571B DR / 10 12.00mm 4.0 x 45 degrees 2055573A DR / 10 15.00mm 6.0 x 45 degrees 2055573B DR / 10 12.00mm 4.0 x 45 degrees 2055577A DR / 10 15.00mm 6.0 x 45 degrees 2055577B DR / 10 12.00mm 4.0 x 45 degrees 2055665 DR / 10 9.00mm 90 degrees 20556650 DR / 10 10.00mm 90 degrees 2055668 DR / 10 13.50mm 5.0 x 45 degrees 2064640 DRS / 10 11.00mm 2.0 x 45 degrees 2064662 DRS / 10 10.00mm 2.0 x 45 degrees 20656014 DRS / 10 11.00mm 2.0 x 45 degrees 2065640 DRS / 10 11.00mm 2.0 x 45 degrees 2065642MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees tr> 2065643MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees 2065662 DRS / 10 10.00mm 2.0 x 45 degrees 2065700 DRS / 10 11.00mm 2.0 x 45 degrees 2075664 DR / 10 11.00mm 90 degrees 2075725 DR / 10 12.00mm 4.0 x 45 degrees 2075726 DR / 10 12.00mm 4.0 x 45 degrees 2075740 DR / 10 11.00mm 2.0 x 45 degrees 2255664 DR / 11 11.00mm 90 degrees 22556659 DR / 11 9.00mm 90 degrees 2265681CR DR / 11 20.00mm N/A 24255571 DR / 12 15.00mm 5.0 x 45 degrees 2435650 DR / 12 10.00mm 2.0 x 45 degrees 2455571 DR / 12 15.00mm 5.0 x 45 degrees 2455577 DR / 12 15.00mm 5.0 x 45 degrees 2455664 DR / 12 11.50mm 90 degrees 2455665 DR / 12 10.00mm 90 degrees 24556650 DR / 12 11.00mm 90 degrees 2455668 DR / 12 13.50mm 4.0 x 45 degrees 2475664 DR / 12 11.50mm 90 degrees 2475725 DR / 12 12.00mm 2.0 x 45 degrees 2475726 DR / 12 12.00mm 2.0 x 45 degrees 2475740 DR / 12 12.00mm 2.0 x 45 degrees 2655664 DR / 13 12.00mm 90 degrees 2655665 DR / 13 12.50mm 90 degrees 2655669 DR / 13 14.00mm 2.0 x 45 degrees 26556650 DR / 13 11.50mm 90 degrees 2675726 DR / 13 14.50mm 2.0 x 45 degrees 2865642MZ5 DRS-MZ / 14 14.00mm 2.0 x 45 degrees 3055668 DR / 15 17.00mm 4.0 x 45 degrees 4065642 DRM / 20 9.00mm 2.0 x 45 degrees
Part Number 4065642SW

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2018-2019 Tesla 3 Base
2018-2021 Tesla 3 Long Range
2018-2021 Tesla 3 Performance
2020-2021 Tesla 3 Standard Plus
2020-2021 Tesla Model Y
2020-2022 Tesla Model Y AWD Performance
2024 Tesla Model Y Base
2020-2026 Tesla Model Y Long Range
2020-2026 Tesla Model Y Performance
2020-2024 Tesla Model Y RWD / AWD
2020 Tesla Model Y Standard Range
2024-2026 Tesla Y Base
2020-2025 Tesla Y Long Range
2020-2026 Tesla Y Performance
2026 Tesla Y Premium
2020 Tesla Y Standard Range

Which vehicles does this fit?

  • It fits the Tesla 3 2018-2021, Tesla Model Y 2020-2026, Tesla Y 2020-2026. The full year, make, model and submodel list is in the fitment table on this page.

How many are in one order?

  • Pair.

What is it made of?

  • Proprietary alloy (stronger than 6061-T6 billet aluminum).
