H&R Trak+ DR Wheel Spacers - 12mm - 5x120 - 66.5mm CB - 14x1.25 - BMW XM 2023-2025 - Black - Pair

H&R Trak+ DR Wheel Spacers - 12mm - 5x120 - 66.5mm CB - 14x1.25 - BMW XM 2023-2025 - Black - Pair

H&R SKU: HRS2475664SW
Price
10% OFF
Only 2 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandH&R
SKUHRS2475664SW
Manufacturer Part Number2475664SW

Product Information

H&R's Trak+ DR spacers sit between the hub and the wheel, pushing each wheel out 12 mm for 24 mm of extra total track. The DR series uses the vehicle's own bolt circle, so longer wheel bolts are required and are ordered separately. They are machined from H&R's proprietary aluminium and magnesium alloy, hard anodised in black, and hubcentric to the 66.5 mm bore. H&R does not approve them for use with steel wheels. Made in Germany and sold as a pair.

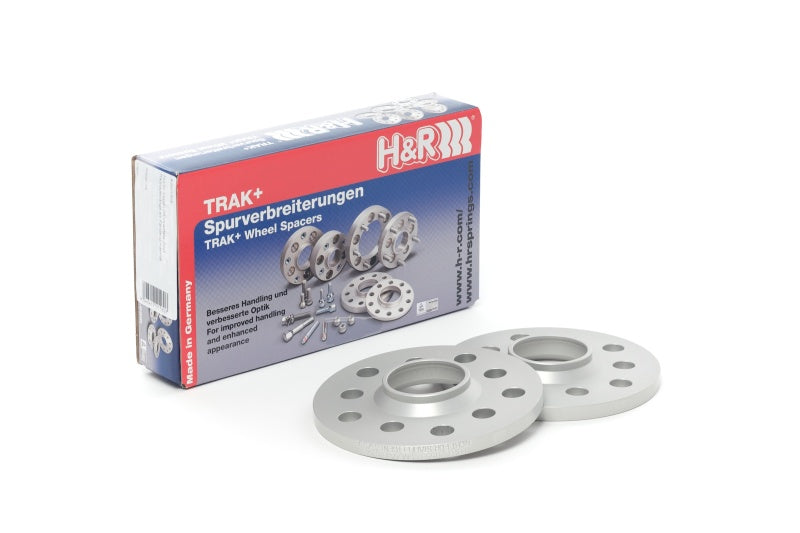

Note: Product images may be representative samples and may not show the exact thickness, bolt pattern, or finish. Please refer to the specifications below for the exact details of this item.

Specifications

Type Wheel spacer (Trak+ DR Series)
Series TRAK+ Wheel Spacer
Thickness 12 mm per side, 24 mm total track
Bolt Pattern 5x120
Center Bore 66.5mm
Bolt Thread 14x1.25
Longer Bolts Required, sold separately
Material Aluminium and magnesium alloy, hard anodised
Finish Black
Hubcentric Yes
Application Note Not approved for steel wheels
Origin Made in Germany
Spacer Type DR
Spacer Width 12mm
Quantity Pair (2 spacers)
Hardware Longer wheel bolts required, sold separately
Fitment Notes Black; All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60° End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).; Careful attention must be paid to the vehicle hub height and inner wheel bevel measurements. Failure to follow the measurement guidelines below can result in serious damage to wheel spacers, wheels, and mounting hardware. Part Num. System Widening Per Side Maximum Hub Height Inner Wheel Bevel 1465605 DR / 7 8.00mm 4.0 x 45 degrees 162345712 DR / 8 14.00mm 7.0 x 45 degrees 162555716 DR / 8 14.00mm 7.0 x 45 degrees 1655572 DR / 8 14.00mm 7.0 x 45 degrees 1655573 DR / 8 12.00mm 6.0 x 45 degrees 1655577 DR / 8 12.00mm 6.0 x 45 degrees 1655668 DR / 8 13.50mm 6.5 x 45 degrees 1665673MZ5 DRS-MZ / 8 9.00mm 3.0 x 45 degrees 202345714 DR / 10 16.00mm 7.0 x 45 degrees 20245410 DRS / 10 11.00mm 2.0 x 45 degrees 202454101 DRS / 10 11.00mm 2.0 x 45 degrees 20245414 DRS / 10 11.00mm 2.0 x 45 degrees 20245616 DRS / 10 10.00mm 2.0 x 45 degrees 2025541 DRS / 10 10.00mm 2.0 x 45 degrees 20255571 DR / 10 16.00mm 7.0 x 45 degrees 202555712A DR / 10 16.00mm 7.0 x 45 degrees 202555712B DR / 10 14.00mm 5.0 x 45 degrees 20346331 DRS / 10 11.00mm 2.0 x 45 degrees 20356330 DR / 10 11.00mm 2.0 x 45 degrees 20356331 DRS / 10 11.00mm 2.0 x 45 degrees 2035650 DR / 10 11.00mm 2.0 x 45 degrees 20365601 DR / 10 11.00mm 2.0 x 45 degrees 2055571A DR / 10 15.50mm 6.5 x 45 degrees 2055571B DR / 10 12.00mm 4.0 x 45 degrees 2055573A DR / 10 15.00mm 6.0 x 45 degrees 2055573B DR / 10 12.00mm 4.0 x 45 degrees 2055577A DR / 10 15.00mm 6.0 x 45 degrees 2055577B DR / 10 12.00mm 4.0 x 45 degrees 2055665 DR / 10 9.00mm 90 degrees 20556650 DR / 10 10.00mm 90 degrees 2055668 DR / 10 13.50mm 5.0 x 45 degrees 2064640 DRS / 10 11.00mm 2.0 x 45 degrees 2064662 DRS / 10 10.00mm 2.0 x 45 degrees 20656014 DRS / 10 11.00mm 2.0 x 45 degrees 2065640 DRS / 10 11.00mm 2.0 x 45 degrees 2065642MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees tr> 2065643MZ5 DRS-MZ / 10 9.00mm 2.0 x 45 degrees 2065662 DRS / 10 10.00mm 2.0 x 45 degrees 2065700 DRS / 10 11.00mm 2.0 x 45 degrees 2075664 DR / 10 11.00mm 90 degrees 2075725 DR / 10 12.00mm 4.0 x 45 degrees 2075726 DR / 10 12.00mm 4.0 x 45 degrees 2075740 DR / 10 11.00mm 2.0 x 45 degrees 2255664 DR / 11 11.00mm 90 degrees 22556659 DR / 11 9.00mm 90 degrees 2265681CR DR / 11 20.00mm N/A 24255571 DR / 12 15.00mm 5.0 x 45 degrees 2435650 DR / 12 10.00mm 2.0 x 45 degrees 2455571 DR / 12 15.00mm 5.0 x 45 degrees 2455577 DR / 12 15.00mm 5.0 x 45 degrees 2455664 DR / 12 11.50mm 90 degrees 2455665 DR / 12 10.00mm 90 degrees 24556650 DR / 12 11.00mm 90 degrees 2455668 DR / 12 13.50mm 4.0 x 45 degrees 2475664 DR / 12 11.50mm 90 degrees 2475725 DR / 12 12.00mm 2.0 x 45 degrees 2475726 DR / 12 12.00mm 2.0 x 45 degrees 2475740 DR / 12 12.00mm 2.0 x 45 degrees 2655664 DR / 13 12.00mm 90 degrees 2655665 DR / 13 12.50mm 90 degrees 2655669 DR / 13 14.00mm 2.0 x 45 degrees 26556650 DR / 13 11.50mm 90 degrees 2675726 DR / 13 14.50mm 2.0 x 45 degrees 2865642MZ5 DRS-MZ / 14 14.00mm 2.0 x 45 degrees 3055668 DR / 15 17.00mm 4.0 x 45 degrees 4065642 DRM / 20 9.00mm 2.0 x 45 degrees; Not for use with steel wheels
Part Number 2475664SW

This part fits:

Year Make Model Submodel
2023-2025 BMW XM G09, AWD

Which vehicles does this fit?

  • It fits the BMW XM 2023-2025. The full year, make, model and submodel list is in the fitment table on this page.

How many are in one order?

  • Pair (2 spacers).

What is it made of?

  • Aluminium and magnesium alloy, hard anodised.
