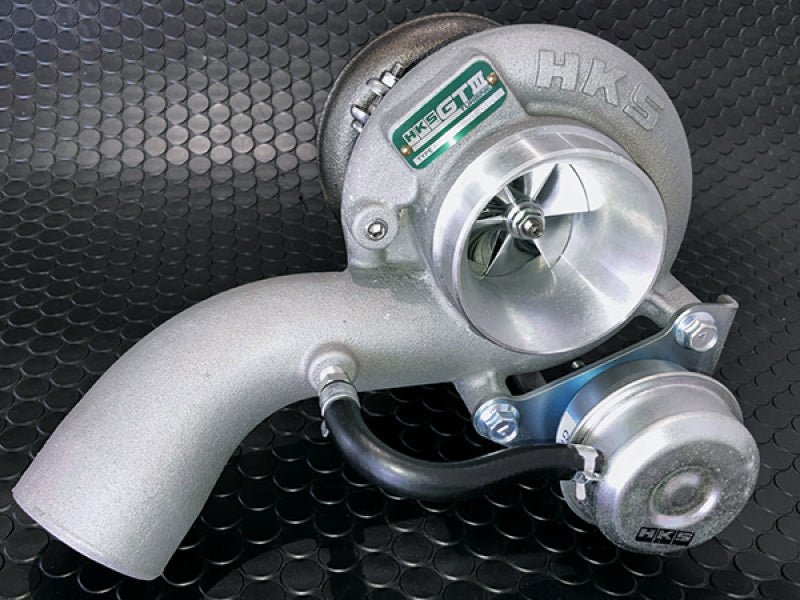

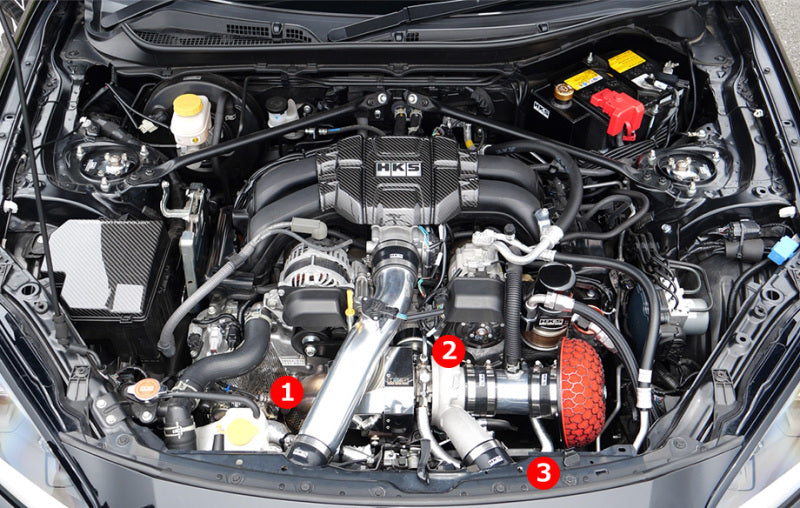

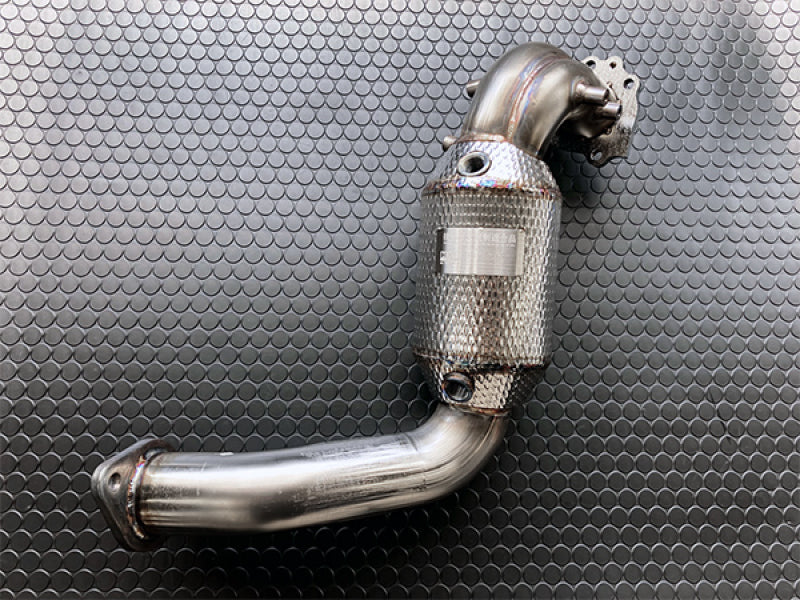

The HKS Bolt-On Turbo Pro Kit is built around the GTIII-RS turbine with a 0.60 A/R turbine housing and an internal wastegate. On the FA24 at the kit's 65 kPa setting HKS quotes 269 kW (366 PS) at 7100 rpm and 391 N·m at 3300 rpm. The kit supplies the turbocharger assembly, exhaust manifold, extension pipe with metal catalyzer, a 390 x 270 x 100 mm intercooler with charge and chamber piping, an 80 mm outside diameter suction pipe, an air cleaner with a 200 mm filter, oil and water lines, brackets, heat insulation, gaskets and hardware. An engine management device and spark plugs are not included, and HKS states that recalibration with an engine management device must be carried out. Installation requires oil pan welding and roughly 16 hours of labor.
| Type | Bolt-on turbocharger kit (HKS Bolt-On Turbo Pro Kit GTIII-RS) |
| Turbine | GTIII-RS with internal wastegate |
| Turbine A/R | 0.60 |
| Boost | 65 kPa (HKS rated setting) |
| Rated Output | 269 kW (366 PS) at 7100 rpm, 391 N·m at 3300 rpm |
| Engine | Subaru FA24 2.4L |
| Transmission | Manual transmission only |

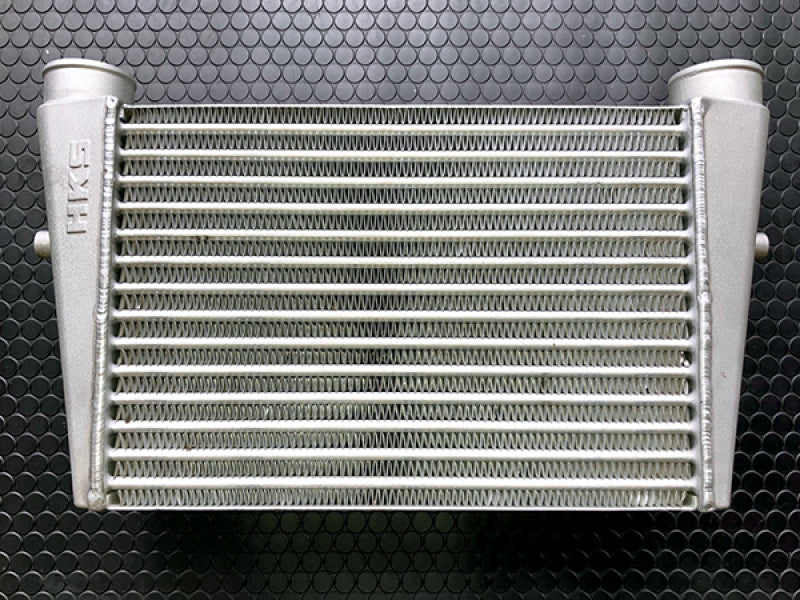

| Intercooler | 390 x 270 x 100 mm core with charge and chamber piping |
| Tune Required | Yes. An engine management device is required and is not included |

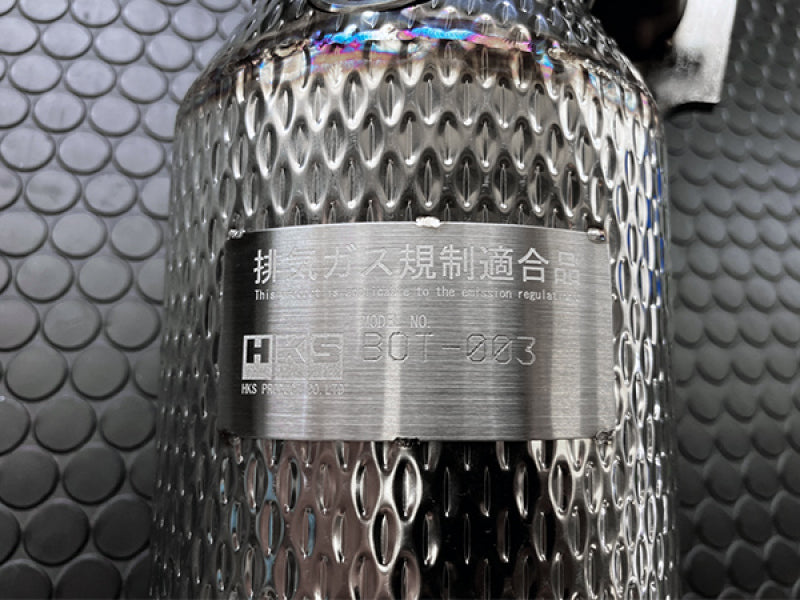

| Emissions Certification | Japan exhaust gas certificate included (manual transmission) |
| Quantity | 1 kit (ships in 2 boxes) |
| Part Number | 11001-AT011 |
| Warranty | 1 year limited warranty to the original purchaser against defects (HKS) |
Documents: Installation Instructions (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2025 | Toyota | GR86 | Manual Transmission |
| 2022-2025 | Subaru | BRZ | Manual Transmission |
