HKS SKU: HKS80310-AT006
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

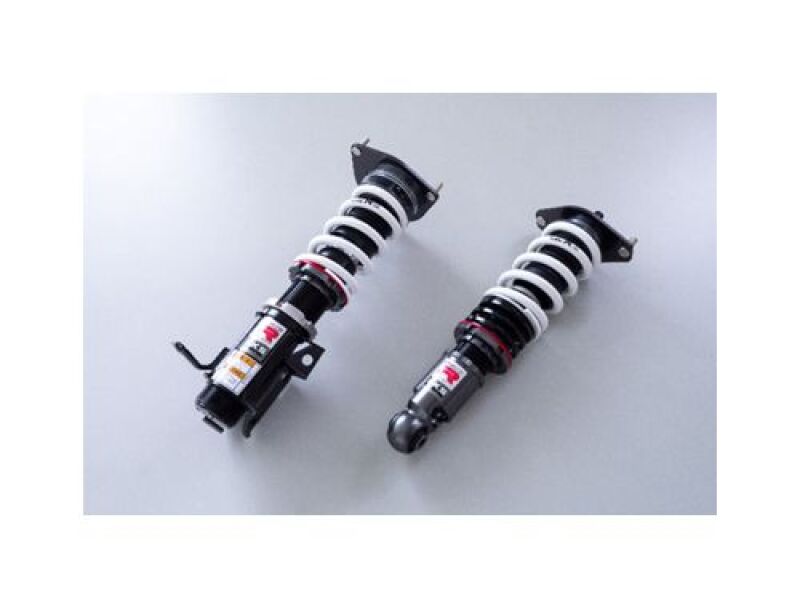

HIPERMAX R sits at the top of the HKS coilover range, supplied as a full kit covering all four corners of the FA24 powered ZN8 GR86 with a combined street and circuit brief. The front is an inverted damper that keeps stroke available at low ride height, the rear is a conventional coilover, and both ends carry spherical bearing (pillow ball) upper mounts with 30 step damping adjustment. HKS LVS springs are rated 9.0 kgf/mm front and 10.0 kgf/mm rear, working with SRF low friction damper fluid. Ride height adjusts 0 mm to -45 mm at the front and 0 mm to -59 mm at the rear against stock, and HKS publishes test camber of -3°40' front and -2°10' rear.

Specifications

Type Coilover suspension kit, HKS HIPERMAX R
Position Front and rear, full kit
Damper Construction Inverted front, conventional rear
Damping Adjustment 30 steps, front and rear
Spring Rate 9.0 kgf/mm front, 10.0 kgf/mm rear
Ride Height Adjustment 0 mm to -45 mm front, 0 mm to -59 mm rear versus stock
Upper Mounts Spherical bearing (pillow ball), front and rear
Quantity Full kit, 4 corners
Part Number 80310-AT006

This part fits:

Year Make Model Submodel
2022 Toyota GR86 All
2023 Toyota GR86 All
2024 Toyota GR86 All
2025 Toyota GR86 All
2026 Toyota GR86 All
