Details
BrandHKS
SKUHKS80300-AN007
GTIN / UPC4957266322086
Manufacturer Part Number80300-AN007
Product Information

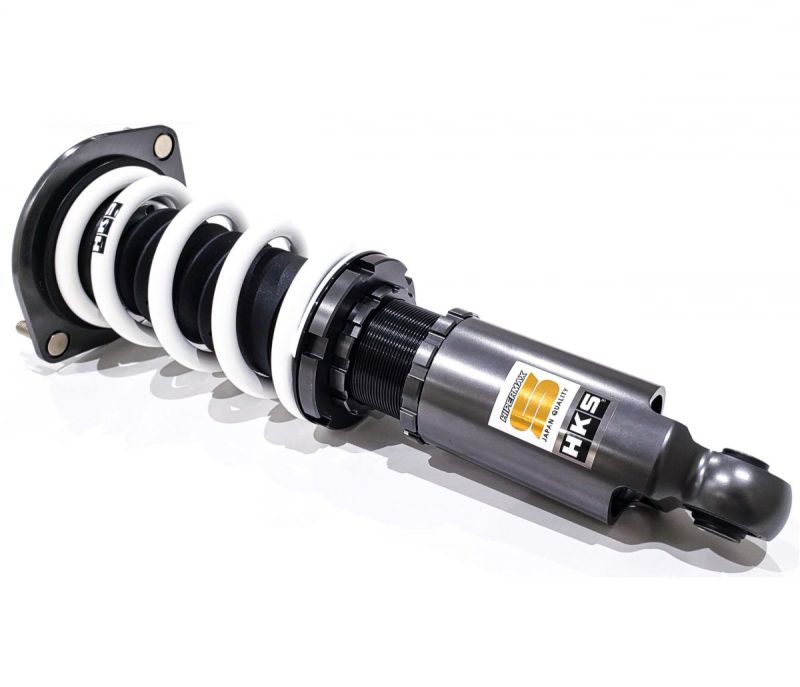

Hipermax S is HKS's full four corner coilover set for the RB26 Skyline GT-R, built on an inverted monotube strut with the company's WR Needle valve giving 30 steps of damping at each end, the rear pair adjusted remotely by cable and dial rather than by reaching into the boot. Spring rates are 88 N/mm front and 78 N/mm rear on 19.8 N/mm helpers, and the height adjustable lower brackets set fender height from 626mm to 695mm front and 631mm to 699mm rear on the BNR34, or 622mm to 691mm front and 628mm to 690mm rear on the BCNR33. Dual PVS valving, PNE coated bodies and aluminum upper brackets with rubber mounts finish the kit, which is rebuildable and carries a three year HKS warranty.
Specifications
| Type |
Full coilover suspension kit, four corners (HKS Hipermax S) |
| Construction |
Inverted monotube, Dual PVS valving |
| Damping Adjustment |
30 steps front and rear, WR Needle mechanism, rear remote cable and dial |
| Spring Rates |
88 N/mm (9.0 kgf/mm) front, 78 N/mm (8.0 kgf/mm) rear |
| Helper Springs |
19.8 N/mm front and rear |
| Ride Height, BNR34 |
626mm to 695mm front, 631mm to 699mm rear (stock 662mm front, 664mm rear) |
| Ride Height, BCNR33 |
622mm to 691mm front, 628mm to 690mm rear |
| Height Adjustment |
Height adjustable lower bracket, full length shock body |
| Finish |
PNE coating |
| Upper Mounts |
Aluminum bracket with rubber mount, pre-fitted |
| Serviceability |
Rebuildable, spec change available |
| Warranty |
3 year HKS warranty |
| Quantity |
1 kit |
| Part Number |
80300-AN007 |
This part fits:
| Year |
Make |
Model |
Submodel |
| 1995-1998 |
Nissan |
Skyline |
GT-R (BCNR33) |
| 1999-2002 |
Nissan |
Skyline |
GT-R (BNR34) |
