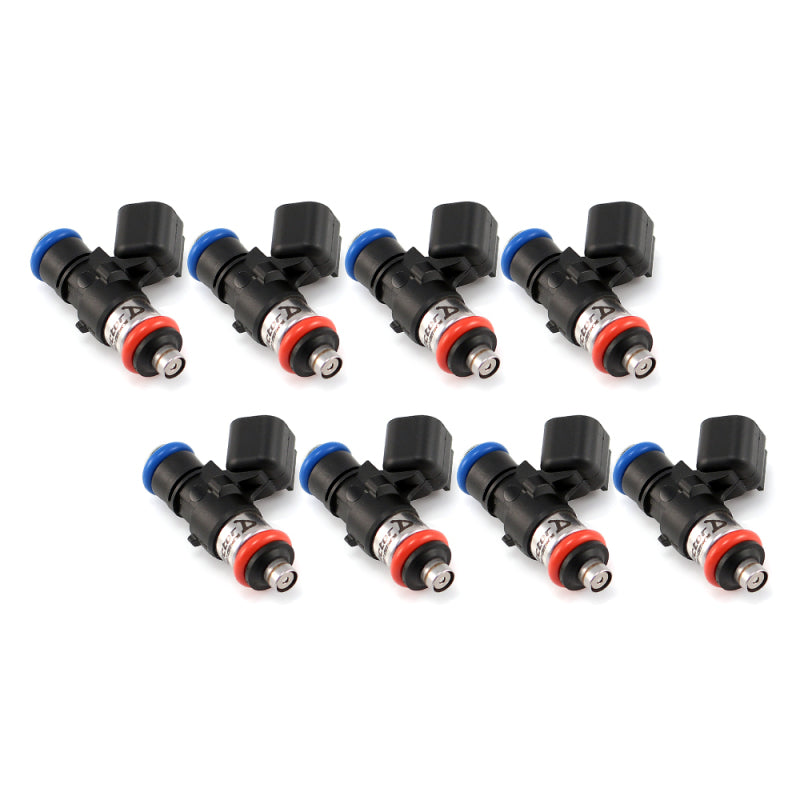

Injector Dynamics ID1750-XDS Fuel Injectors - 34mm, 14mm Top O-Ring, 15mm Lower O-Ring - Set of 8

Injector Dynamics SKU: IDX1750.34.14.15.8
Price
In Stock – Ready to Ship
Shipping calculated at checkout.
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check

A flow matched set of 8 Injector Dynamics ID1750-XDS high-impedance top-feed injectors in the compact 34mm body with no adapters, a 14mm top O-ring and an orange 15mm lower O-ring. Each injector flows a nominal 1,728 cc/min at 3.0 bar (43.5 psi) and roughly 2,645 cc/min at the 7.0 bar (101.5 psi) maximum differential pressure, with a USCAR connector. Compatible with ethanol, methanol and all hydrocarbon fuels; ECU calibration with ID's injector data is required. Authorized ID dealers list this configuration for the 2009+ Cadillac CTS-V (LSA), Camaro ZL1, C6 Corvette and GM LS3, LS7, L76, L92 and L99 engines.

Specifications

Type High-impedance top-feed fuel injector (ID1750-XDS)
Flow Rate 1,728 cc/min at 3.0 bar (43.5 psi), E10 at 49°C (120°F); approx. 2,645 cc/min at 7.0 bar
Max Fuel Pressure 7.0 bar (101.5 psi) differential
Connector USCAR
Impedance High impedance
Length 34mm
Top 14mm top O-ring (no adapter)
Bottom 15mm lower O-ring (orange)
Fuel Compatibility Methanol, ethanol, MTBE, nitromethane and all known hydrocarbon fuels
Quantity 8 (set of 8)
Part Number 1750.34.14.15.8
