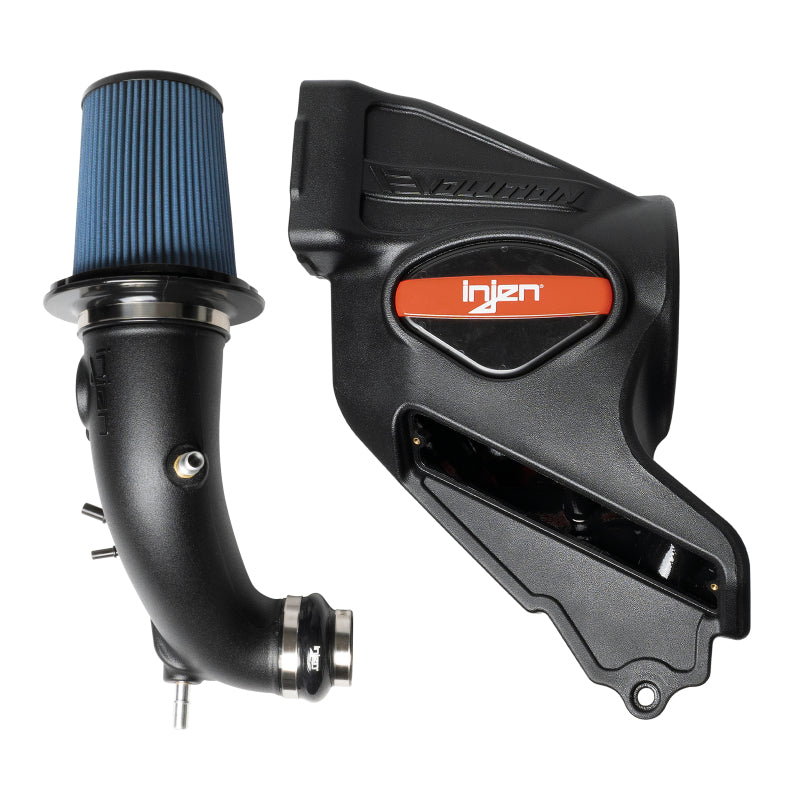

Injen Evolution Dry Filter Cold Air Intake, black airbox with long tube
Injen Evolution Dry Filter Cold Air Intake, housing, open view
Injen Evolution Dry Filter Cold Air Intake, components laid out, blue filter upright

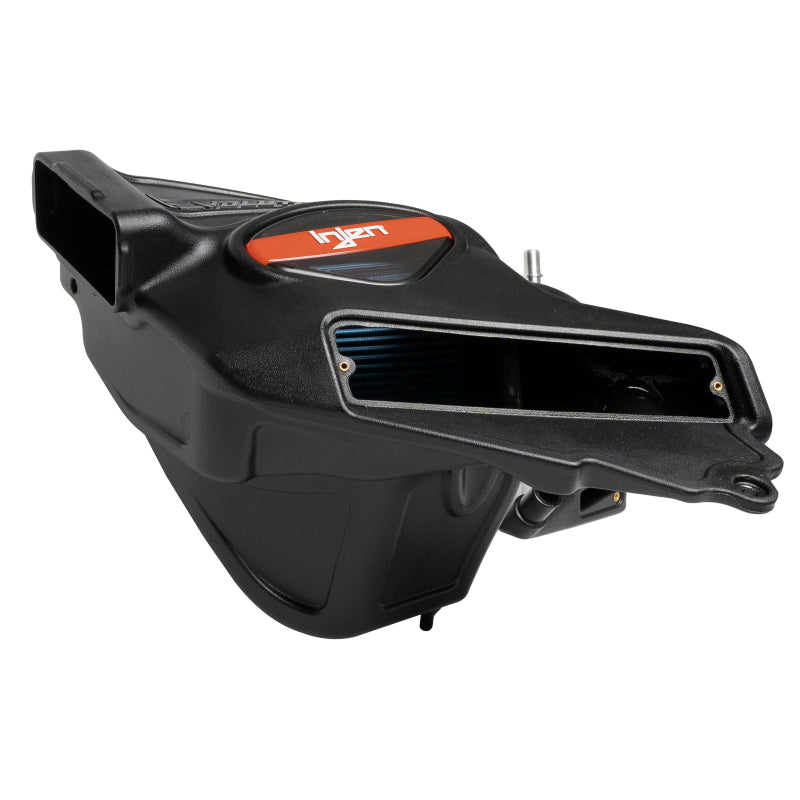

Injen Evolution Dry Filter Cold Air Intake, housing with long outlet, angled view

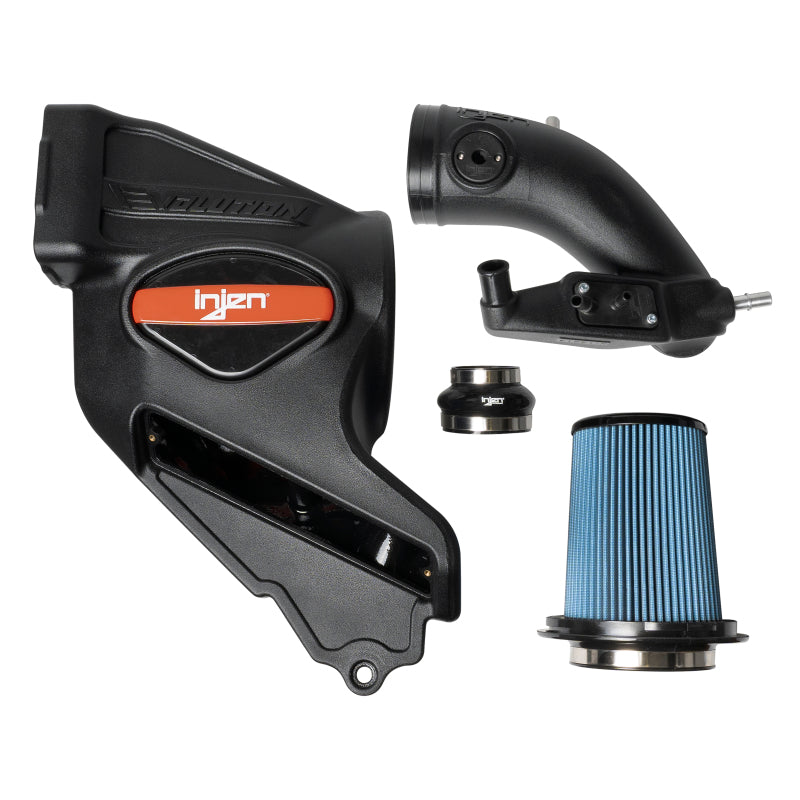

Injen Evolution Dry Filter Cold Air Intake, components laid out, blue filter

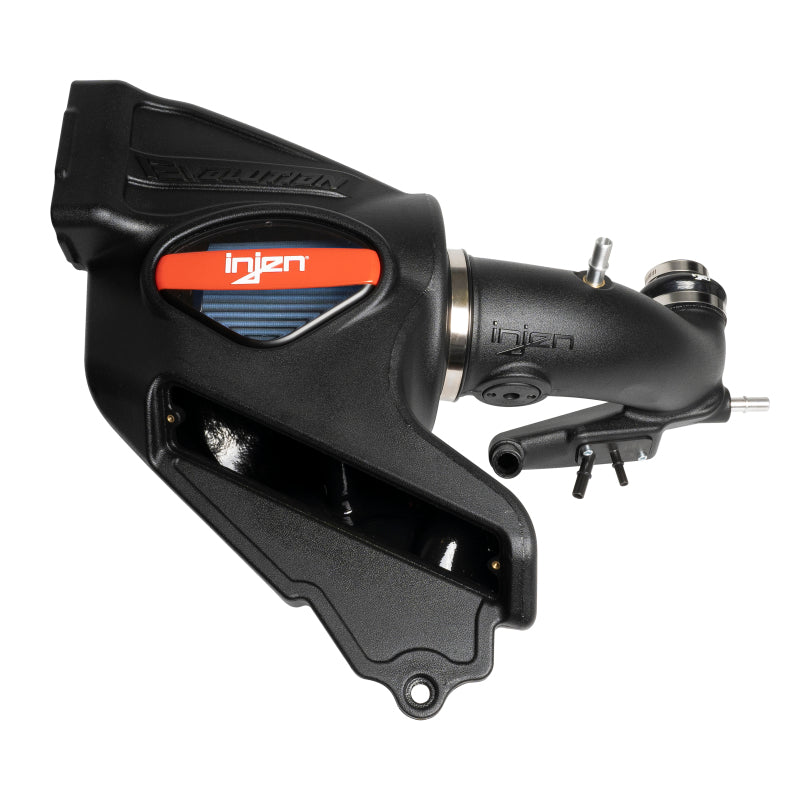

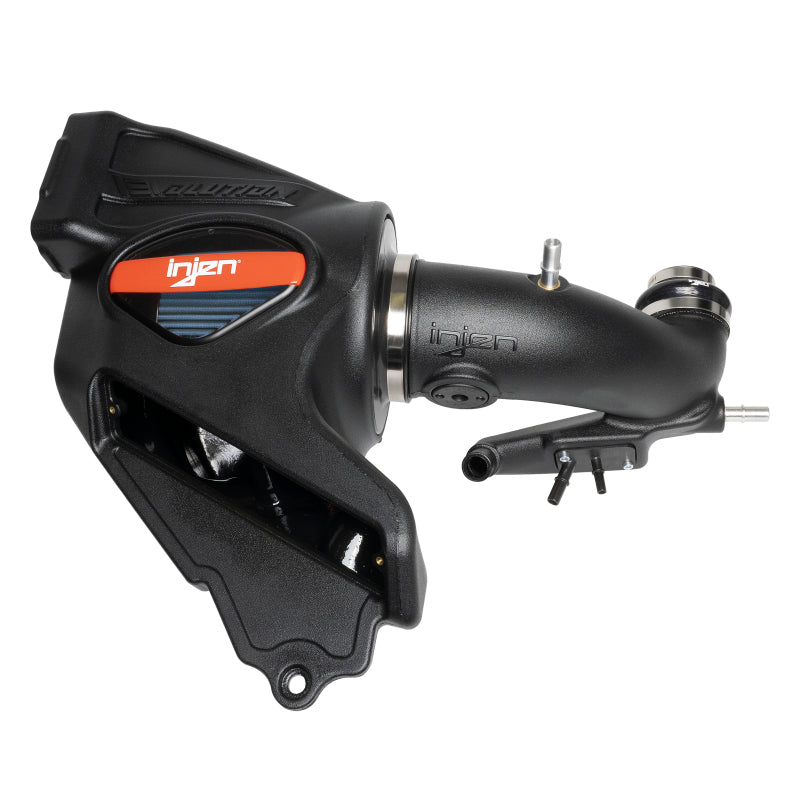

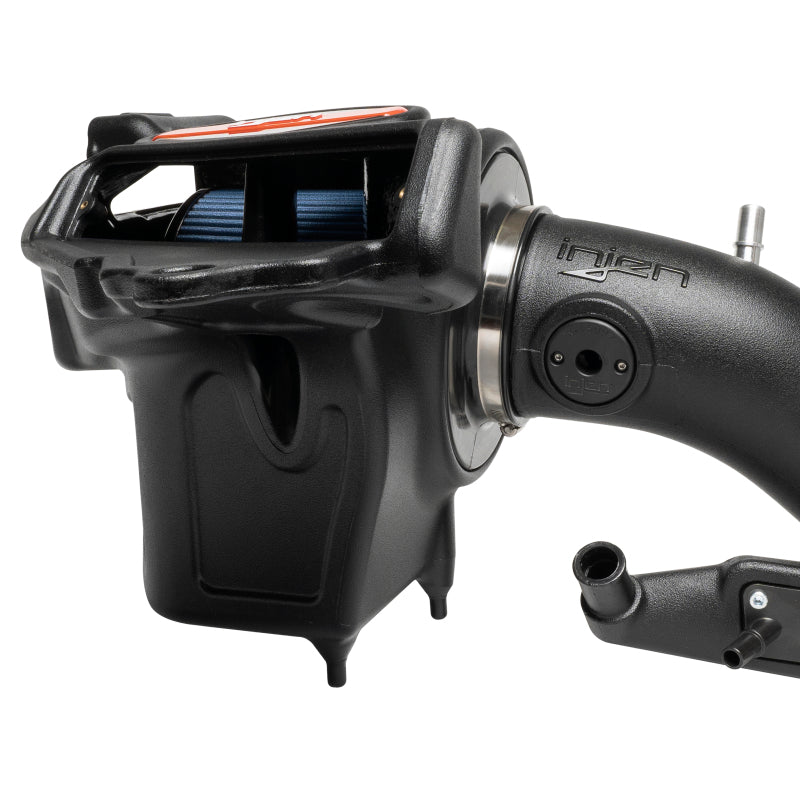

Injen Evolution Dry Filter Cold Air Intake, housing and tube, angled view
Injen Evolution Dry Filter Cold Air Intake, black airbox with long tube
Injen Evolution Dry Filter Cold Air Intake, housing, open view
Injen Evolution Dry Filter Cold Air Intake, components laid out, blue filter upright
Injen Evolution Dry Filter Cold Air Intake, housing with long outlet, angled view
Injen Evolution Dry Filter Cold Air Intake, components laid out, blue filter
Injen Evolution Dry Filter Cold Air Intake, housing and tube, angled view

Injen Evolution Dry Filter Cold Air Intake - Ford Bronco 2.3L 2021-2024

Injen SKU: INJEVO9300
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandInjen
SKUINJEVO9300
GTIN / UPC843115029388
Manufacturer Part NumberEVO9300

Product Information

Injen Evolution cold air intake with a one-piece roto-molded XLPE airbox, a front ram air scoop about twice the size of stock and an XLPE tube that tapers from 5.00 inches at the inlet to 3.50 inches at the turbo. The blue SuperNano-Web dry filter locks in with the patented Twist-Lock mount, a clear badge shows filter condition, and lined stainless band clamps secure the reinforced silicone couplers. A secondary inlet adds airflow, and dyno testing shows up to 13 hp and 13 lb-ft on the stock calibration.

Specifications

Type Cold air intake, enclosed airbox
Series Injen Evolution
Material Roto-molded cross-link polyethylene (XLPE) airbox and tube
Filter Media SuperNano-Web dry synthetic (blue), reusable; clean with a vacuum or low-pressure air, no oil
Replacement Filter X-1116-BB
What's in the Box
  • Airbox with ram air scoop
  • Intake tube
  • Twist-Lock filter
  • Stepped silicone hump hose
  • Clamps
  • IAT sensor adapter
  • Crankcase fittings and gasket
  • Clear window
  • Hardware
Gains Up to +13 hp and +13 lb-ft
Tune Required No
Fitment Notes L4 2.3L EcoBoost only; secondary inlet snorkel port works only with the Injen snorkel
Install Requires some mechanical skill
Engine 2.3L Turbo L4
Emissions Not currently CARB exempt and cannot be shipped into the following states: CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT, WA (Injen)
Warranty Limited lifetime for the original purchaser
Part Number EVO9300

This part fits:

Year Make Model Submodel
2021-2024 Ford Bronco Badlands
2021-2023 Ford Bronco Base
2021-2024 Ford Bronco Big Bend
2021-2024 Ford Bronco Black Diamond
2022-2024 Ford Bronco Everglades
2023-2024 Ford Bronco Heritage Edition
2021-2024 Ford Bronco Outer Banks

Documents: Installation Instructions (PDF)

Does it fit the 2.7L Bronco?

  • No. It is for the Bronco with the L4 2.3L EcoBoost. The 2.7L V6 takes a different Evolution intake.

Do I need a tune?

  • No. It is designed to work with the stock calibration.

How do I service the filter?

  • The blue SuperNano-Web dry filter is reusable; clean it with a vacuum or low-pressure air and do not oil it. The replacement filter is X-1116-BB.

What is the difference between EVO9300 and EVO9300C?

  • Only the filter. EVO9300 uses the blue SuperNano-Web dry filter for street and light weekend use, and EVO9300C uses the red 8-layer oiled cotton gauze filter for off-road driving in fine silt.

What is the warranty?

  • Limited lifetime for the original purchaser.
