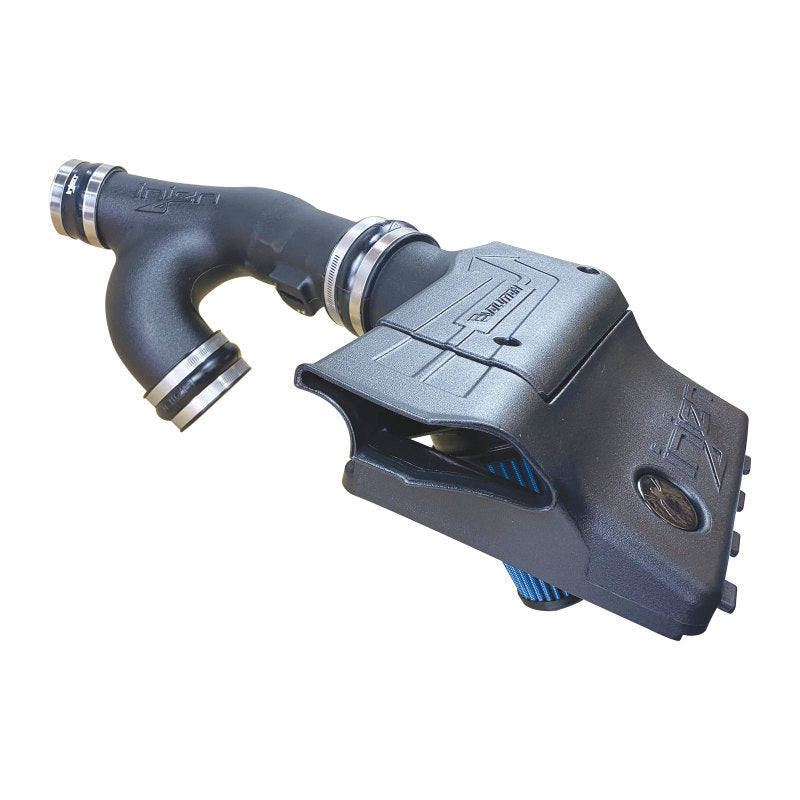

Injen Evolution Dry Filter Cold Air Intake, gray airbox with tubes, angled view

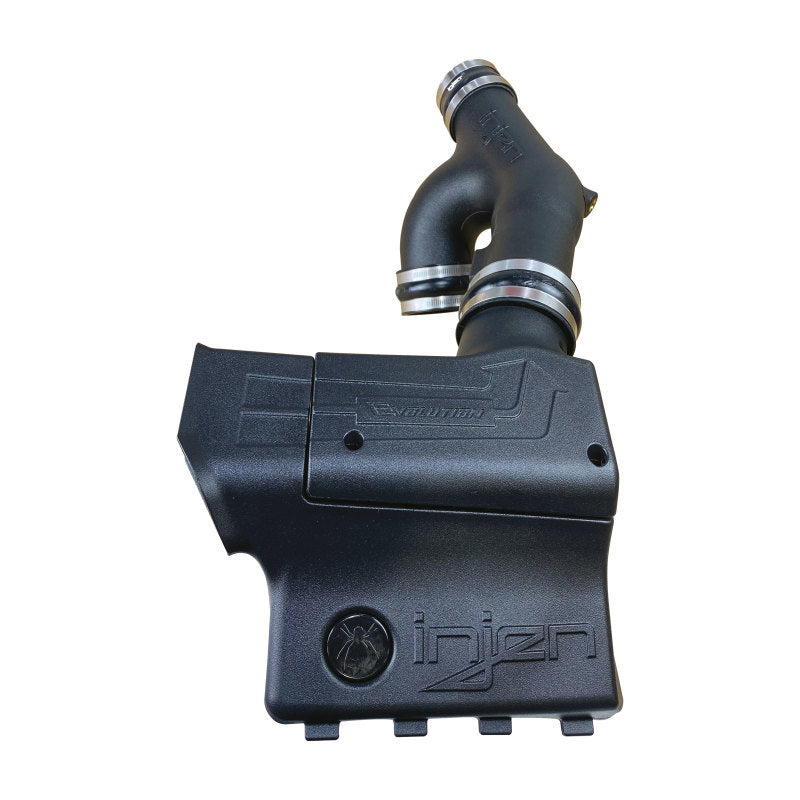

Injen Evolution Dry Filter Cold Air Intake, housing with logo, angled view

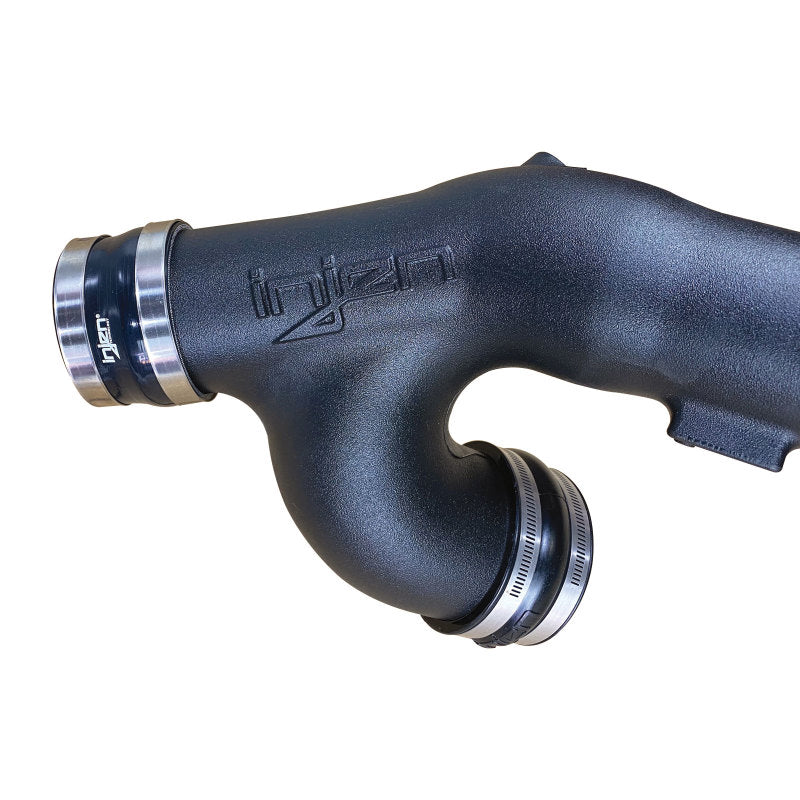

Injen Evolution Dry Filter Cold Air Intake, curved tube, side view
Injen Evolution Dry Filter Cold Air Intake, gray airbox with tubes, angled view
Injen Evolution Dry Filter Cold Air Intake, housing with logo, angled view
Injen Evolution Dry Filter Cold Air Intake, curved tube, side view

Injen Evolution Dry Filter Cold Air Intake - Ford F-150 3.5L EcoBoost 2011-2014

Injen SKU: INJEVO9105
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandInjen
SKUINJEVO9105
GTIN / UPC843115027988
Manufacturer Part NumberEVO9105

Product Information

Injen Evolution cold air intake for the 3.5L EcoBoost twin turbo V6, with a roto-molded cross-linked polyethylene box and boost plenum that mount to the factory lower airbox, and a forward facing ram air scoop feeding cool air to the turbos. A smooth roto-molded intake tube and a large SuperNano-Web dry filter on the SHUR-LOCK filter mount cut restriction. It installs without cutting or drilling, and dyno testing shows up to 18 hp and 21 lb-ft on the stock calibration.

Specifications

Type Cold air intake, enclosed two-piece airbox with boost plenum and ram air scoop
Series Injen Evolution
Material Roto-molded cross-linked polyethylene airbox, plenum and intake tube
Filter Media SuperNano-Web dry synthetic filter, washable, no oil needed (clean by vacuum or low-pressure air, no cleaners)
Replacement Filter X-1129-BB
What's in the Box
  • Roto-molded airbox with ram air scoop
  • Boost plenum
  • Intake tube
  • SuperNano-Web dry filter
  • Hump and step hoses
  • Lined stainless band clamps
  • MAF / temp sensor pad with gasket
  • Filter minder plug
  • Fittings
  • Mounting bolts and seal washers
Gains Up to +18 hp and +21 lb-ft (3.5L EcoBoost dyno)
Tune Required No
Fitment Notes 3.5L EcoBoost twin turbo V6 only. Mounts to the factory lower airbox, which is reused. May not fit trucks with an aftermarket intercooler or intercooler piping, a turbo upgrade, modified body panels or suspension and chassis modifications.
Install Drop-in fit, no cutting or drilling; some mechanical skill required
Engine 3.5L Twin Turbo V6
Emissions Not currently CARB exempt and cannot be shipped into the following states: CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT, WA (Injen)
Warranty Limited lifetime for the original purchaser
Part Number EVO9105

This part fits:

Year Make Model Submodel
2011-2014 Ford F-150 FX2
2011-2014 Ford F-150 FX4
2011-2014 Ford F-150 King Ranch
2011-2014 Ford F-150 Lariat
2013-2014 Ford F-150 Limited
2011-2014 Ford F-150 Platinum
2011-2014 Ford F-150 XL
2011-2014 Ford F-150 XLT

Documents: Installation Instructions (PDF) | Dyno Chart (PDF)

Does it fit the 5.0L V8 or 3.7L V6 F-150?

  • No. It is for the 3.5L EcoBoost twin turbo V6 only.

Do I need a tune?

  • No. It is designed to work with the stock calibration.

Does it replace the whole factory airbox?

  • No. It mounts to the factory lower airbox, which is reused.

What replacement filter does it use?

  • X-1129-BB, a washable SuperNano-Web dry filter that needs no oil.

What is the warranty?

  • Limited lifetime for the original purchaser.
