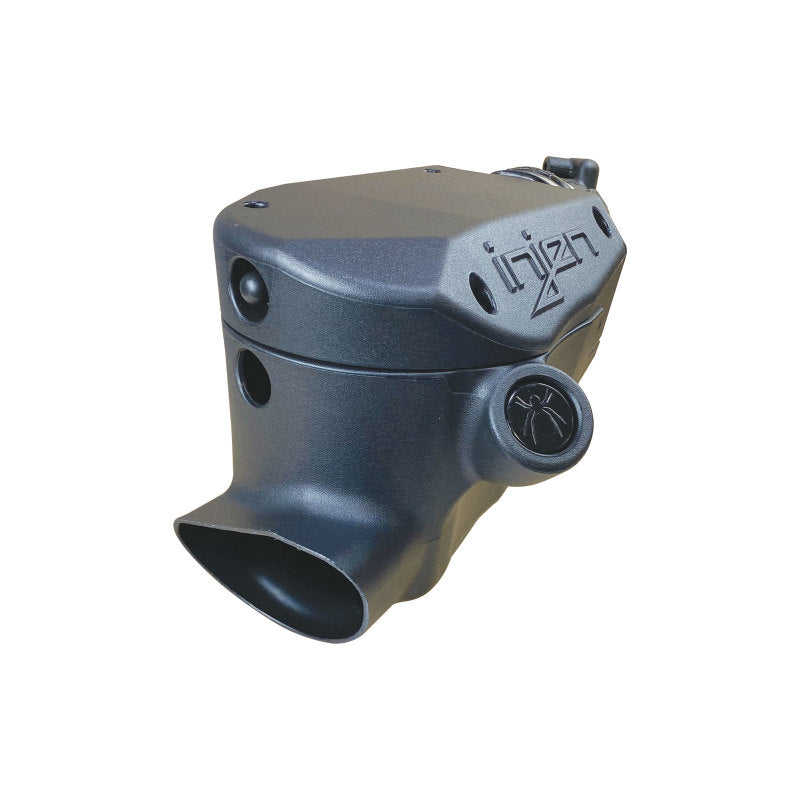

Injen Evolution Dry Filter Cold Air Intake, gray airbox with round lens, side view

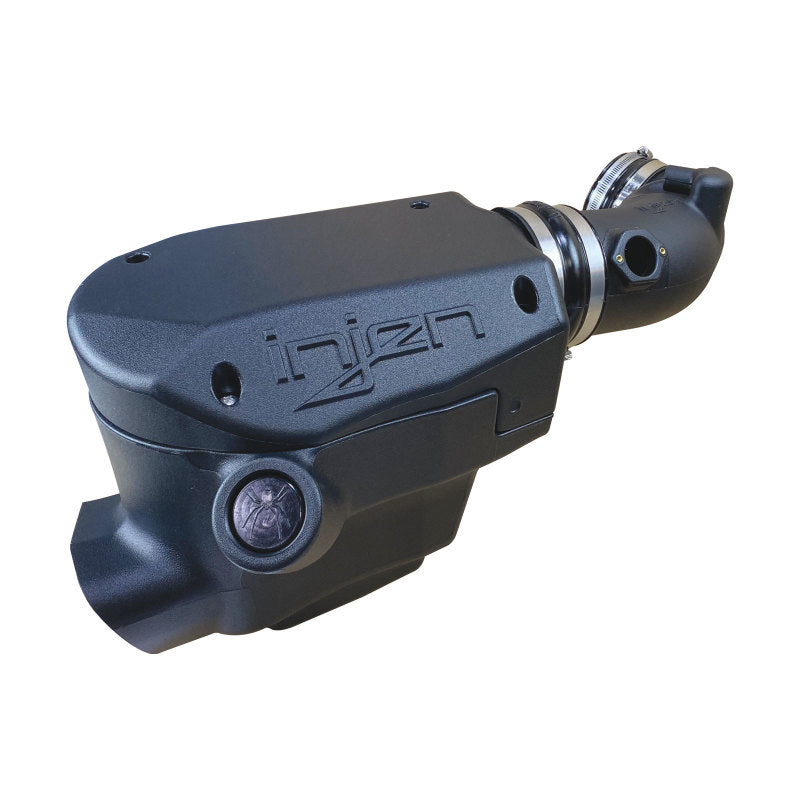

Injen Evolution Dry Filter Cold Air Intake, housing with logo, angled view

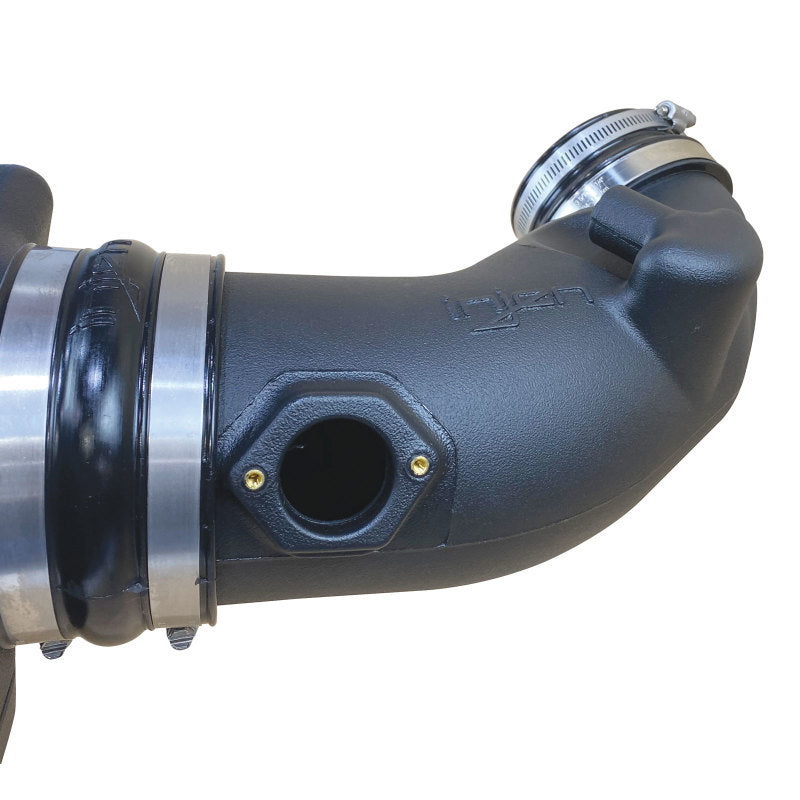

Injen Evolution Dry Filter Cold Air Intake, tube with sensor port, close up
Injen Evolution Dry Filter Cold Air Intake, gray airbox with round lens, side view
Injen Evolution Dry Filter Cold Air Intake, housing with logo, angled view
Injen Evolution Dry Filter Cold Air Intake, tube with sensor port, close up

Injen Evolution Dry Filter Cold Air Intake - Ford F-250 / F-350 Super Duty 6.4L 2008-2010

Injen SKU: INJEVO9005
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandInjen
SKUINJEVO9005
GTIN / UPC843115027964
Manufacturer Part NumberEVO9005

Product Information

Injen Evolution cold air intake for the 6.4L Power Stroke diesel, built around a two-piece roto-molded cross-linked polyethylene box with an integrated boost plenum that works with the factory ram air system. A smooth roto-molded intake tube feeds the turbo, and a large 360 degree SuperNano-Web dry filter seals on the SHUR-LOCK filter mount. It installs without cutting or drilling, and dyno testing shows up to 23 hp and 53 lb-ft on the stock calibration.

Specifications

Type Cold air intake, enclosed two-piece airbox with boost plenum
Series Injen Evolution
Material Roto-molded cross-linked polyethylene airbox, plenum and intake tube
Filter Media SuperNano-Web dry synthetic filter, washable, no oil needed (clean by vacuum or low-pressure air, no cleaners)
Replacement Filter X-1126-BB
What's in the Box
  • Two-piece roto-molded airbox
  • Boost plenum
  • Intake tube
  • SuperNano-Web dry filter
  • 4.5 in hump hose
  • 4 to 3 in step hose
  • Lined stainless band clamps
  • Filter minder plug
  • Mounting bolts and seal washers
Gains Up to +23 hp and +53 lb-ft (6.4L Power Stroke dyno)
Tune Required No
Fitment Notes 6.4L Power Stroke diesel only. May not fit trucks with an aftermarket intercooler or intercooler piping, a turbo upgrade, modified body panels or suspension and chassis modifications.
Install Drop-in fit, no cutting or drilling; some mechanical skill required
Accessories Hydroshield pre-filter 1075BLK (sold separately)
Engine 6.4L Turbo Diesel V8
Emissions Not currently CARB exempt and cannot be shipped into the following states: CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT, WA (Injen)
Warranty Limited lifetime for the original purchaser
Part Number EVO9005

This part fits:

Year Make Model Submodel
2009-2010 Ford F-250 Super Duty Cabela's
2008-2009 Ford F-250 Super Duty FX4
2008-2010 Ford F-250 Super Duty Harley-Davidson Edition
2008-2010 Ford F-250 Super Duty King Ranch
2008-2010 Ford F-250 Super Duty Lariat
2008-2010 Ford F-250 Super Duty XL
2008-2010 Ford F-250 Super Duty XLT
2009-2010 Ford F-350 Super Duty Cabela's
2008-2009 Ford F-350 Super Duty FX4
2008-2010 Ford F-350 Super Duty Harley-Davidson Edition
2008-2010 Ford F-350 Super Duty King Ranch
2008-2010 Ford F-350 Super Duty Lariat
2008-2010 Ford F-350 Super Duty XL
2008-2010 Ford F-350 Super Duty XLT

Documents: Installation Instructions (PDF)

Which engine does it fit?

  • The 6.4L Power Stroke diesel in the 2008-2010 F-250 and F-350 Super Duty.

Do I need a tune?

  • No. It is designed to work with the stock calibration.

Does it work with the factory ram air?

  • Yes. The box is designed to work with the factory ram air system.

What replacement filter does it use?

  • X-1126-BB, a washable SuperNano-Web dry filter that needs no oil.

What is the warranty?

  • Limited lifetime for the original purchaser.
