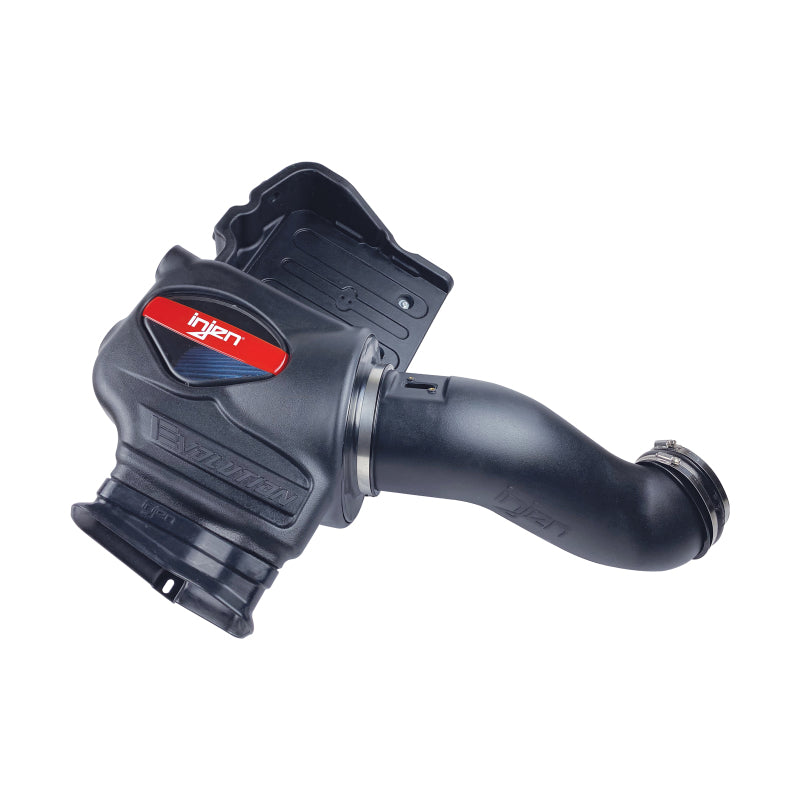

Injen Evolution Dry Filter Cold Air Intake, black airbox with red badge and tube

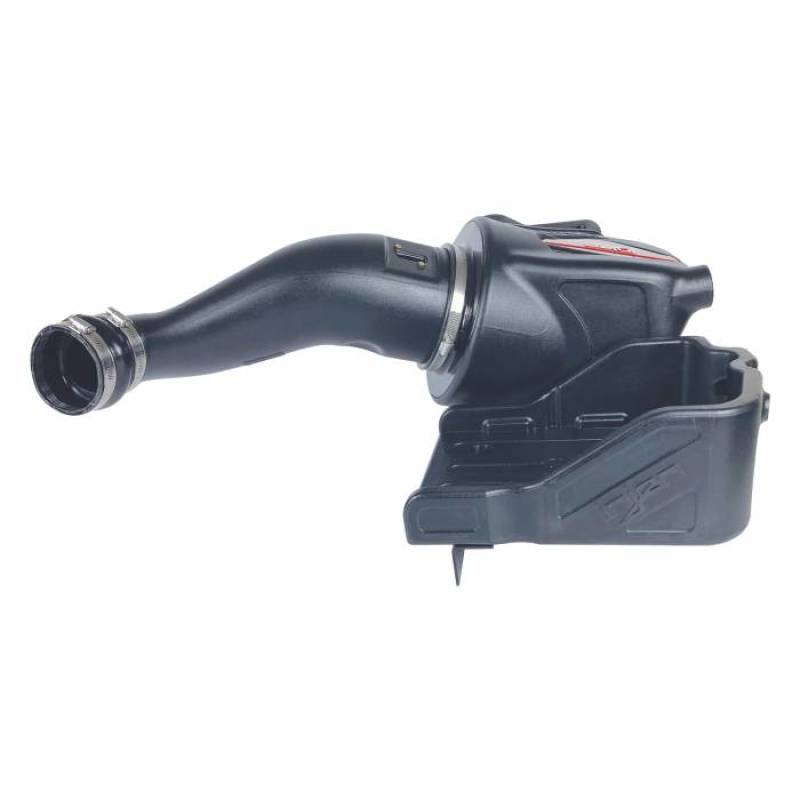

Injen Evolution Dry Filter Cold Air Intake, housing and long tube, angled view

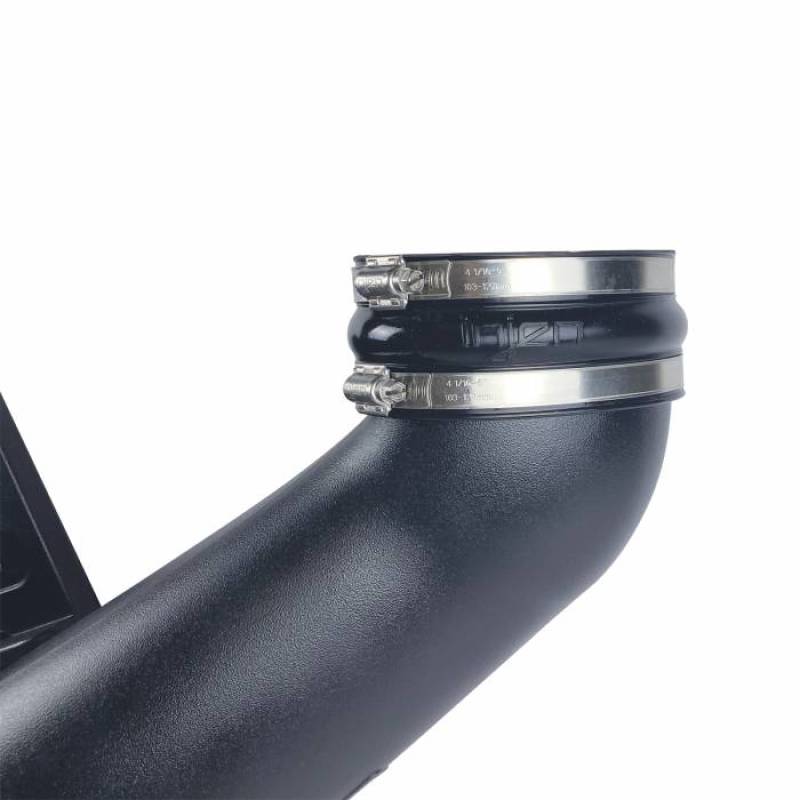

Injen Evolution Dry Filter Cold Air Intake, curved tube, side view

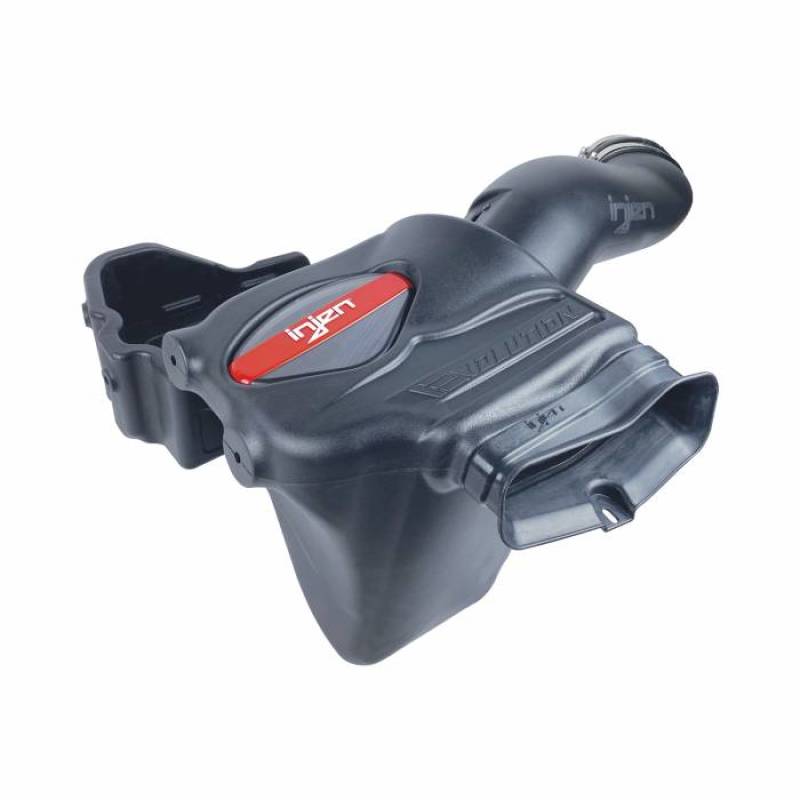

Injen Evolution Dry Filter Cold Air Intake, housing with red logo, angled view

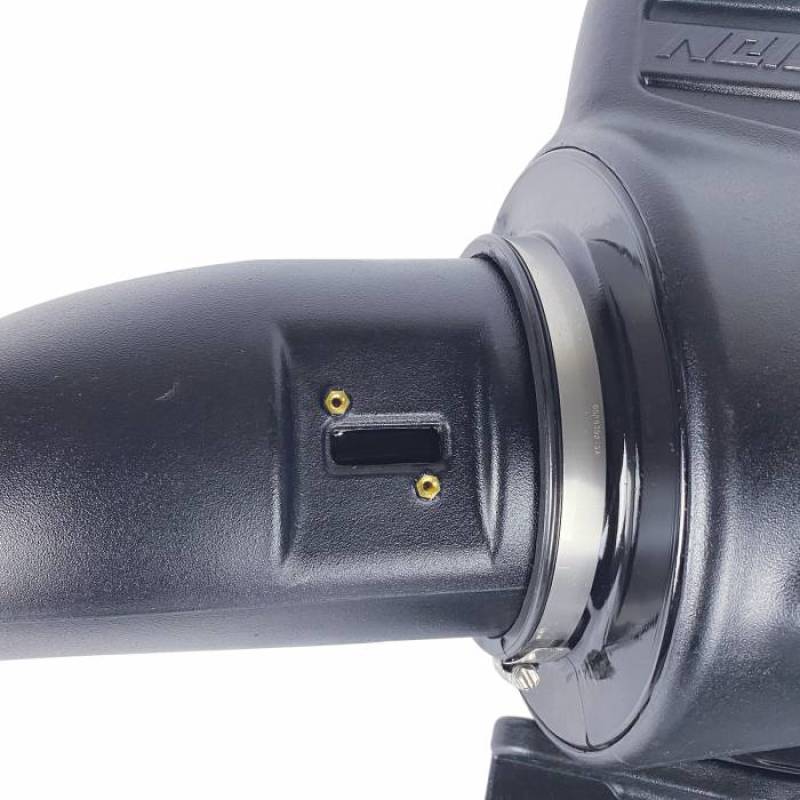

Injen Evolution Dry Filter Cold Air Intake, tube with sensor slot, close up

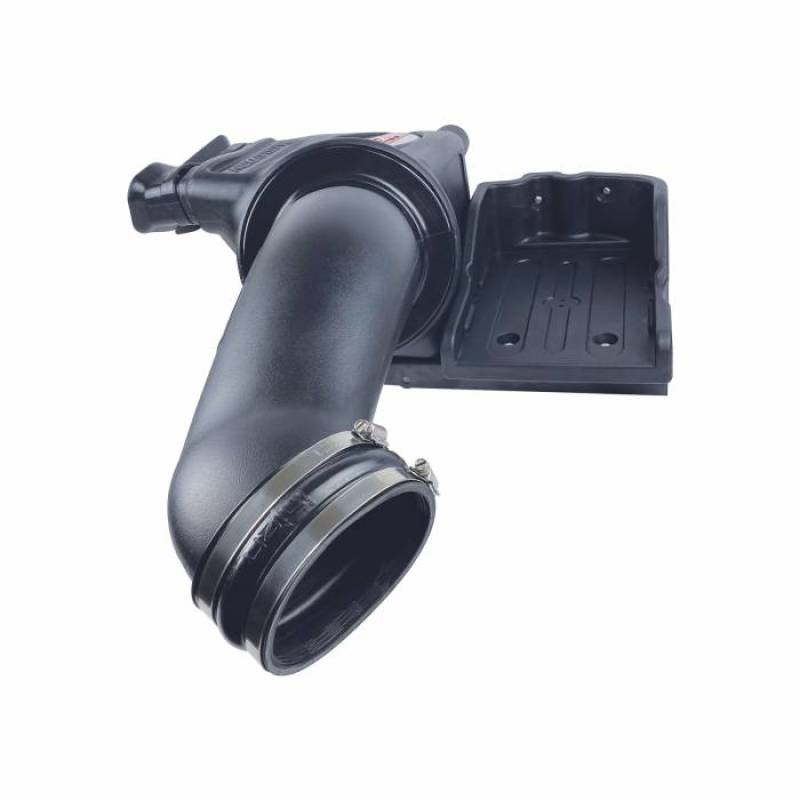

Injen Evolution Dry Filter Cold Air Intake, tube and housing, angled view
Injen Evolution Dry Filter Cold Air Intake, black airbox with red badge and tube
Injen Evolution Dry Filter Cold Air Intake, housing and long tube, angled view
Injen Evolution Dry Filter Cold Air Intake, curved tube, side view
Injen Evolution Dry Filter Cold Air Intake, housing with red logo, angled view
Injen Evolution Dry Filter Cold Air Intake, tube with sensor slot, close up
Injen Evolution Dry Filter Cold Air Intake, tube and housing, angled view

Injen Evolution Dry Filter Cold Air Intake - Ford Super Duty 6.7L Diesel 2017-2019

Injen SKU: INJEVO9004
Price
Only 5 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandInjen
SKUINJEVO9004
GTIN / UPC843115028398
Manufacturer Part NumberEVO9004

Product Information

Injen Evolution cold air intake with a one-piece roto-molded XLPE airbox, a battery relocation tray and a 5 inch OD intake tube with internal MegaRam (MR) technology that tapers toward the turbo. The SuperNano-Web dry filter locks in with the Twist-Lock mount, the kit uses the factory harnesses with no extensions, and lined stainless band clamps secure the reinforced silicone couplers. Dyno testing shows up to 20 hp and 41 lb-ft on the stock calibration.

Specifications

Type Cold air intake, enclosed airbox
Series Injen Evolution
Material Roto-molded cross-link polyethylene (XLPE) airbox, tube and battery tray; 5 in OD tube with MegaRam (MR) technology
Filter Media SuperNano-Web dry synthetic (blue), reusable; clean with a vacuum or low-pressure air, no oil
Replacement Filter X-1113-BB
What's in the Box
  • Airbox
  • Intake tube
  • Battery tray and bracket
  • Twist-Lock filter
  • Rubber inlet duct
  • 4-hump hose
  • Clamps
  • Clear window
  • Hardware
Gains Up to +20 hp and +41 lb-ft
Tune Required No
Fitment Notes 6.7L V8 Power Stroke turbo diesel only; also fits the F-450 and F-550 Super Duty 6.7L
Install Requires some mechanical skill; a qualified mechanic is recommended
Engine 6.7L Turbo Diesel V8
Emissions Not currently CARB exempt and cannot be shipped into the following states: CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT, WA (Injen)
Warranty Limited lifetime for the original purchaser
Part Number EVO9004

This part fits:

Year Make Model Submodel
2017-2019 Ford F-250 Super Duty King Ranch
2017-2019 Ford F-250 Super Duty Lariat
2018-2019 Ford F-250 Super Duty Limited
2017-2019 Ford F-250 Super Duty Platinum
2017-2019 Ford F-250 Super Duty XL
2017-2019 Ford F-250 Super Duty XLT
2017-2019 Ford F-350 Super Duty King Ranch
2017-2019 Ford F-350 Super Duty Lariat
2018-2019 Ford F-350 Super Duty Limited
2017-2019 Ford F-350 Super Duty Platinum
2017-2019 Ford F-350 Super Duty XL
2017-2019 Ford F-350 Super Duty XLT
2017-2019 Ford F-450 Super Duty XL
2017-2019 Ford F-550 Super Duty XL

Documents: Installation Instructions (PDF)  |  Dyno Chart (PDF)

Does it fit the 6.2L gas Super Duty?

  • No. It is for the 6.7L V8 Power Stroke turbo diesel only.

Do I need a tune?

  • No. It is designed to work with the stock calibration.

How do I service the filter?

  • Do not oil the SuperNano-Web dry filter; clean it by vacuum or low-pressure air. The replacement filter is X-1113-BB.

Does it move the battery?

  • Yes. The kit includes a battery relocation tray, and it uses the factory harnesses with no extensions.

What is the warranty?

  • Limited lifetime for the original purchaser.
