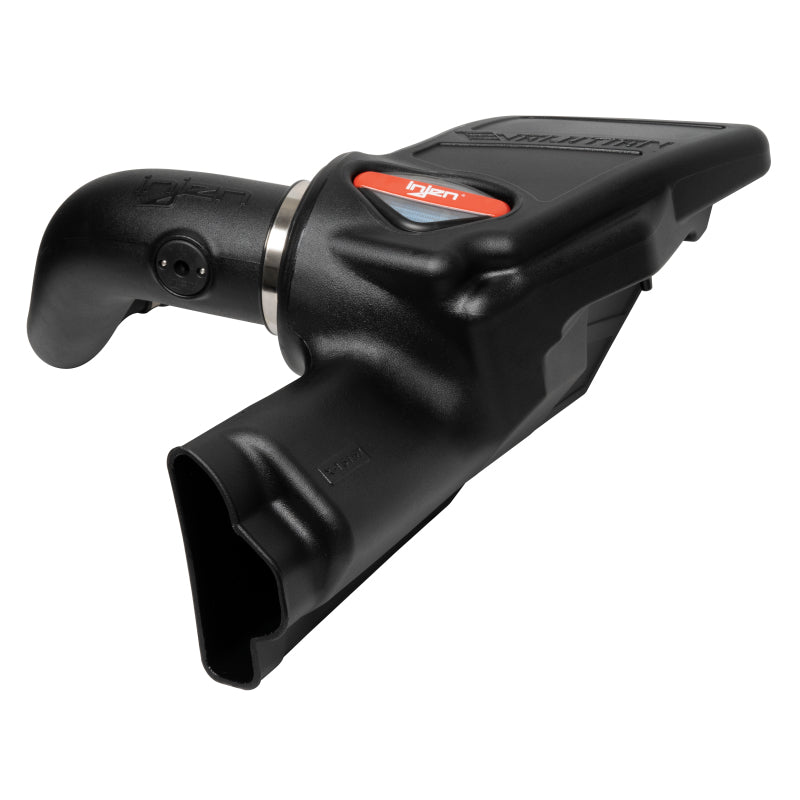

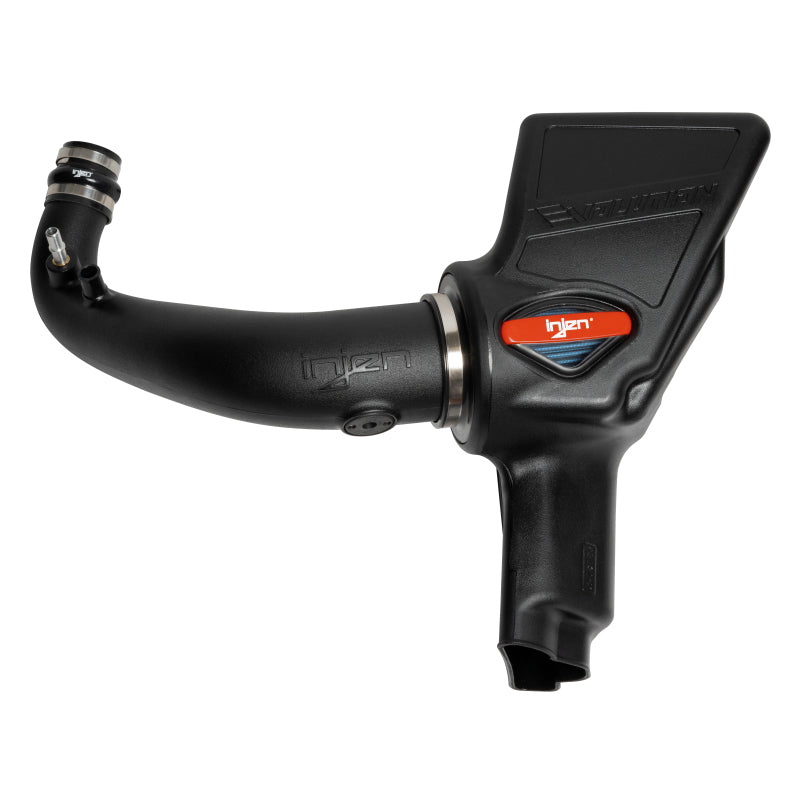

Injen Evolution Dry Filter Cold Air Intake, black tube with tall airbox

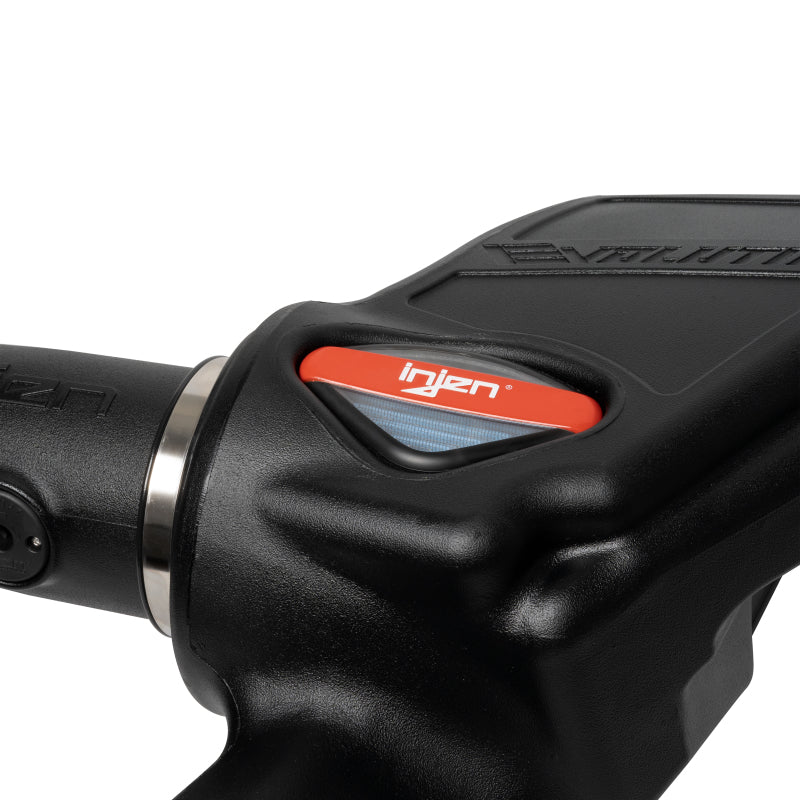

Injen Evolution Dry Filter Cold Air Intake, housing with red logo, close up
Injen Evolution Dry Filter Cold Air Intake, housing with red logo, angled view

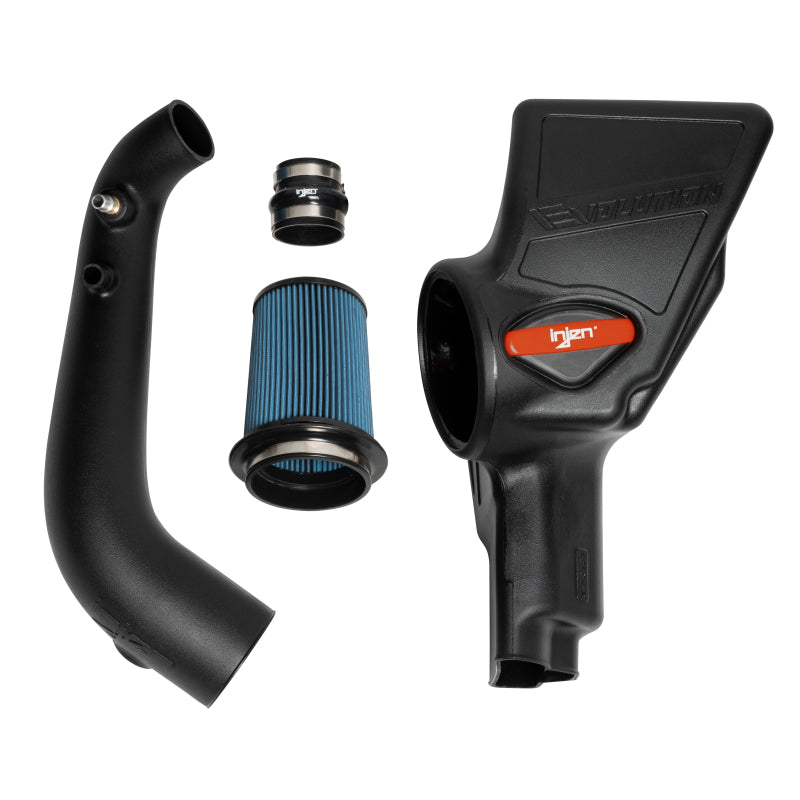

Injen Evolution Dry Filter Cold Air Intake, components laid out, blue filter

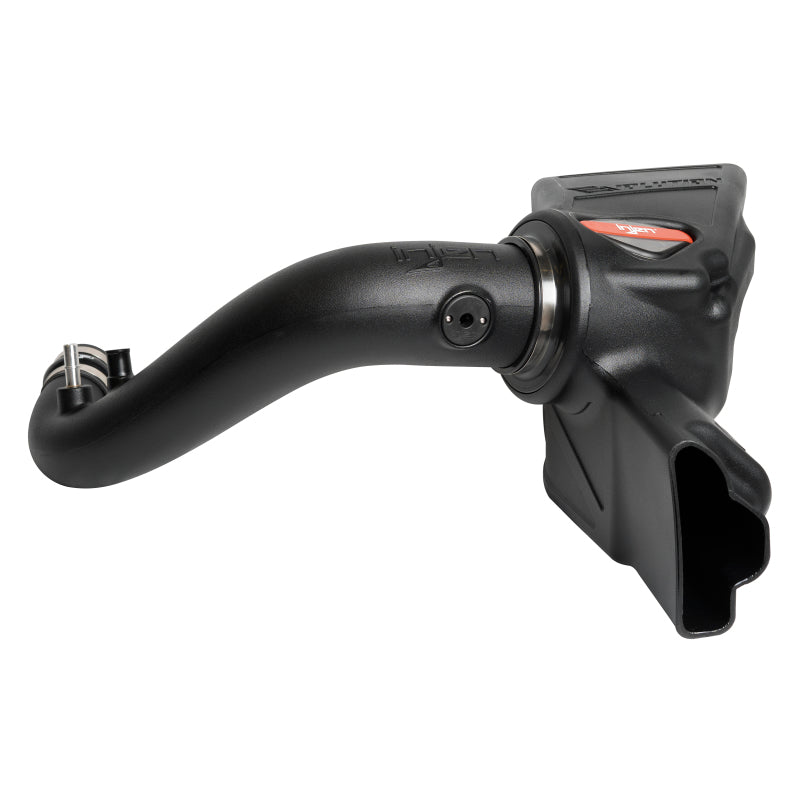

Injen Evolution Dry Filter Cold Air Intake, housing and long tube, angled view
Injen Evolution Dry Filter Cold Air Intake, black tube with tall airbox
Injen Evolution Dry Filter Cold Air Intake, housing with red logo, close up
Injen Evolution Dry Filter Cold Air Intake, housing with red logo, angled view
Injen Evolution Dry Filter Cold Air Intake, components laid out, blue filter
Injen Evolution Dry Filter Cold Air Intake, housing and long tube, angled view

Injen Evolution Dry Filter Cold Air Intake - Ford Mustang EcoBoost 2.3L 2015-2023

Injen SKU: INJEVO9205
Price
Only 3 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandInjen
SKUINJEVO9205
GTIN / UPC843115029289
Manufacturer Part NumberEVO9205

Product Information

Injen Evolution cold air intake with a one-piece sealed XLPE roto-molded airbox, a large forward facing inlet behind the grille and an XLPE intake tube that tapers down from 5 inches OD to raise airflow velocity at the turbo inlet, with MegaRam (MR) Technology inside. The SuperNano-Web dry filter locks in with the patented Twist-Lock mount, and a clear inspection badge shows filter condition. Dyno testing shows up to 23 hp and 21 lb-ft on the stock calibration.

Specifications

Type Cold air intake, enclosed airbox
Series Injen Evolution
Material Roto-molded cross-link polyethylene (XLPE) airbox and intake tube
Filter Media SuperNano-Web dry synthetic (blue), reusable; clean with a vacuum or low-pressure air, no oil
Replacement Filter X-1107-BB
What's in the Box
  • Airbox with clear window
  • Intake tube
  • Twist-Lock dry filter
  • Air temp sensor adapter
  • 5/8in machined fitting
  • 2.3875in to 3in stepped hump hose
  • Clamps
  • Push-on retaining rings
  • M4 hardware
Gains Up to +23 hp and +21 lb-ft
Tune Required No
Fitment Notes L4 2.3L EcoBoost only
Install Bolt-on, no cutting or drilling; requires some mechanical skill
Engine 2.3L Turbo L4
Emissions Not currently CARB exempt and cannot be shipped into the following states: CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT, WA (Injen)
Warranty Limited lifetime for the original purchaser
Part Number EVO9205

This part fits:

Year Make Model Submodel
2015-2023 Ford Mustang EcoBoost
2015-2023 Ford Mustang EcoBoost Premium

Documents: Installation Instructions (PDF)

What is the difference between EVO9205 and EVO9203?

  • EVO9205 is the newer design with a one-piece sealed XLPE airbox, Twist-Lock X-1107-BB filter and a 5in tapered tube, and covers 2015-2023. EVO9203 uses a two-piece box with plenum and covers 2015-2019.

Do I need a tune?

  • No. It is designed to work with the stock calibration.

How do I service the filter?

  • The blue SuperNano-Web dry filter takes no water or oil; clean it with a vacuum or compressed air. The replacement filter is X-1107-BB.

What is the warranty?

  • Limited lifetime for the original purchaser.
