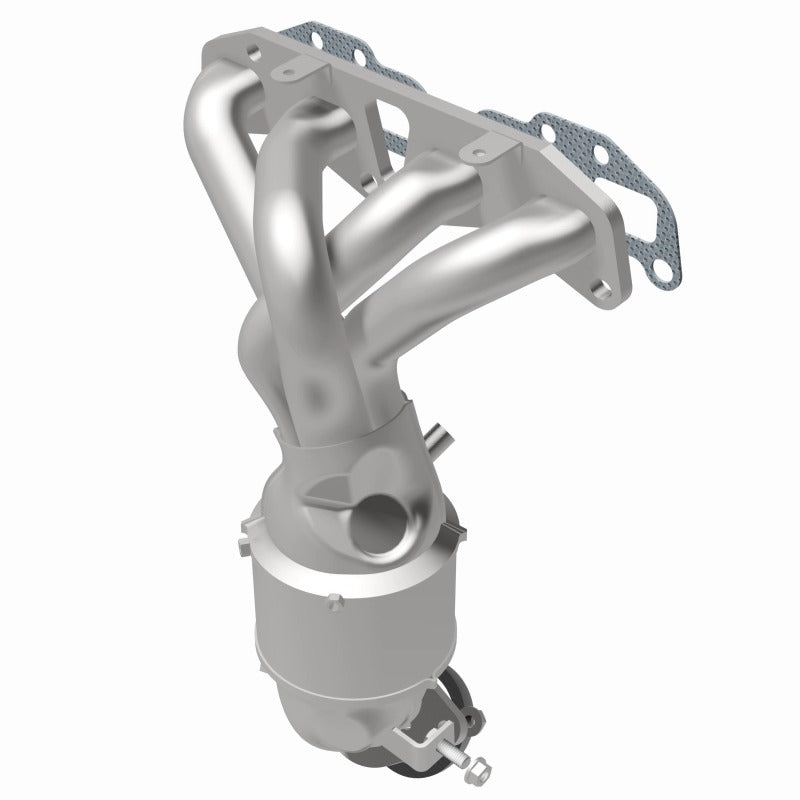

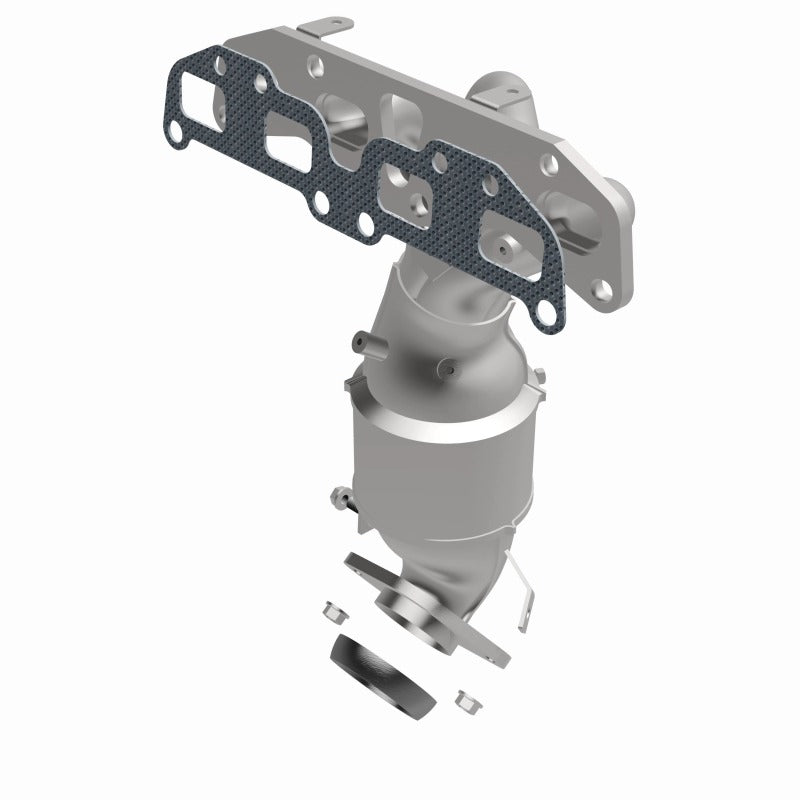

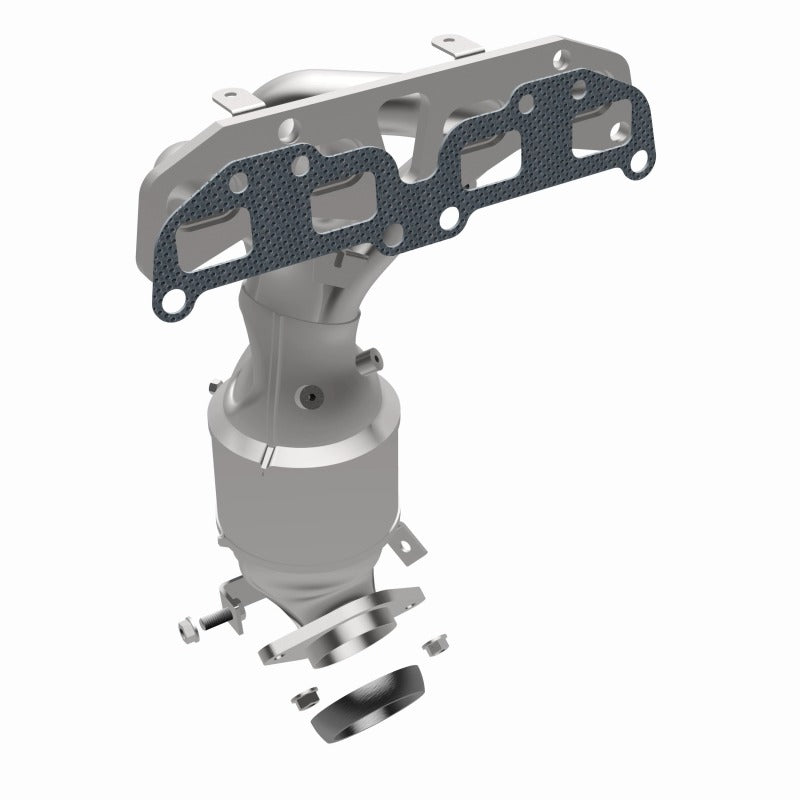

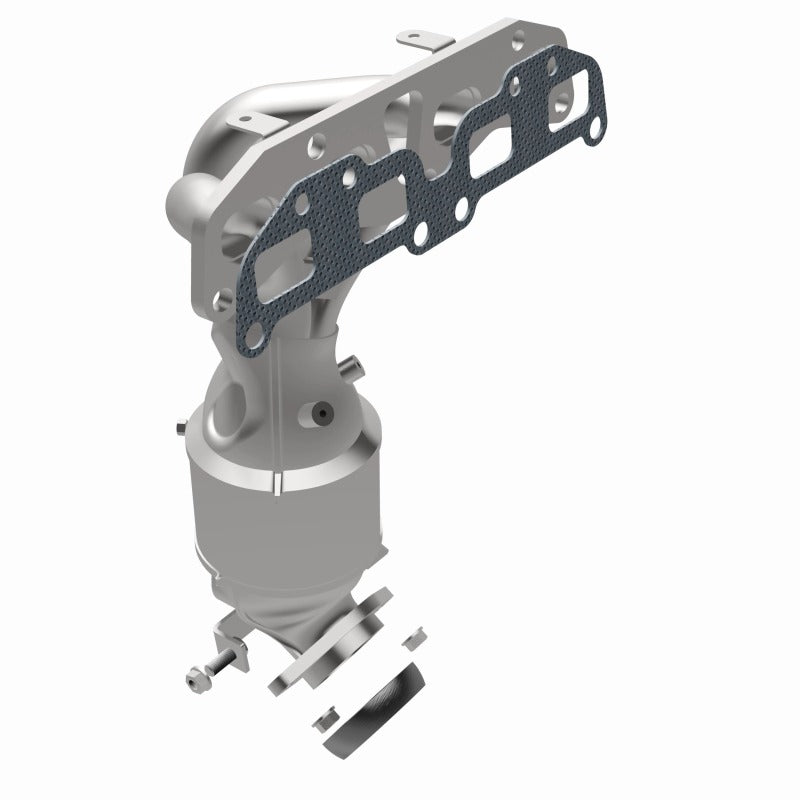

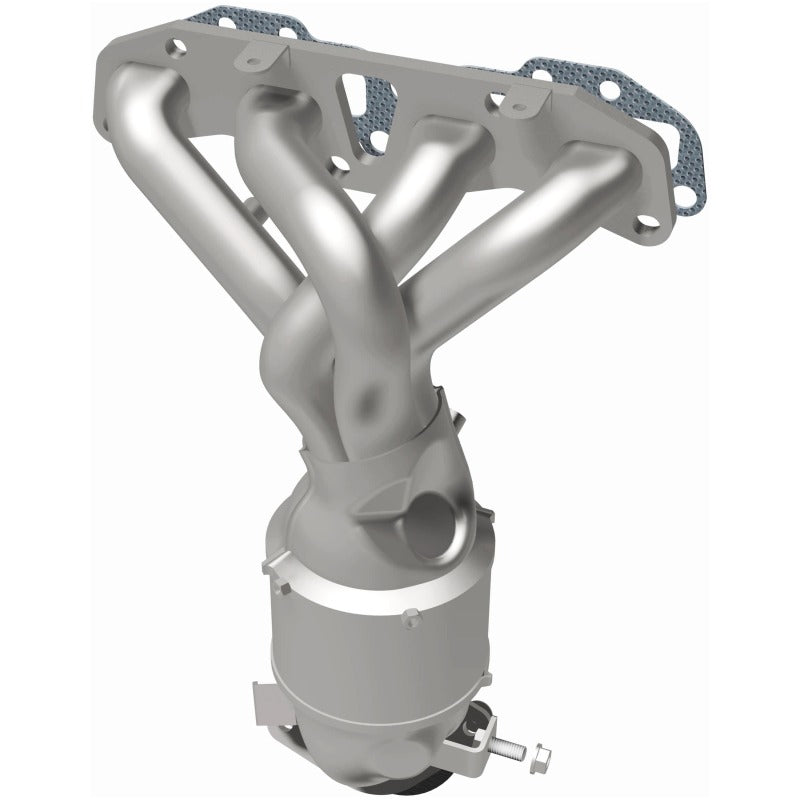

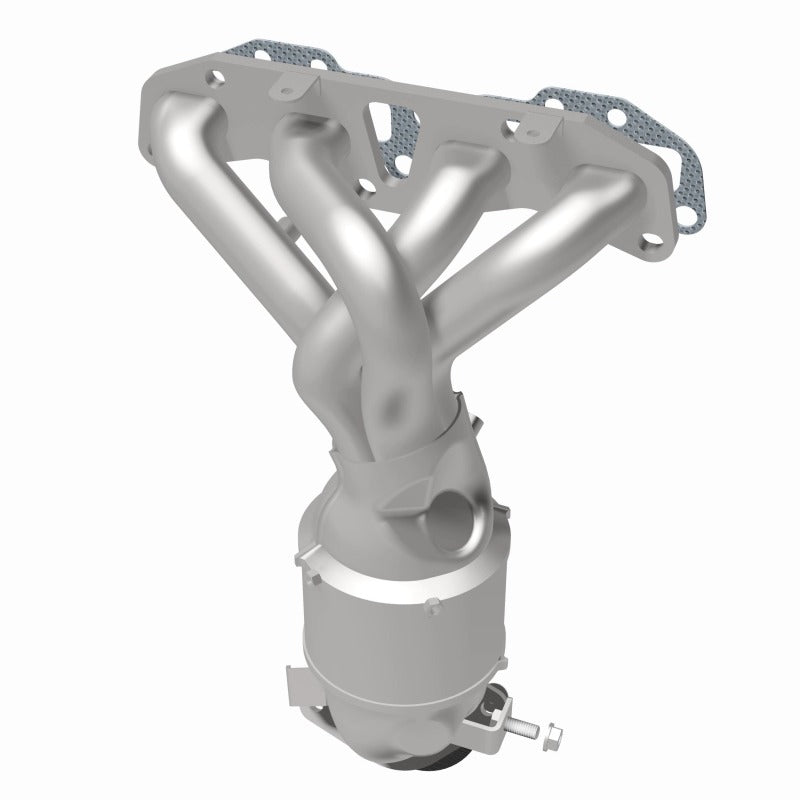

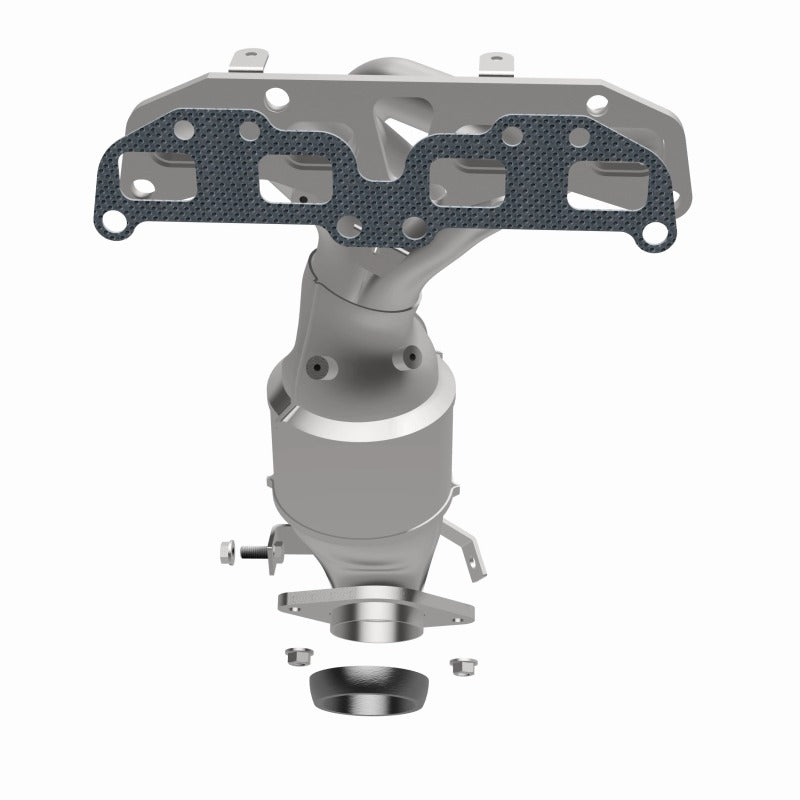

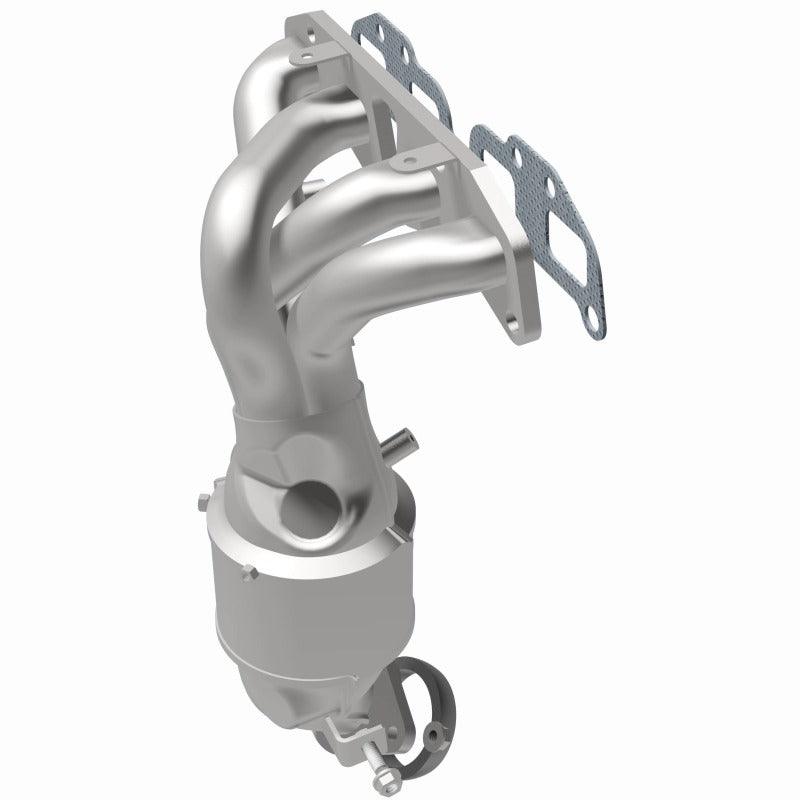

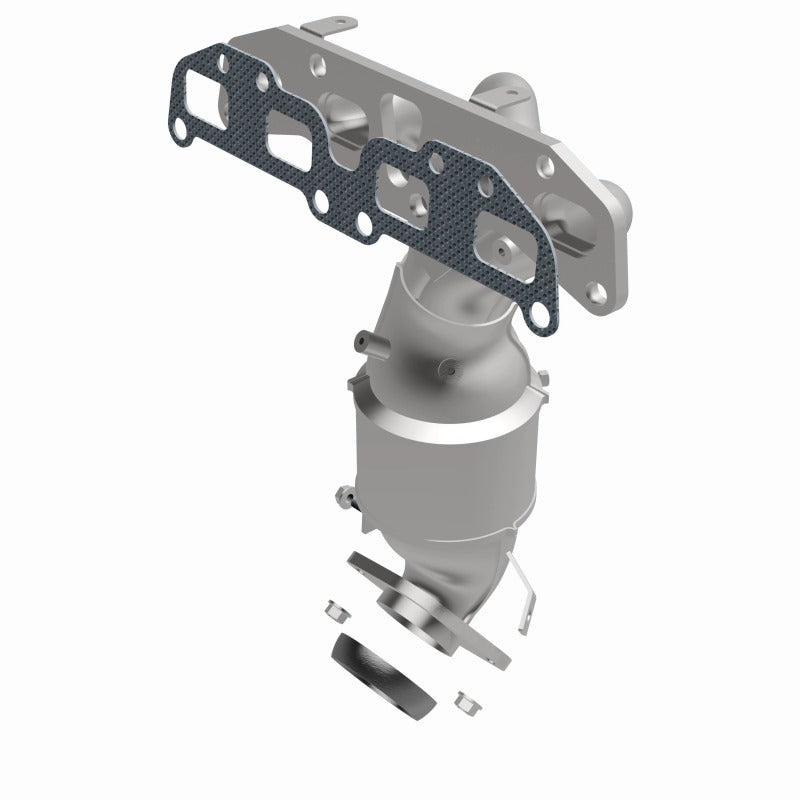

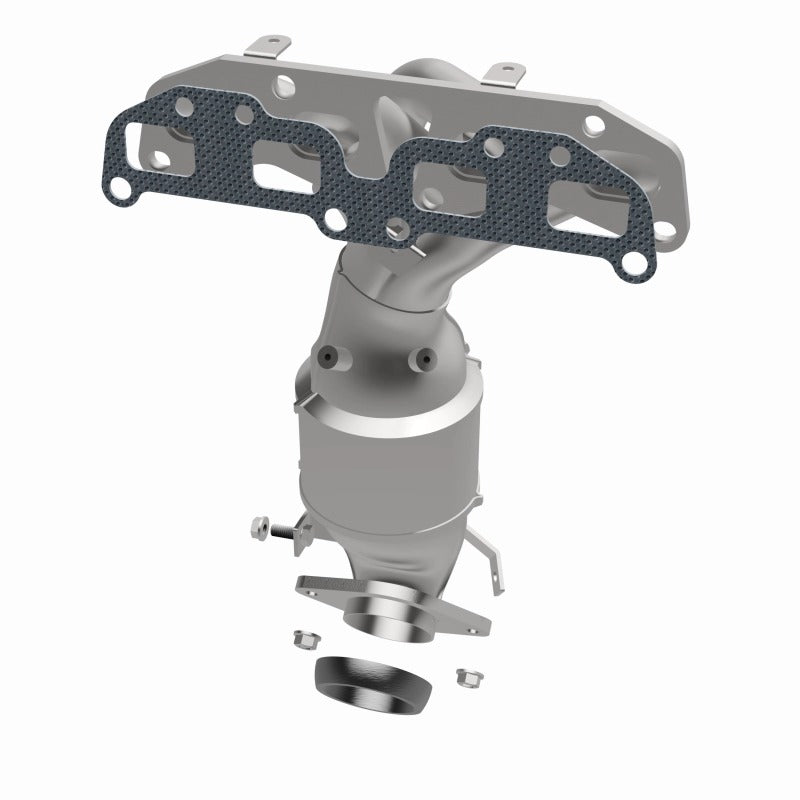

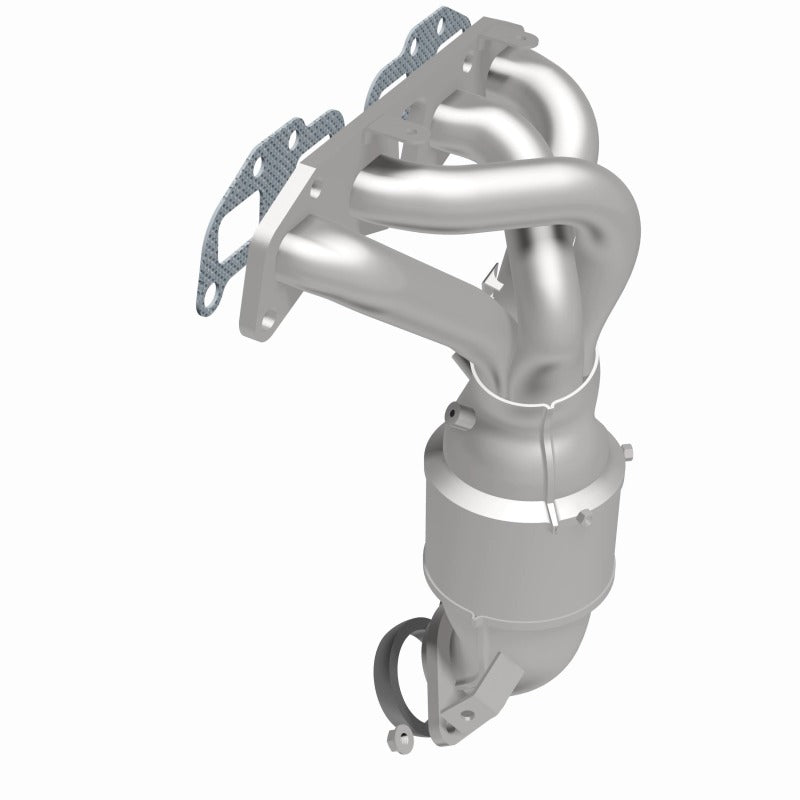

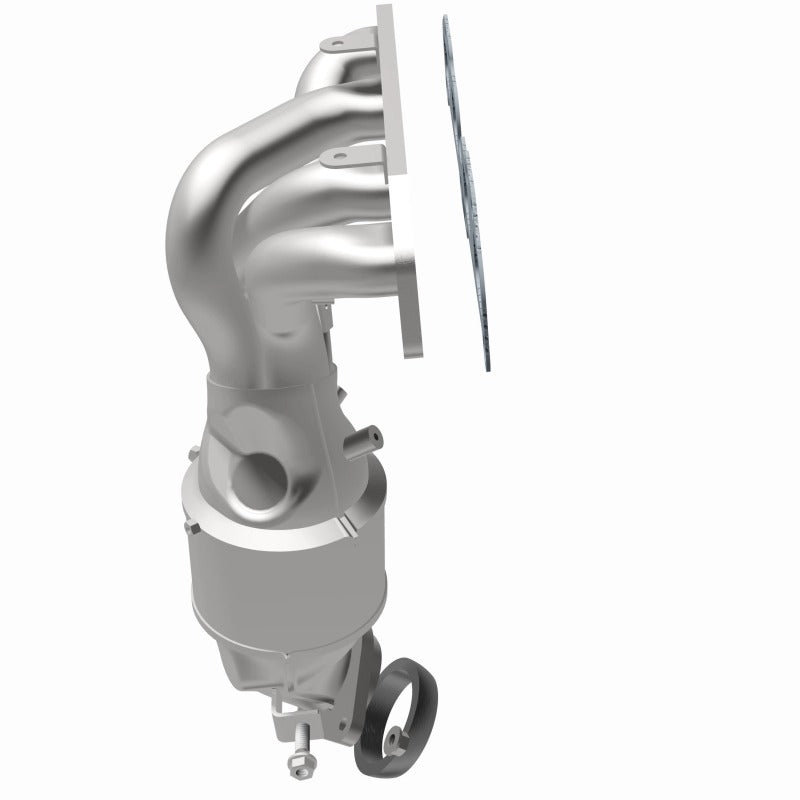

MagnaFlow Direct-Fit Manifold Catalytic Converter - Nissan Altima / Sentra 2.5L 2002-2006

Magnaflow SKU: MAG49293
Price
On Backorder – Order Now or Contact Us for Availability
Shipping calculated at checkout.
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check

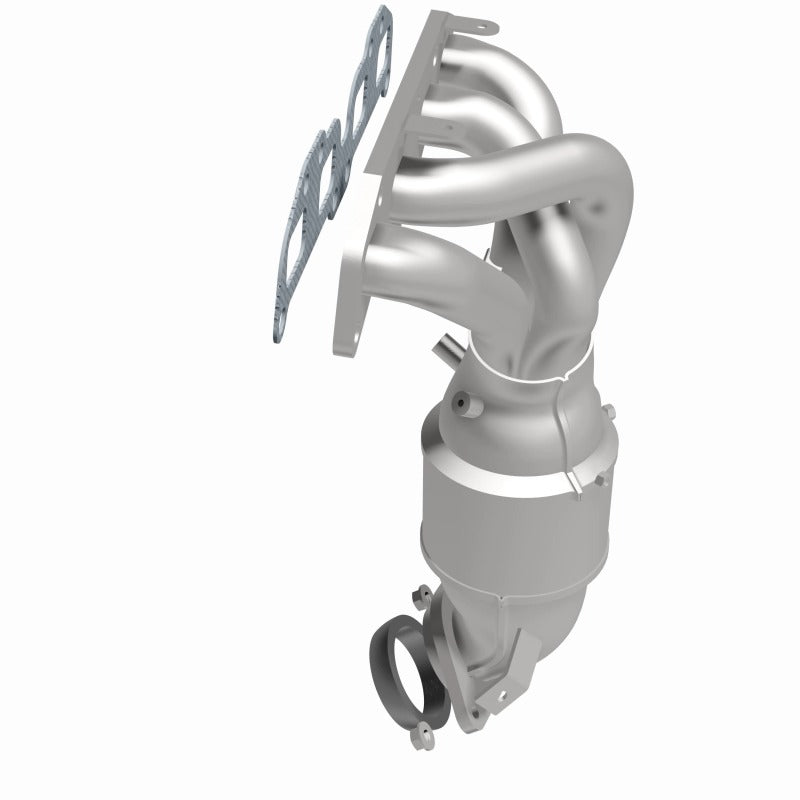

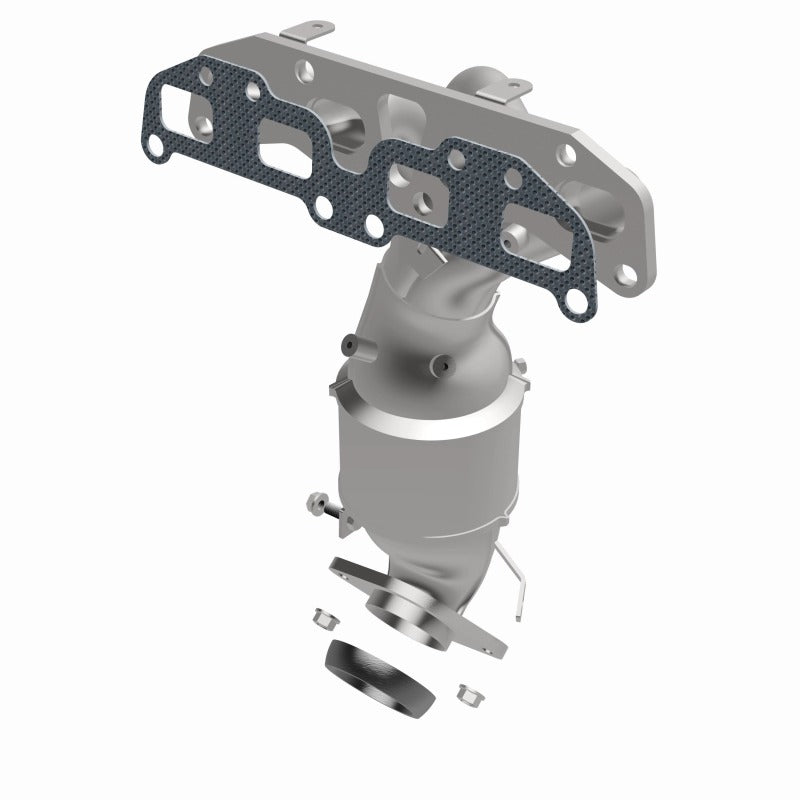

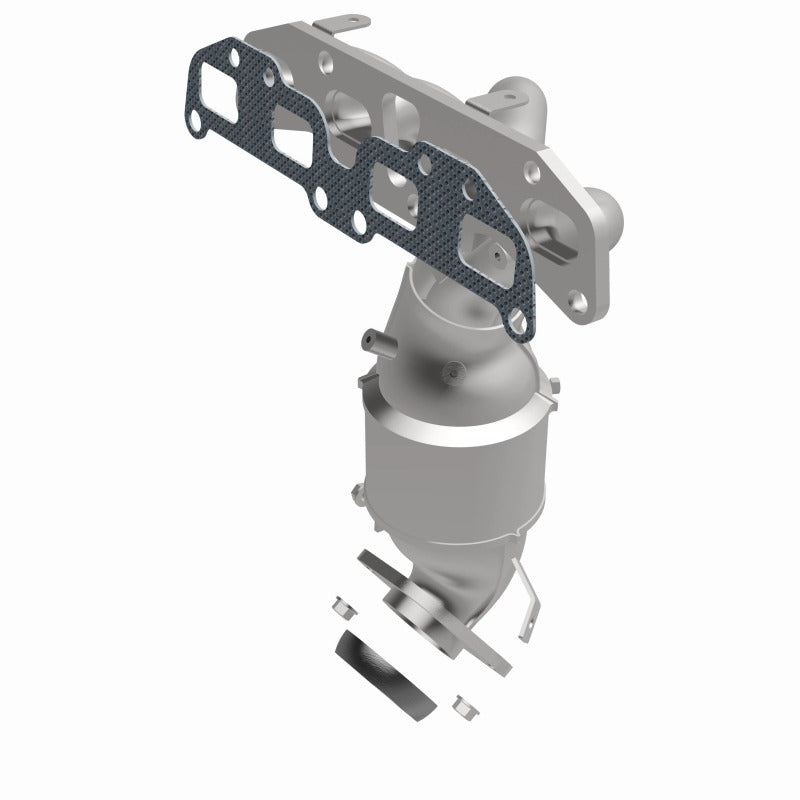

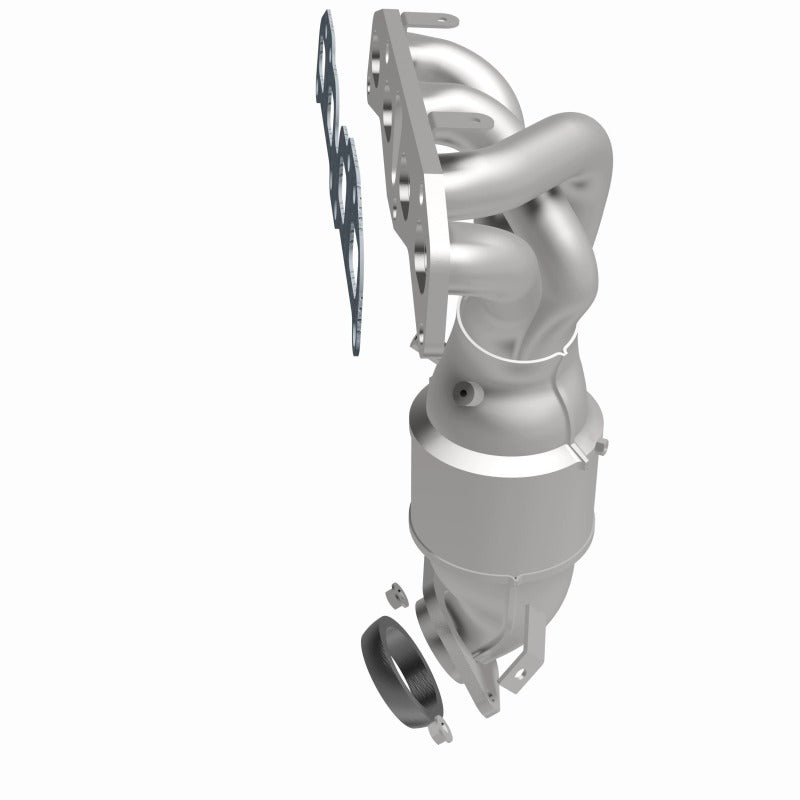

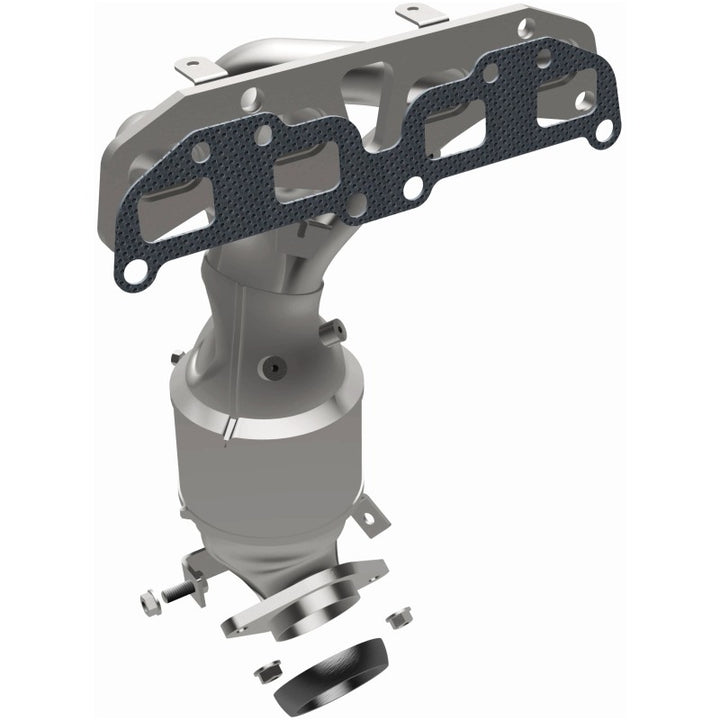

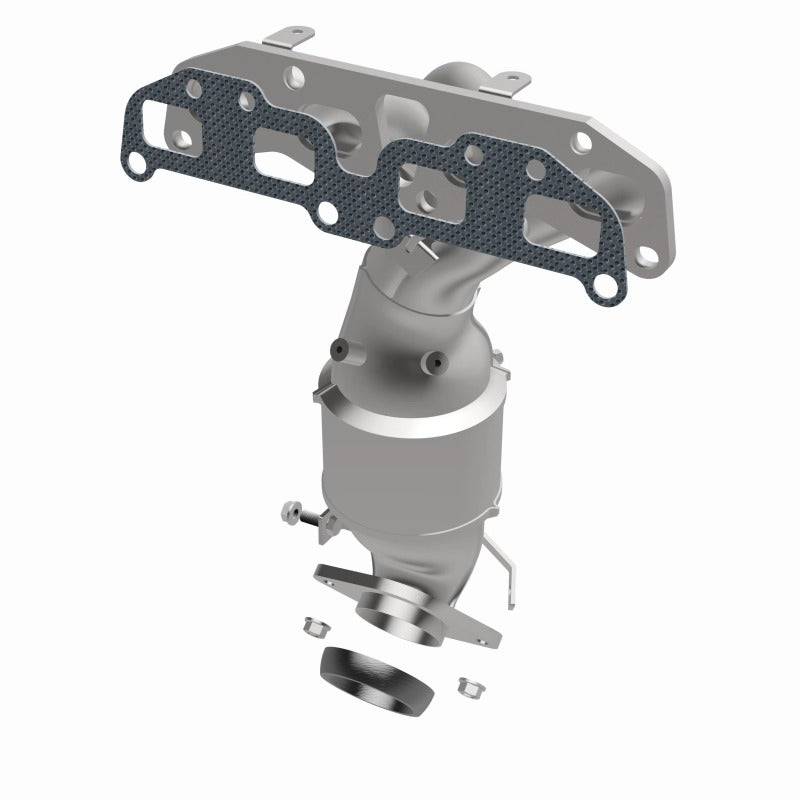

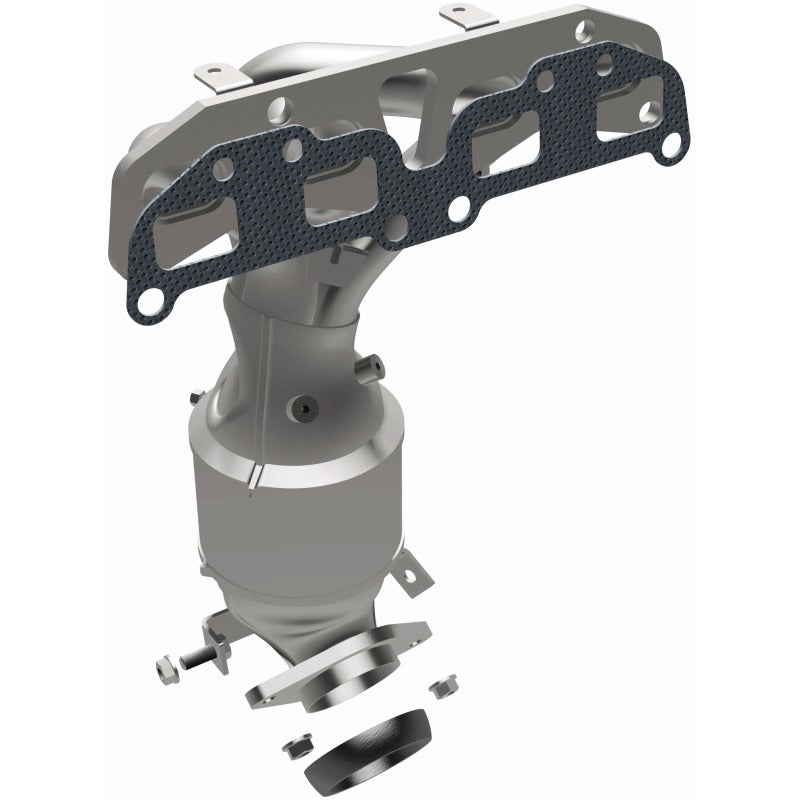

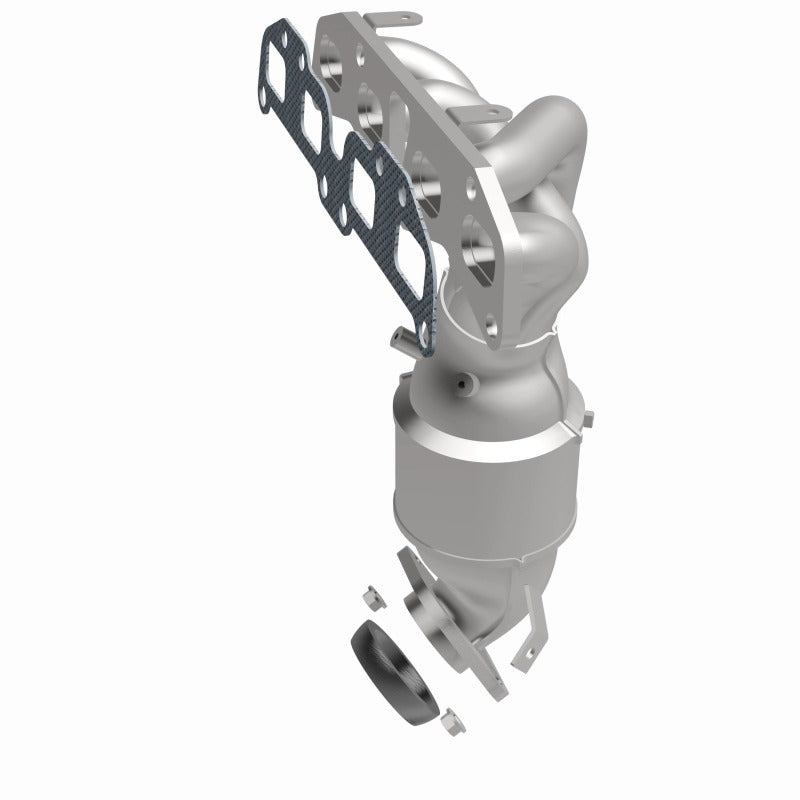

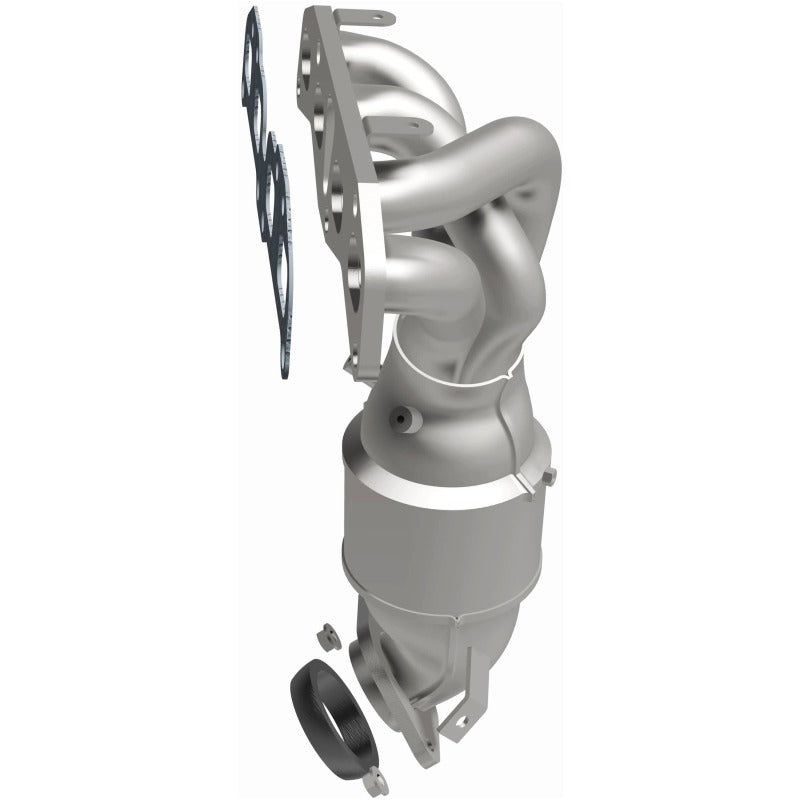

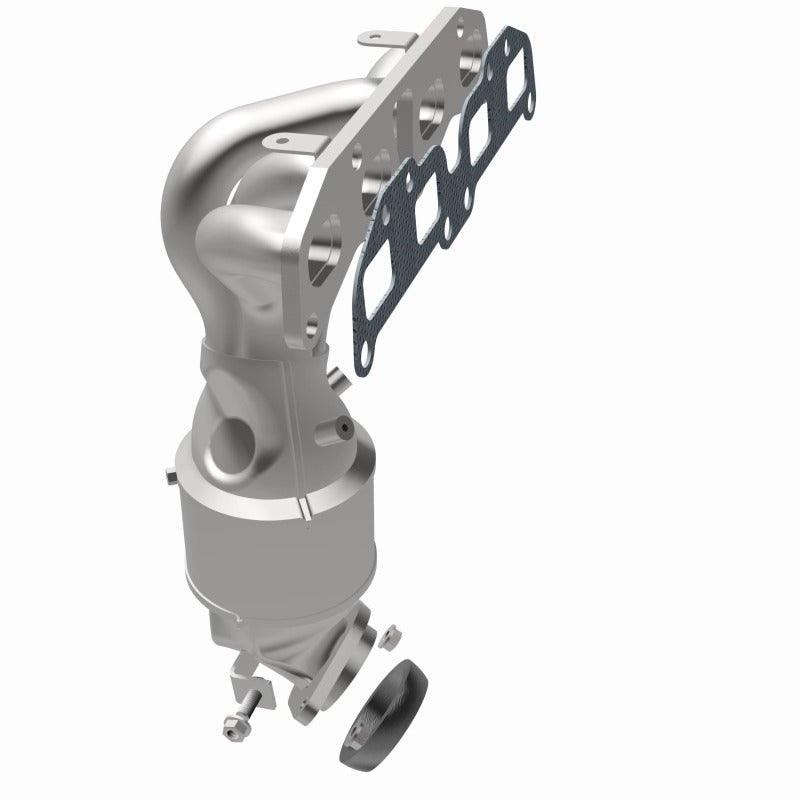

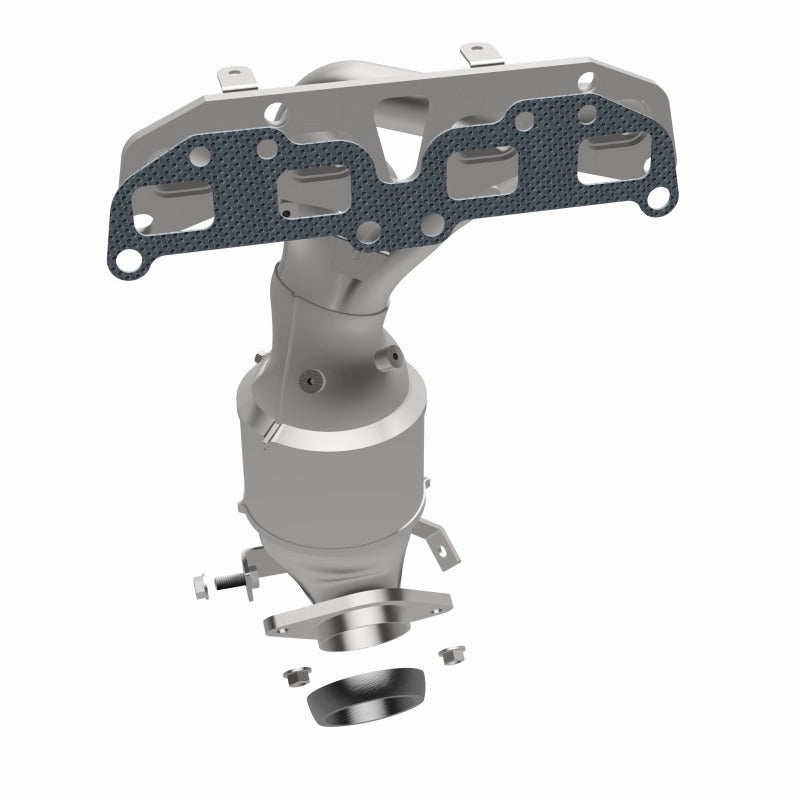

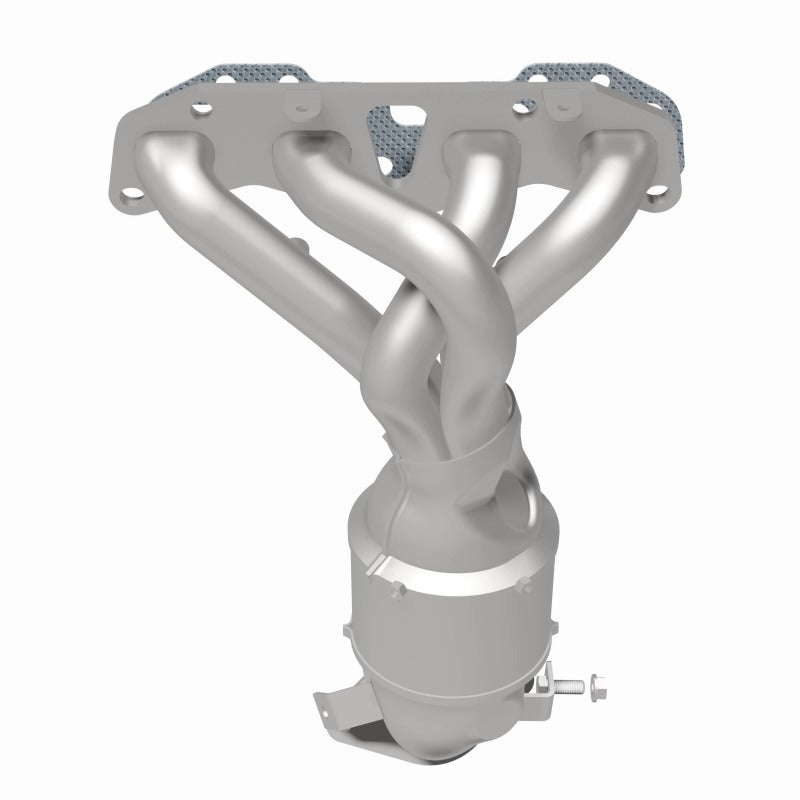

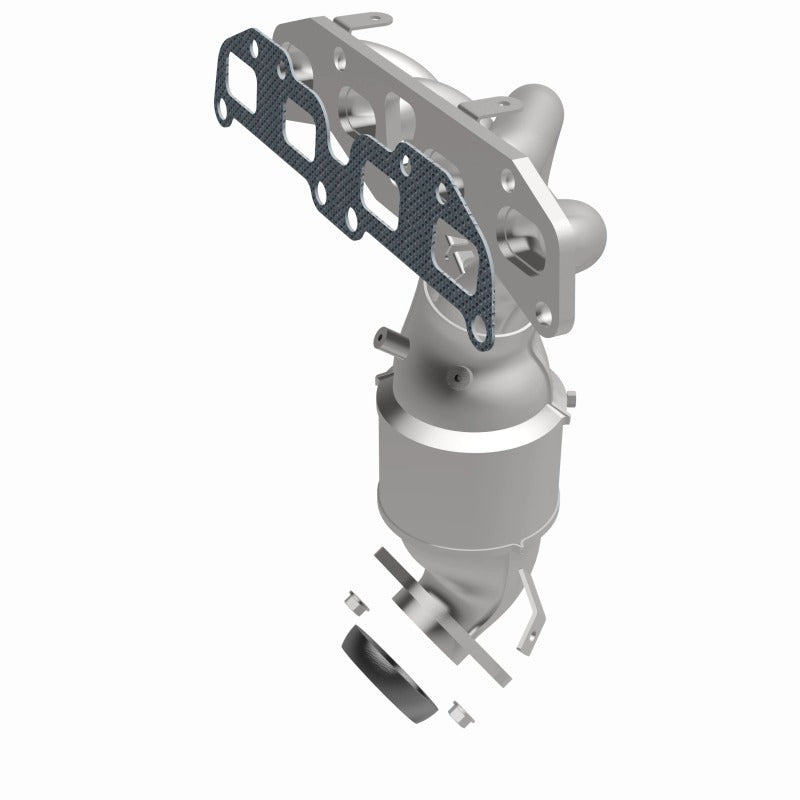

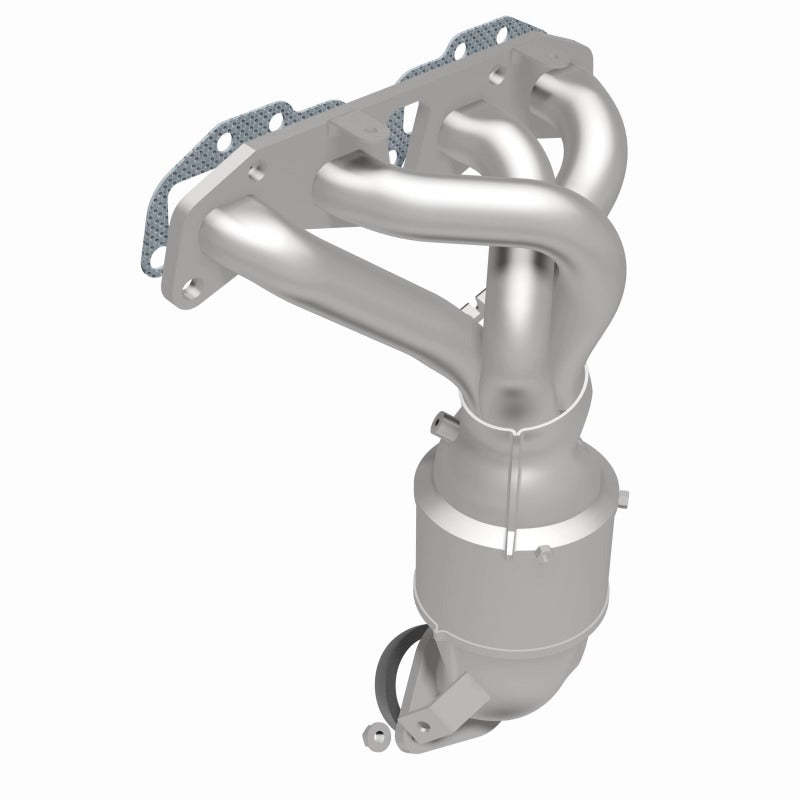

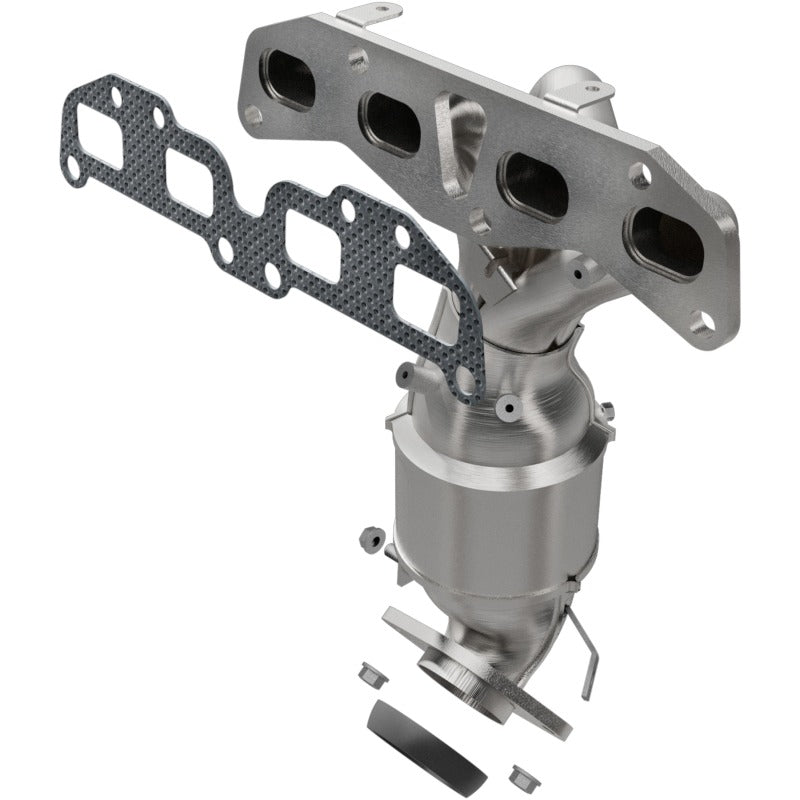

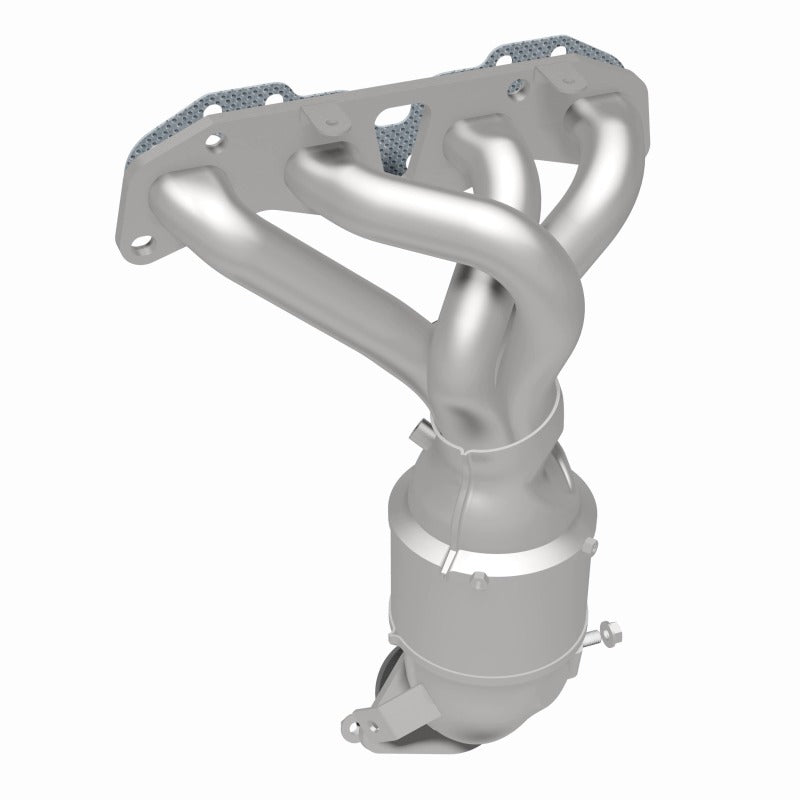

MagnaFlow 49293 is an OEM Grade, Federal and EPA compliant direct-fit manifold catalytic converter that bolts into the factory location and clears OBDII emissions codes on the 2.5L four-cylinder. As a close coupled manifold unit it combines the exhaust manifold and converter in one piece, using 16-gauge 409 stainless steel construction, 2.75 inch main tubing, and both pre and post converter O2 sensor bungs. A single laser fusion weld and 308 stainless MIG welds seal the housing, and the compact, low mass design speeds catalyst light off for quicker emissions control on cold starts. The kit includes one flange gasket, one donut gasket, an O2 port plug, one bolt, and five nuts, so it installs with no cutting or welding.

Specifications

Type Direct-fit manifold catalytic converter (close-coupled)
Grade OEM Grade
Emissions Compliance Federal/EPA compliant (not legal in California)
Position Primary (close-coupled manifold)
Body Material 16-gauge 409 stainless steel
Pipe Diameter 2.75 in main tubing
O2 Sensor Provisions Pre- and post-converter bungs
Included Hardware Flange gasket, donut gasket, O2 port plug, 1 bolt, 5 nuts
OEM Interchange 14002-8J002, 14002-8J006, 14002-8J007, 14002-8J008, 14002-9J305, 14002-9J30B, 14002-9J310, 14002-9J310R
Quantity 1
Part Number 49293

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2002-2004,2006 Nissan Altima Base
2002-2006 Nissan Altima S
2002-2006 Nissan Altima SL
2003 Nissan Sentra Limited Edition
2004 Nissan Sentra S
2002-2006 Nissan Sentra SE-R
2002-2006 Nissan Sentra SE-R Spec V
