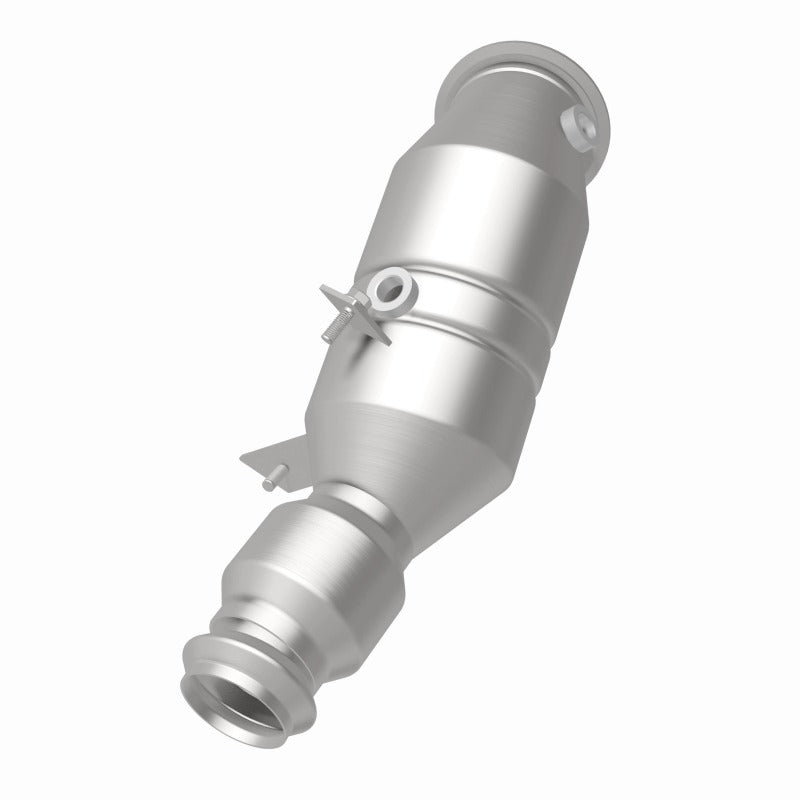

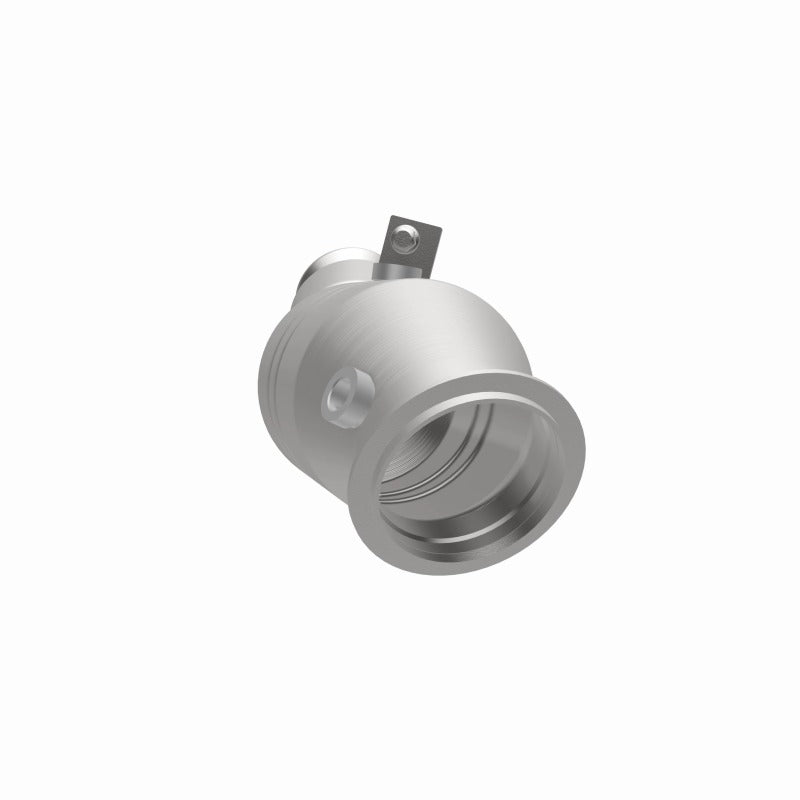

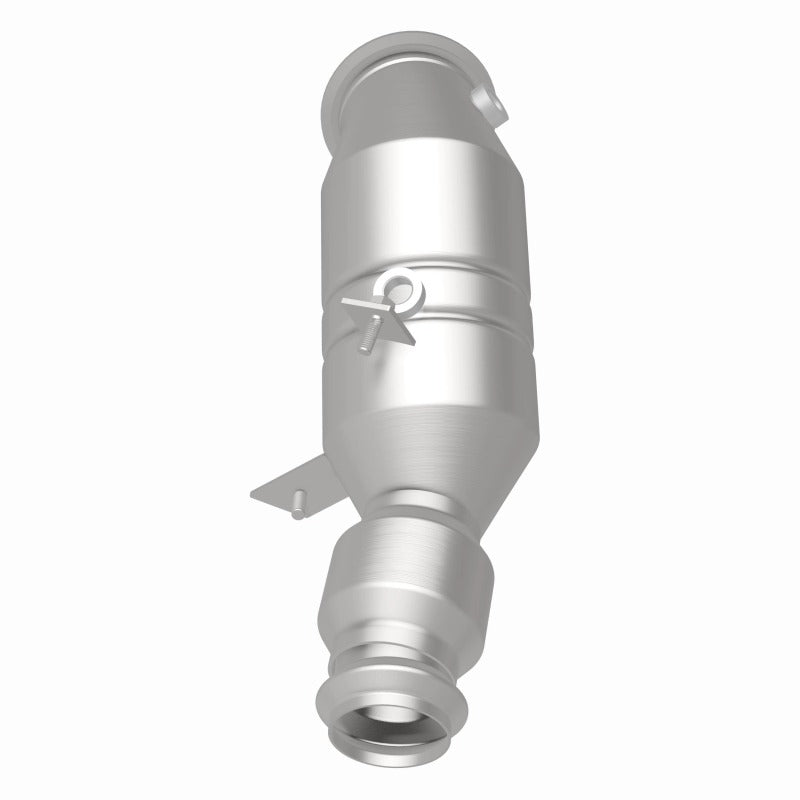

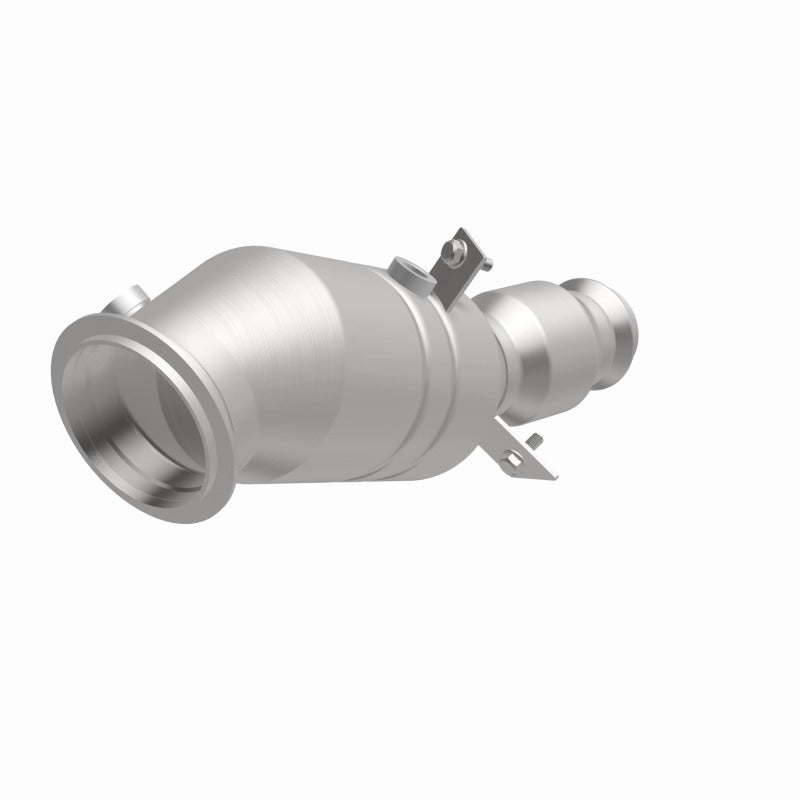

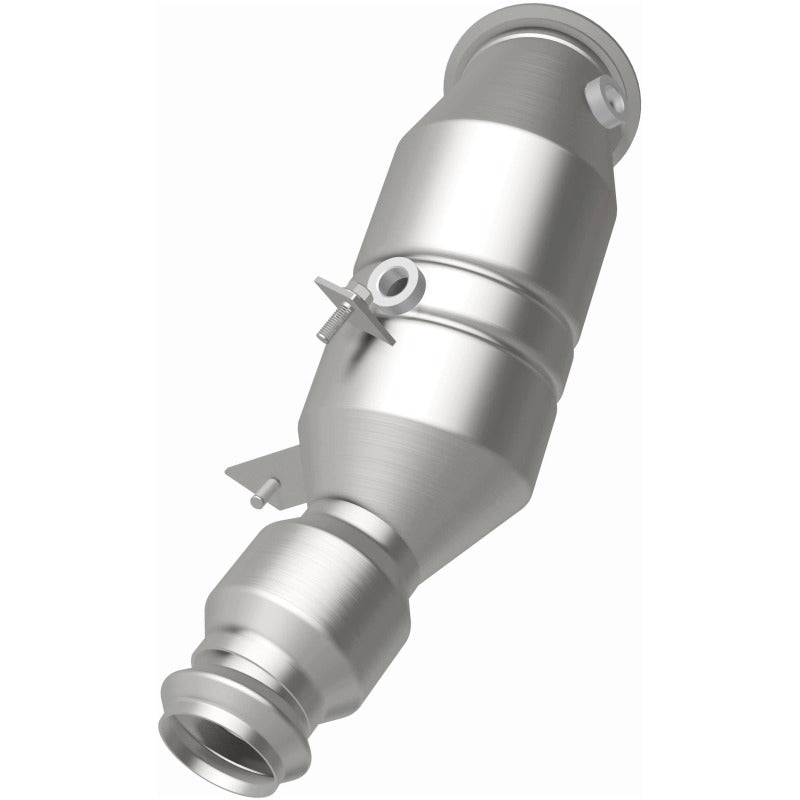

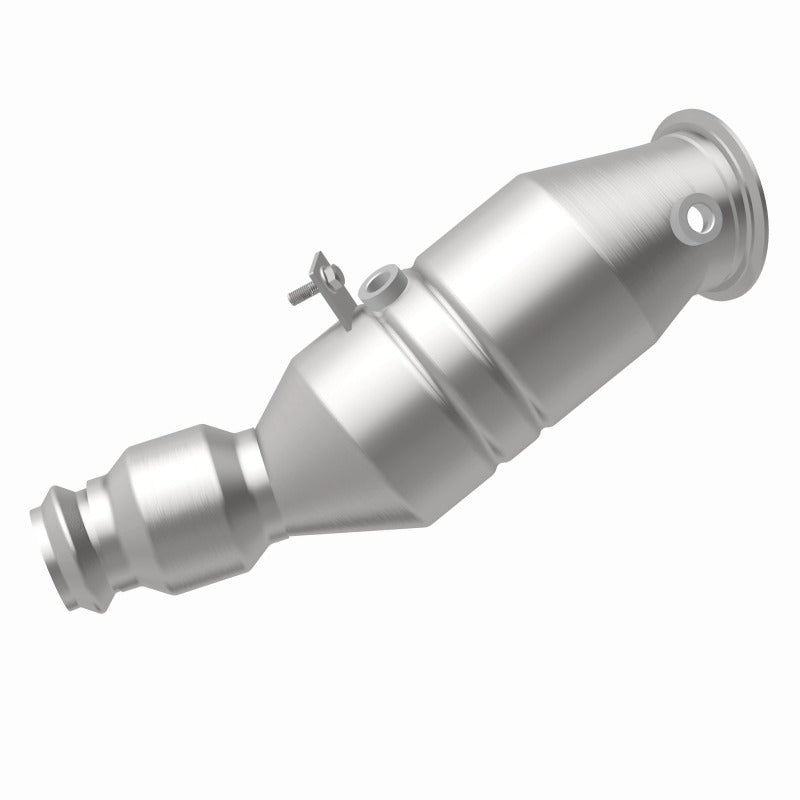

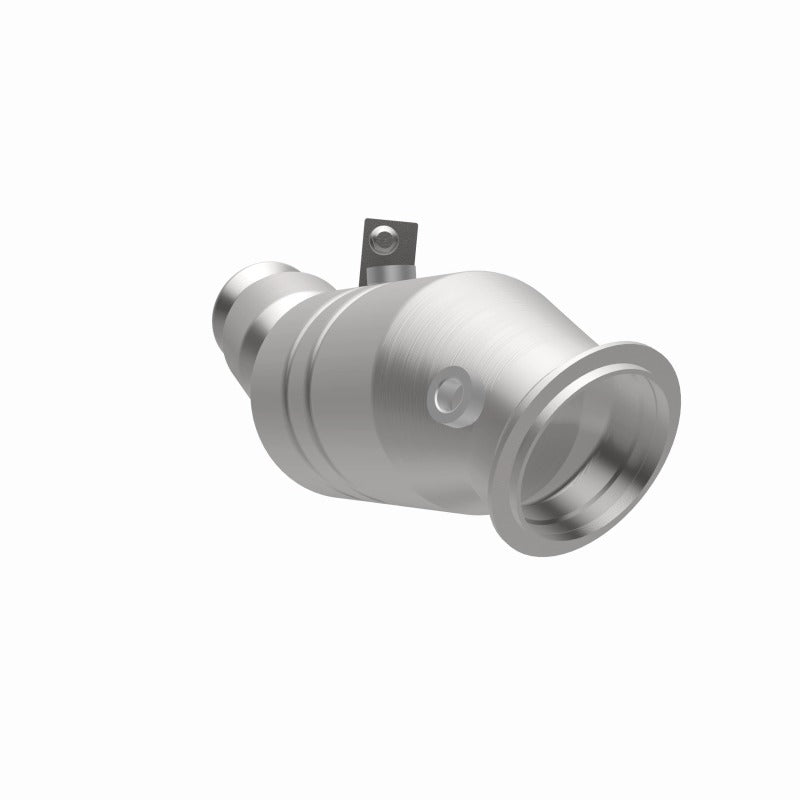

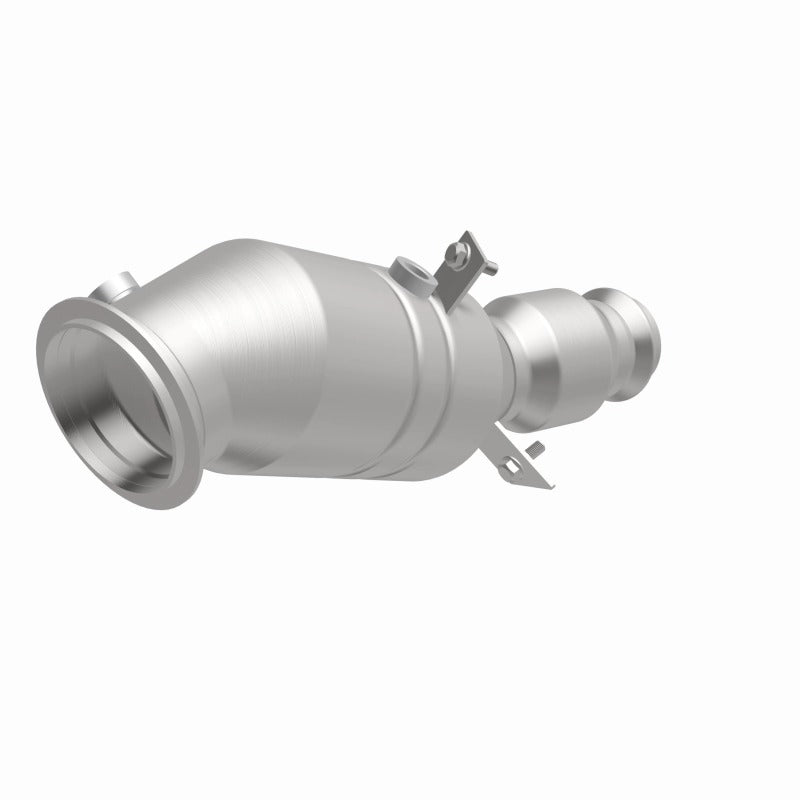

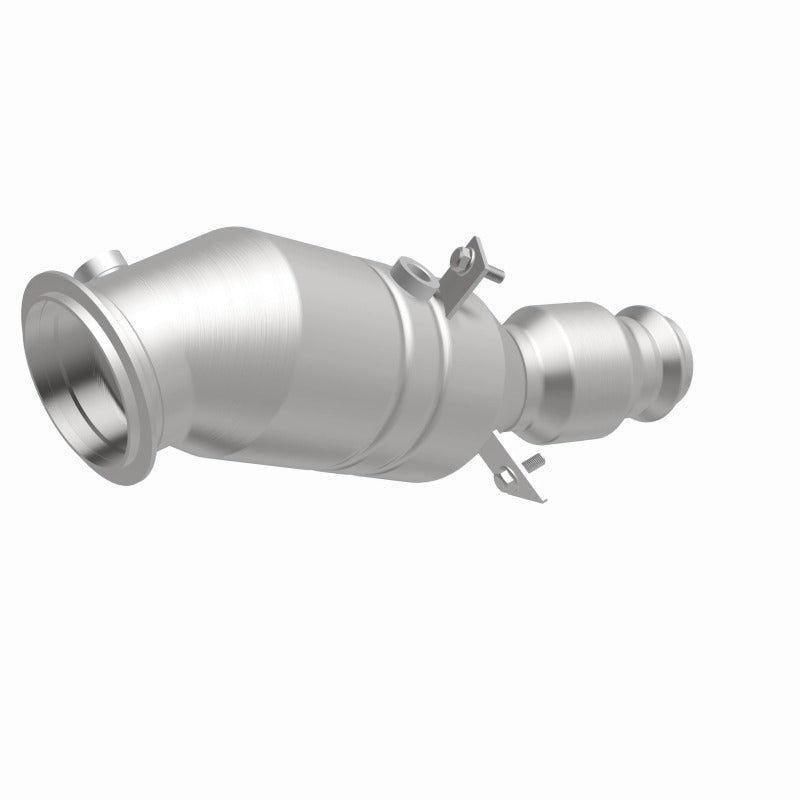

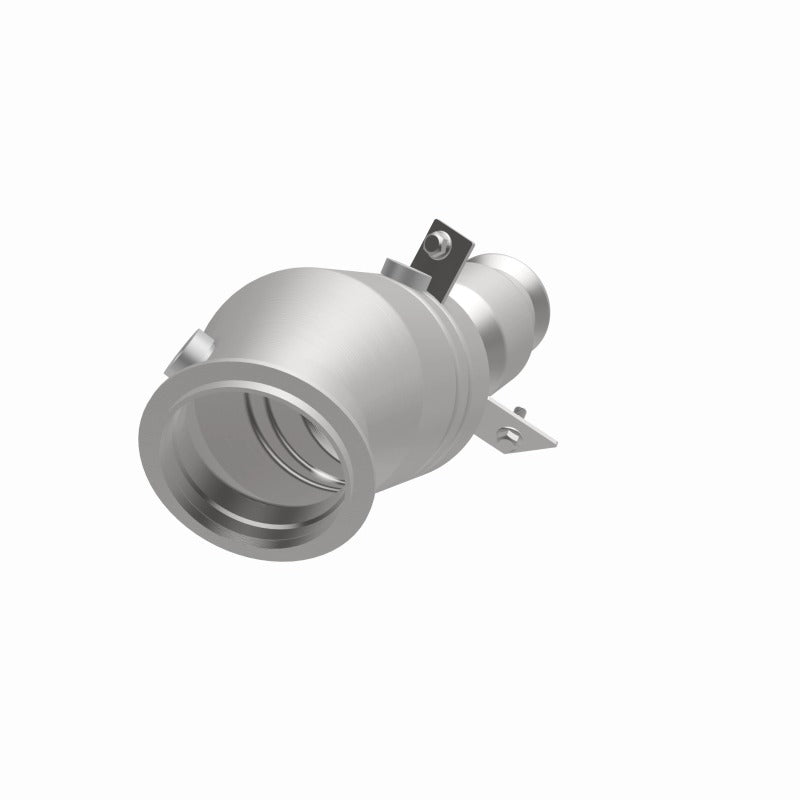

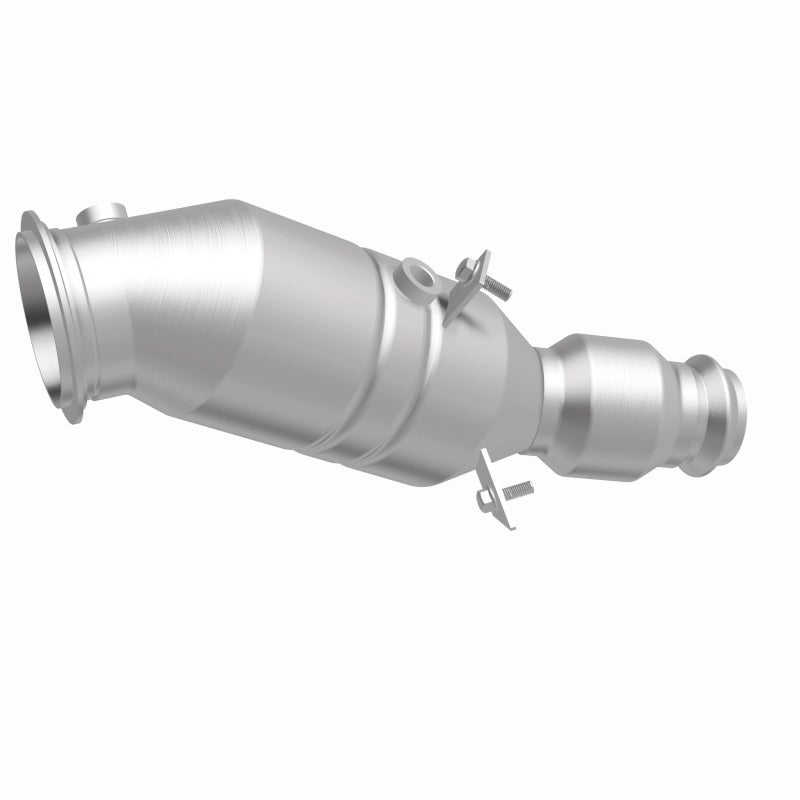

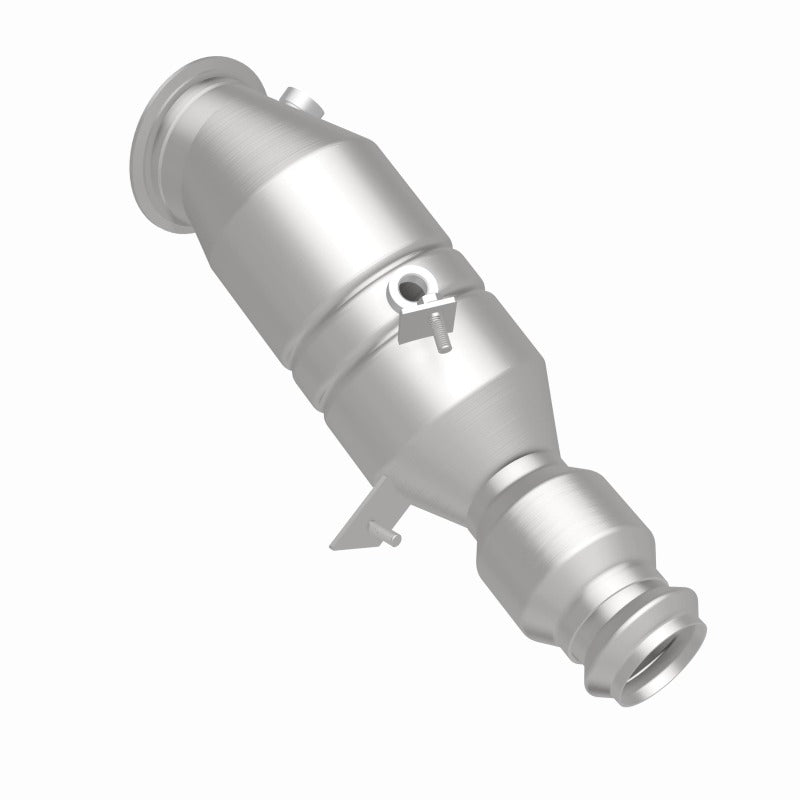

MagnaFlow Front Primary Direct-Fit Catalytic Converter - BMW N26 2.0L 2012-2016

Magnaflow SKU: MAG52257
Price
On Backorder – Order Now or Contact Us for Availability
Shipping calculated at checkout.
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check

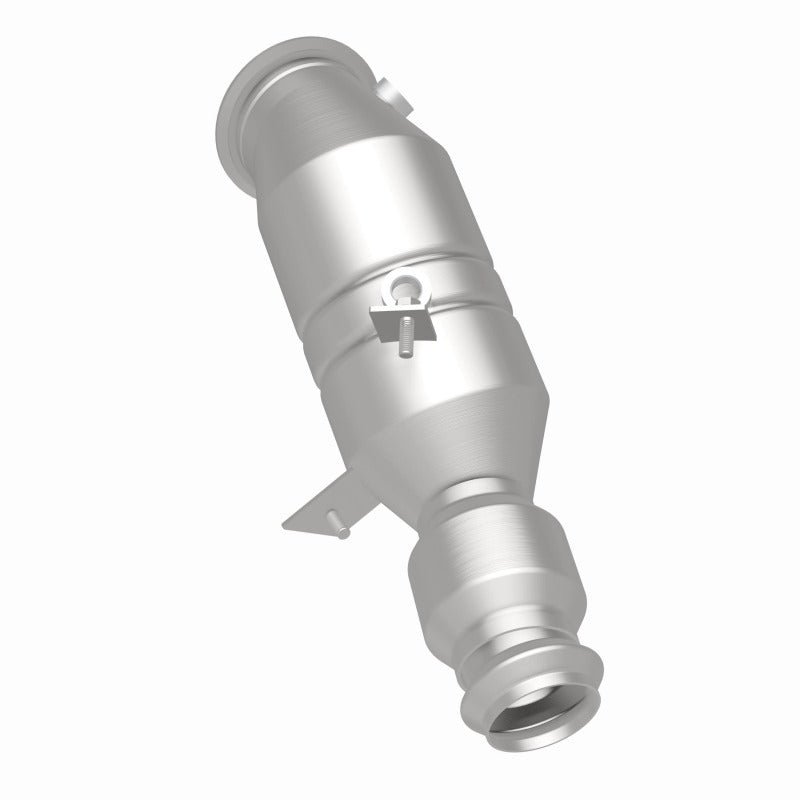

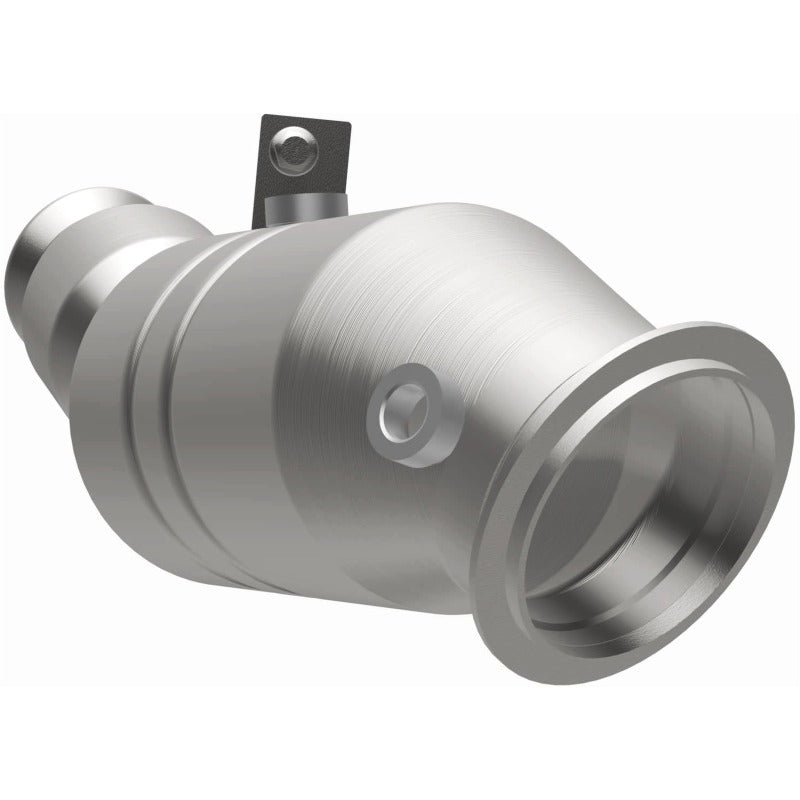

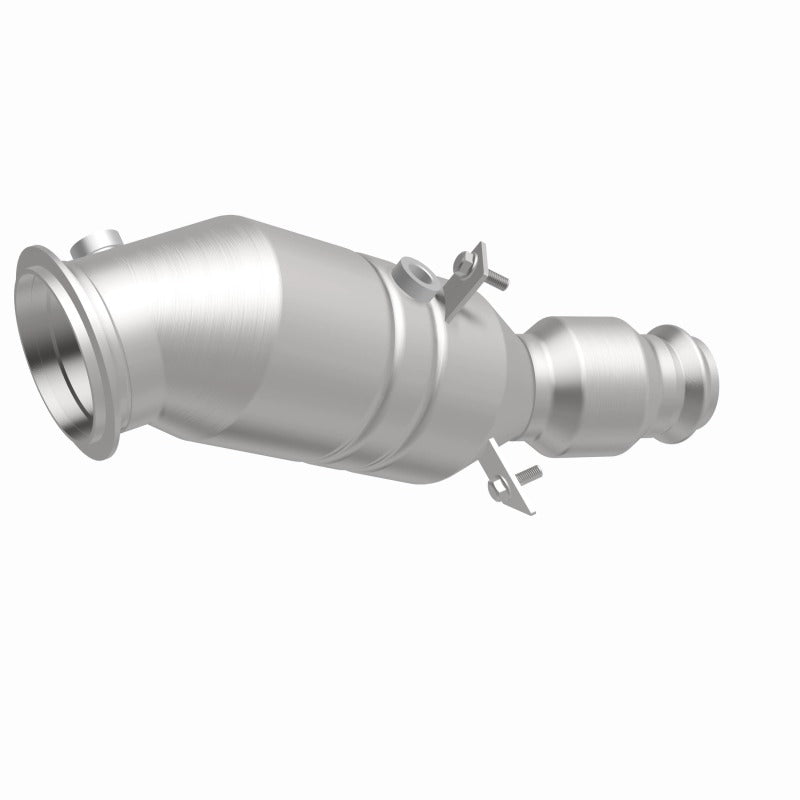

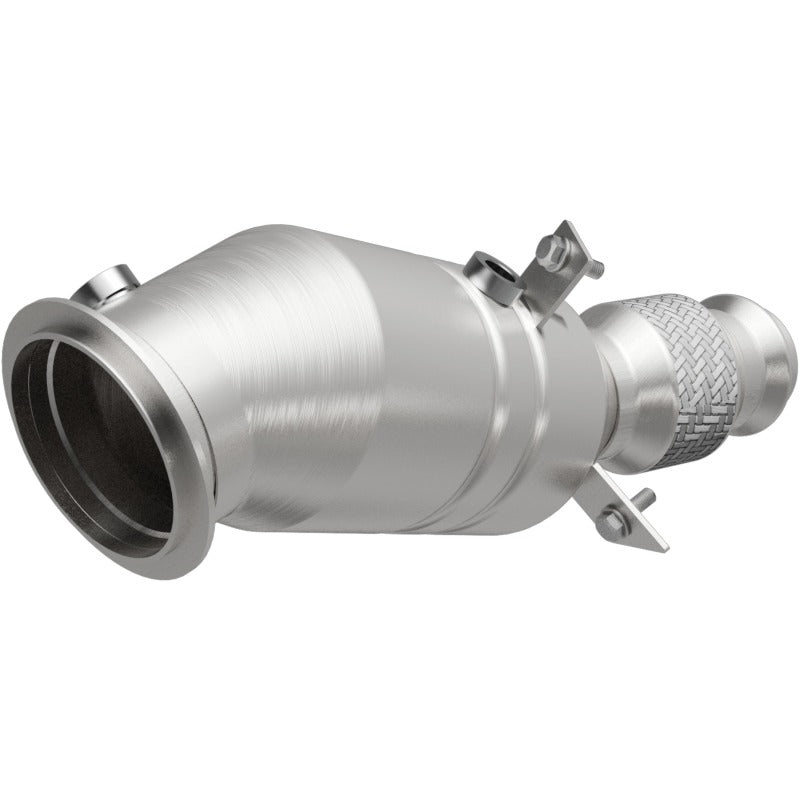

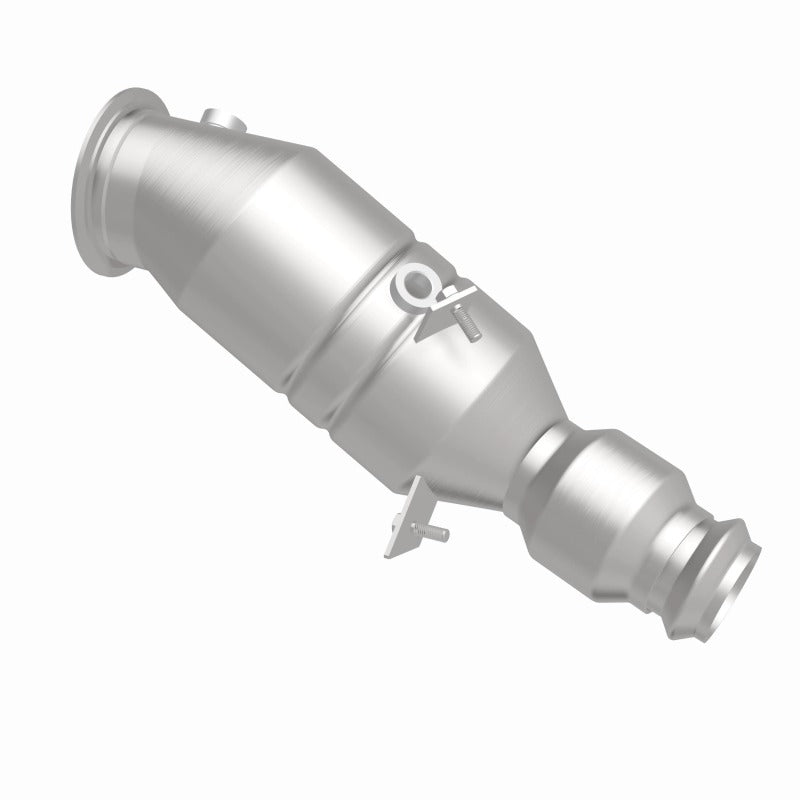

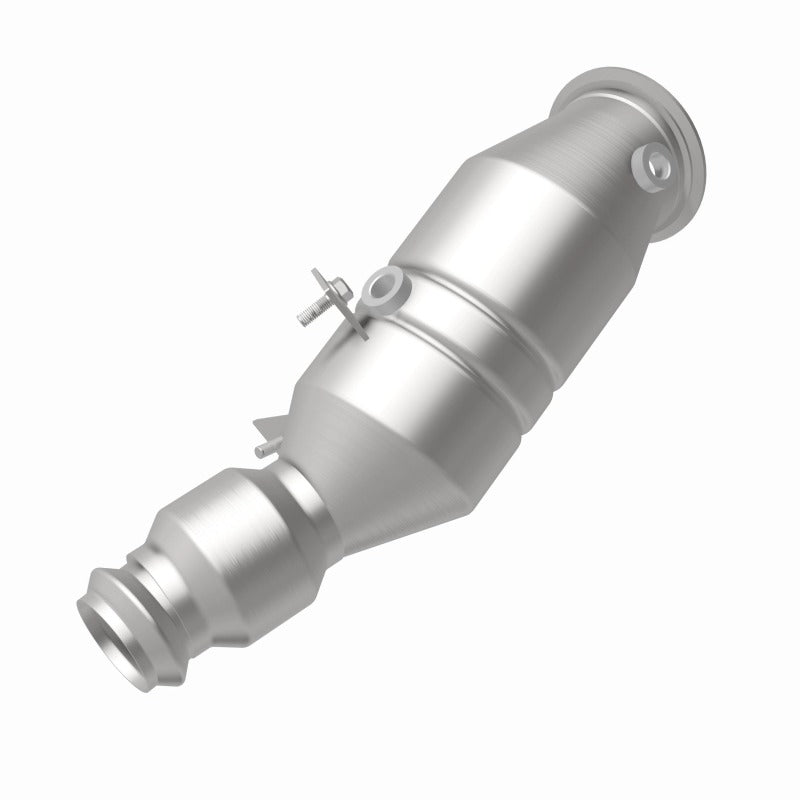

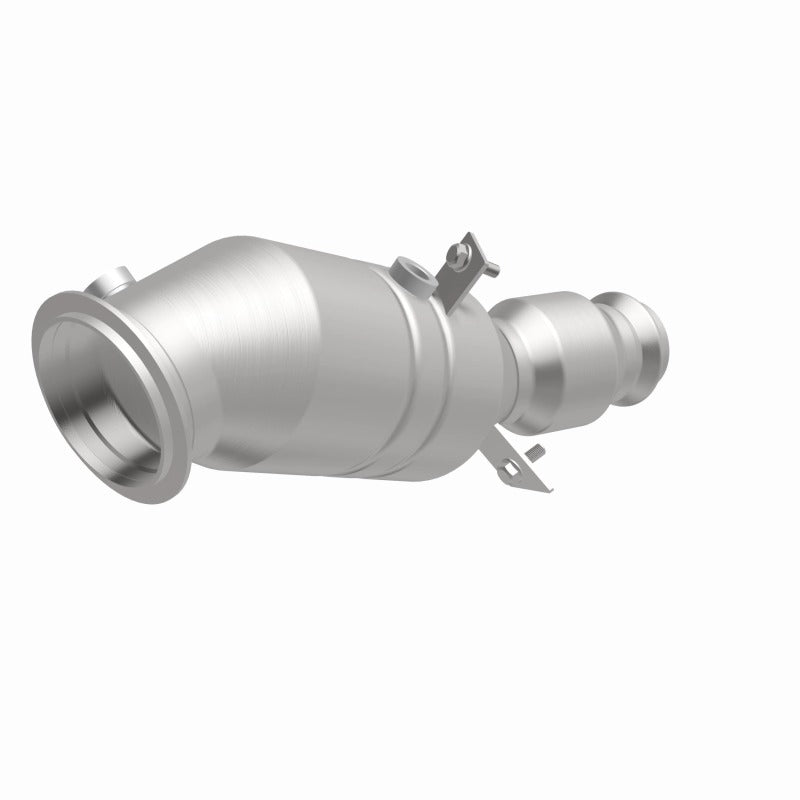

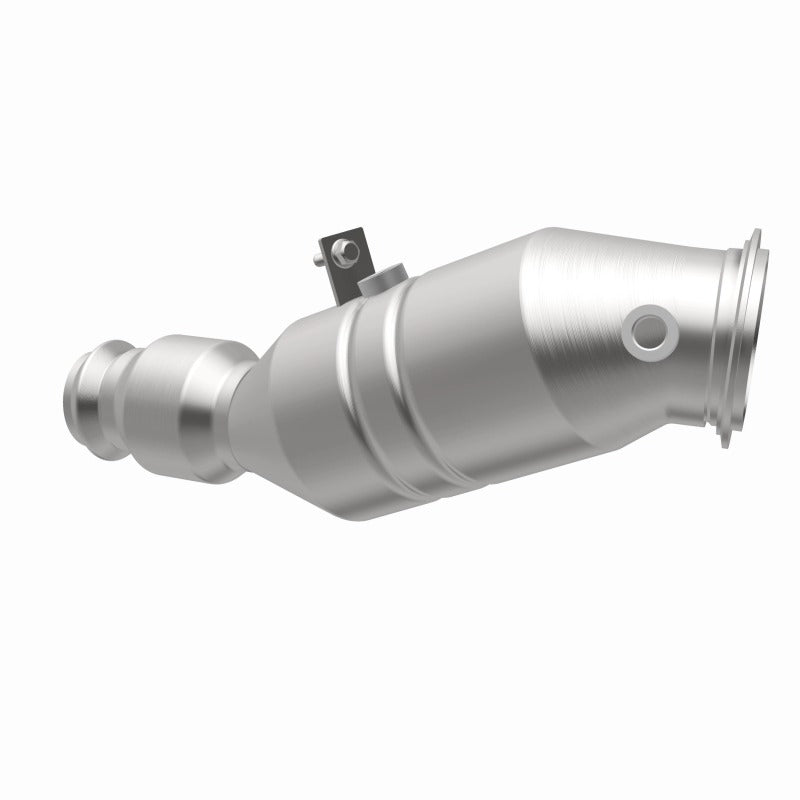

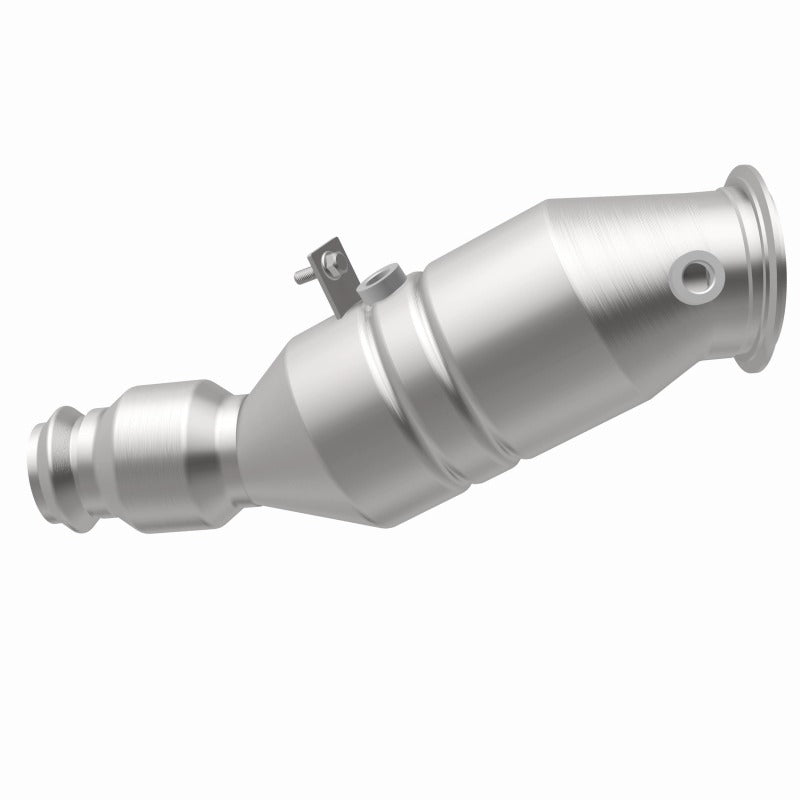

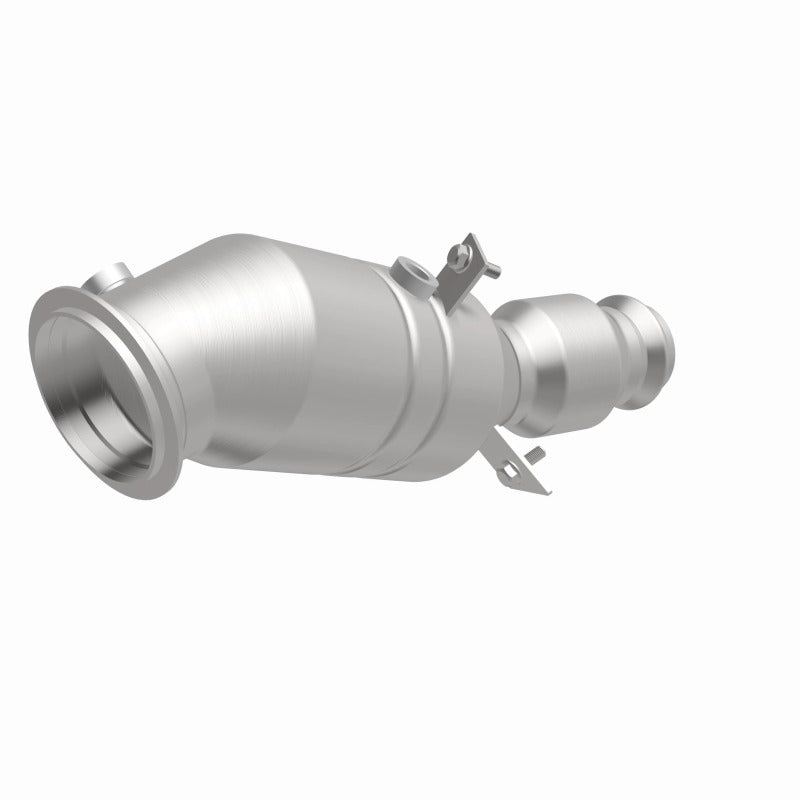

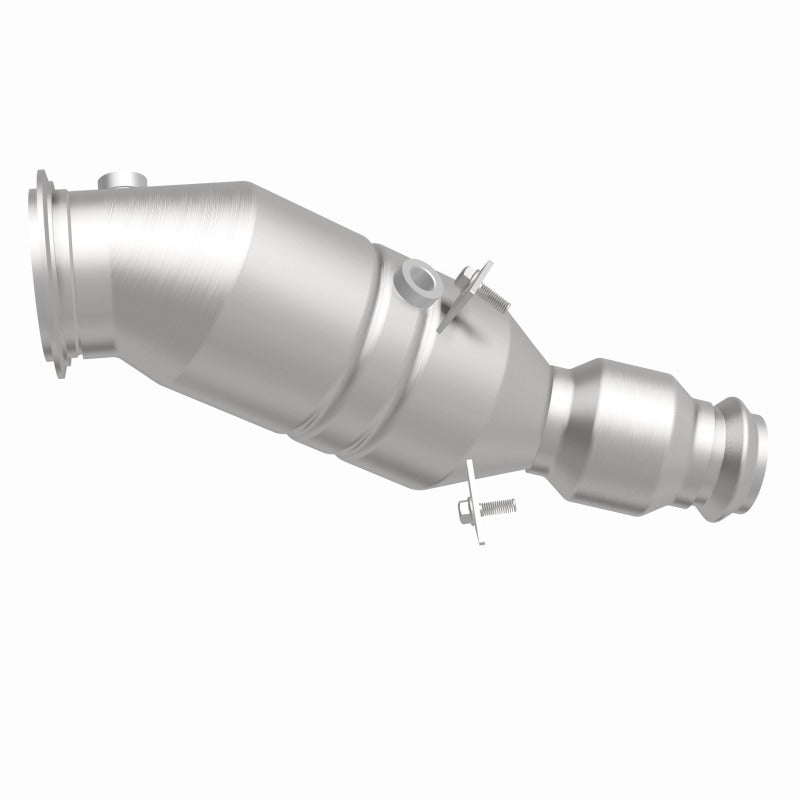

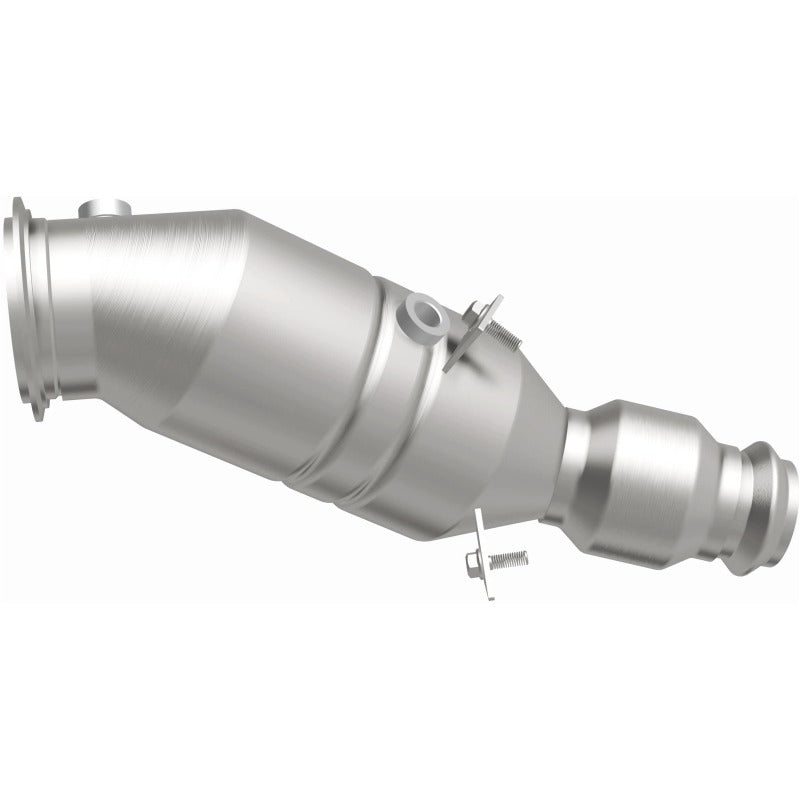

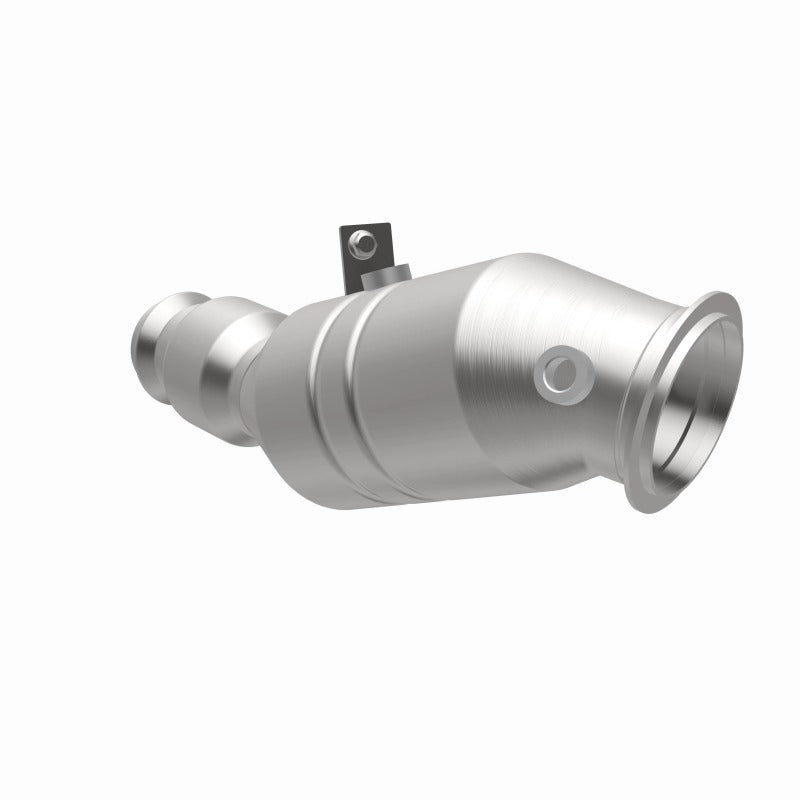

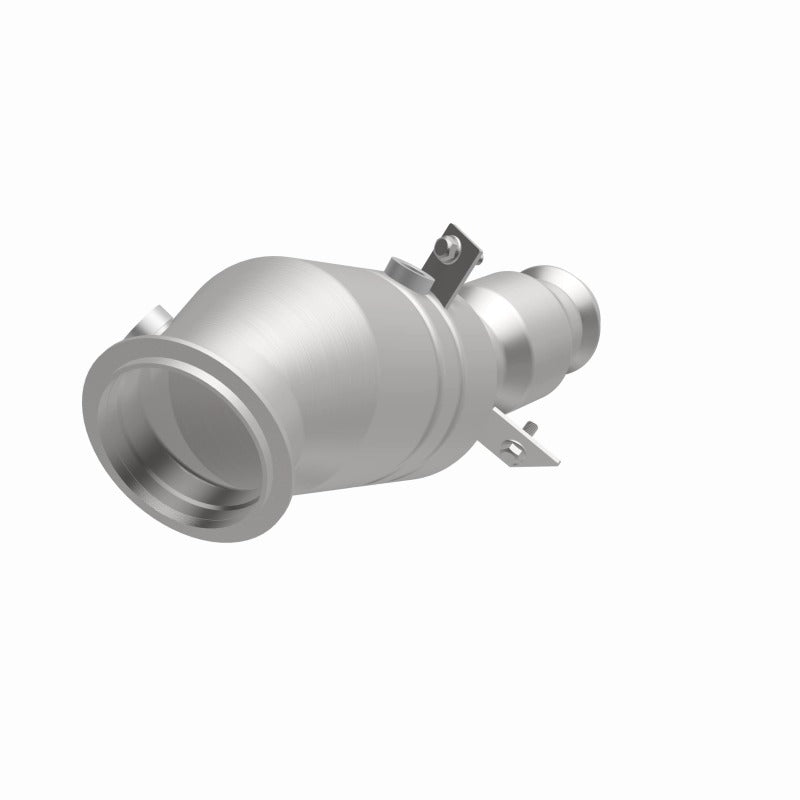

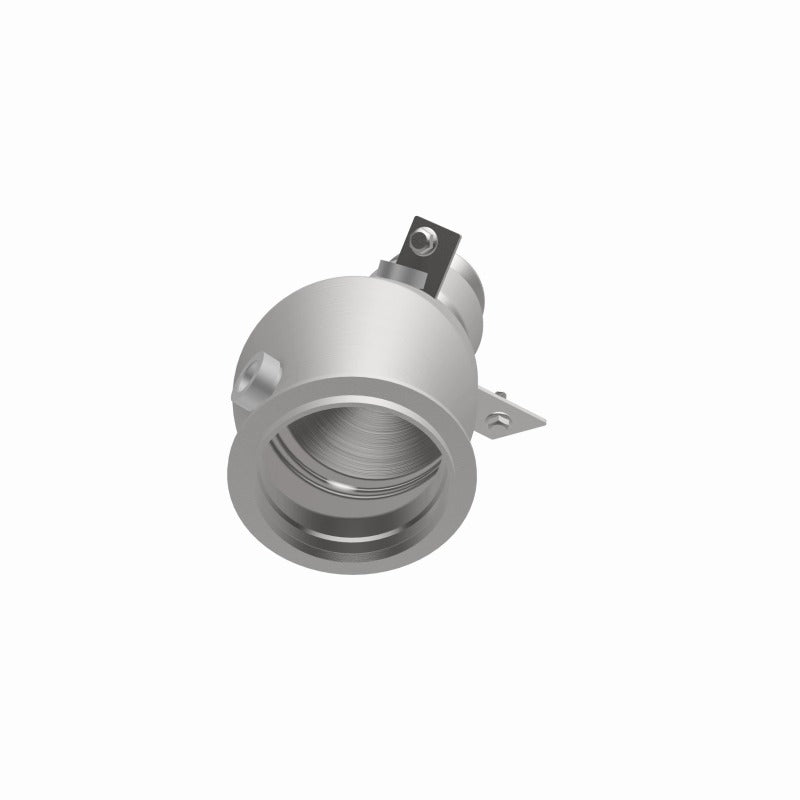

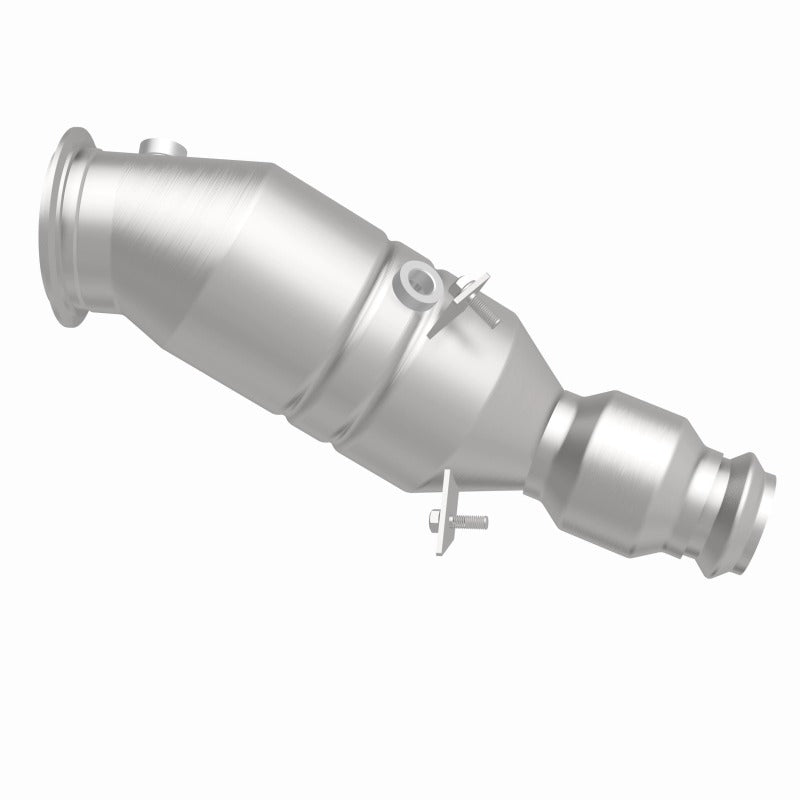

This is the front, close-coupled converter for BMW's N26 SULEV 2.0L four cylinder, replacing OE part 18 30 7 607 665, which BMW itself catalogues as the catalytic converter close to the engine. It is not the underbody unit; that secondary converter is a separate MagnaFlow part number, 52435. Fitment is N26 specific, so the far more common N20 engine is not covered even in the same model years. The spun stainless body sits over a ceramic substrate and measures 18.75 inches overall with pipe connections at both the inlet and outlet rather than flanges, and it carries two oxygen sensor ports, one pre-converter and one midbed. Two bolts are supplied. This is a Federal EPA part and is not legal for sale or installation in California, Colorado or New York.

Specifications

Type Direct-fit catalytic converter (MagnaFlow OEM Grade)
Position Front, close-coupled primary converter; the underbody secondary unit is part 52435
Engine BMW N26B20A SULEV 2.0L; does not fit N20
Emissions Standard Federal / EPA compliant; not CARB certified
Legal For Sale Not legal for sale or installation in California, Colorado or New York
Inlet Pipe connection
Outlet Pipe connection
Overall Length 18.75 in
Body Spun stainless steel, ceramic substrate
Material 16 gauge 409 stainless tubing, 308 stainless MIG welds
Oxygen Sensor Ports 2 (pre-converter and midbed)
Heat Shield Not attached
Included Hardware 2 bolts
OEM Replacement BMW 18 30 7 607 665
Warranty Limited 5 year / 50,000 mile construction and 25,000 mile emission (Federal EPA converter terms)
Quantity 1 (sold individually)
Part Number 52257

This part fits:

Year Make Model Submodel
2014-2016 BMW 228i Base
2015-2016 BMW 228i xDrive Base
2012-2016 BMW 328i Base
2015-2016 BMW 328i GT xDrive Base
2013-2016 BMW 328i xDrive Base
2014-2016 BMW 428i Base
2015-2016 BMW 428i Gran Coupe Base
2014-2016 BMW 428i xDrive Base
2015-2016 BMW 428i xDrive Gran Coupe Base
