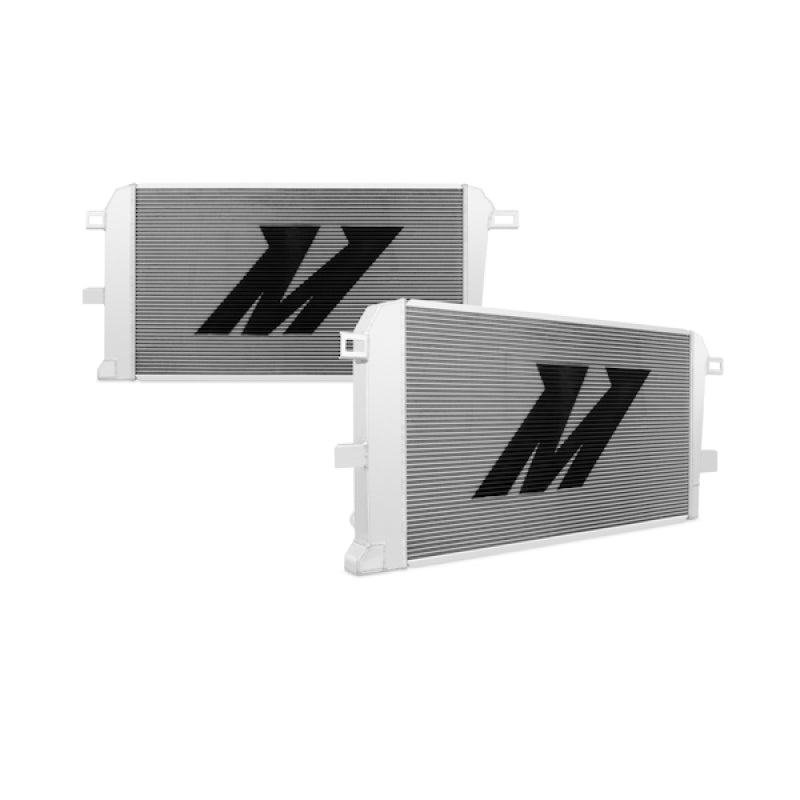

Mishimoto 2-Row Performance Aluminum Radiator, two compact cores, front view

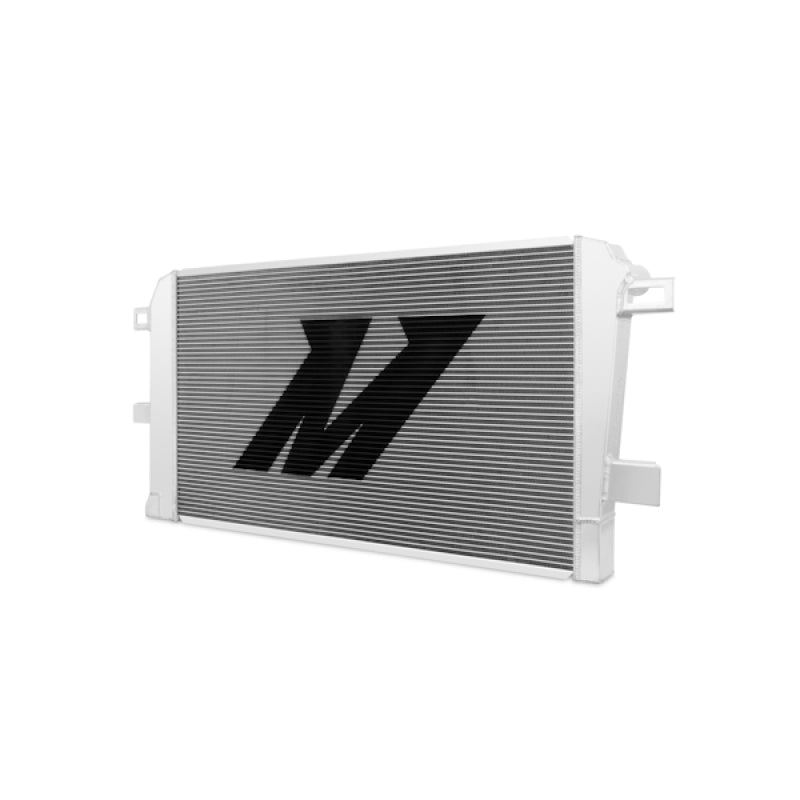

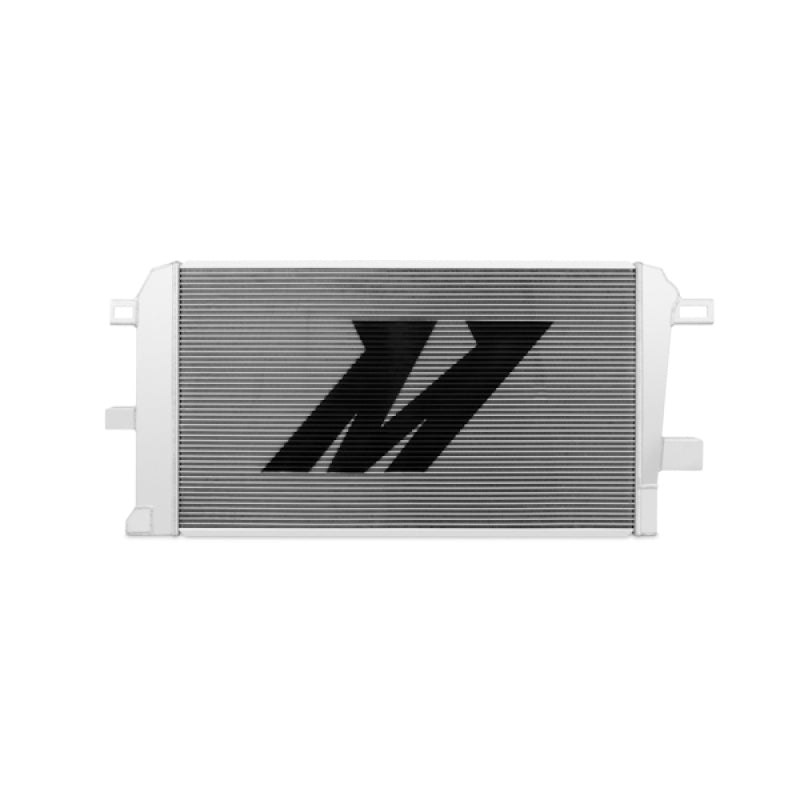

Mishimoto 2-Row Performance Aluminum Radiator, core, front view with logo

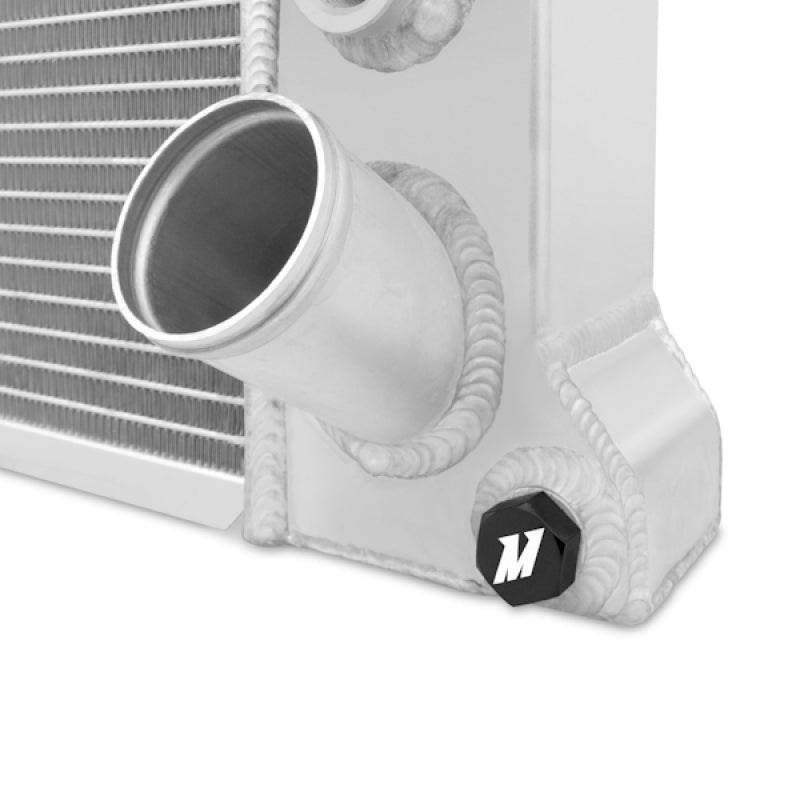

Mishimoto 2-Row Performance Aluminum Radiator, inlet neck and drain plug, close up

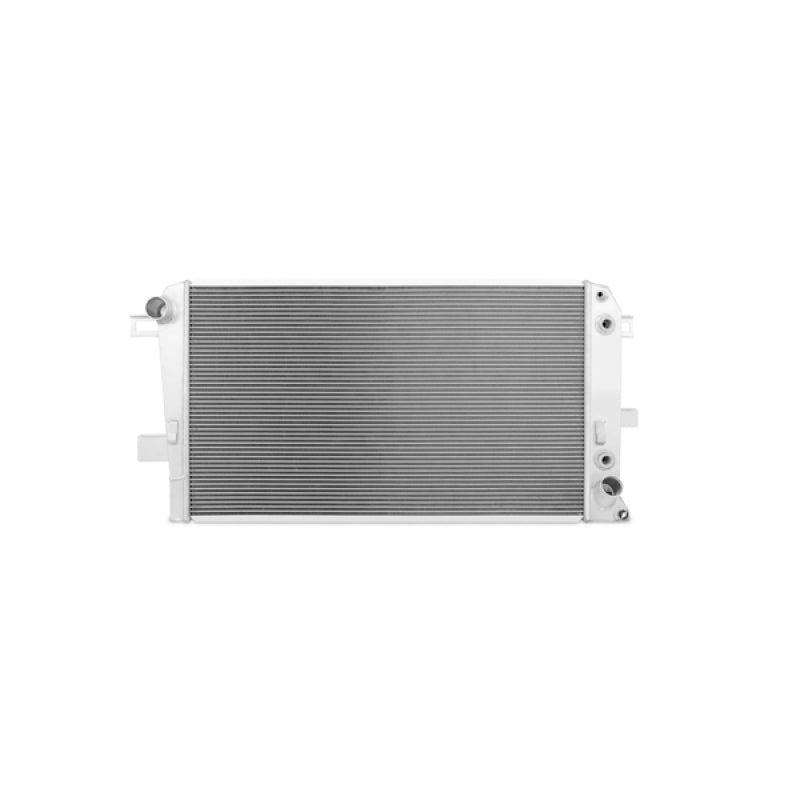

Mishimoto 2-Row Performance Aluminum Radiator, core, front view

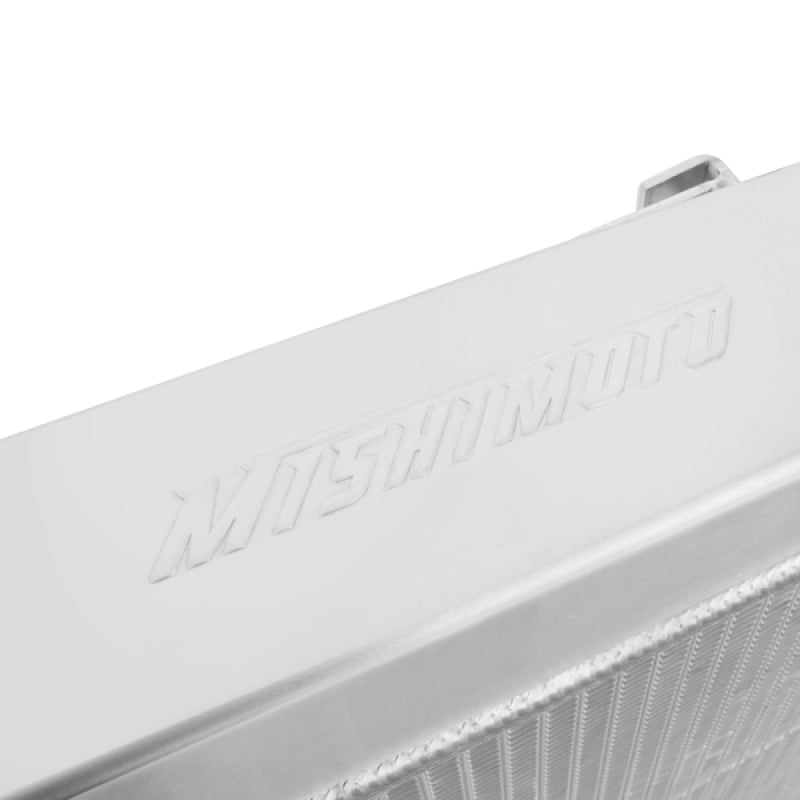

Mishimoto 2-Row Performance Aluminum Radiator, embossed logo, close up

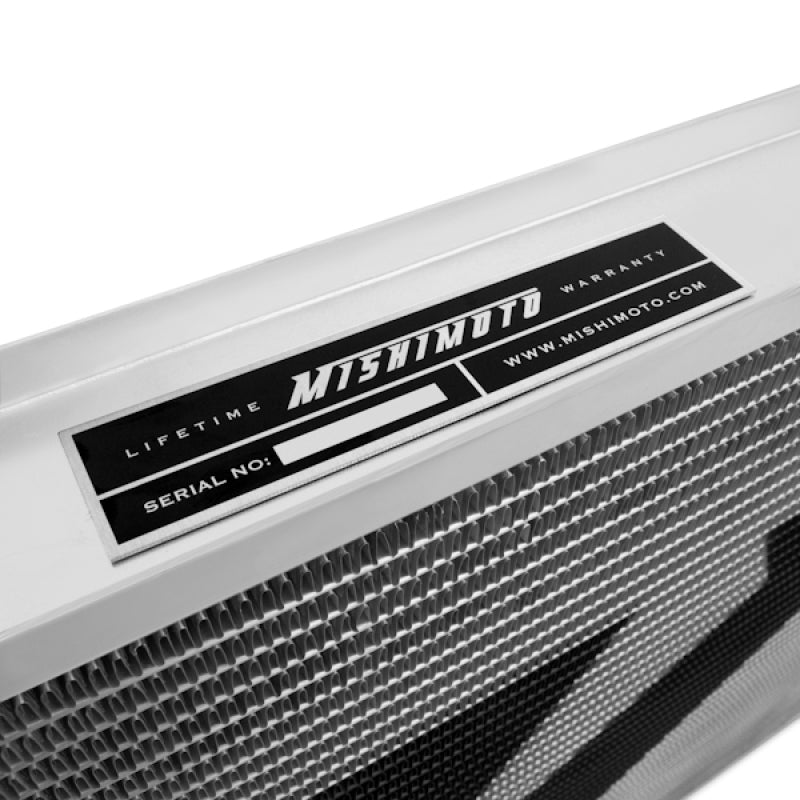

Mishimoto 2-Row Performance Aluminum Radiator, warranty label, close up
Mishimoto 2-Row Performance Aluminum Radiator, retail box, angled view
Mishimoto 2-Row Performance Aluminum Radiator, core, front view with logo, alternate shot
Mishimoto 2-Row Performance Aluminum Radiator, two compact cores, front view
Mishimoto 2-Row Performance Aluminum Radiator, core, front view with logo
Mishimoto 2-Row Performance Aluminum Radiator, inlet neck and drain plug, close up
Mishimoto 2-Row Performance Aluminum Radiator, core, front view
Mishimoto 2-Row Performance Aluminum Radiator, embossed logo, close up
Mishimoto 2-Row Performance Aluminum Radiator, warranty label, close up
Mishimoto 2-Row Performance Aluminum Radiator, retail box, angled view
Mishimoto 2-Row Performance Aluminum Radiator, core, front view with logo, alternate shot

Mishimoto 2-Row Performance Aluminum Radiator - Chevrolet Silverado / GMC Sierra 2500 HD / 3500 6.6L Duramax 2001-2005

Mishimoto SKU: MISMMRAD-DMAX-01
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMRAD-DMAX-01
GTIN / UPC748666005006
Manufacturer Part NumberMMRAD-DMAX-01

Product Information

A direct-fit replacement radiator for 2001-2005 Chevrolet and GMC trucks with the 6.6L Duramax, replacing the factory plastic-tank radiator with all-aluminum TIG-welded construction and polished end tanks. The two-row, 2.2 in thick core holds 6.87 gallons and moves heat into the airstream faster under towing and load. It installs with no cutting or fabrication and comes with a magnetic drain plug.

Specifications

Type Performance aluminum radiator
Rows 2
Core Thickness 2.2 in
Inlet / Outlet 1.89 in inlet, 1.89 in outlet
Construction Brazed aluminum core, TIG-welded polished aluminum end tanks
Dimensions Overall 45.6 in x 20.8 in x 5.4 in; core 34.06 in x 19.61 in
Fluid Capacity 6.87 gal
Drain Plug Thread M12 x 1.5, magnetic drain plug
What's in the Box
  • Mishimoto radiator
  • Magnetic drain plug
Fitment Notes 6.6L Duramax diesel only; not for gas engines
Install Hard difficulty
Overall Length 45.6 in
Overall Height 20.8 in
Overall Width 5.4 in
Core Length 34.06 in
Core Height 19.61 in
Inlet 1.89 in
Outlet 1.89 in
Coolant Capacity 6.87
Quantity 1
Warranty Mishimoto Lifetime Limited Warranty
Part Number MMRAD-DMAX-01

This part fits:

Year Make Model Submodel
2001-2005 Chevrolet Silverado 2500 HD Base
2001-2005 Chevrolet Silverado 2500 HD LS
2001-2005 Chevrolet Silverado 2500 HD LT
2003-2005 Chevrolet Silverado 2500 HD WT
2001-2005 Chevrolet Silverado 3500 Base
2001-2005 Chevrolet Silverado 3500 LS
2001-2005 Chevrolet Silverado 3500 LT
2004 Chevrolet Silverado 3500 WT
2002-2005 GMC Sierra 2500 HD Base
2001-2002 GMC Sierra 2500 HD SL
2001-2005 GMC Sierra 2500 HD SLE
2001-2005 GMC Sierra 2500 HD SLT
2003-2005 GMC Sierra 2500 HD WT
2002-2005 GMC Sierra 3500 Base
2001-2002 GMC Sierra 3500 SL
2001-2005 GMC Sierra 3500 SLE
2001-2005 GMC Sierra 3500 SLT
2004-2005 GMC Sierra 3500 WT

Documents: Installation Instructions (PDF)

Does it fit gas 2500 HD trucks?

  • No. It is built for the 6.6L Duramax diesel.

Does it fit the 2006+ Duramax?

  • No. The 2006-2010 trucks use MMRAD-DMAX-06.

How much coolant does it hold?

  • 6.87 gallons.

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
