Mishimoto 2-Row Performance Aluminum Radiator - Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD 6.6L Duramax 2011-2016

Mishimoto SKU: MISMMRAD-DMAX-11
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMRAD-DMAX-11
GTIN / UPC748354010879
Manufacturer Part NumberMMRAD-DMAX-11

Product Information

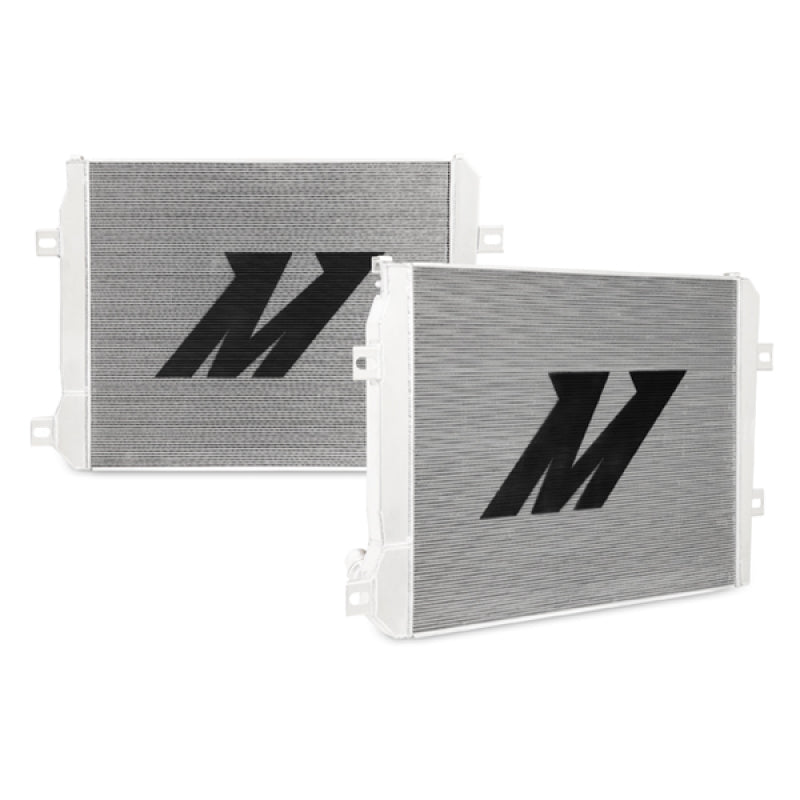

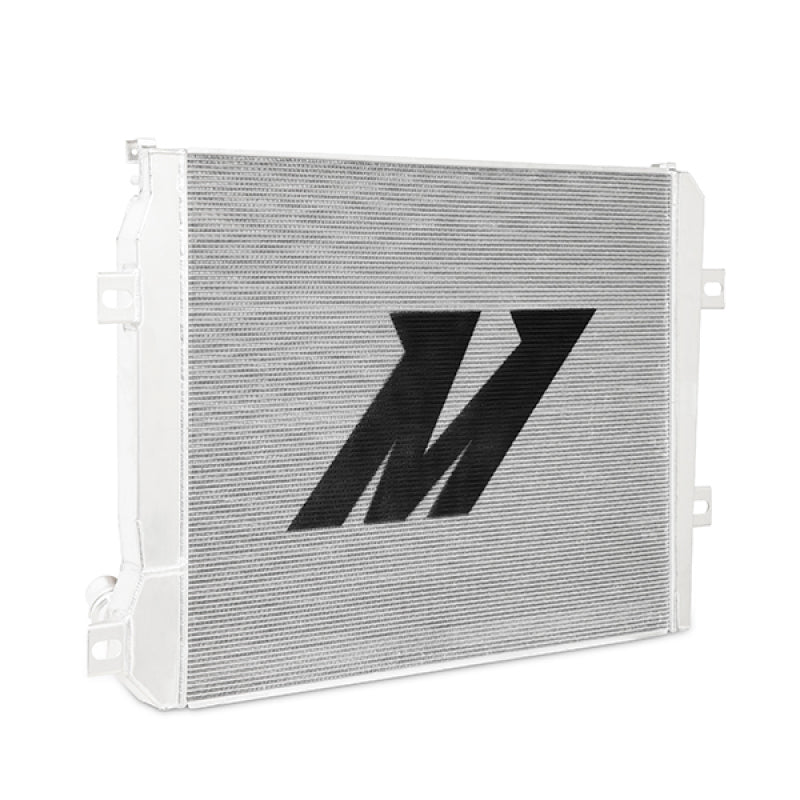

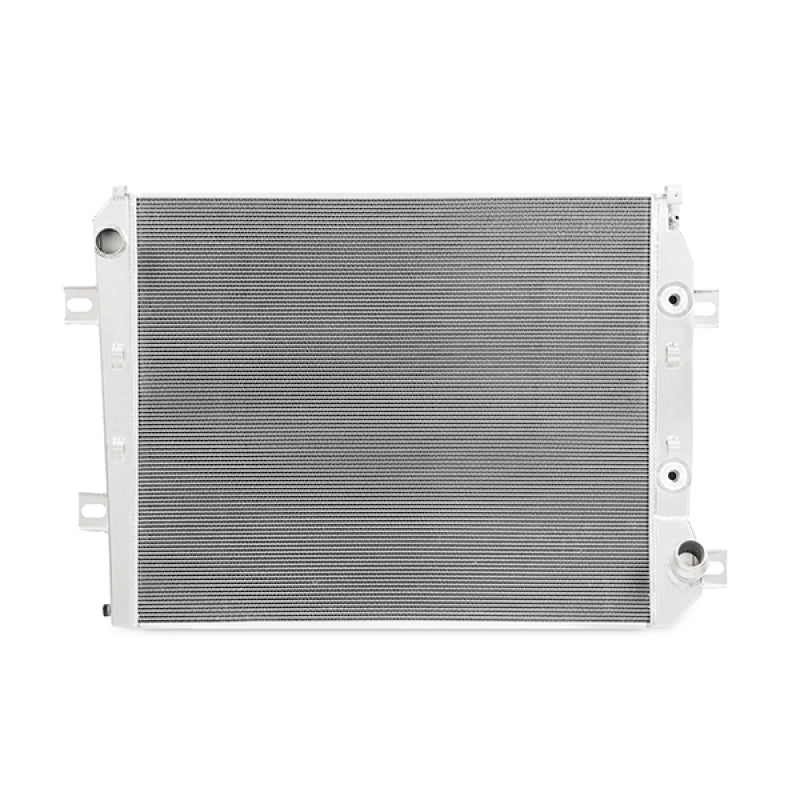

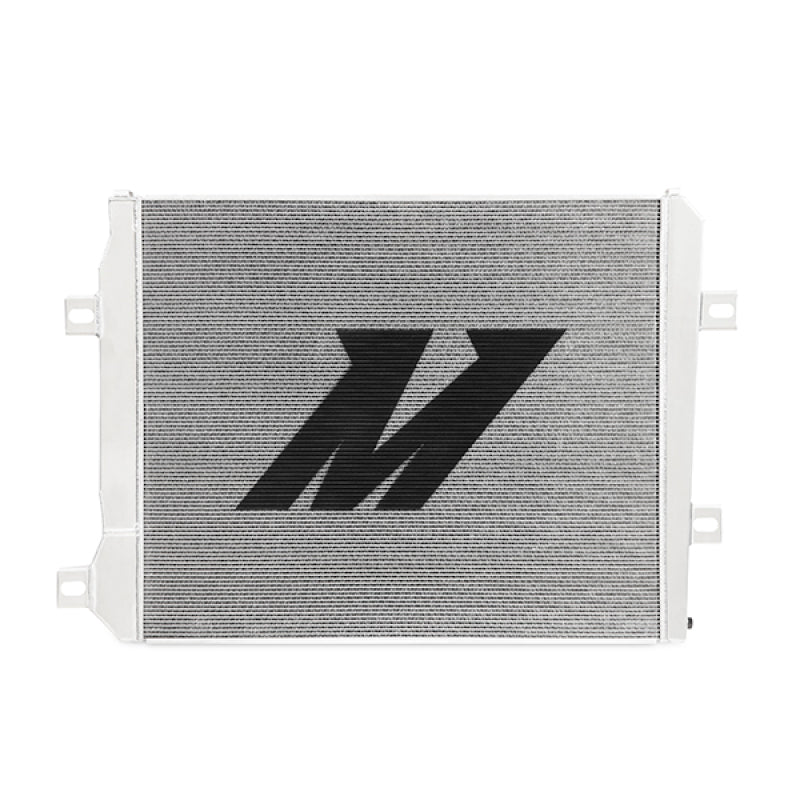

A direct-fit replacement radiator for 2011-2016 Chevrolet and GMC heavy-duty trucks with the 6.6L LML Duramax that retains factory fitment with no modification. The two-row, 100% brazed aircraft-grade aluminum core and polished TIG-welded end tanks hold 8.06 gallons, 22% more coolant than stock, for hauling, towing and warm climates. A CNC-machined quick-disconnect outlet takes the factory hose or a Mishimoto silicone hose kit, and a magnetic drain plug with a Dowty seal is included.

Specifications

Type Performance aluminum radiator
Rows 2
Core Thickness 1.97 in

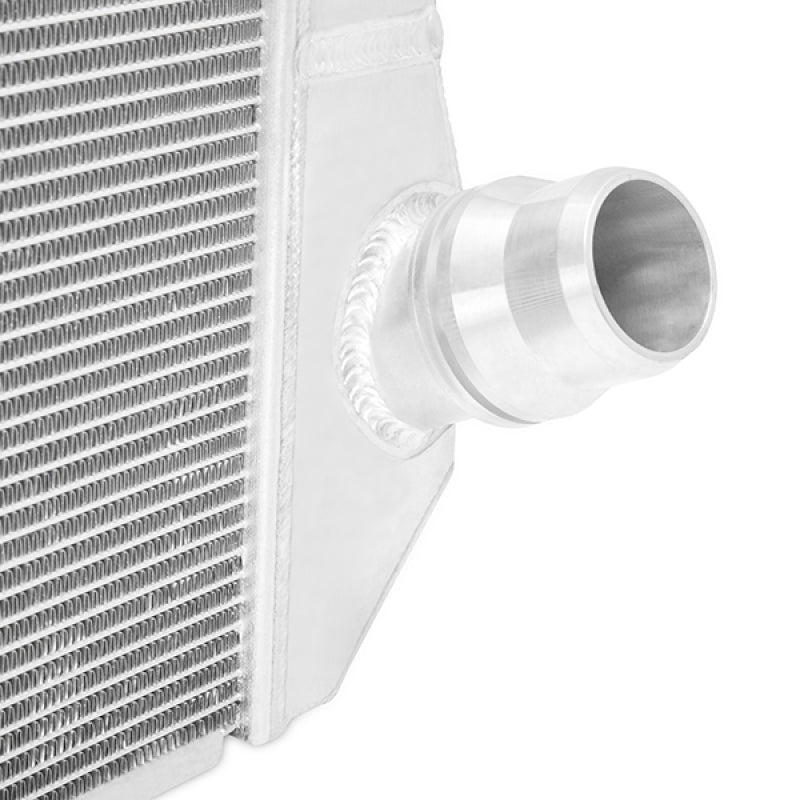

Inlet / Outlet 1.81 in inlet, CNC-machined quick-disconnect outlet
Construction 100% brazed aluminum core, TIG-welded polished aluminum end tanks
Dimensions Overall 28.9 in x 44 in x 5.6 in; core 33.46 in x 27.76 in
Fluid Capacity 8.06 gal

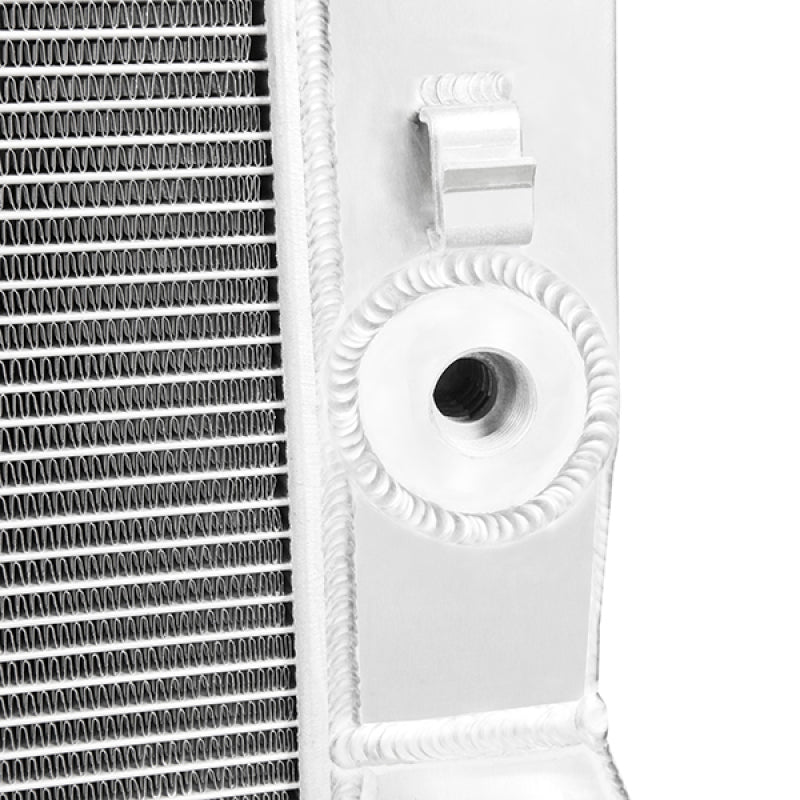

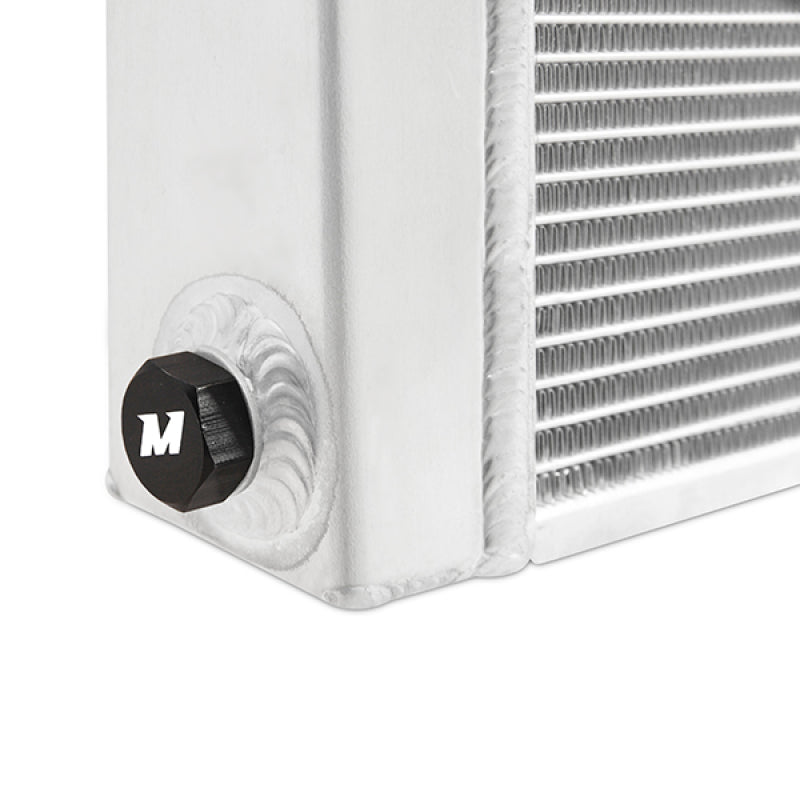

Drain Plug Thread M12 x 1.5, magnetic drain plug with Dowty seal
What's in the Box
  • Mishimoto radiator
  • Magnetic drain plug with Dowty oil seal
Fitment Notes 6.6L LML Duramax diesel only
Install Hard difficulty
Overall Length 28.9 in
Overall Height 44 in
Overall Width 5.6 in
Core Length 33.46 in
Core Height 27.76 in
Inlet 1.81 in
Coolant Capacity 8.06
Quantity 1

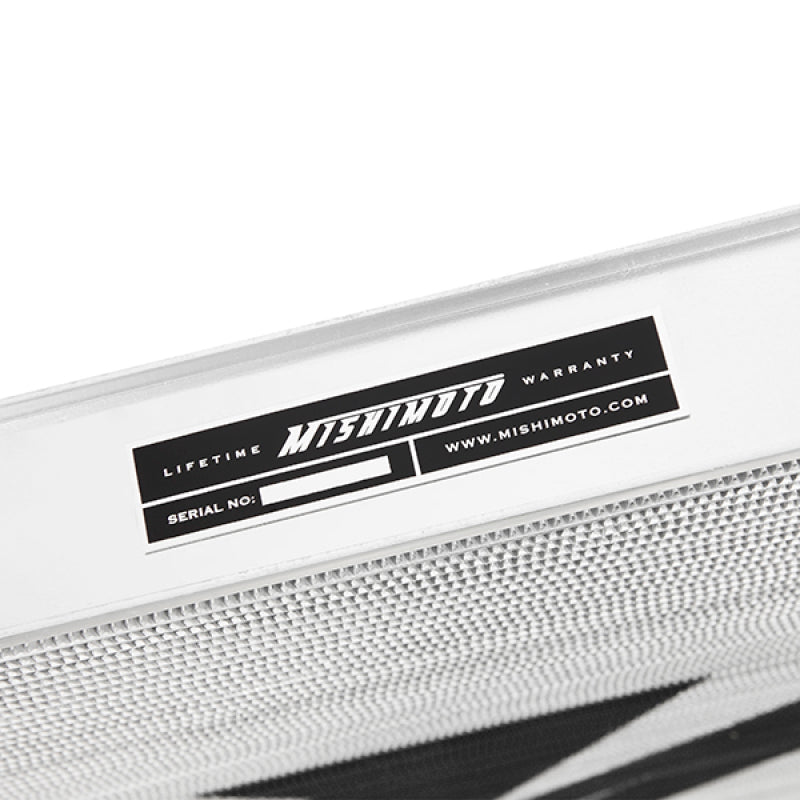

Warranty Mishimoto Lifetime Limited Warranty
Part Number MMRAD-DMAX-11

This part fits:

Year Make Model Submodel
2015-2016 Chevrolet Silverado 2500 HD High Country
2011-2016 Chevrolet Silverado 2500 HD LT
2011-2016 Chevrolet Silverado 2500 HD LTZ
2011-2016 Chevrolet Silverado 2500 HD WT
2015-2016 Chevrolet Silverado 3500 HD High Country
2011-2016 Chevrolet Silverado 3500 HD LT
2011-2016 Chevrolet Silverado 3500 HD LTZ
2011-2016 Chevrolet Silverado 3500 HD WT
2015-2016 GMC Sierra 2500 HD Base
2011-2016 GMC Sierra 2500 HD Denali
2011-2016 GMC Sierra 2500 HD SLE
2011-2016 GMC Sierra 2500 HD SLT
2011-2014 GMC Sierra 2500 HD WT
2015-2016 GMC Sierra 3500 HD Base
2011-2016 GMC Sierra 3500 HD Denali
2011-2016 GMC Sierra 3500 HD SLE
2011-2016 GMC Sierra 3500 HD SLT
2011-2014 GMC Sierra 3500 HD WT

Documents: Installation Instructions (PDF)

Does it fit the 2017+ L5P Duramax?

  • No. The 2017-2019 L5P trucks use MMRAD-DMAX-17.

Can I keep the factory hoses?

  • Yes. The quick-disconnect outlet works with the factory hose or a Mishimoto silicone hose kit.

How much coolant does it hold?

  • 8.06 gallons, 22% more than stock.

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
