Mishimoto 2-Row Performance Aluminum Radiator - Ford F-250 / F-350 Super Duty / Excursion 7.3L / 6.8L / 5.4L 1999-2005

Mishimoto SKU: MISMMRAD-F2D-99
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMRAD-F2D-99
GTIN / UPC748354810363
Manufacturer Part NumberMMRAD-F2D-99

Product Information

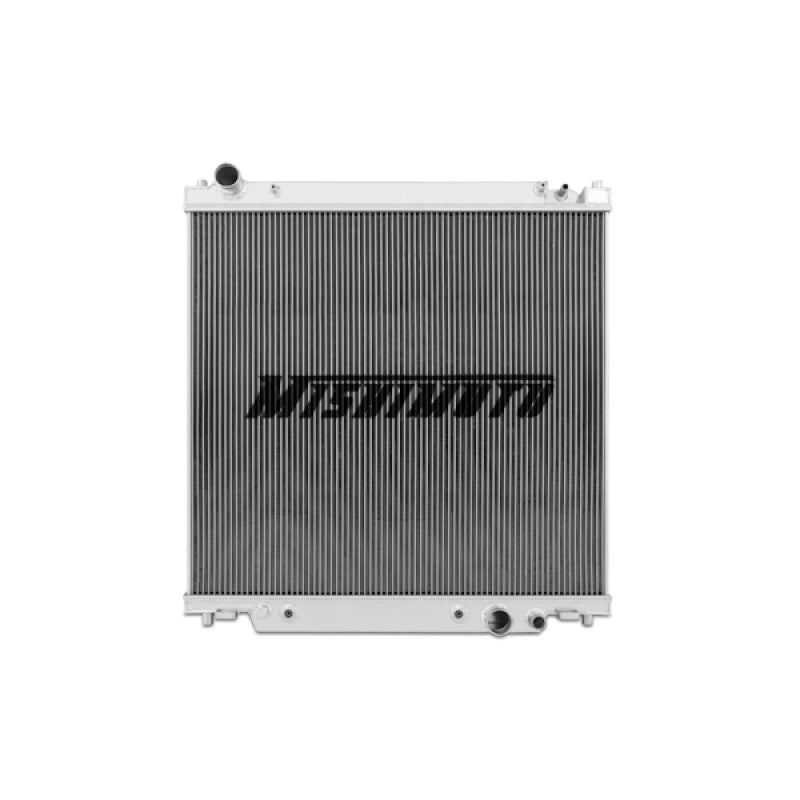

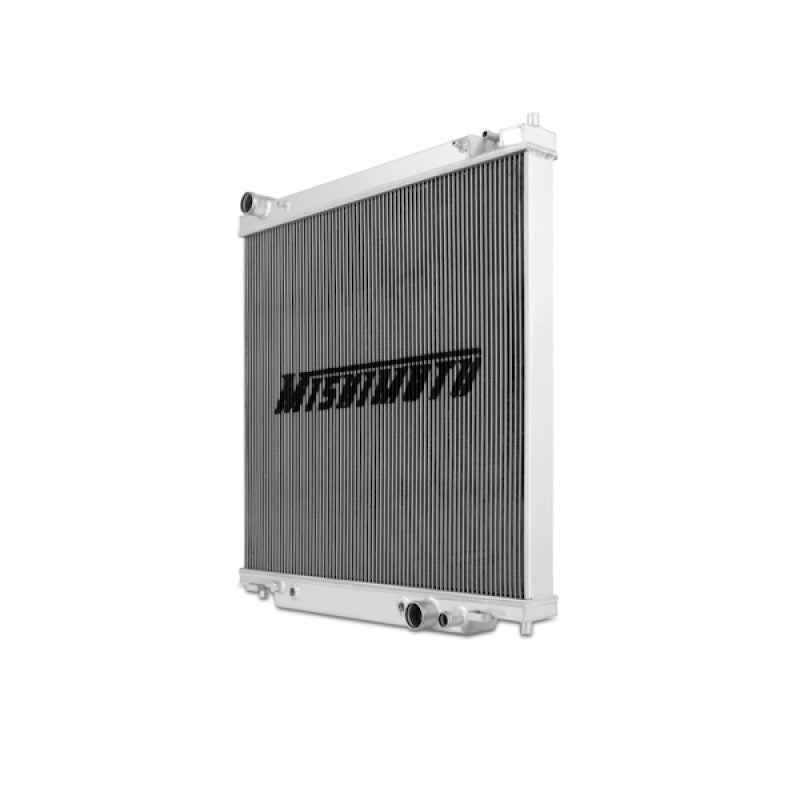

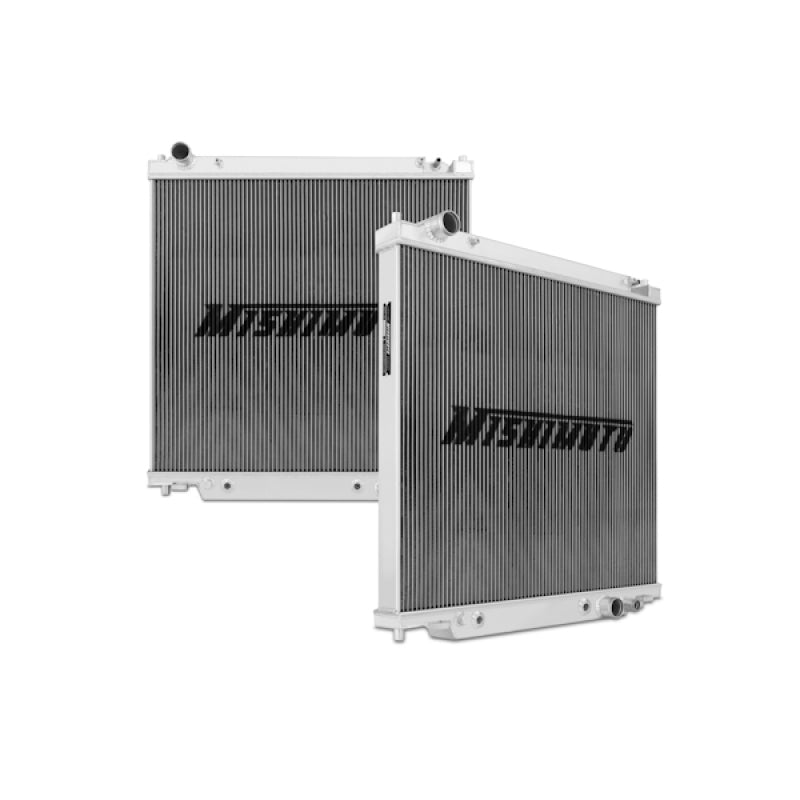

A direct-fit replacement radiator for 1999-2005 Ford Super Duty trucks and the Excursion with the 7.3L Powerstroke diesel or the 5.4L and 6.8L gas engines, replacing OE part 4C3Z-8005-EB. The two-row, 2.2 in thick brazed aluminum core with TIG-welded end tanks holds 9.25 gallons and replaces the stock plastic tank that cracks under sustained heat and pressure. It bolts to the stock fan shroud, and four transmission cooler adapters are included for the 1/2-20 and 5/8-18 SAE lines.

Specifications

Type Performance aluminum radiator
Rows 2
Core Thickness 2.2 in

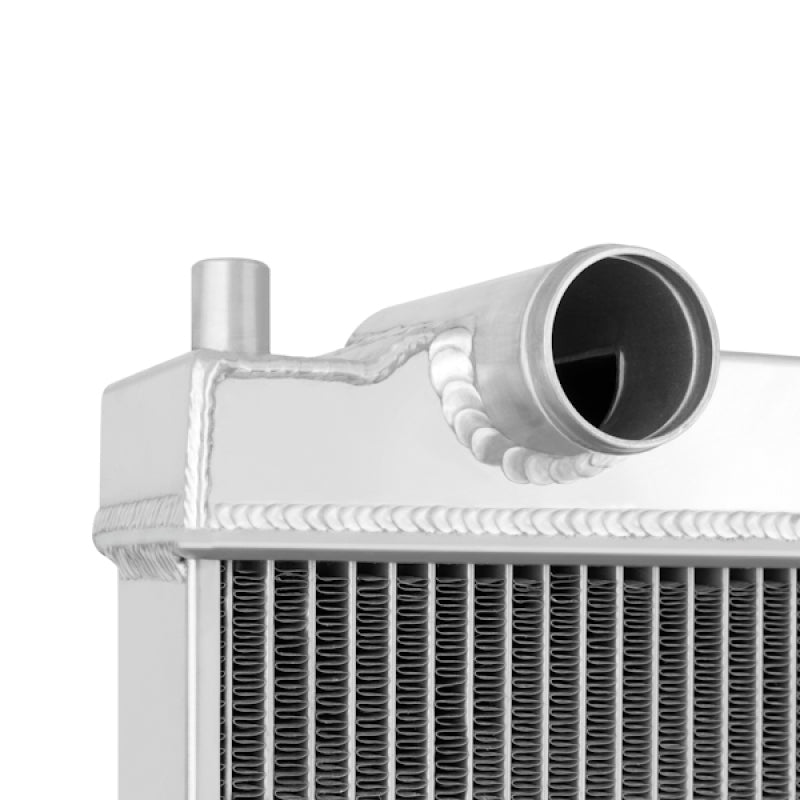

Inlet / Outlet 1.77 in inlet, 1.77 in outlet
Construction Brazed aluminum core, TIG-welded end tanks
Dimensions Overall 30.21 in x 31.73 in x 4.69 in; core 26.46 in x 29.84 in
Fluid Capacity 9.25 gal
Drain Plug Thread M12 x 1.5, magnetic drain plug
What's in the Box
  • Mishimoto radiator
  • Magnetic drain plug

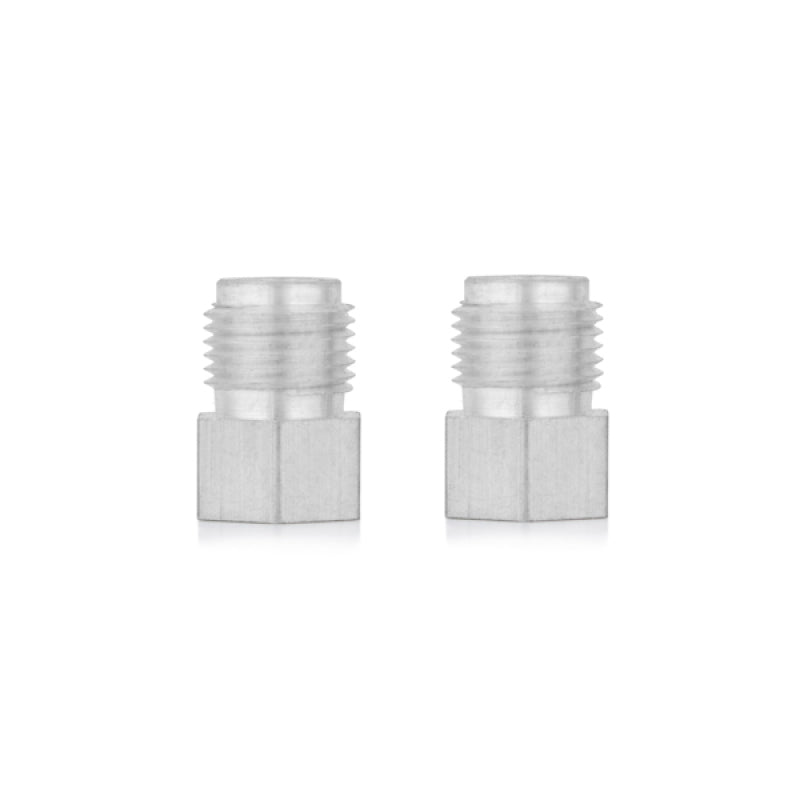

  • (4) transmission cooler adapters (two 1/2-20 SAE, two 5/8-18 SAE female flare)
Fitment Notes Fits 5.4L, 6.8L and 7.3L engines; replaces OE 4C3Z-8005-EB and bolts to the stock fan shroud. 6.0L Powerstroke trucks use MMRAD-F2D-60. The transmission cooler fittings are: 1/2”-20 SAE and 5/8”-18 SAE female flare fittings. This product comes with two adapters of each size to ensure fitment with your vehicle.;
;
; Replaces OE Part Numbers: 4C3Z-8005-EB
Install Medium difficulty
Overall Length 30.21 in
Overall Height 31.73 in
Overall Width 4.69 in
Core Length 26.46 in
Core Height 29.84 in
Inlet 1.77 in
Outlet 1.77 in
Coolant Capacity 9.25
Quantity 1

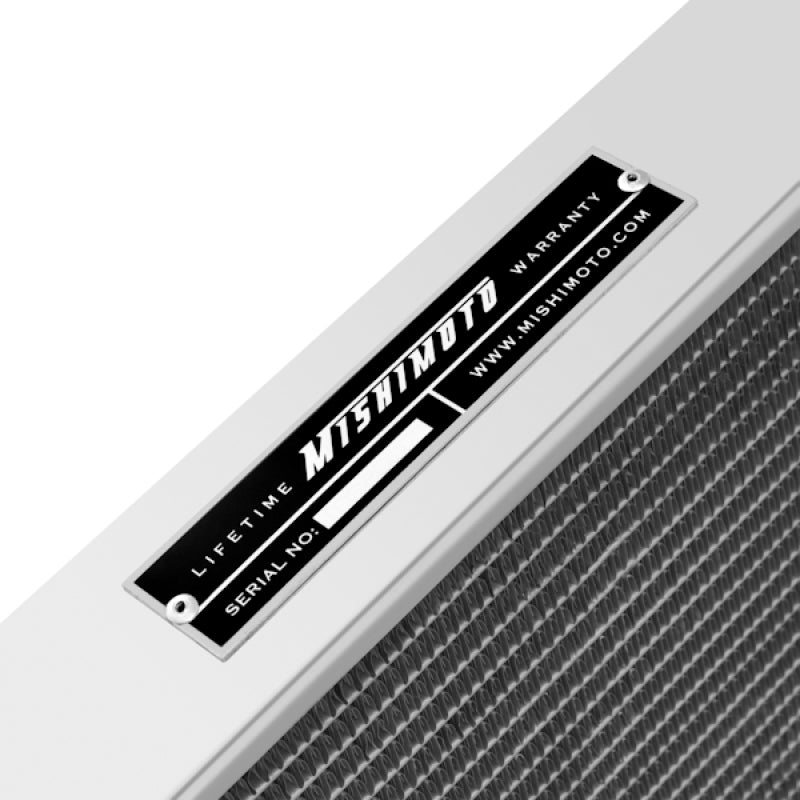

Warranty Mishimoto Lifetime Limited Warranty
Part Number MMRAD-F2D-99

This part fits:

Year Make Model Submodel
2003-2005 Ford Excursion Eddie Bauer
2000-2005 Ford Excursion Limited
2004-2005 Ford Excursion XLS
2000-2005 Ford Excursion XLT
2004 Ford F-250 Super Duty Harley-Davidson Edition
2004 Ford F-250 Super Duty King Ranch
1999-2004 Ford F-250 Super Duty Lariat
1999-2004 Ford F-250 Super Duty XL
1999-2004 Ford F-250 Super Duty XLT
2004 Ford F-350 Super Duty Harley-Davidson Edition
2003-2004 Ford F-350 Super Duty King Ranch
1999-2004 Ford F-350 Super Duty Lariat
1999-2004 Ford F-350 Super Duty XL
1999-2004 Ford F-350 Super Duty XLT
1999-2004 Ford F-450 Super Duty
1999-2003 Ford F-550 Super Duty

Documents: Installation Instructions (PDF)

Does it fit gas Super Duty trucks?

  • Yes. It fits the 5.4L and 6.8L gas engines as well as the 7.3L Powerstroke.

Does it fit the 6.0L Powerstroke?

  • No. The 6.0L trucks use MMRAD-F2D-60.

Will my transmission cooler lines connect?

  • Yes. Four adapters for 1/2-20 and 5/8-18 SAE female flare fittings are included.

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
