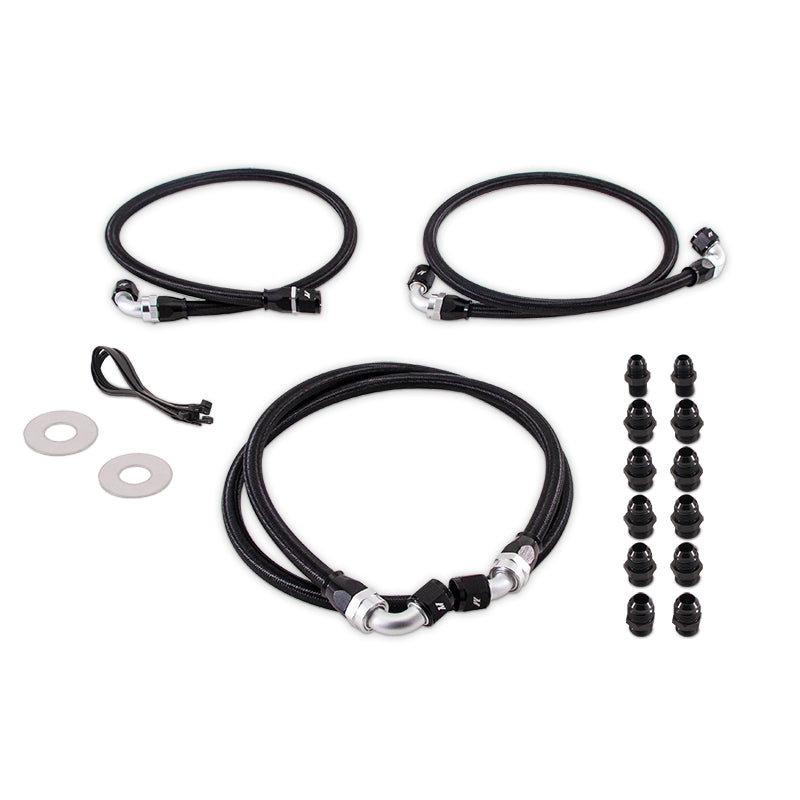

Mishimoto Transmission Cooler, braided lines with fittings laid out

Mishimoto Transmission Cooler - Chevrolet /GMC 2001-2005 6.6L Duramax LB7/LLY Transmission Cooler Line Kit

Mishimoto SKU: MISMMTCL-DMAX-01
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMTCL-DMAX-01
GTIN / UPC811580036088
Manufacturer Part NumberMMTCL-DMAX-01

Product Information

The Mishimoto transmission cooler line kit for the 2001-2005 Chevrolet/GMC 6.6L Duramax LB7/LLY routes transmission fluid to the cooler with high-performance PTFE lines wrapped in a high-strength nylon braid. The PTFE inner liner is highly oil- and heat-resistant, while the braid prevents expansion under pressure and resists abrasion. Capped with -10AN fittings for a secure, leak-free connection, the lines carry a 2,000 psi working pressure and 6,000 psi burst rating, ideal alongside a performance transmission cooler.

Specifications

Type Transmission cooler line kit
Line PTFE inner liner, nylon-braid outer
Fittings -10AN
Pressure 2,000 psi working / 6,000 psi burst
Overall Length 46.45 in
Overall Height 0.625 in
Overall Width 0.625 in
Mounting Hardware Included 0
Engine LB7 LLY
Fitment Notes Trucks with aftermarket radiators that include a large integral nut on radiator fittings should use -10AN to M22x1.5 fittings
Part Number MMTCL-DMAX-01
Warranty Mishimoto Lifetime Warranty

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2001-2005 Chevrolet Silverado 2500 HD Base
2001-2005 Chevrolet Silverado 2500 HD LS
2001-2005 Chevrolet Silverado 2500 HD LT
2004-2005 Chevrolet Silverado 2500 HD WT
2001-2005 Chevrolet Silverado 3500 Base
2001-2005 Chevrolet Silverado 3500 LS
2001-2005 Chevrolet Silverado 3500 LT
2004 Chevrolet Silverado 3500 WT
2002-2005 GMC Sierra 2500 HD Base
2001-2002 GMC Sierra 2500 HD SL
2001-2005 GMC Sierra 2500 HD SLE
2001-2005 GMC Sierra 2500 HD SLT
2003-2005 GMC Sierra 2500 HD WT
2002-2005 GMC Sierra 3500 Base
2001-2002 GMC Sierra 3500 SL
2001-2005 GMC Sierra 3500 SLE
2001-2005 GMC Sierra 3500 SLT
2004-2005 GMC Sierra 3500 WT
