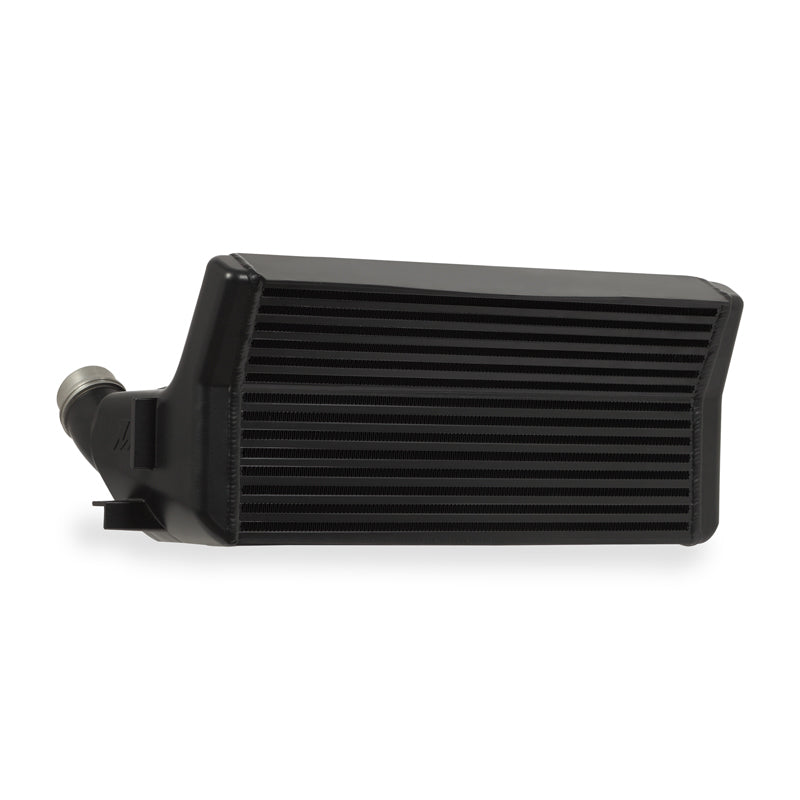

Mishimoto Intercooler (I/C ONLY), black, core, angled view

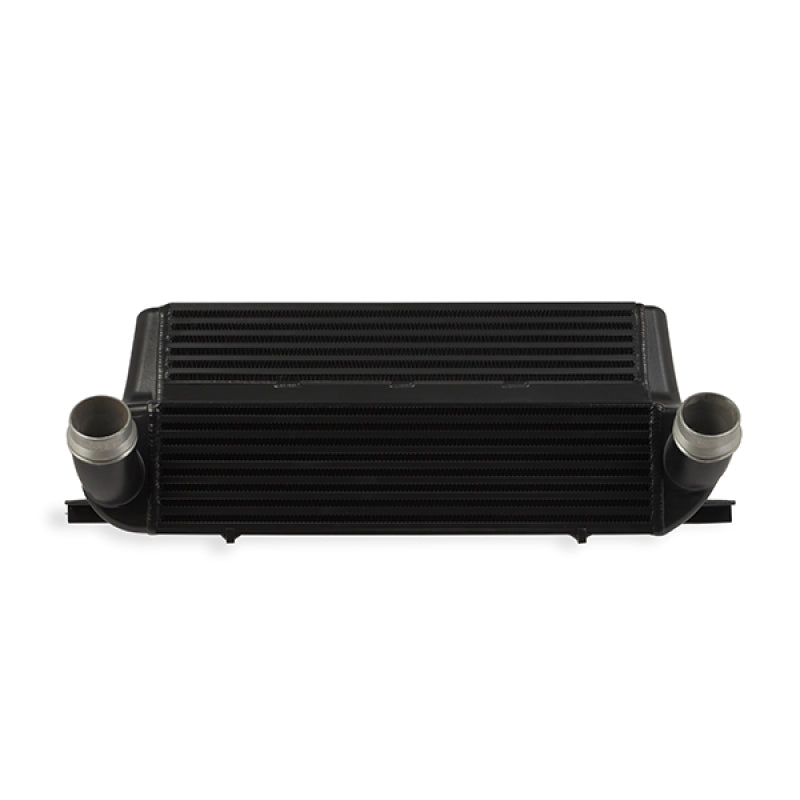

Mishimoto Intercooler (I/C ONLY), black, core, top view

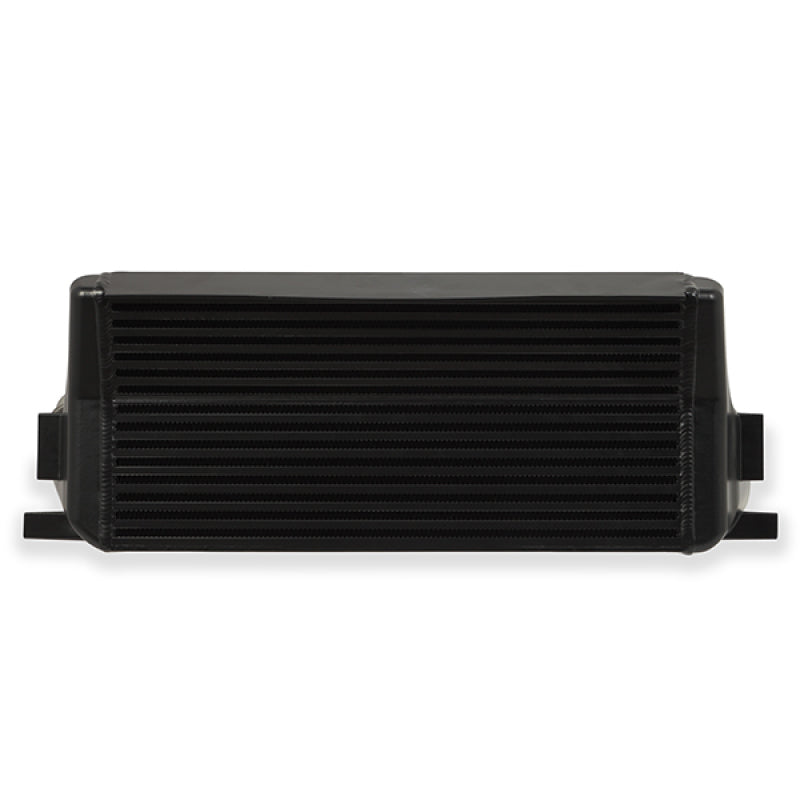

Mishimoto Intercooler (I/C ONLY), black, core, front view

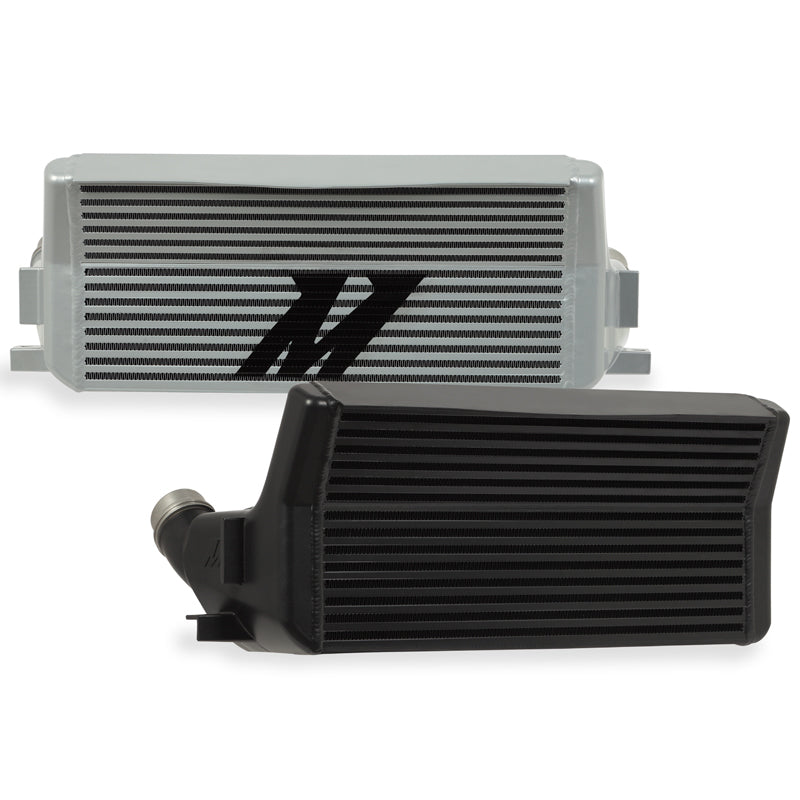

Mishimoto Intercooler (I/C ONLY), black, two cores, angled view

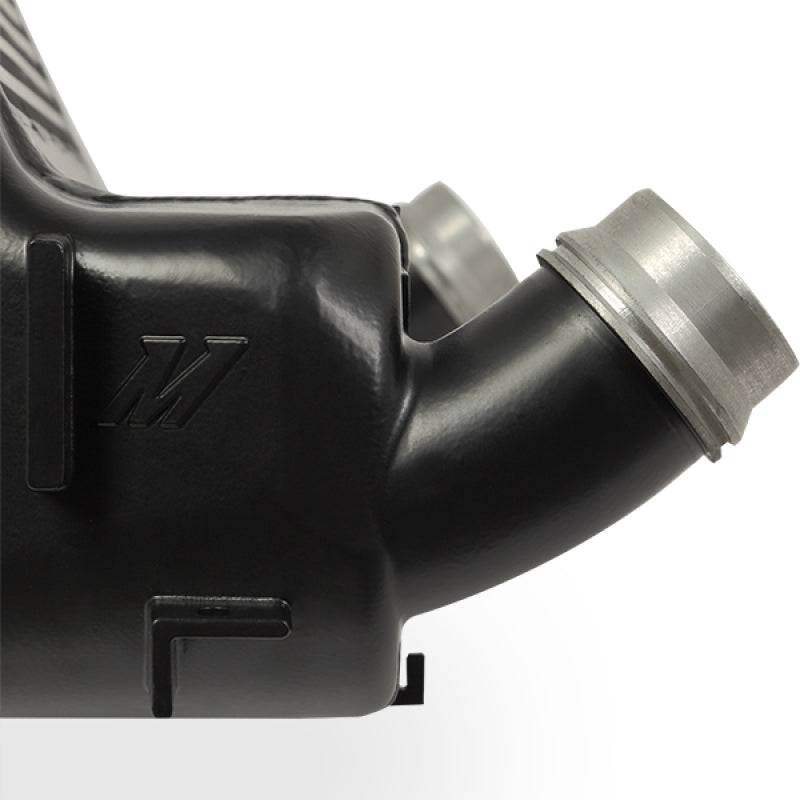

Mishimoto Intercooler (I/C ONLY), black, end tank outlet, close up
Mishimoto Intercooler (I/C ONLY), black, core, angled view
Mishimoto Intercooler (I/C ONLY), black, core, top view
Mishimoto Intercooler (I/C ONLY), black, core, front view
Mishimoto Intercooler (I/C ONLY), black, two cores, angled view
Mishimoto Intercooler (I/C ONLY), black, end tank outlet, close up

Mishimoto Intercooler (I/C ONLY) - BMW F22 / F30 / F32 / F87 2012-2026 - Black

Mishimoto SKU: MISMMINT-F30-12BK
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMINT-F30-12BK
GTIN / UPC811580033414
Manufacturer Part NumberMMINT-F30-12BK

Product Information

Make your Ultimate Driving Machine even more ultimate with the addition of the Mishimoto BMW F22/F30 Chassis Performance Intercooler! From the factory, the N20/26 and N55 engines are a prowess of German engineering, but the stock intercooler unit poses as a weak link for your turbocharged Bimmer. The tube-and-fin design coupled with plastic end tanks makes for the perfect environment for heat to set up residence and throttle the power of your 2, 3, or 4-series, especially for those running a tune. Mishimoto is here to unlock the full potential of your N20/26 and N55 engines with our Performance Intercooler specifically designed for the F22/F30 chassis. Our unique 6? thick step-core design, adds a 115? angle to the top section to allow for additional charged air cooling without fully obstructing other heat exchangers. Tubes and fins are a thing of the past with this design as we engineered our intercooler with a bar-and-plate construction optimizing this intercooler for heat dissipation with minimal pressure drop. Coupled together, our features were able to drop intercooler outlet temperatures by 45?F, and add 10 whp and 8 wtq all on the stock tune of our M2 test vehicle. The BMW F22/F30 Performance Intercooler is available in Silver or Black and also includes the Mishimoto Lifetime Warranty.

Specifications

Type Bar-and-plate performance intercooler (core)
Material Aluminum
Finish Black
Core Thickness 6 in
Inlet 2 in
Outlet 2 in
Engine N20 N26 N47 N55
Chassis Codes F22 F23 F30 F31 F32 F33 F34 F87
Fitment Notes F33 convertible and M2 owners will need to either remove or modify the front core support brace for installation. Please refer to the installation guide for proper modification instructions.; 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Part Number MMINT-F30-12BK
Warranty Mishimoto Lifetime Warranty

This part fits:

Year Make Model Submodel
2014-2016 BMW 228i Base
2015-2016 BMW 228i xDrive Base
2013-2016 BMW 320i Base
2013-2016 BMW 320i xDrive Base
2014-2016 BMW 328d Base
2014-2016 BMW 328d xDrive Base
2012-2016 BMW 328i Base
2014-2016 BMW 328i GT xDrive Base
2013-2016 BMW 328i xDrive Base
2012-2015 BMW 335i Base
2014-2016 BMW 335i GT xDrive Base
2012-2015 BMW 335i xDrive Base
2012-2013 BMW 335is Base
2014-2016 BMW 428i Base
2015-2016 BMW 428i Gran Coupe Base
2014-2016 BMW 428i xDrive Base
2015-2016 BMW 428i xDrive Gran Coupe Base
2014-2016 BMW 435i Base
2015-2016 BMW 435i Gran Coupe Base
2014-2016 BMW 435i xDrive Base
2015-2016 BMW 435i xDrive Gran Coupe Base
2016-2026 BMW M2 Base
2014-2016 BMW M235i Base
2015-2016 BMW M235i xDrive Base

Which vehicles does this fit?

  • It fits the BMW 228i 2014-2016, BMW 228i xDrive 2015-2016, BMW 320i 2013-2016, BMW 320i xDrive 2013-2016, BMW 328d 2014-2016, BMW 328d xDrive 2014-2016 and 18 more models. The full year, make, model and submodel list is in the fitment table on this page.

Is there a warranty?

  • Mishimoto Lifetime Warranty.

What is it made of?

  • Aluminum.
