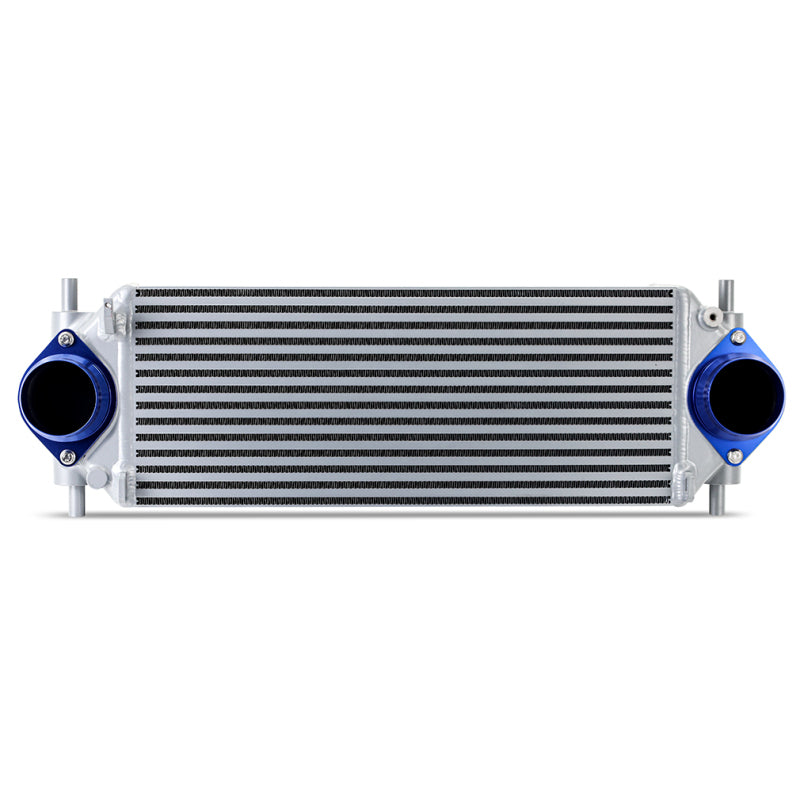

Mishimoto Stock-Location Performance Intercooler, silver, core with two blue plugs, front view

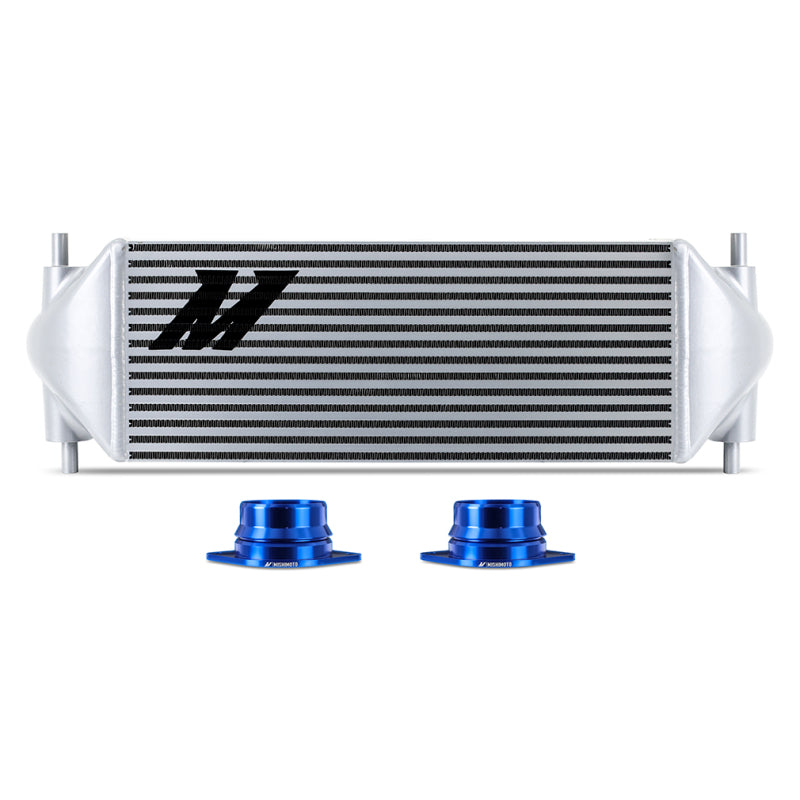

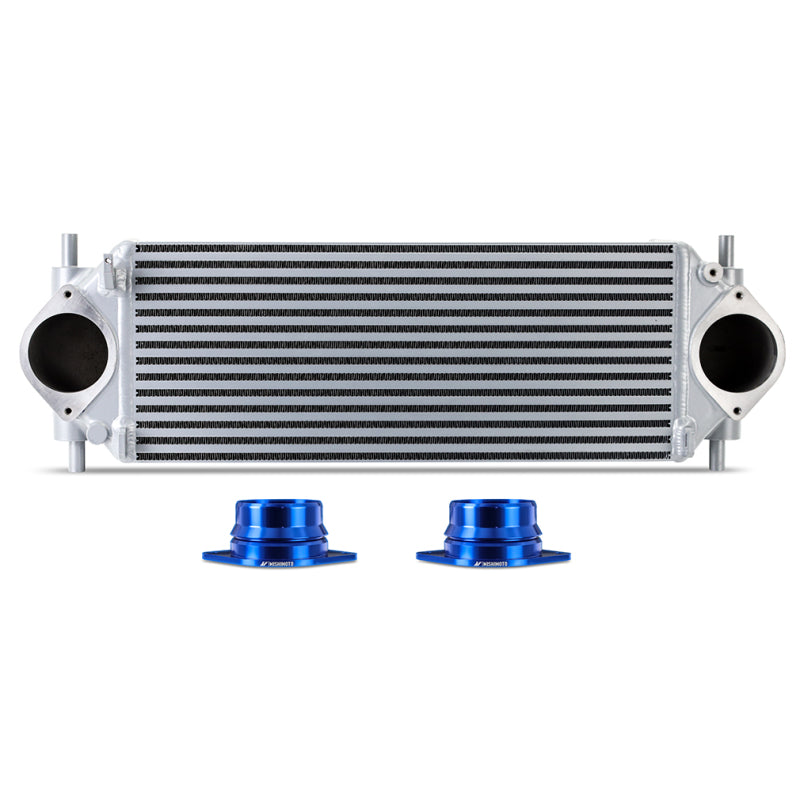

Mishimoto Stock-Location Performance Intercooler, silver, core with blue couplers, laid out

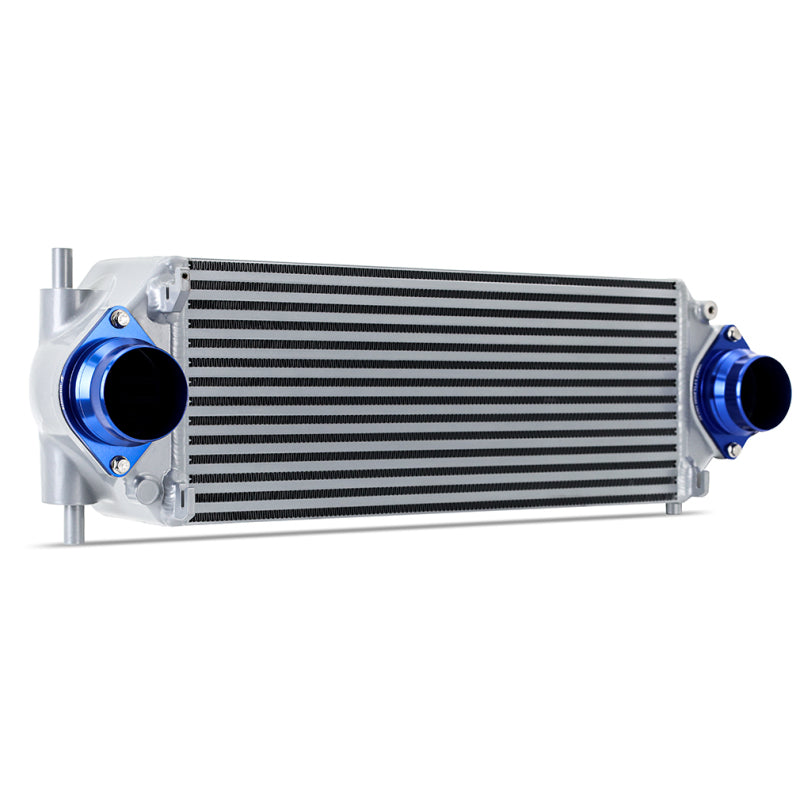

Mishimoto Stock-Location Performance Intercooler, silver, core with blue couplers, angled view

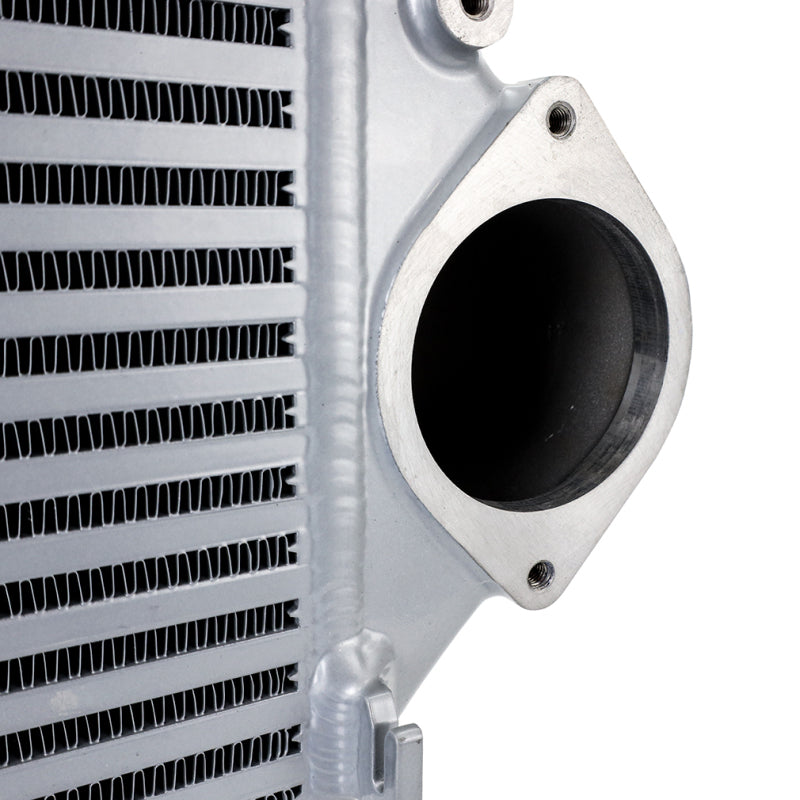

Mishimoto Stock-Location Performance Intercooler, silver, end tank outlet, close up

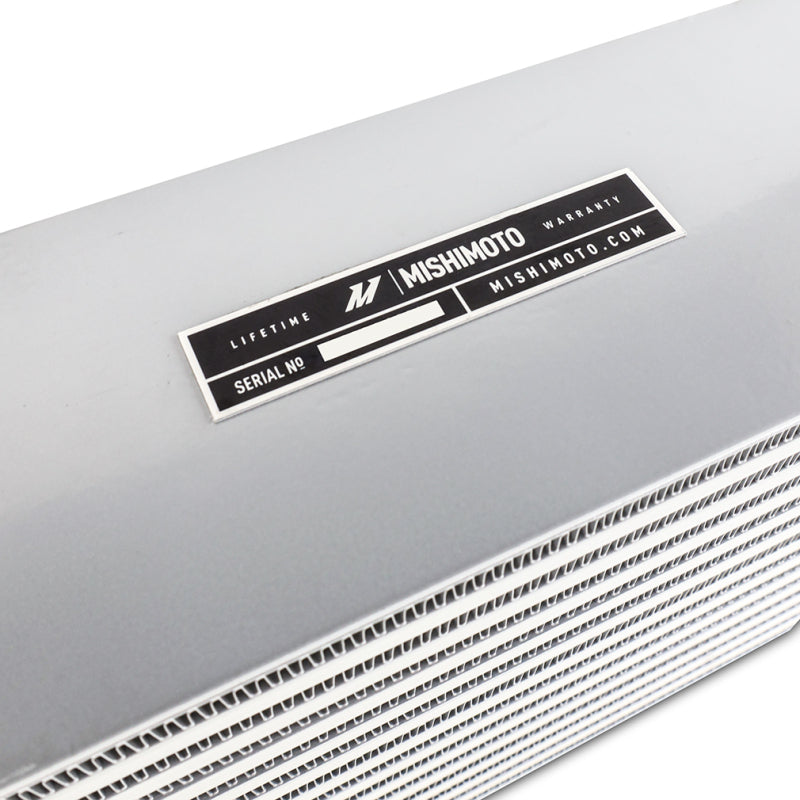

Mishimoto Stock-Location Performance Intercooler, silver, badge plate, close up
Mishimoto Stock-Location Performance Intercooler, silver, core with blue couplers, front view
Mishimoto Stock-Location Performance Intercooler, silver, blue couplers, pair
Mishimoto Stock-Location Performance Intercooler, silver, core with two blue plugs, front view
Mishimoto Stock-Location Performance Intercooler, silver, core with blue couplers, laid out
Mishimoto Stock-Location Performance Intercooler, silver, core with blue couplers, angled view
Mishimoto Stock-Location Performance Intercooler, silver, end tank outlet, close up
Mishimoto Stock-Location Performance Intercooler, silver, badge plate, close up
Mishimoto Stock-Location Performance Intercooler, silver, core with blue couplers, front view
Mishimoto Stock-Location Performance Intercooler, silver, blue couplers, pair

Mishimoto Stock-Location Performance Intercooler - Ford Bronco 2021-2026 - Silver

Mishimoto SKU: MISMMINT-BR-21SL
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMINT-BR-21SL
GTIN / UPC840197711446
Manufacturer Part NumberMMINT-BR-21SL

Product Information

A direct-replacement performance intercooler for the 2.3L and 2.7L EcoBoost Bronco that mounts in the factory location. The TIG-welded bar-and-plate core is 4.7 in thick with cast aluminum end tanks and CNC-machined 6061 aluminum flanges, giving 77% more core volume and 175% more fin surface area than stock with 7% less flow restriction. Testing showed outlet temperatures 21.2°F lower on the 2.3L and 15.8°F lower on the 2.7L, and about 20°F cooler than stock after six back-to-back heat-soak dyno runs. It is finished in silver powder coat.

Specifications

Type Stock-location performance intercooler
Core Bar-and-plate, TIG welded, cast aluminum end tanks; 19.49 in L x 7.62 in H x 4.7 in thick
Inlet / Outlet 2.48 in / 2.48 in, CNC-machined 6061 aluminum flanges
Overall Size 26.81 in L x 6.77 in W
Flow 77% more core volume, 175% more fin surface area, 7% less restriction than stock
Gains 2.3L: 21.2°F lower outlet temp, about +5.7 whp / +5.3 lb-ft; 2.7L: 15.8°F lower outlet temp, +6.5 whp / +6.5 lb-ft
Color Silver
Fitment Notes 2.3L and 2.7L EcoBoost; does not fit the Bronco Raptor 3.0L. On 2.7L trucks with a rear fan shroud some shroud flaps may not fully open, with no effect on performance. Does not fit Raptor Bronco with 3.0L EcoBoost

Installation on 2.7L vehicles with a rear fan shroud will cause some of the rear fan shroud flaps to not open fully. This will not cause any issue with vehicle performance or operation.
Install Medium difficulty
Overall Length 26.81 in
Overall Width 6.77 in
Core Length 19.49 in
Core Height 7.62 in
Inlet 2.48 in
Outlet 2.48 in
Engine 2.3L EcoBoost 2.7L EcoBoost
Quantity 1
Warranty Mishimoto Lifetime Limited Warranty
Part Number MMINT-BR-21SL

This part fits:

Year Make Model Submodel
2021-2026 Ford Bronco Badlands
2021-2026 Ford Bronco Base
2021-2026 Ford Bronco Big Bend
2021-2024 Ford Bronco Black Diamond
2022-2024 Ford Bronco Everglades
2021 Ford Bronco First Edition
2023-2026 Ford Bronco Heritage Edition
2023-2024 Ford Bronco Heritage Limited Edition
2021-2026 Ford Bronco Outer Banks
2021-2024 Ford Bronco Wildtrak

Documents: Installation Instructions (PDF) | Engineering Report (PDF)

Does it fit the Bronco Raptor?

  • No. It fits the 2.3L and 2.7L EcoBoost Bronco and does not fit the Raptor with the 3.0L.

Does it mount in the factory location?

  • Yes. It is a direct replacement that mounts in the stock intercooler location.

How much cooler does it run?

  • Testing showed outlet temperatures 21.2°F lower on the 2.3L and 15.8°F lower on the 2.7L than stock.

Can I use it with a Mishimoto pipe kit?

  • Yes. If the intercooler and pipe kit are bought separately, the Mishimoto CNC inlet/outlet adapters (MMINT-BR-21CNC) connect them.

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
