Mishimoto Performance Intercooler Kit - Chevrolet Silverado / GMC Sierra HD 6.6L Duramax 2017-2019 - Silver Core / Wrinkle Black Pipes

Mishimoto SKU: MISMMINT-DMAX-17KSLBK
Price
9% OFF
Only 4 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMINT-DMAX-17KSLBK
GTIN / UPC840197701423
Manufacturer Part NumberMMINT-DMAX-17KSLBK

Product Information

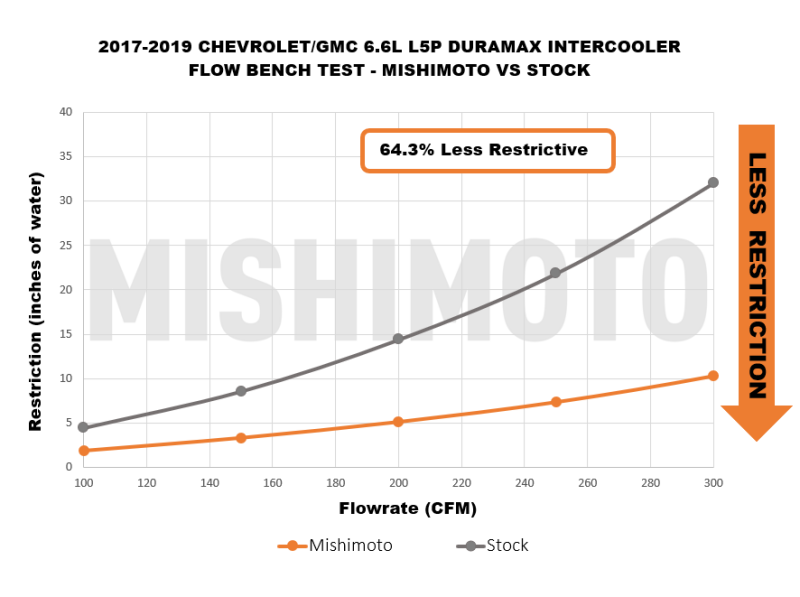

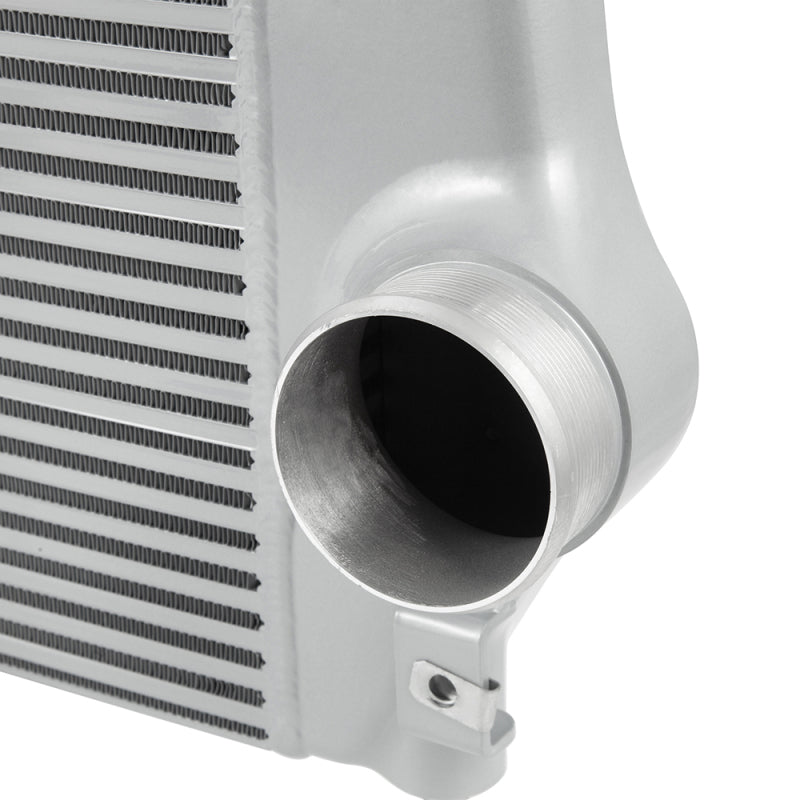

A complete intercooler and charge pipe kit for 2017-2019 Chevrolet and GMC HD trucks with the 6.6L Duramax L5P. The 68 mm thick bar-and-plate intercooler in silver is 70% thicker than stock, with cast aluminum end tanks and larger inlets and outlets that cut restriction by up to 64%. The 3.0 in mandrel-bent wrinkle black aluminum pipes eliminate the factory resonator and improve flow by up to 55%, with bead-rolled ends, a CNC-machined quick-disconnect and three bungs that can be drilled and tapped for sensors or water/methanol injection.

Specifications

Type Intercooler and pipe kit

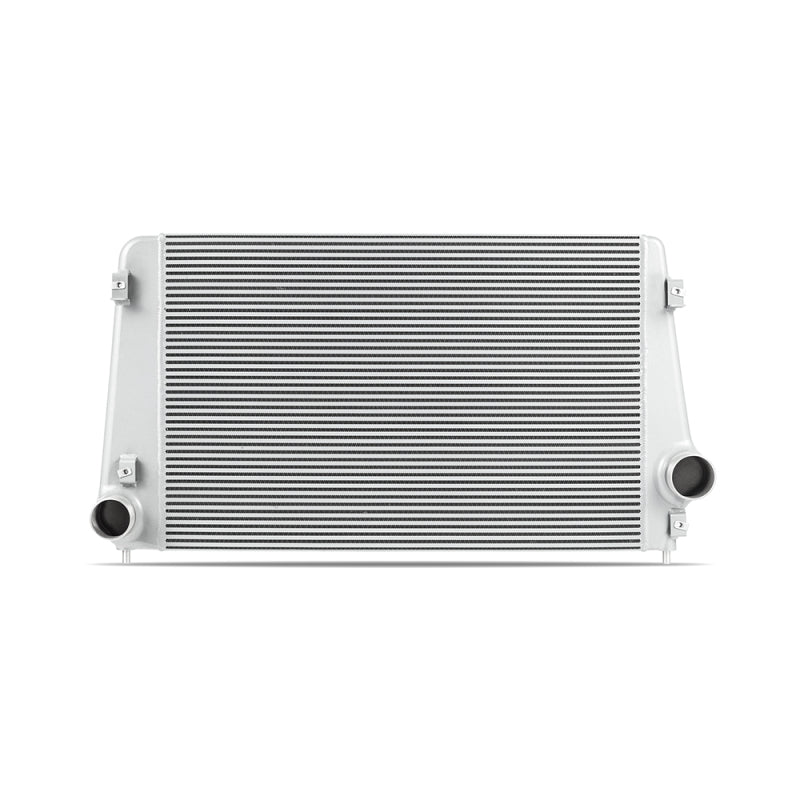

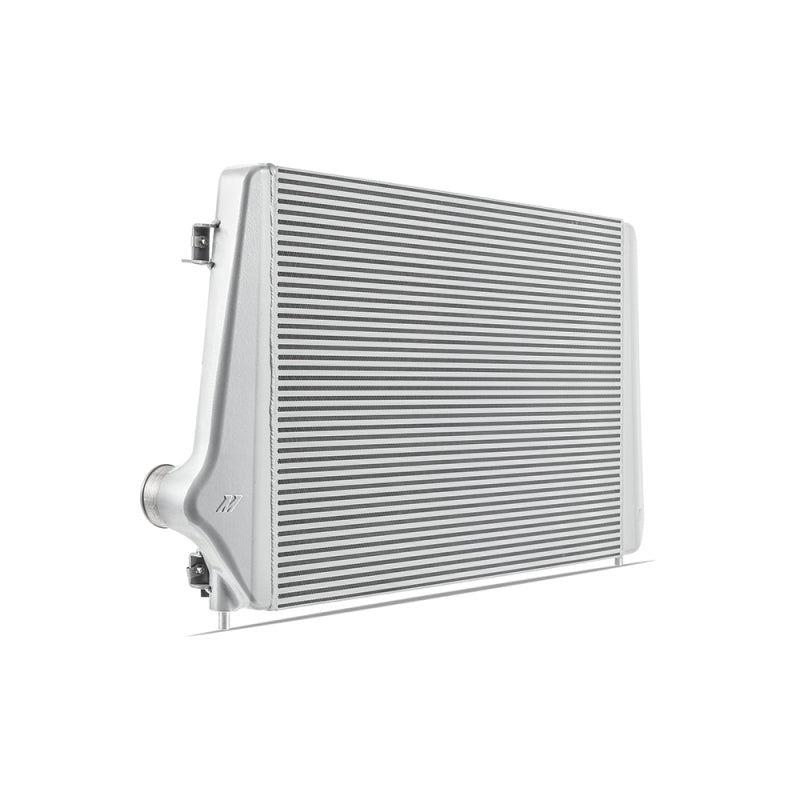

Core Bar-and-plate, cast aluminum end tanks; 20 in L x 11 in H x 68 mm (2.67 in) thick; up to 64% less restriction than stock
Inlet / Outlet 3 in / 3.25 in
Overall Size 45.8 in L x 23.85 in H x 4.92 in W
Pipes 3.0 in mandrel-bent aluminum, wrinkle black; up to 55% more flow; eliminates the stock resonator; CNC quick-disconnect; three drillable bungs
Color Silver core, wrinkle black pipes

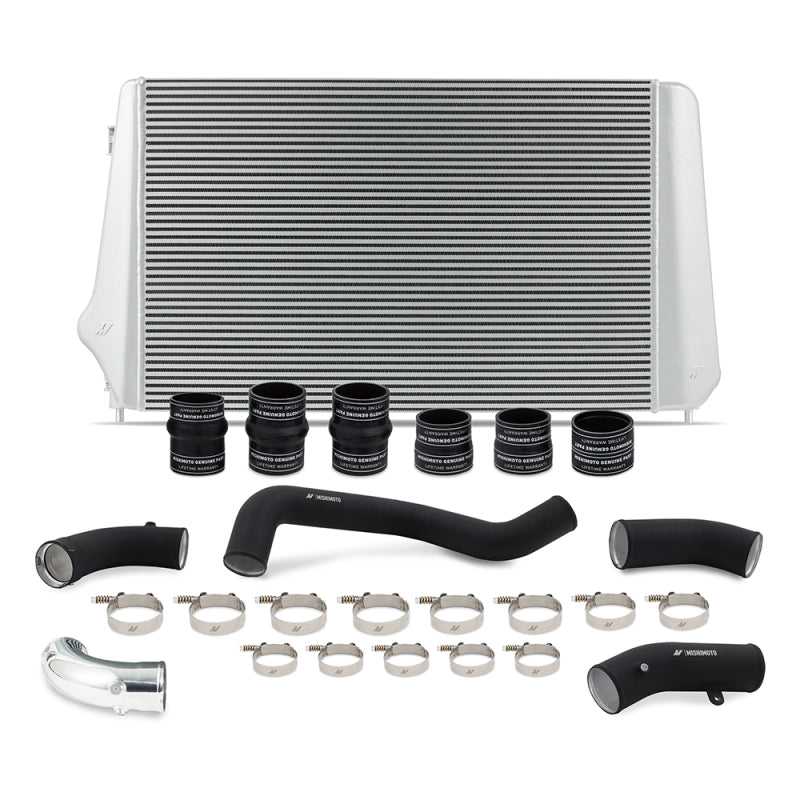

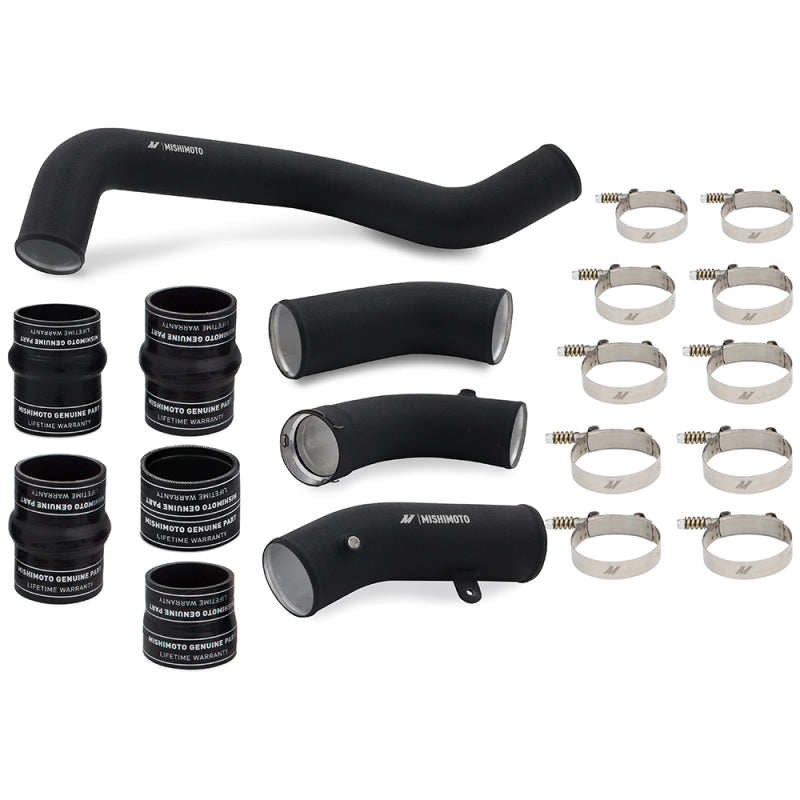

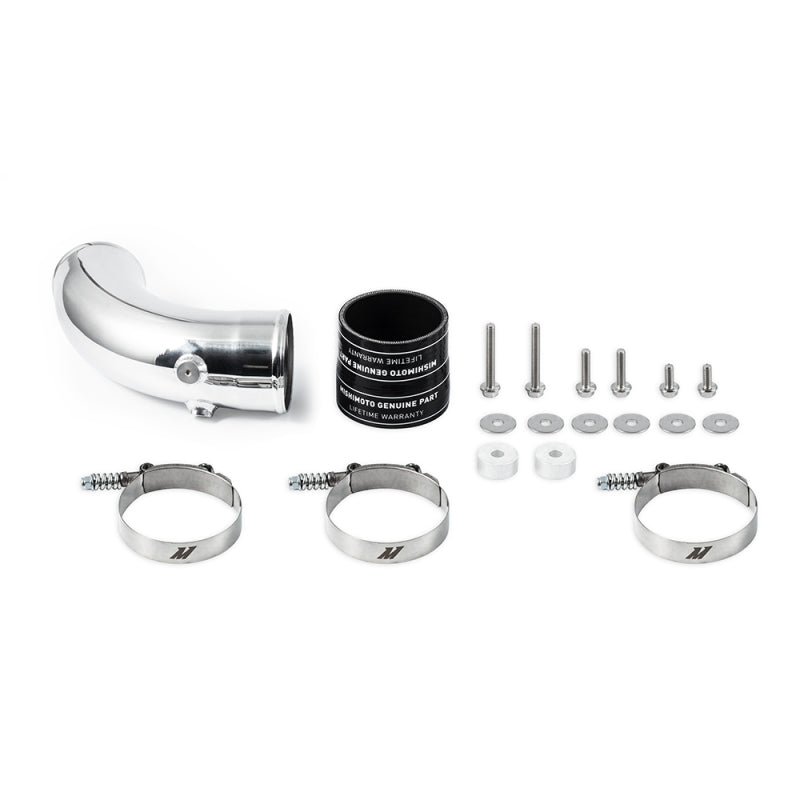

What's in the Box
  • (1) intercooler
  • (1) cold side pipe adapter
  • (2) cold side pipes
  • (2) hot side pipes
  • (3) cold side boots
  • (3) hot side boots
  • (13) constant-tension T-bolt clamps
  • (2) intercooler core spacers
  • (6) M8 bolts
  • (6) M8 washers
Fitment Notes 6.6L Duramax L5P diesel only; some trimming of the fan shroud may be required. Some trimming of the fan shroud may be required for installation.; 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Install Hard; clamp torque 27 in-lbs, do not exceed 35 in-lbs
Overall Length 45.8 in
Overall Height 23.85 in
Overall Width 4.92 in
Core Length 20 in
Core Height 11 in
Core Thickness 2.67 in
Inlet 3 in
Outlet 3.25 in
Engine L5P
Chassis Codes GMT K2
Quantity 1
Warranty Mishimoto Lifetime Limited Warranty
Part Number MMINT-DMAX-17KSLBK

This part fits:

Year Make Model Submodel
2017-2019 Chevrolet Silverado 2500 HD High Country
2017-2019 Chevrolet Silverado 2500 HD LT
2017-2019 Chevrolet Silverado 2500 HD LTZ
2017-2019 Chevrolet Silverado 2500 HD WT
2017-2019 Chevrolet Silverado 3500 HD High Country
2017-2019 Chevrolet Silverado 3500 HD LT
2017-2019 Chevrolet Silverado 3500 HD LTZ
2017-2019 Chevrolet Silverado 3500 HD WT
2017-2019 GMC Sierra 2500 HD Base
2017-2019 GMC Sierra 2500 HD Denali
2017-2019 GMC Sierra 2500 HD SLE
2017-2019 GMC Sierra 2500 HD SLT
2017-2019 GMC Sierra 3500 HD Base
2017-2019 GMC Sierra 3500 HD Denali
2017-2019 GMC Sierra 3500 HD SLE
2017-2019 GMC Sierra 3500 HD SLT

Documents: Installation Instructions (PDF) | Tech Sheet (PDF)

Which trucks does it fit?

  • 2017-2019 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD with the 6.6L Duramax L5P.

Is any trimming needed?

  • Some trimming of the fan shroud may be required.

Does it remove the factory resonator?

  • Yes. The 3.0 in mandrel-bent pipes eliminate the stock resonator and improve flow by up to 55%.

Can I add sensors or methanol injection?

  • Yes. The pipes have three bungs that can be drilled and tapped for sensors or water/methanol injection.

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
