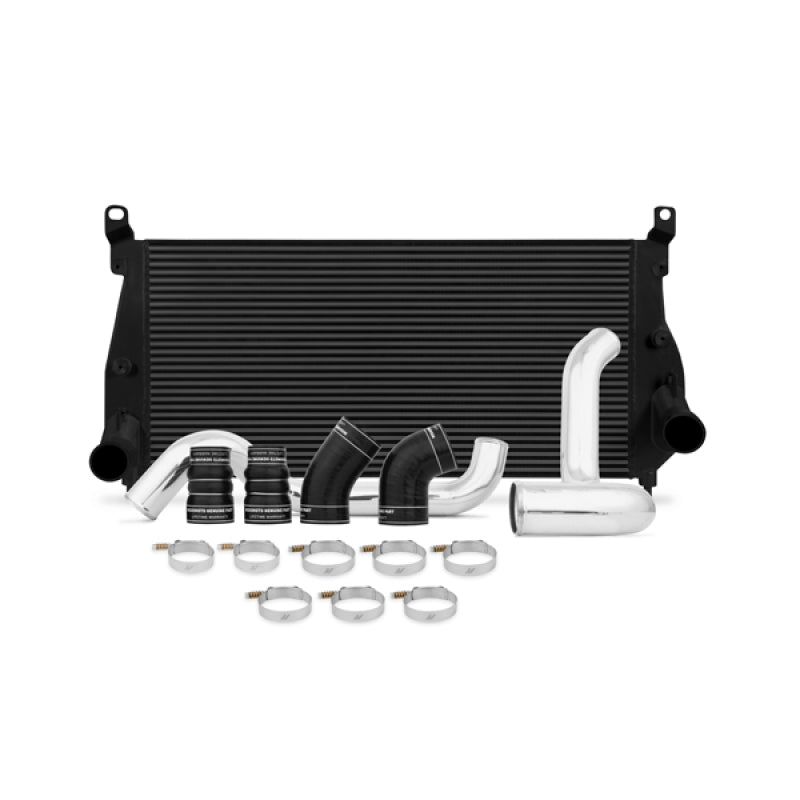

Mishimoto Intercooler Kit, black core with hoses and pipes laid out
Mishimoto Intercooler Kit, core, hoses, pipes laid out

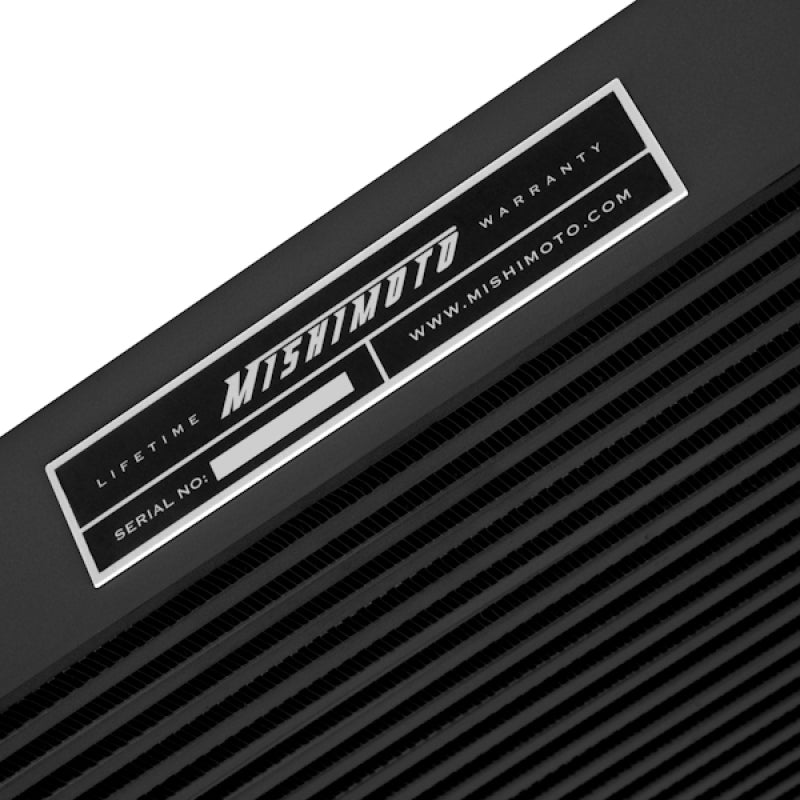

Mishimoto Intercooler Kit, badge plate, close up

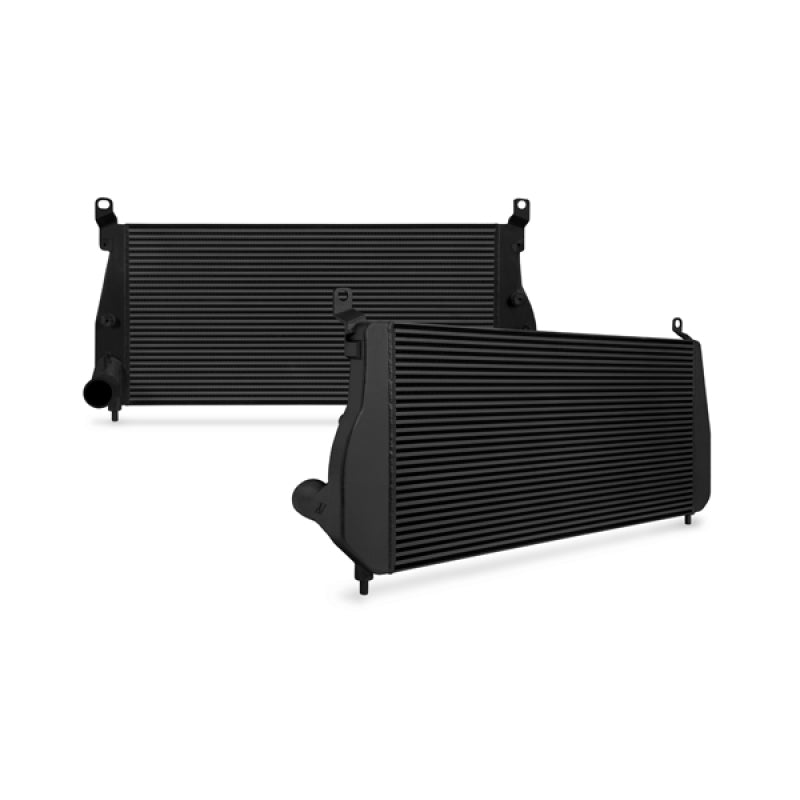

Mishimoto Intercooler Kit, two black cores, front and back

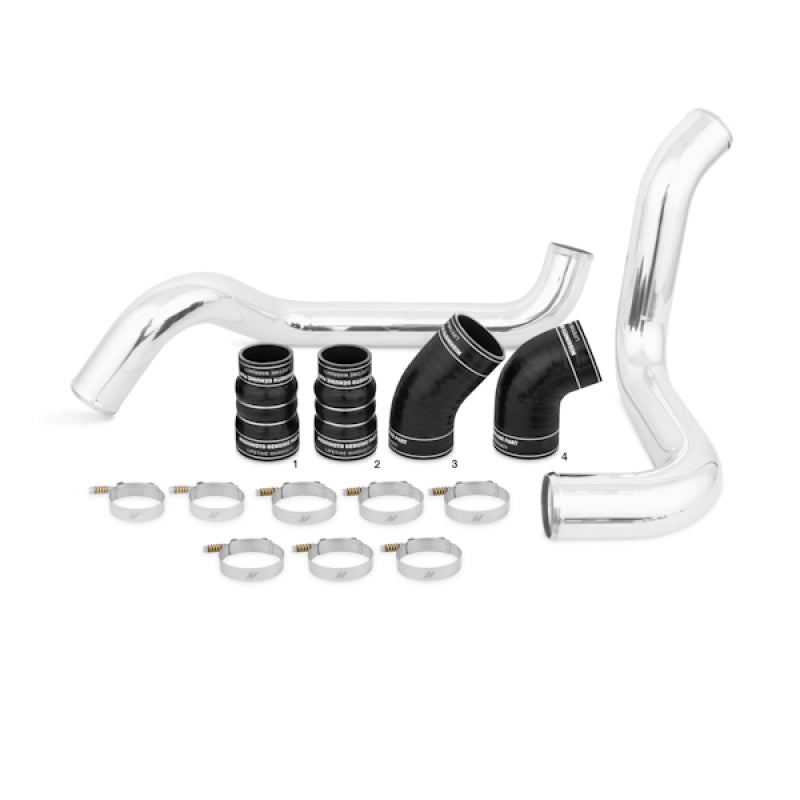

Mishimoto Intercooler Kit, pipes, hoses, clamps laid out

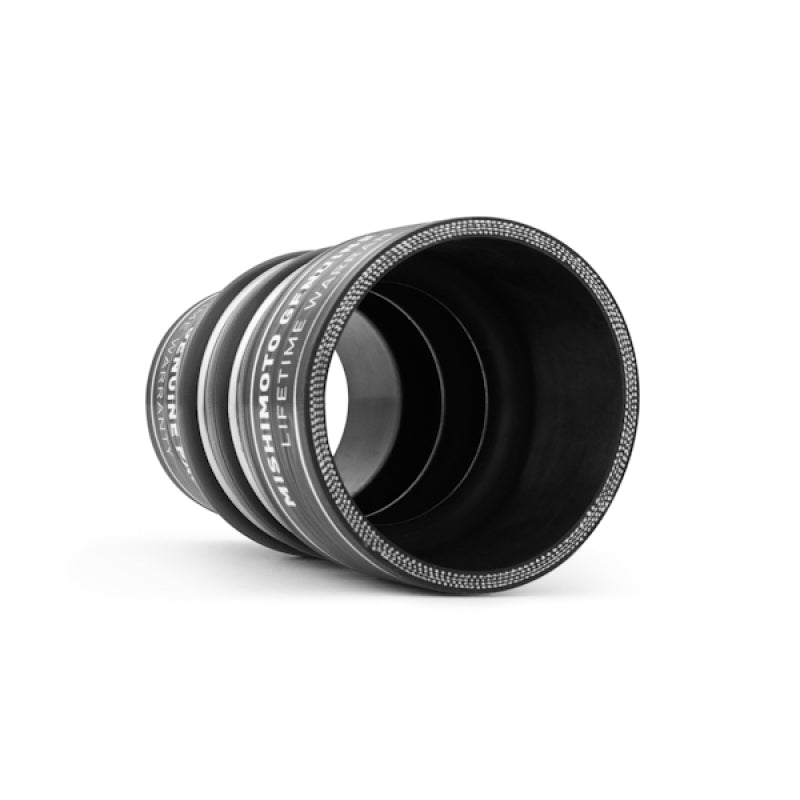

Mishimoto Intercooler Kit, hump hose, close up

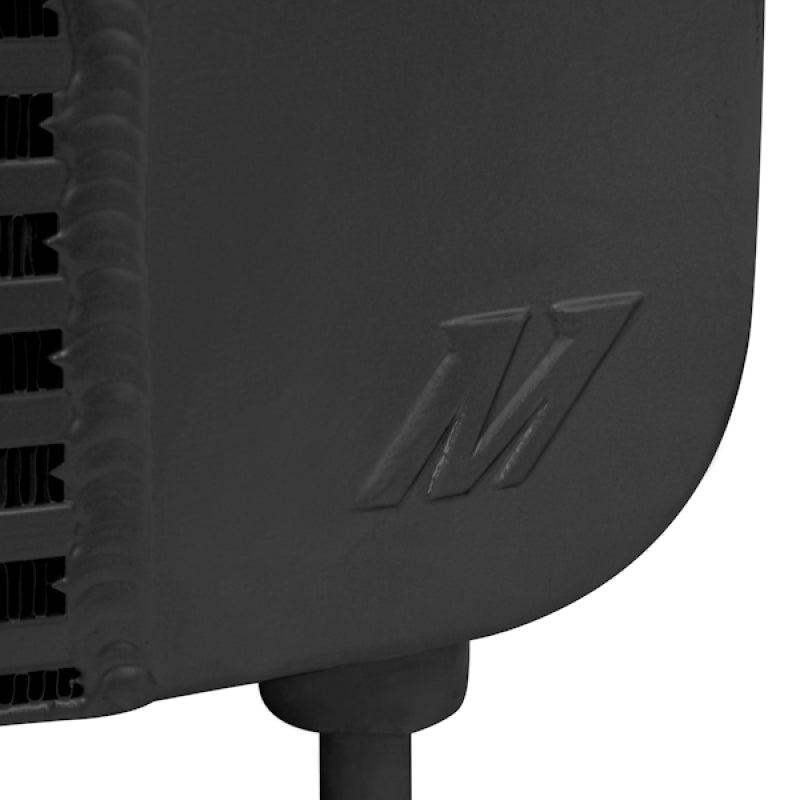

Mishimoto Intercooler Kit, end tank with logo, close up
Mishimoto Intercooler Kit, black core with hoses and pipes laid out
Mishimoto Intercooler Kit, core, hoses, pipes laid out
Mishimoto Intercooler Kit, badge plate, close up
Mishimoto Intercooler Kit, two black cores, front and back
Mishimoto Intercooler Kit, pipes, hoses, clamps laid out
Mishimoto Intercooler Kit, hump hose, close up
Mishimoto Intercooler Kit, end tank with logo, close up

Mishimoto Intercooler Kit - Chevrolet Silverado / GMC Sierra 2500 HD / 3500 6.6L Duramax 2002-2004 - Black Core / Polished Pipes

Mishimoto SKU: MISMMINT-DMAX-02KBK
Price
9% OFF
Only 1 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMINT-DMAX-02KBK
GTIN / UPC748666004849
Manufacturer Part NumberMMINT-DMAX-02KBK

Product Information

An intercooler and charge pipe kit for early 6.6L Duramax LB7 trucks that replaces the factory cooler with a bar-and-plate core of greater volume than stock. The black core measures 38.27 in by 18.86 in and is 2.05 in thick with 3 in inlet and outlet, framed by cast aluminum end tanks. Two polished, mandrel-bent aluminum pipes, DuraCore silicone boots and constant-tension T-bolt clamps complete the charge path for lower intake air temperatures.

Specifications

Type Intercooler kit (core and charge pipes)
Core Bar-and-plate, 38.27 in L x 18.86 in H x 2.05 in thick, cast aluminum end tanks
Overall Size 45.6 in L x 23.4 in H x 8.2 in W
Inlet / Outlet 3 in / 3 in
Pipes Mandrel-bent aluminum, polished
Color Black core / Polished pipes
What's in the Box
  • (1) intercooler
  • (2) aluminum intercooler pipes
  • (4) DuraCore silicone boots
  • (8) constant-tension T-bolt clamps
  • (2) aluminum Mishimoto badges
Fitment Notes 6.6L Duramax LB7 only; 2004 trucks must be early builds with the LB7 (8th VIN character 1); does not fit the LLY. In 2004, the Silverado/Sierra trucks were initially offered with the LB7. Later on in the year, the LLY was introduced. The 8th character of the VIN is the engine code. “1” = LB7. “2” = LLY. This kit will only fit trucks build in early 2004 (VIN 8th character = 1).
Install Hard
Overall Length 45.6 in
Overall Height 23.4 in
Overall Width 8.2 in
Core Length 38.27 in
Core Height 18.86 in
Core Thickness 2.05 in
Inlet 3 in
Outlet 3 in
Engine LLY
Quantity 1
Warranty Mishimoto Lifetime Limited Warranty
Part Number MMINT-DMAX-02KBK

This part fits:

Year Make Model Submodel
2002-2004 Chevrolet Silverado 2500 HD Base
2002-2004 Chevrolet Silverado 2500 HD LS
2002-2004 Chevrolet Silverado 2500 HD LT
2003-2004 Chevrolet Silverado 2500 HD WT
2002-2004 Chevrolet Silverado 3500 Base
2002-2004 Chevrolet Silverado 3500 LS
2002-2004 Chevrolet Silverado 3500 LT
2004 Chevrolet Silverado 3500 WT
2002-2004 GMC Sierra 2500 HD Base
2002 GMC Sierra 2500 HD SL
2002-2004 GMC Sierra 2500 HD SLE
2002-2004 GMC Sierra 2500 HD SLT
2003-2004 GMC Sierra 2500 HD WT
2002-2004 GMC Sierra 3500 Base
2002 GMC Sierra 3500 SL
2002-2004 GMC Sierra 3500 SLE
2002-2004 GMC Sierra 3500 SLT
2004 GMC Sierra 3500 WT

Which trucks does it fit?

  • Chevrolet Silverado and GMC Sierra 2500 HD and 3500 trucks with the 6.6L Duramax LB7, through early 2004 builds.

Does it fit a 2004.5 or 2005 LLY truck?

  • No. It fits only LB7 trucks; on 2004 models the 8th VIN character must be 1.

Are the pipes included?

  • Yes. Two polished mandrel-bent aluminum intercooler pipes, four DuraCore silicone boots and eight T-bolt clamps are included.

How hard is the install?

  • It is rated hard.

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
