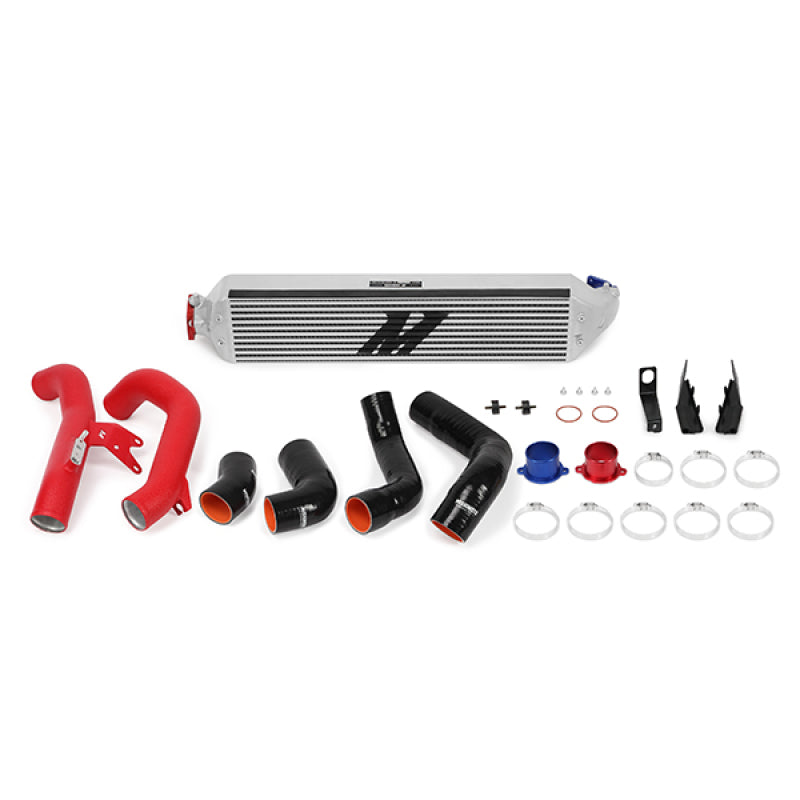

Mishimoto Performance Intercooler Kit, core, red hoses, hardware laid out

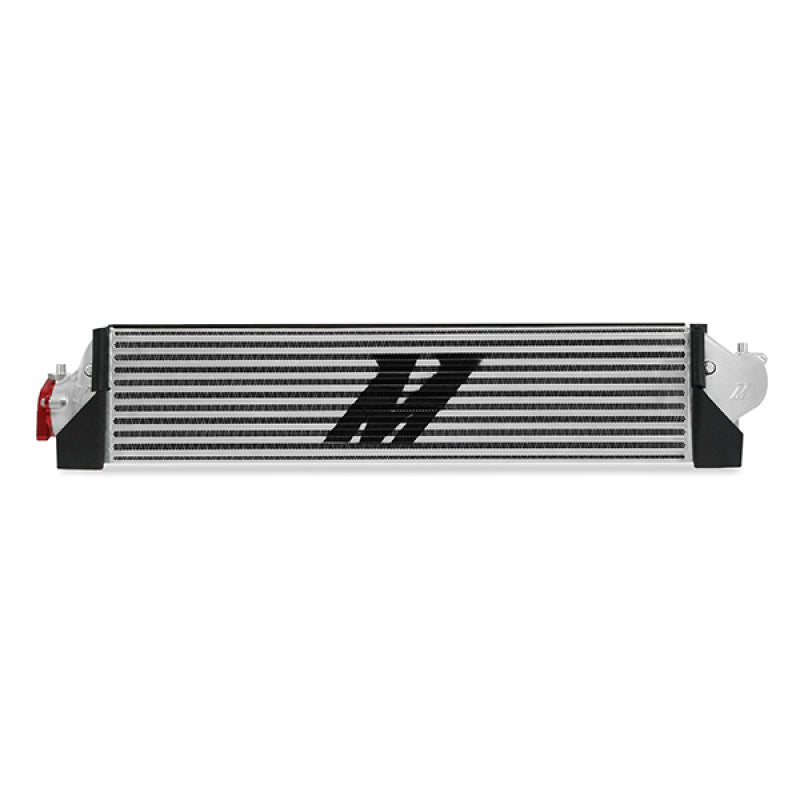

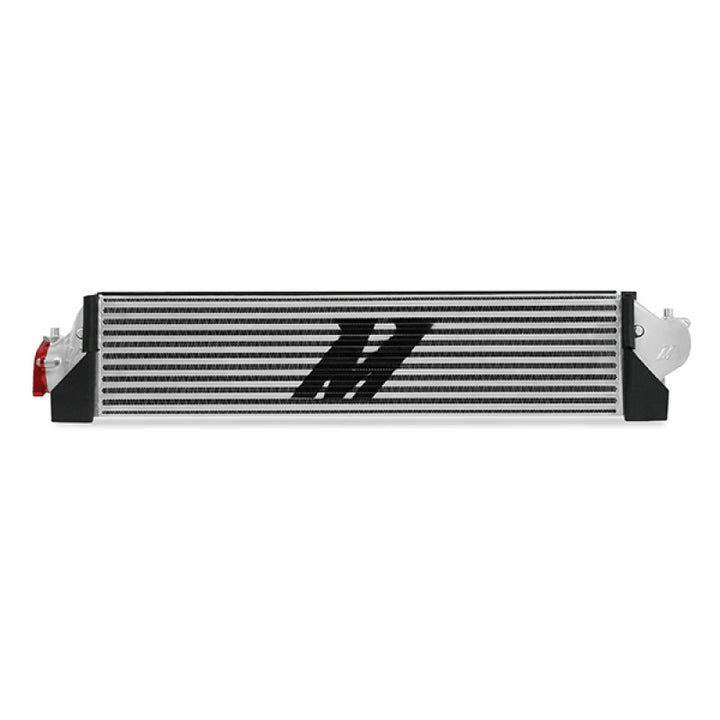

Mishimoto Performance Intercooler Kit, core with logo, front view

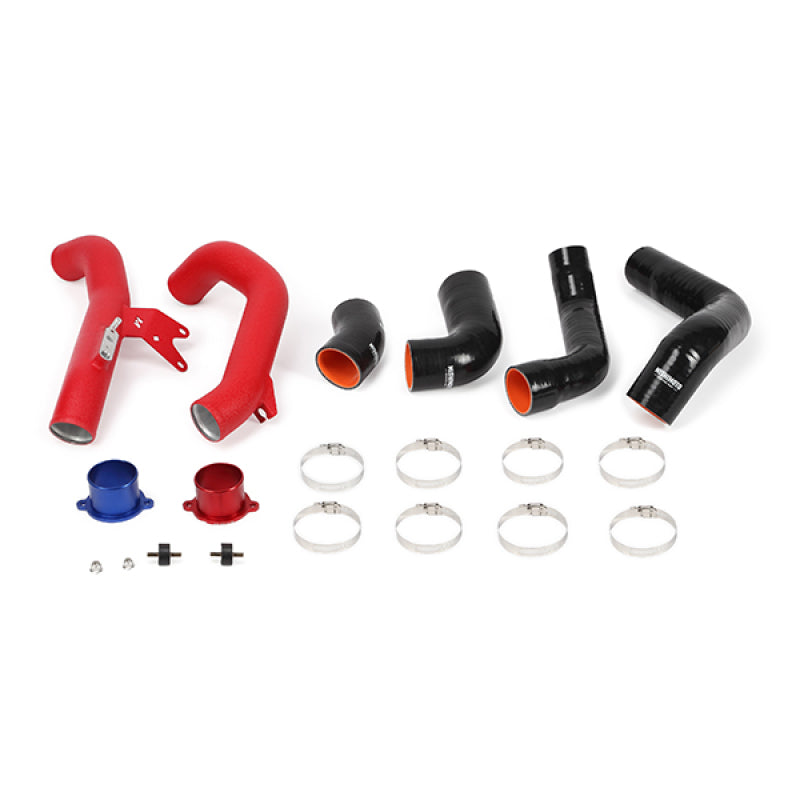

Mishimoto Performance Intercooler Kit, red hoses, black hoses, clamps laid out

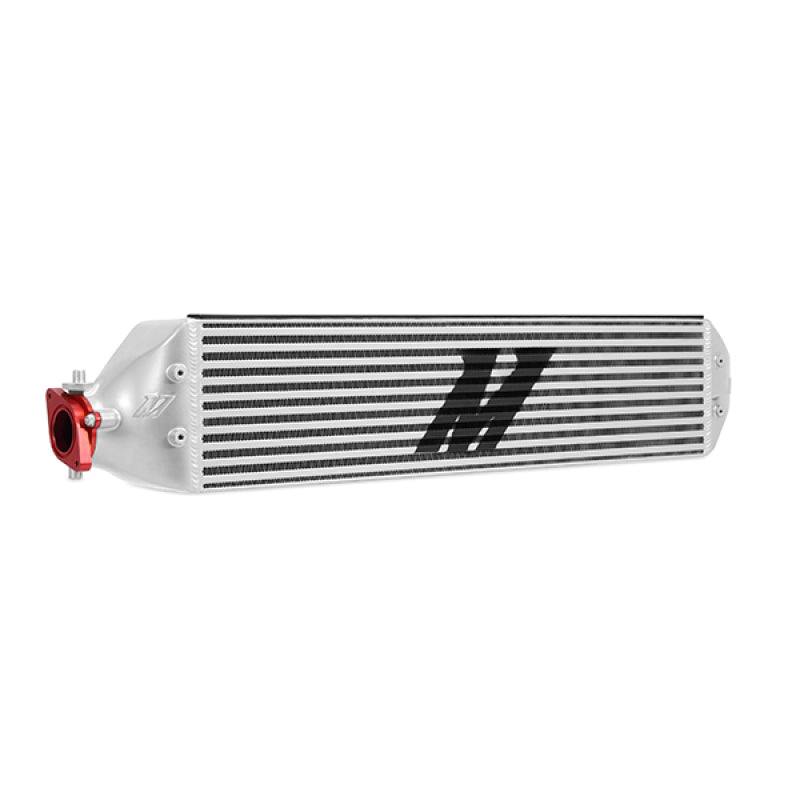

Mishimoto Performance Intercooler Kit, core with red coupler, angled view

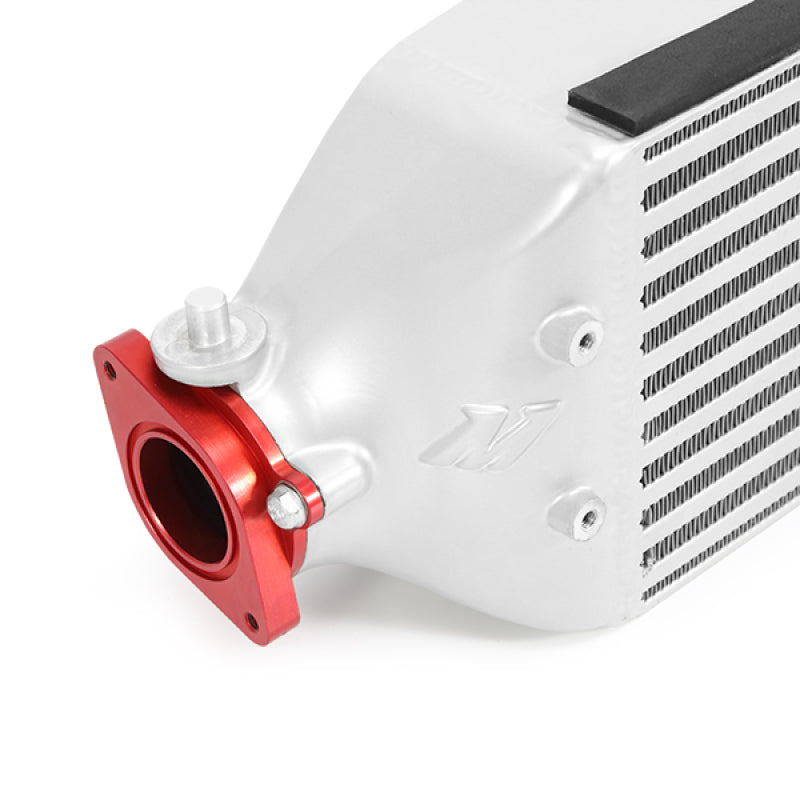

Mishimoto Performance Intercooler Kit, red inlet tank, close up

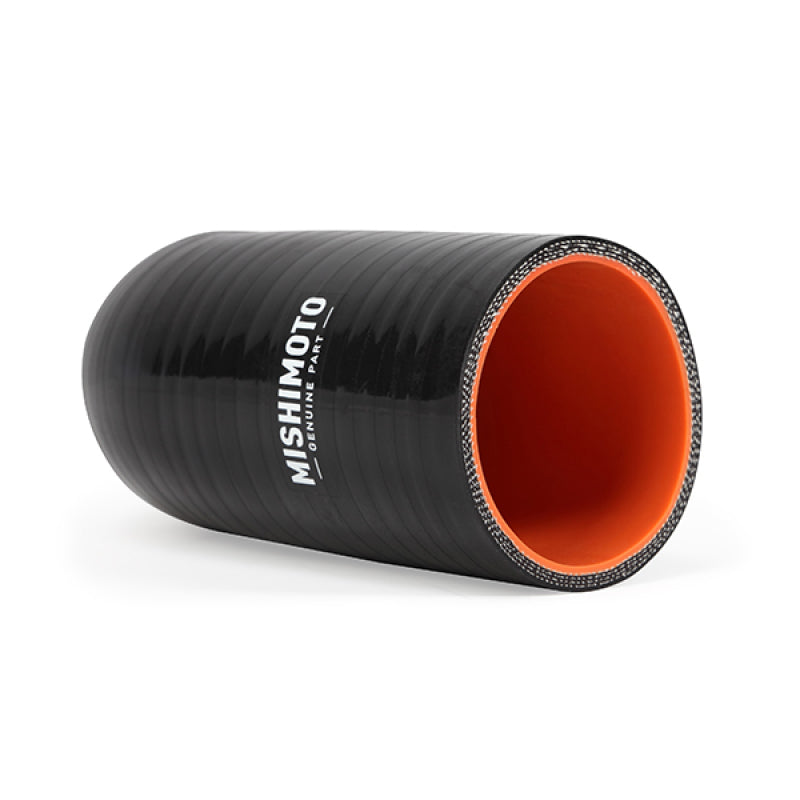

Mishimoto Performance Intercooler Kit, black hose, orange lining

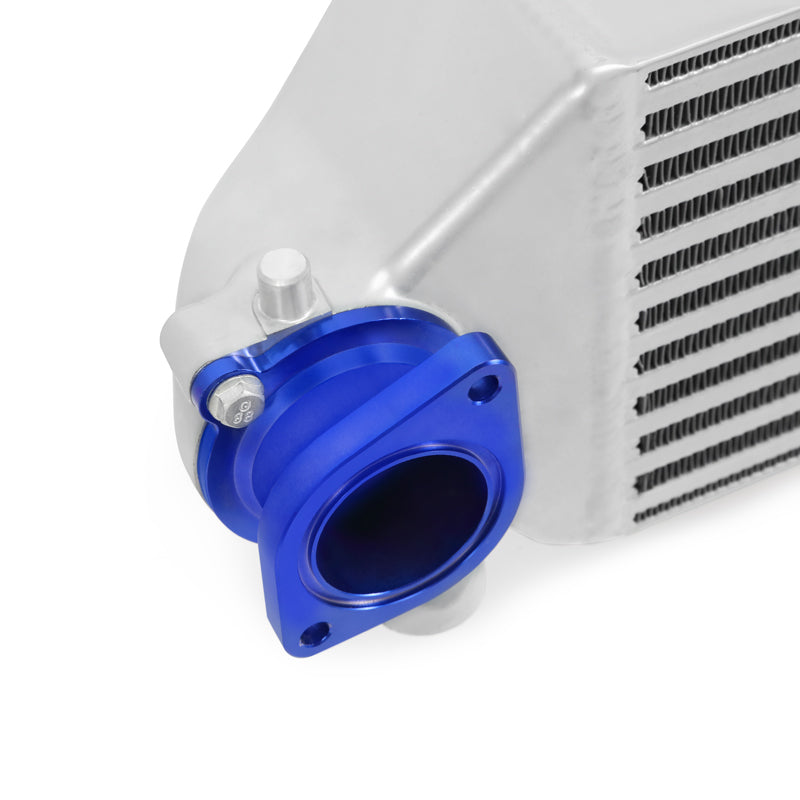

Mishimoto Performance Intercooler Kit, blue inlet tank, close up

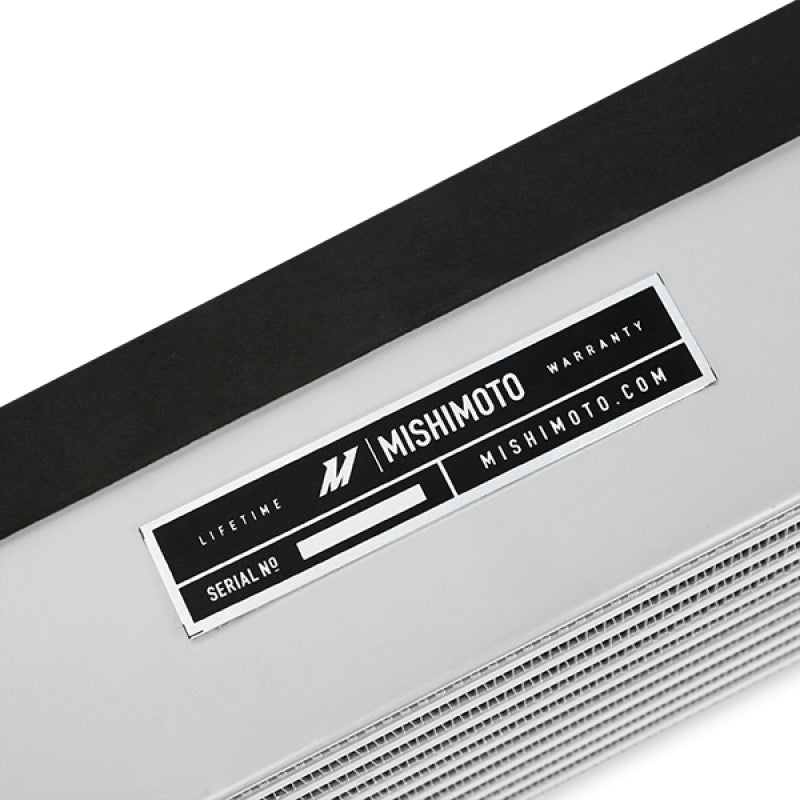

Mishimoto Performance Intercooler Kit, badge plate, close up
Mishimoto Performance Intercooler Kit, core, red hoses, hardware laid out
Mishimoto Performance Intercooler Kit, core with logo, front view
Mishimoto Performance Intercooler Kit, red hoses, black hoses, clamps laid out
Mishimoto Performance Intercooler Kit, core with red coupler, angled view
Mishimoto Performance Intercooler Kit, red inlet tank, close up
Mishimoto Performance Intercooler Kit, black hose, orange lining
Mishimoto Performance Intercooler Kit, blue inlet tank, close up
Mishimoto Performance Intercooler Kit, badge plate, close up

Mishimoto Performance Intercooler Kit - Honda Civic 1.5L Turbo / Civic Si 2016-2021 - Silver Core / Red Pipes

Mishimoto SKU: MISMMINT-CIV-16KSLWRD
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMINT-CIV-16KSLWRD
GTIN / UPC811580034022
Manufacturer Part NumberMMINT-CIV-16KSLWRD

Product Information

This kit pairs a silver all-aluminum bar-and-plate intercooler with wrinkle red mandrel-bent aluminum charge pipes for the 1.5L turbo Civic and Civic Si. The intercooler has 102% more volume and 97% more fin surface area than the factory tube-and-fin unit, dropping outlet air temperature by 20°F on the stock tune and up to 42°F with a performance tune. The hot side and cold side pipes grow from 42 mm to 55 mm with gentler bends and 5-layer fiber-embedded silicone couplers, and the kit added up to 4 whp and 8 lb-ft stock, or 11 whp and 9 lb-ft with a tune.

Specifications

Type Intercooler and pipe kit
Core All-aluminum bar-and-plate; 102% more volume, 97% more fin surface area than stock
Pipes Mandrel-bent aluminum, 55 mm hot side and cold side (stock 42 mm); 5-layer fiber-embedded silicone couplers
Color Silver core, wrinkle red pipes
Gains 20°F lower outlet air temperature stock, up to 42°F tuned; up to +4 whp / +8 lb-ft stock, +11 whp / +9 lb-ft tuned
What's in the Box
  • (1) Mishimoto intercooler
  • (2) mandrel-bent intercooler pipes
  • (4) silicone couplers
  • (1) stock piping adapter kit
  • (1) Mishimoto intercooler piping adapter kit
  • (1) shrouding kit
  • (1) CARB EO sticker
  • Mounting hardware
Fitment Notes 1.5L turbo (L15B7) models only, including the Civic Si. Does not fit Civics with the 2.0L non-turbo engine or the Civic Type R. 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Install Medium difficulty; clamp torque 27 in-lbs (3 Nm), do not exceed 35 in-lbs (4 Nm)
Tune Required No; gains increase with a performance tune
Emissions Covered by CARB Executive Order D-759-12 for the 2016-2021 Honda Civic and 2017-2020 Civic Si 1.5L turbo
Engine L15B7
Chassis Codes FC1 FC3 FK4 FK7
Quantity 1
Warranty Mishimoto Lifetime Limited Warranty
Part Number MMINT-CIV-16KSLWRD

This part fits:

Year Make Model Submodel
2016-2021 Honda Civic EX
2016-2021 Honda Civic EX-L
2016-2018 Honda Civic EX-T
2016-2021 Honda Civic LX
2016-2018 Honda Civic LX-P
2017-2020 Honda Civic Si
2017-2021 Honda Civic Sport
2017-2021 Honda Civic Sport Touring
2016-2021 Honda Civic Touring

Documents: Installation Instructions (PDF) | Engineering Report (PDF)

Does it fit a Civic with the 2.0L engine?

  • No. It fits the 1.5L turbo Civic and the Civic Si only, not the 2.0L non-turbo models or the Type R.

Do I need a tune?

  • No. It gained up to 4 whp and 8 lb-ft on the stock tune, and up to 11 whp and 9 lb-ft with a tune.

Is it street legal in California?

  • Yes. It is covered by CARB Executive Order D-759-12 for the 2016-2021 Civic and 2017-2020 Civic Si 1.5L turbo, and a CARB EO sticker is included.

What torque should the clamps get?

  • 27 in-lbs (3 Nm), and no more than 35 in-lbs (4 Nm).

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
