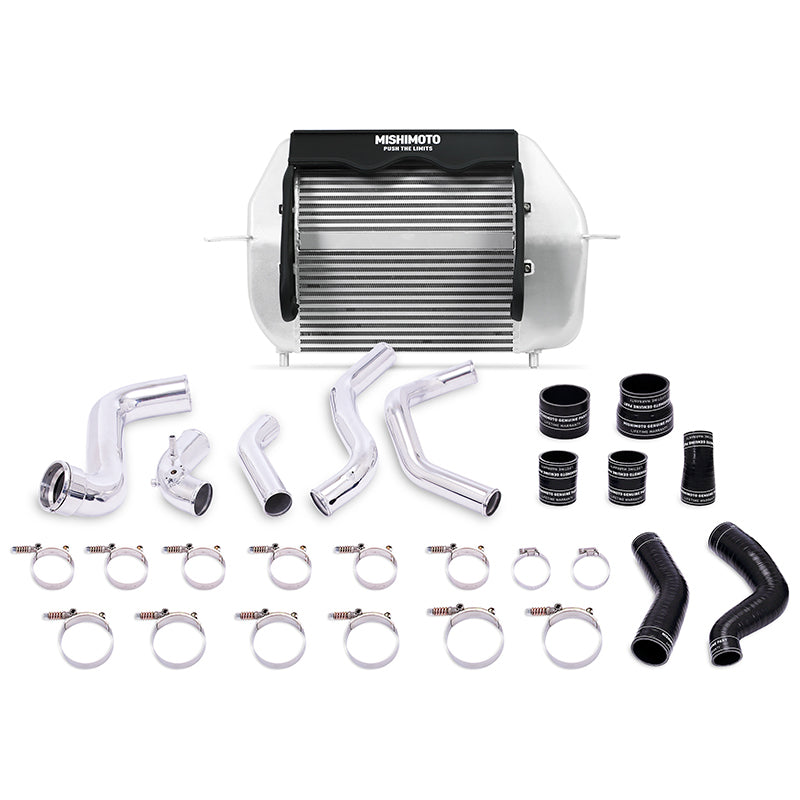

Mishimoto Performance Intercooler Kit, core with shroud and pipes laid out

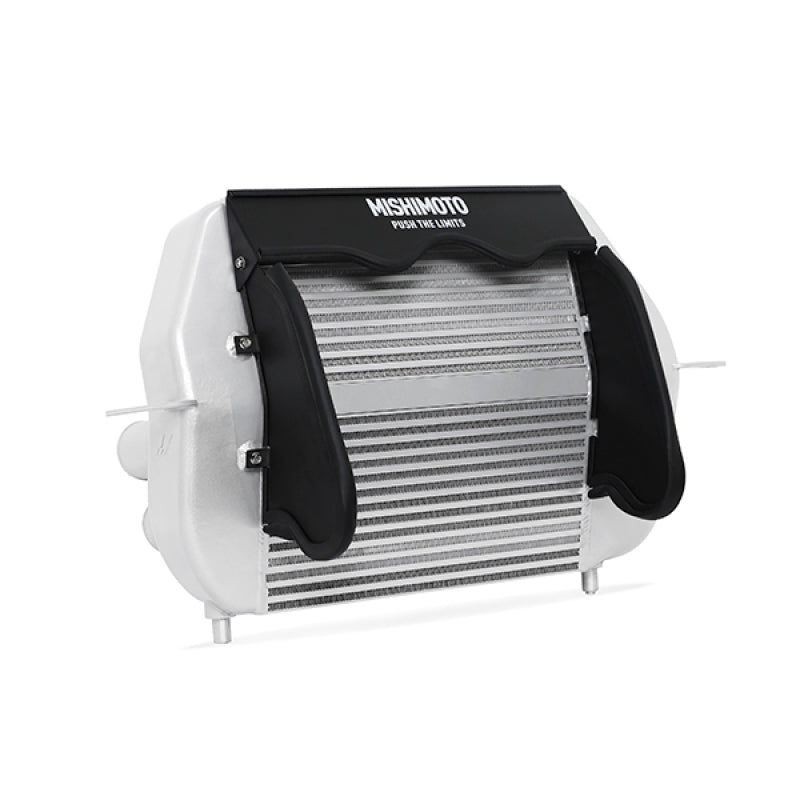

Mishimoto Performance Intercooler Kit, core with shroud, angled view

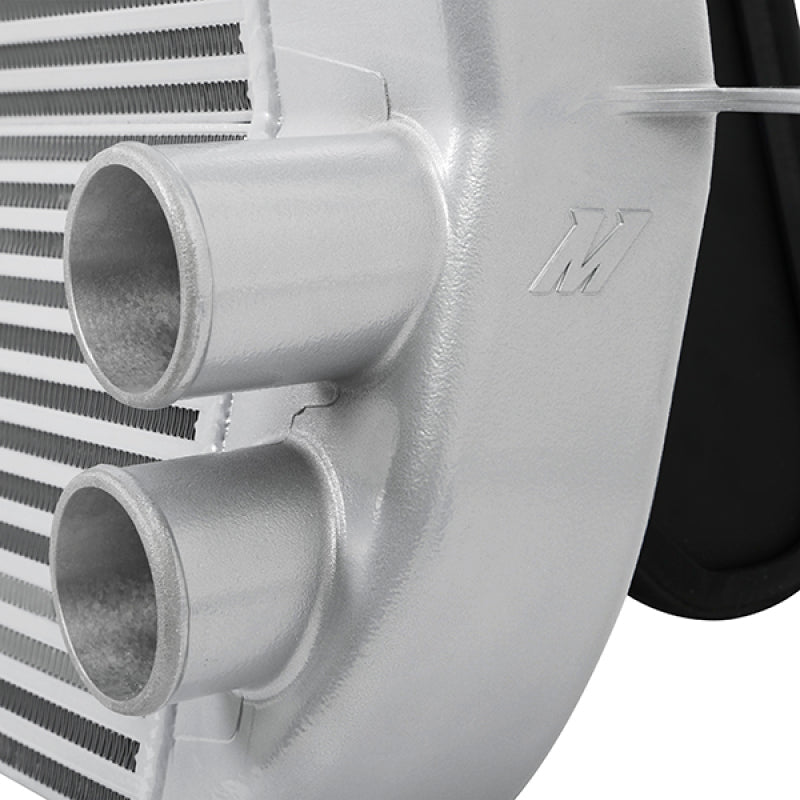

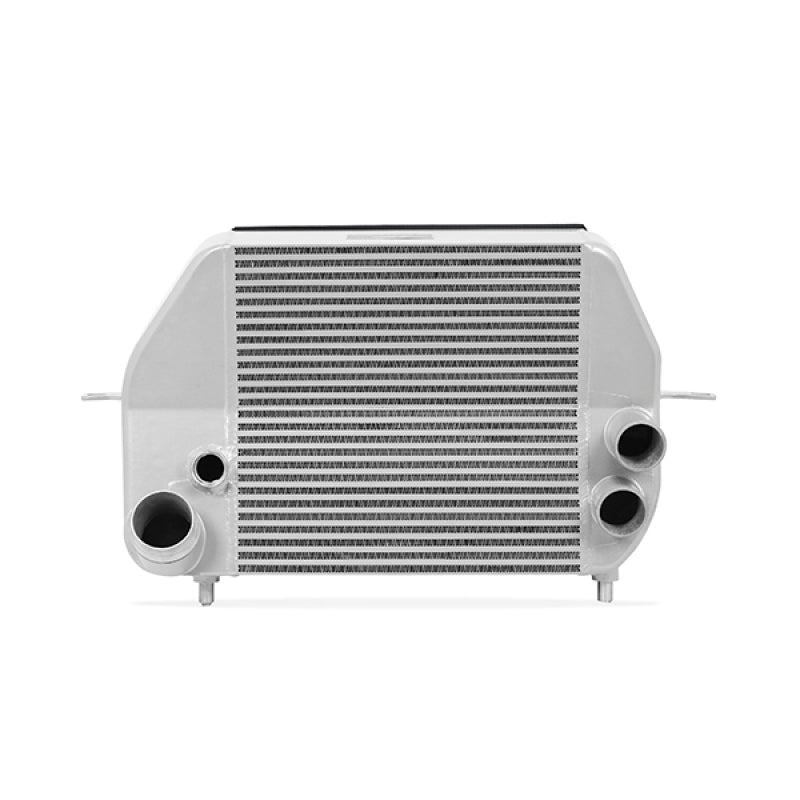

Mishimoto Performance Intercooler Kit, core, front view

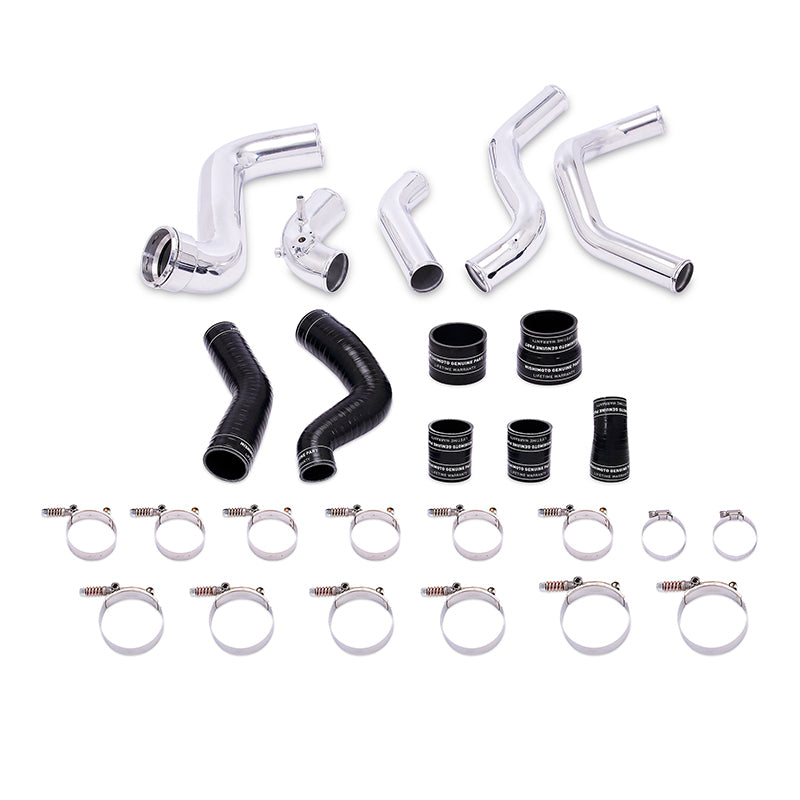

Mishimoto Performance Intercooler Kit, pipes, couplers and clamps laid out
Mishimoto Performance Intercooler Kit, core with shroud and pipes laid out
Mishimoto Performance Intercooler Kit, core with shroud, angled view
Mishimoto Performance Intercooler Kit, core, front view
Mishimoto Performance Intercooler Kit, pipes, couplers and clamps laid out

Mishimoto Performance Intercooler Kit - Ford F-150 3.5L EcoBoost 2011-2014 - Silver Core / Polished Pipes

Mishimoto SKU: MISMMINT-F150-11KPSL
Price
9% OFF
Special Order – Contact Us for Lead Time
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMINT-F150-11KPSL
GTIN / UPC748354038118
Manufacturer Part NumberMMINT-F150-11KPSL

Product Information

This kit pairs the Mishimoto angled performance intercooler in silver with polished aluminum hot side and cold side intercooler pipes. The angled core fills the open space behind the bumper for an 88% larger core, 66% more internal volume and 40% more external fin surface area than the factory intercooler, lowering intake air temperature by 50°F (28°C). The 2.5 in hot side and 3 to 3.5 in cold side pipes replace the factory plastic pipes with 41% and 34% more internal volume and about 10% more flow, and the pipes alone gained up to 15 hp and 21 lb-ft on the dyno.

Specifications

Type Intercooler and pipe kit
Core Angled all-aluminum; 88% larger core, 66% more internal volume, 40% more external fin surface area; 27.6 in x 19 in x 6.75 in; air diversion plates, 1/4 in NPT drain plug
Inlet / Outlet 2.5 in inlet, 3 in outlet
Pipes Aluminum with CNC quick-disconnect fittings; 2.5 in hot side, 3 to 3.5 in cold side; 41% / 34% more internal volume, 10% more flow than stock
Color Silver core, polished pipes
Gains 50°F lower intake air temperature; pipes up to +15 hp / +21 lb-ft
What's in the Box
  • Performance intercooler
  • (1) aluminum pipe with CNC quick-disconnect flange
  • (1) aluminum pipe with CNC IAT sensor housing
  • (3) aluminum pipes
  • (7) DuraCore silicone boots
  • (2) high-torque worm gear clamps
  • (12) constant-tension T-bolt clamps
Fitment Notes 3.5L EcoBoost engine only. A CNC bypass plug is included for 2011-2012 trucks. 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Install Medium difficulty; clamp torque 27 in-lbs (3 Nm), do not exceed 35 in-lbs (4 Nm)
Emissions Covered by CARB Executive Order D-759-6 for the 2011-2014 Ford F-150 3.5L EcoBoost
Overall Length 27.6 in
Overall Height 19 in
Overall Width 6.75 in
Inlet 2.5 in
Outlet 3 in
Engine 3.5L V6 EcoBoost
Chassis Codes P415
Quantity 1
Warranty Mishimoto Lifetime Limited Warranty
Part Number MMINT-F150-11KPSL

This part fits:

Year Make Model Submodel
2011-2014 Ford F-150 FX2
2011-2014 Ford F-150 FX4
2011-2014 Ford F-150 King Ranch
2011-2014 Ford F-150 Lariat
2013-2014 Ford F-150 Limited
2011-2014 Ford F-150 Platinum
2011-2014 Ford F-150 XL
2011-2014 Ford F-150 XLT

Documents: Installation Instructions (PDF) | Engineering Report (PDF)

Does it fit the Expedition or Navigator?

  • No. It is listed for the 2011-2014 Ford F-150 with the 3.5L EcoBoost only.

Is it street legal in California?

  • Yes. It is covered by CARB Executive Order D-759-6 for the 2011-2014 F-150 3.5L EcoBoost.

What does the kit replace?

  • The factory intercooler and the plastic hot side and cold side intercooler pipes.

What torque should the clamps get?

  • 27 in-lbs (3 Nm), and no more than 35 in-lbs (4 Nm).

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
