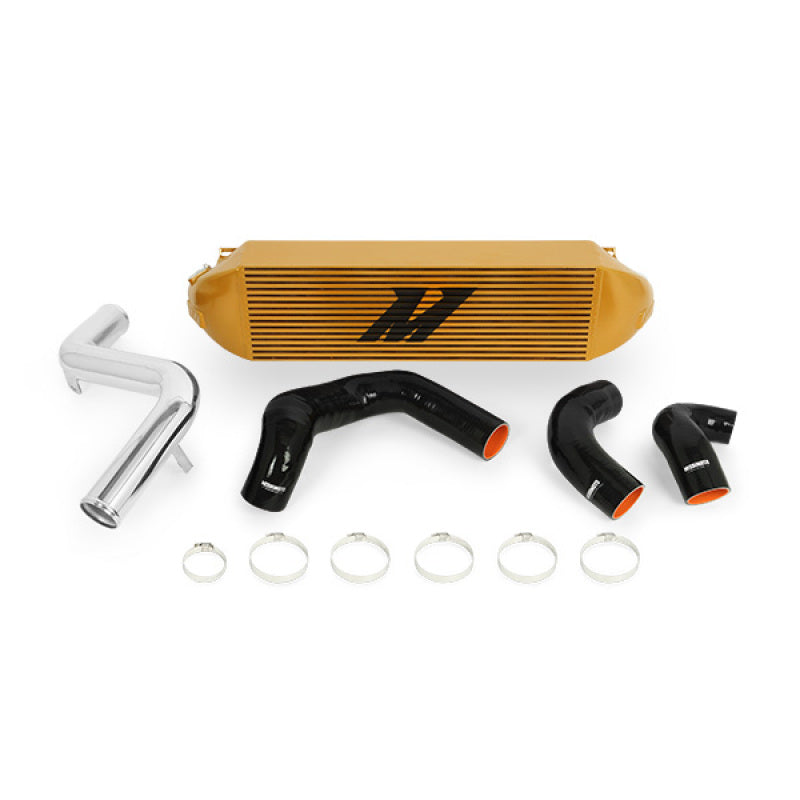

Mishimoto Performance Intercooler Kit, gold core with black hoses, laid out
Mishimoto Performance Intercooler Kit, core with pipes laid out

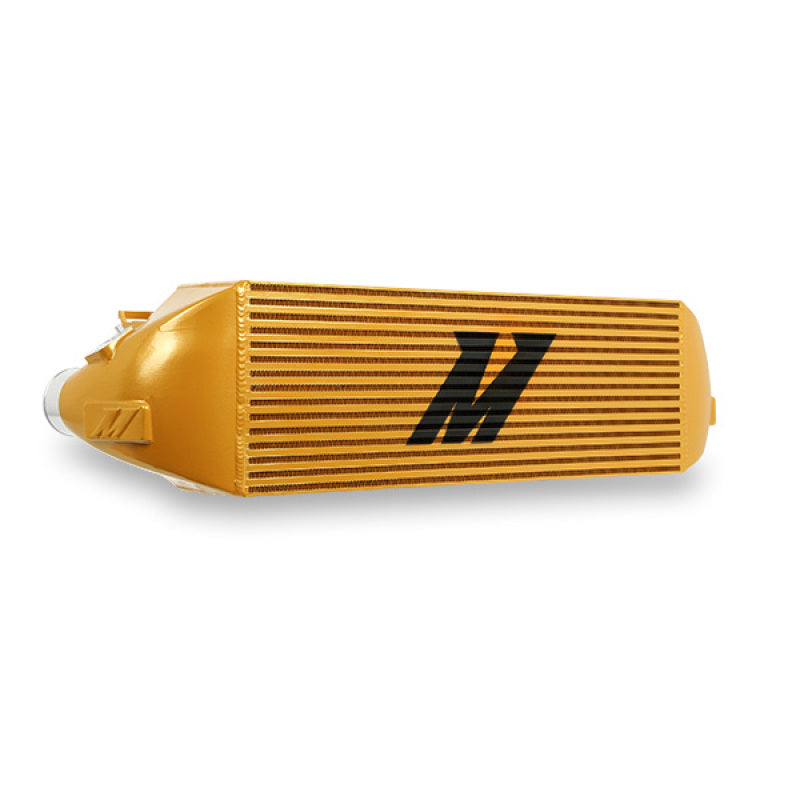

Mishimoto Performance Intercooler Kit, gold core with logo, angled view

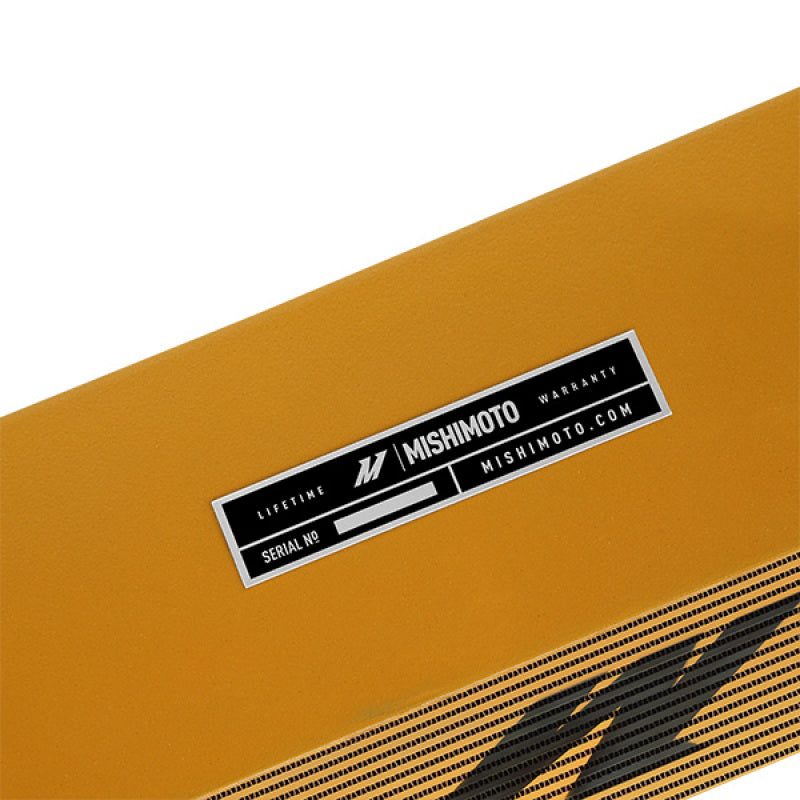

Mishimoto Performance Intercooler Kit, badge plate, close up

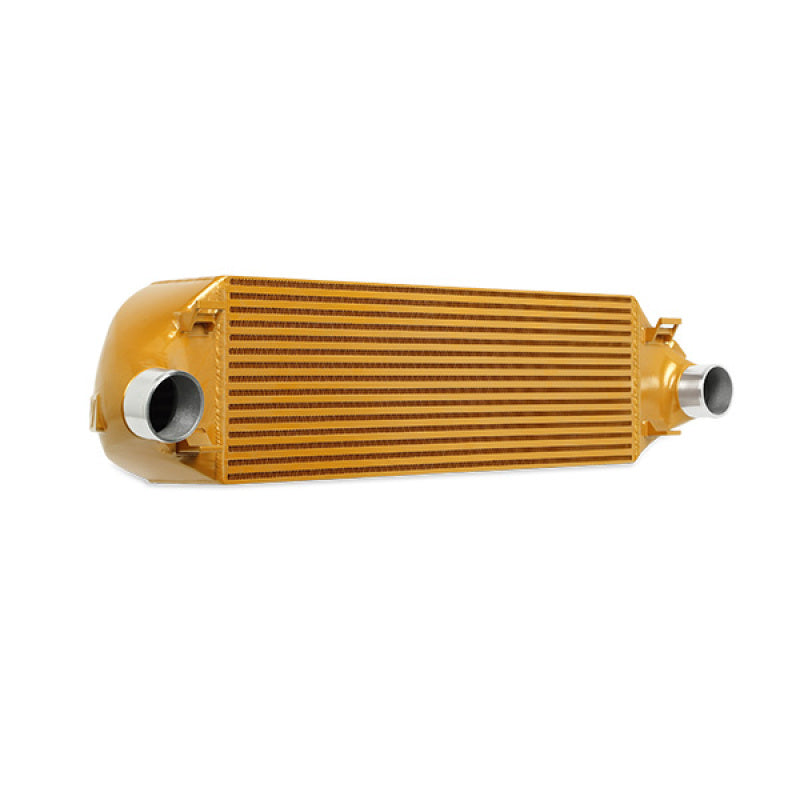

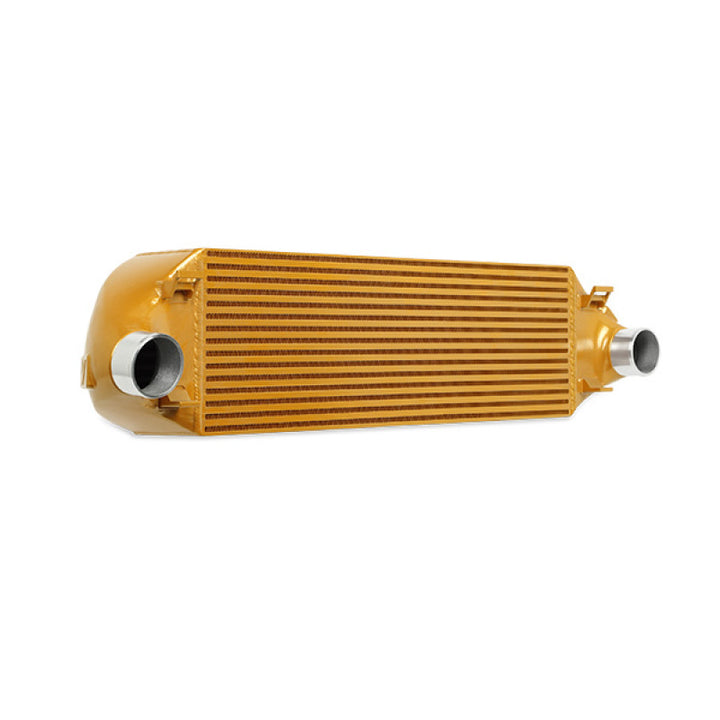

Mishimoto Performance Intercooler Kit, gold core, angled view

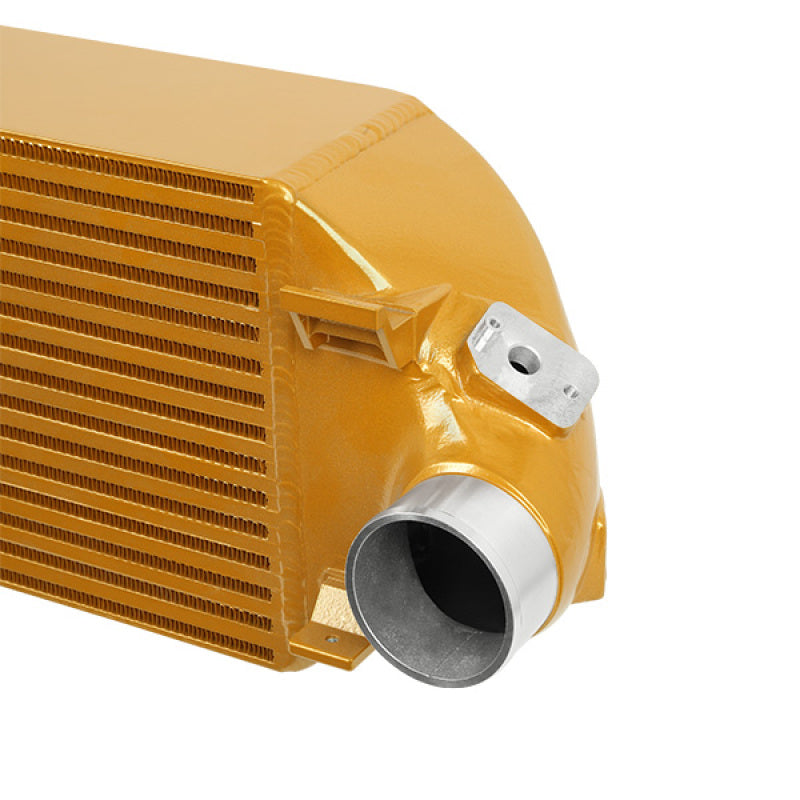

Mishimoto Performance Intercooler Kit, gold end tank, close up

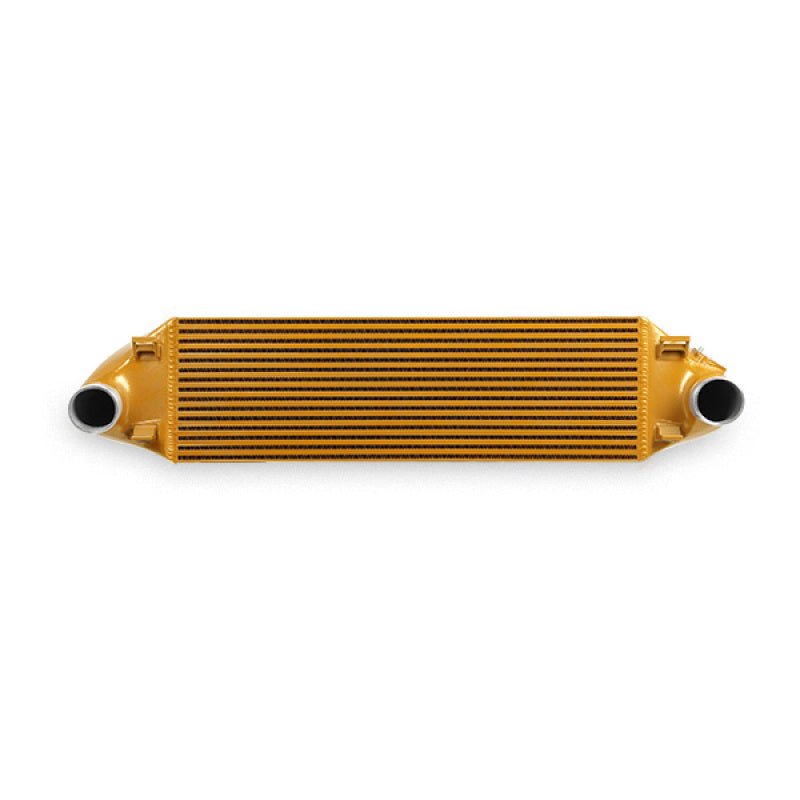

Mishimoto Performance Intercooler Kit, gold core, front view

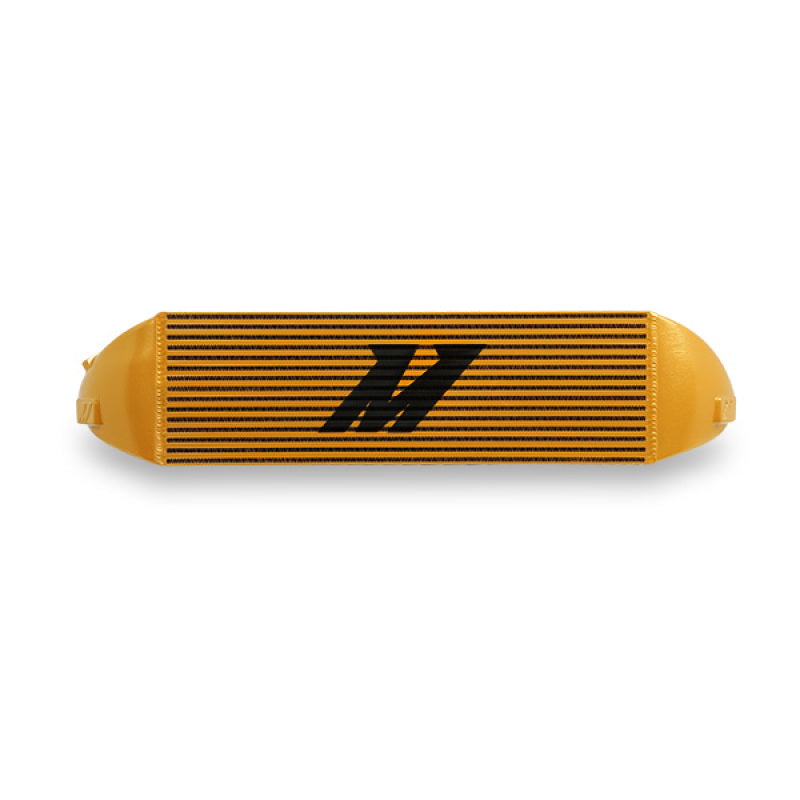

Mishimoto Performance Intercooler Kit, gold core with logo, front view
Mishimoto Performance Intercooler Kit, gold core with black hoses, laid out
Mishimoto Performance Intercooler Kit, core with pipes laid out
Mishimoto Performance Intercooler Kit, gold core with logo, angled view
Mishimoto Performance Intercooler Kit, badge plate, close up
Mishimoto Performance Intercooler Kit, gold core, angled view
Mishimoto Performance Intercooler Kit, gold end tank, close up
Mishimoto Performance Intercooler Kit, gold core, front view
Mishimoto Performance Intercooler Kit, gold core with logo, front view

Mishimoto Performance Intercooler Kit - Ford Focus ST 2013-2018 - Gold Core / Polished Pipes

Mishimoto SKU: MISMMINT-FOST-13KPGD
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMINT-FOST-13KPGD
GTIN / UPC811580030505
Manufacturer Part NumberMMINT-FOST-13KPGD

Product Information

This kit pairs a gold all-aluminum bar-and-plate intercooler with a polished mandrel-bent aluminum hot side pipe for the Focus ST 2.0L EcoBoost. The 4.3 in thick core is 128% larger than stock with 32% more fin surface area, and the hot side pipe deletes the factory turbo muffler for 26% better hot side flow, with 21% more total flow to and from the intercooler. Combined with other Mishimoto Focus ST parts it added 8 hp and 10 lb-ft, it is rated to 550 hp, and it installs behind the stock bumper and fog lights with no trimming.

Specifications

Type Intercooler and pipe kit
Core All-aluminum bar-and-plate, 4.3 in thick; 128% larger core, 32% more fin surface area; overall 35.7 in x 8.3 in x 7.25 in
Inlet / Outlet 2.5 in inlet, 2.5 in outlet
Pipes Mandrel-bent aluminum hot side pipe (turbo muffler removed): 14% more volume, 26% more flow; elliptical cold side: 10% more volume, 40% more flow; 21% more total flow
Color Gold core, polished pipe
Gains +8 hp / +10 lb-ft combined with other Mishimoto Focus ST parts; rated to 550 hp
What's in the Box
  • (1) Mishimoto intercooler
  • (1) aluminum intercooler pipe
  • (2) silicone couplers
  • (1) silicone pipe
  • (6) high-torque worm gear clamps
Fitment Notes 2.0L EcoBoost Focus ST only. Stock front bumper and fog lights are retained; no trimming. 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Install Medium difficulty; clamp torque 22 in-lbs (2.5 Nm), do not exceed 27 in-lbs (3 Nm)
Emissions Covered by CARB Executive Order D-759-6 for the 2013-2018 Ford Focus ST 2.0L EcoBoost
Overall Length 35.7 in
Overall Height 8.3 in
Overall Width 7.25 in
Inlet 2.5 in
Outlet 2.5 in
Chassis Codes C346
Quantity 1
Warranty Mishimoto Lifetime Limited Warranty
Part Number MMINT-FOST-13KPGD

This part fits:

Year Make Model Submodel
2013-2018 Ford Focus ST

Documents: Installation Instructions (PDF) | Engineering Report (PDF)

Does it fit the Focus RS?

  • No. It is listed for the 2013-2018 Focus ST 2.0L EcoBoost only.

Do I have to trim the bumper?

  • No. The stock front bumper and fog lights are retained.

Is it street legal in California?

  • Yes. It is covered by CARB Executive Order D-759-6 for the 2013-2018 Focus ST.

What torque should the clamps get?

  • 22 in-lbs (2.5 Nm), and no more than 27 in-lbs (3 Nm).

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
