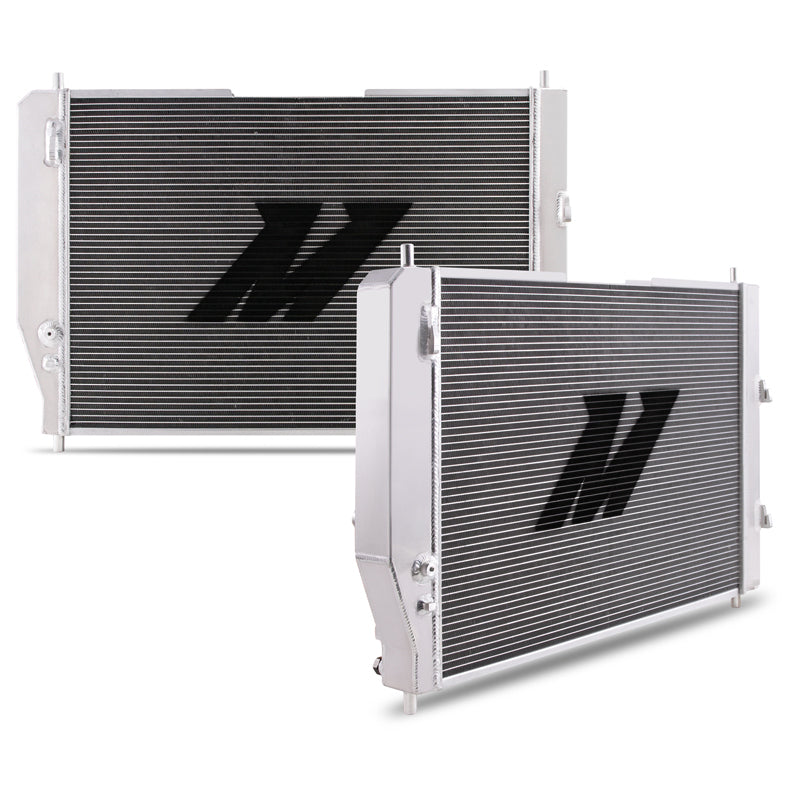

Performance aluminum radiator for the 2005-2013 Chevrolet Corvette C6, replacing the undersized factory plastic radiator that limits cooling behind the LS engine. The redesigned two-row core is two inches thick, increasing fin surface area 56 percent and core volume 45 percent. All-aluminum TIG-welded end tanks integrate engine oil and automatic transmission coolers, so it is a direct fit regardless of the factory cooling package.
| Type | Performance aluminum radiator |
| Core | Two-row, 2-inch-thick (45% more core volume, 56% more fin area) |
| Material | Full aluminum, TIG-welded end tanks |
| Oil Cooler | Integrated engine oil cooler in end tank |
| Transmission Cooler | Integrated automatic transmission cooler in end tank |
| Fit | Direct fit, all cooling packages |
| Warranty | Mishimoto Lifetime Warranty |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 | Chevrolet | Corvette | 427 |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2005-2013 | Chevrolet | Corvette | Base |
| 2010-2013 | Chevrolet | Corvette | Grand Sport |
| 2006-2013 | Chevrolet | Corvette | Z06 |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
