Mishimoto Performance Intercooler Kit - Ford Mustang EcoBoost 2024-2026 - Silver Core / Polished Pipes

Mishimoto SKU: MISMMINT-MUS4-24KSLP
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMINT-MUS4-24KSLP
GTIN / UPC840197725641
Manufacturer Part NumberMMINT-MUS4-24KSLP

Product Information

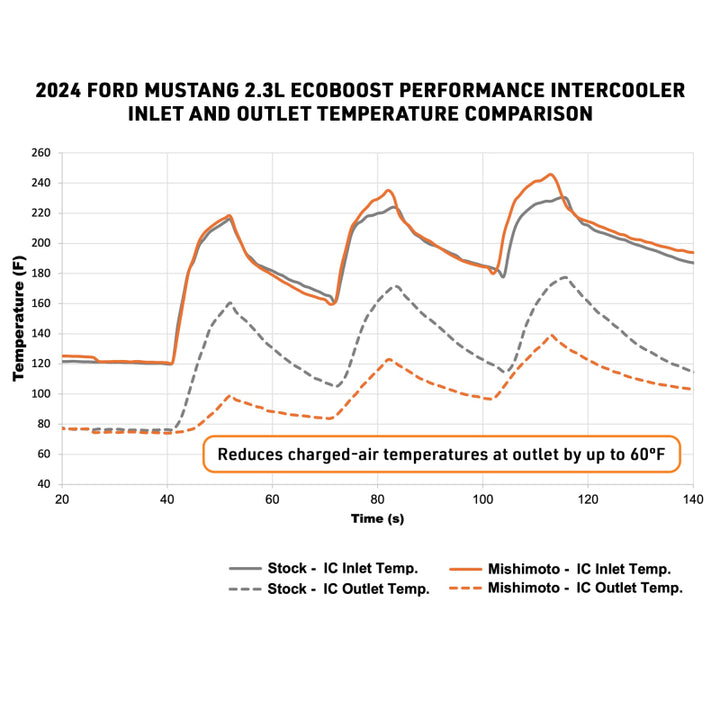

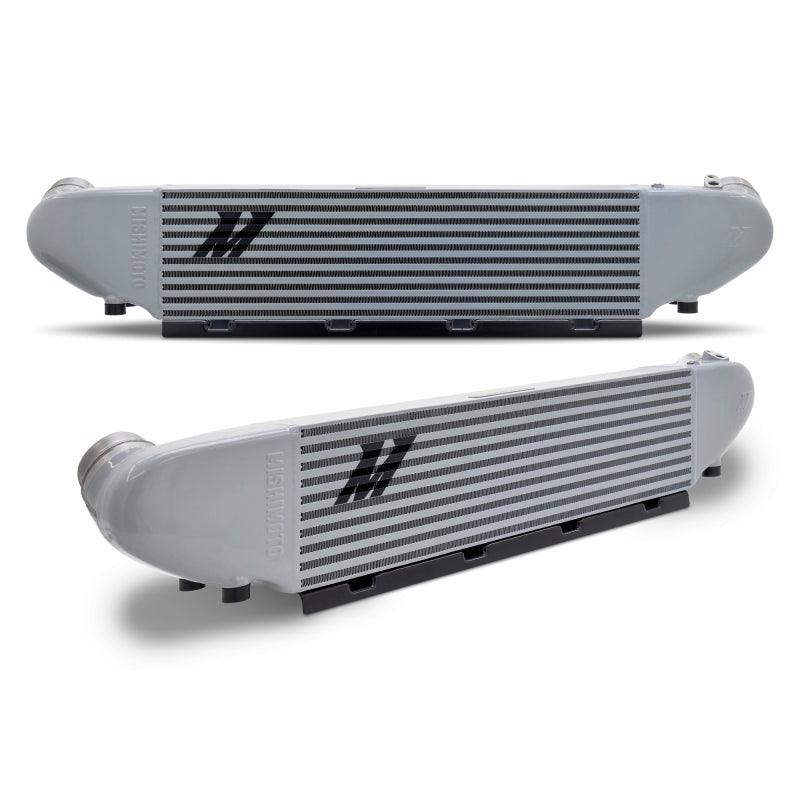

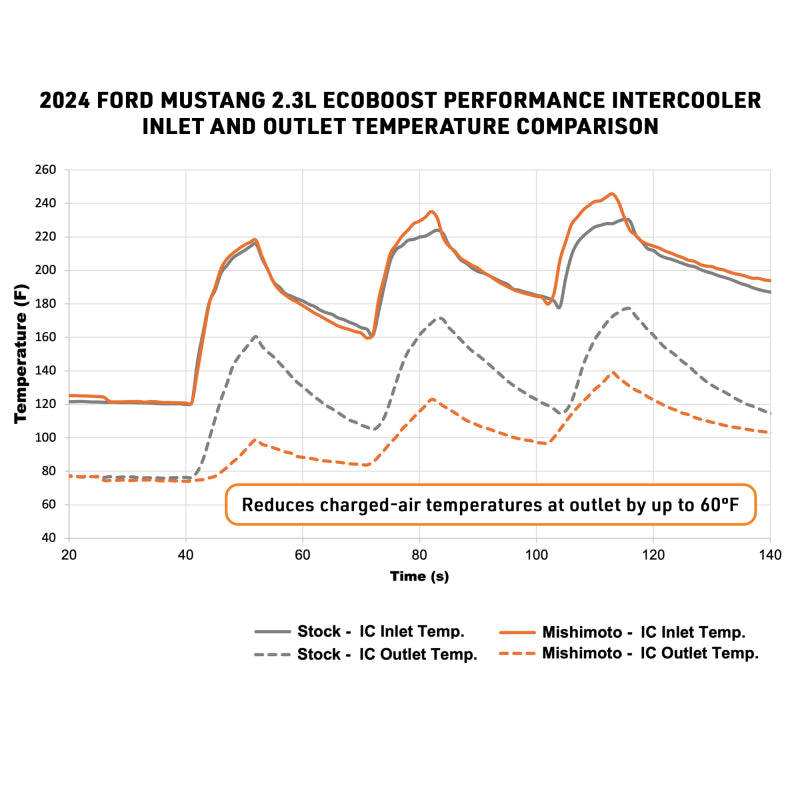

A stock-location intercooler and charge pipe kit for the 2024 and newer Mustang 2.3L EcoBoost, with a silver intercooler and polished aluminum pipes. The 3.54 in thick bar-and-plate core has 60% more volume than stock and is rated to 50 psi and 526 hp. The 2.75 in aluminum pipes use cast end sections, a turbo outlet elbow with an integrated blow-off valve seat and DuraCore couplers with CNC quick-disconnects. Testing on the stock tune showed outlet temperatures up to 60°F lower and gains of up to 12 hp and 11 lb-ft.

Specifications

Type Intercooler and pipe kit

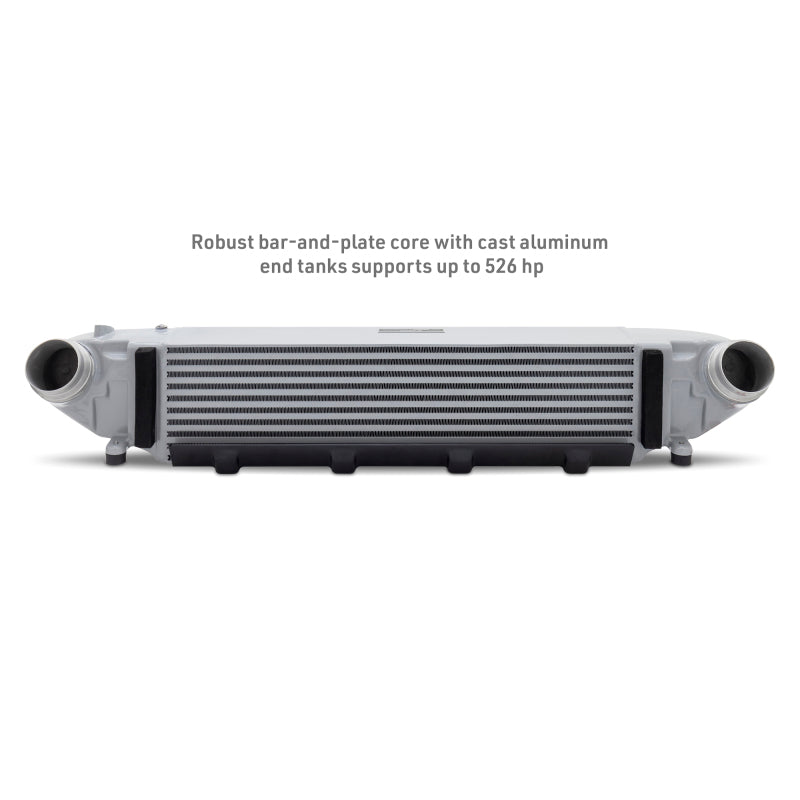

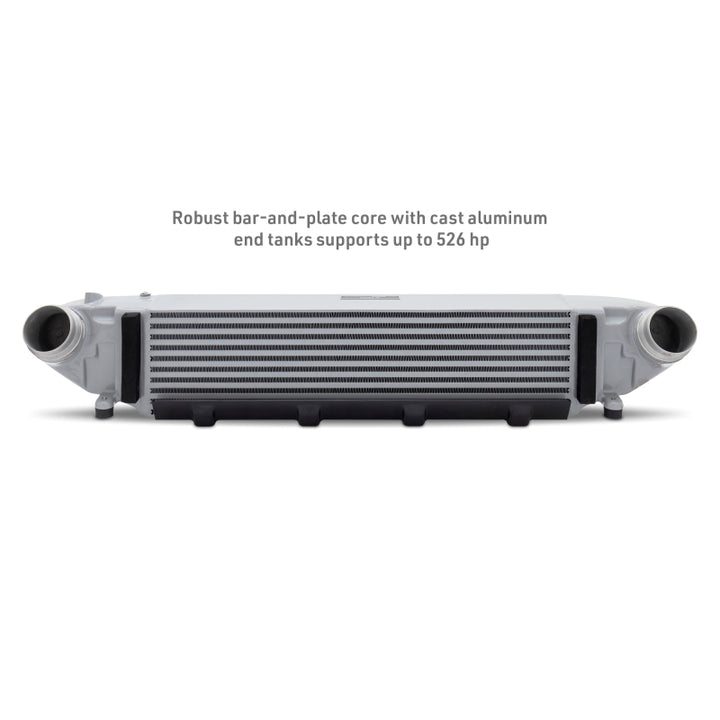

Core Bar-and-plate; 22.83 in L x 6.08 in H x 3.54 in thick; 60% more core volume; rated to 50 psi and 526 hp
Inlet / Outlet 2.44 in / 2.44 in
Overall Size 35.7 in L x 6.5 in H x 5.3 in W

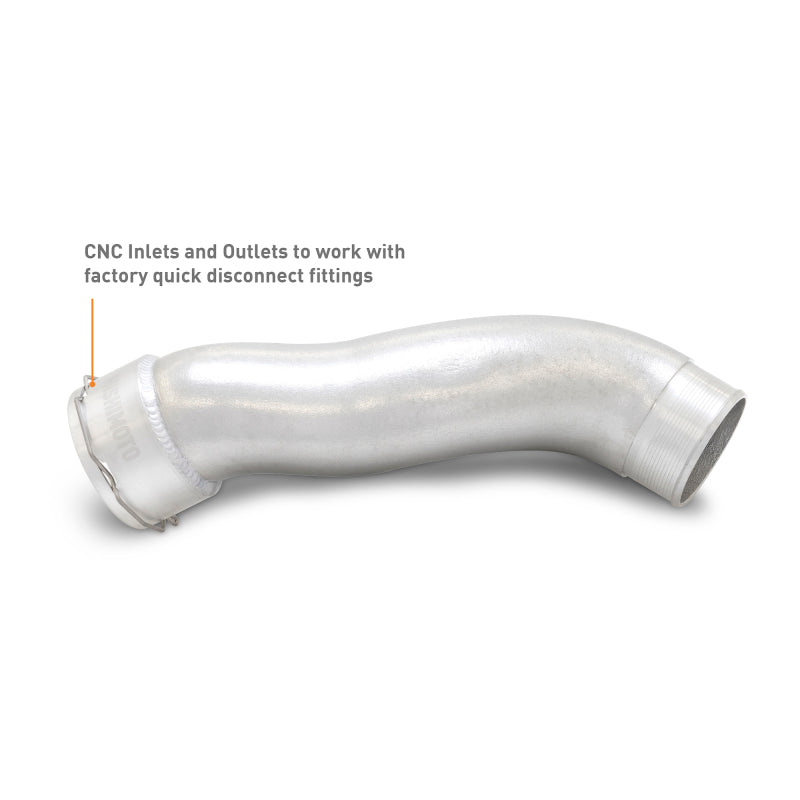

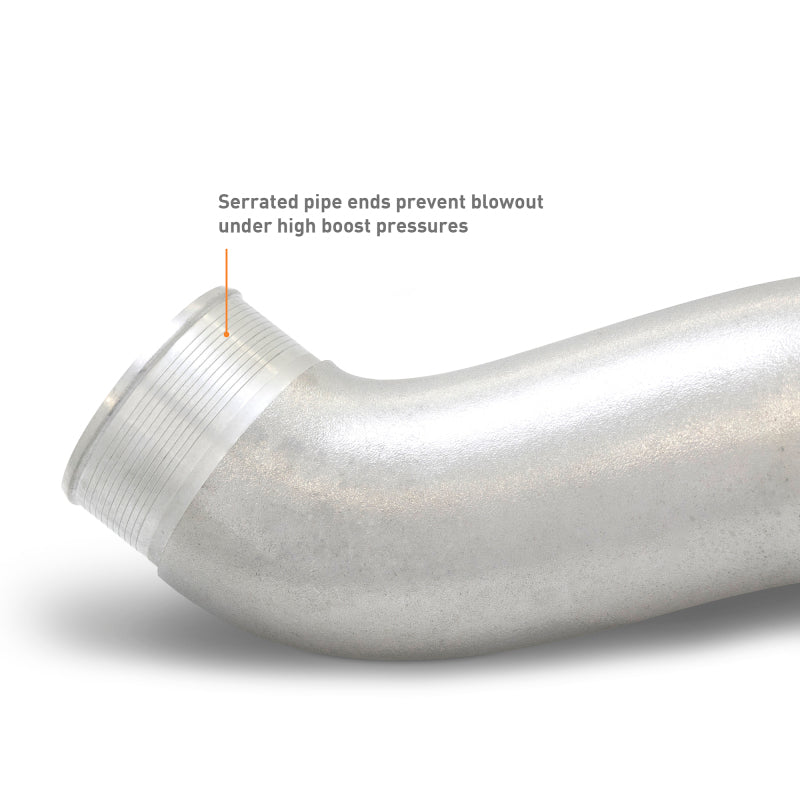

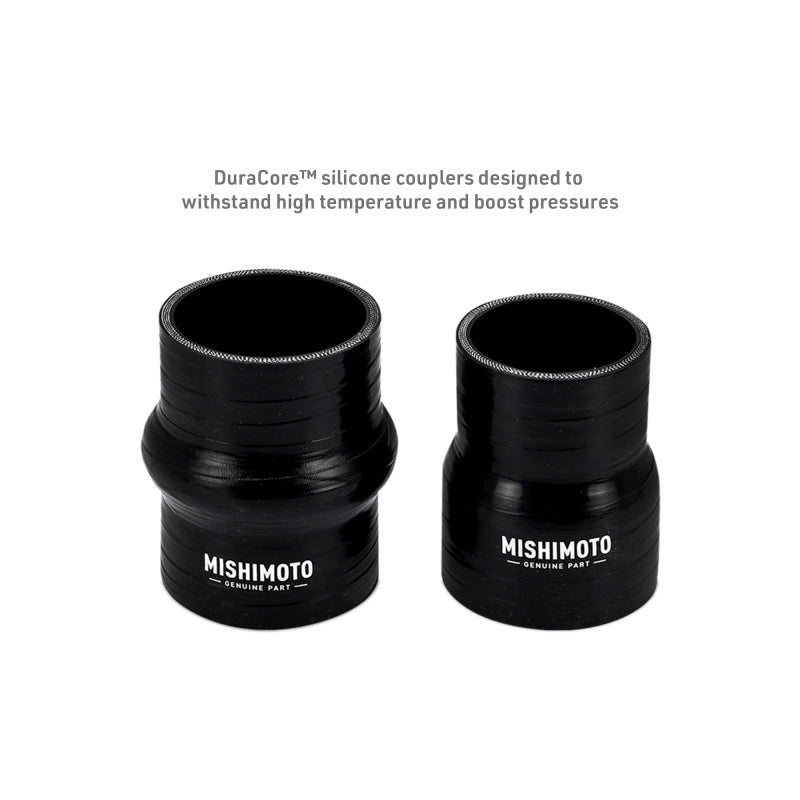

Pipes 2.75 in aluminum with cast end sections; turbo outlet elbow with integrated BOV seat; DuraCore couplers with CNC quick-disconnects
Color Silver core, polished pipes

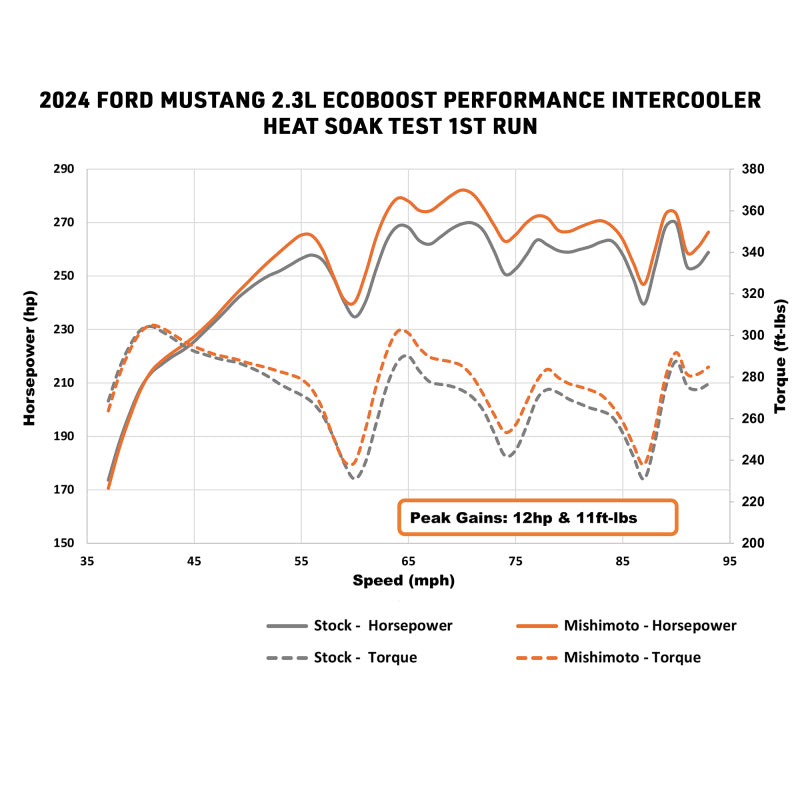

Gains Up to +12 hp / +11 lb-ft and up to 60°F lower outlet temperature on the stock tune

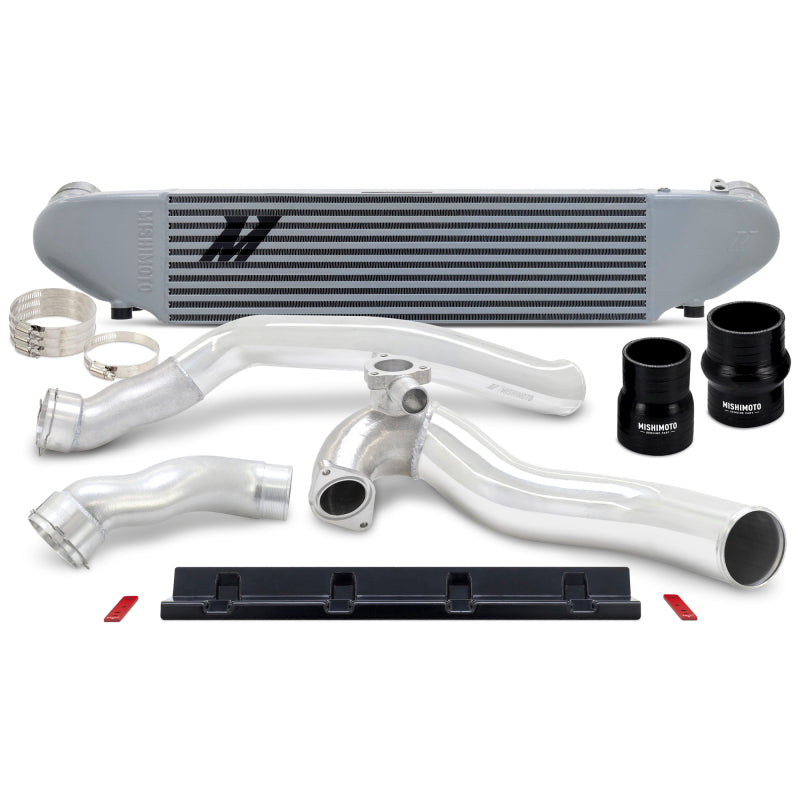

What's in the Box
  • (1) performance intercooler
  • (1) deflector panel kit

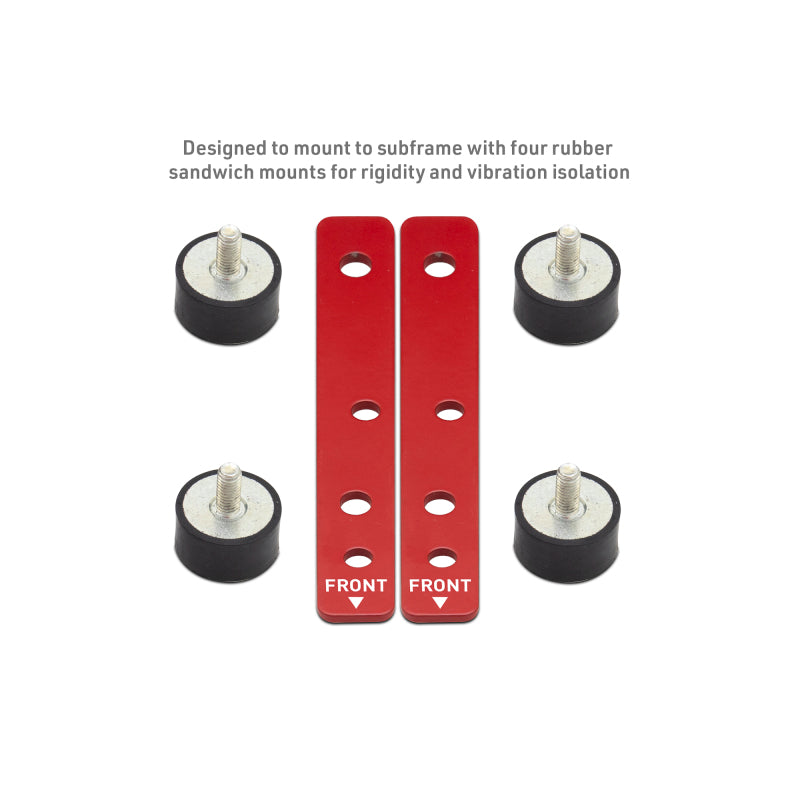

  • (1) bracket kit
  • (2) hot side pipes
  • (1) cold side pipe
  • (2) DuraCore couplers
  • (4) spring clamps
  • (2) O-rings
  • (3) button head locking bolts
  • (1) tree clip zip tie
Fitment Notes 2.3L EcoBoost only
Install Medium difficulty
Tune Required No; gains measured on the stock tune
Overall Length 35.7 in
Overall Height 6.5 in
Overall Width 5.3 in
Core Length 22.83 in
Core Height 6.08 in
Core Thickness 3.54 in
Inlet 2.44 in
Outlet 2.44 in
Core Type Bar-and-Plate
Max Recommended Horsepower 526 hp
Max Recommended Boost 50 psi
Engine 2.3L EcoBoost I4
Chassis Codes S650
Quantity 1
Warranty Mishimoto Lifetime Limited Warranty
Part Number MMINT-MUS4-24KSLP

This part fits:

Year Make Model Submodel
2024-2026 Ford Mustang EcoBoost
2024-2026 Ford Mustang EcoBoost Premium

Documents: Installation Instructions (PDF) | Pipe Installation Instructions (PDF) | Engineering Report (PDF)

Which Mustangs does it fit?

  • The 2024 and newer Ford Mustang with the 2.3L EcoBoost.

Do I need a tune?

  • No. The gains of up to 12 hp and 11 lb-ft were measured on the stock tune.

How much boost can the core handle?

  • It is rated to 50 psi and 526 hp.

What is in the kit?

  • The intercooler, deflector panel kit, bracket kit, two hot side pipes, one cold side pipe, couplers, clamps, O-rings and hardware.

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
