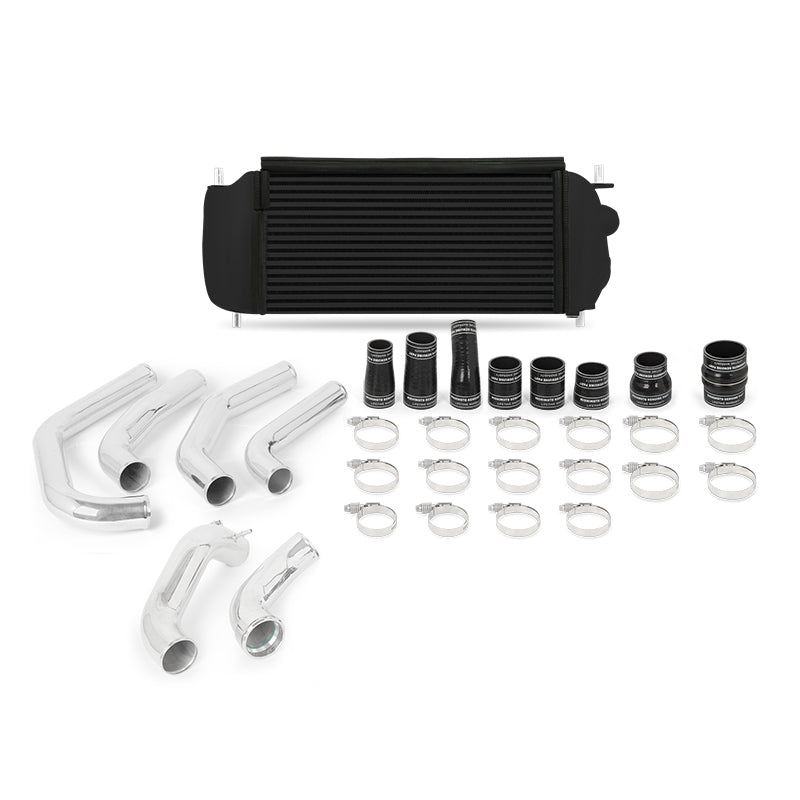

Mishimoto Performance Intercooler Kit, core with pipes laid out

Mishimoto Performance Intercooler Kit - Ford F-150 2.7L EcoBoost 2015-2017 - Black Core / Polished Pipes

Mishimoto SKU: MISMMINT-F27T-15KPBK
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMINT-F27T-15KPBK
GTIN / UPC811580033049
Manufacturer Part NumberMMINT-F27T-15KPBK

Product Information

This kit pairs a black bar-and-plate performance intercooler with polished TIG-welded aluminum charge pipes for the twin-turbo 2.7L EcoBoost. The intercooler has 77% more core volume and 163% more external fin surface area than stock on cast end tanks, lowering intake air temperature by 10°F (5.5°C), and it is rated to 50 psi. The aluminum pipes carry 38% more total internal volume than the factory plastic pipes, with DuraCore silicone boots and a CNC quick-disconnect cold side flange with a pre-installed O-ring and spring clip.

Specifications

Type Intercooler and pipe kit
Core Bar-and-plate, cast end tanks; 77% more volume, 163% more external fin surface area; core 19.6 in x 9.4 in x 4.7 in thick, overall 29 in x 9.5 in x 7 in; 0.157 in tank wall; 50 psi maximum recommended pressure
Inlet / Outlet 2.5 in inlet, 3 in outlet
Pipes TIG-welded aluminum; 38% more internal volume than stock; CNC quick-disconnect cold side flange
Color Black core, polished pipes
Gains 10°F (5.5°C) lower intake air temperature
What's in the Box
  • (1) intercooler with rubber trim
  • (1) aluminum cold side pipe with CNC quick-disconnect flange
  • (1) aluminum cold side pipe with CNC IAT sensor housing
  • (4) aluminum hot side pipes
  • (8) DuraCore silicone boots
  • Clamps and mounting hardware
Fitment Notes 2.7L EcoBoost engine only. 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Install Medium difficulty; clamp torque 27 in-lbs (3 Nm), do not exceed 35 in-lbs (4 Nm)
Emissions Covered by CARB Executive Order D-759-6 for the 2015-2017 Ford F-150 2.7L EcoBoost
Overall Length 29 in
Overall Height 9.5 in
Overall Width 7 in
Core Length 19.6 in
Core Height 9.4 in
Core Thickness 4.7 in
Inlet 2.5 in
Outlet 3 in
Engine 2.7L V6 EcoBoost
Chassis Codes P552
Quantity 1
Warranty Mishimoto Lifetime Limited Warranty
Part Number MMINT-F27T-15KPBK

This part fits:

Year Make Model Submodel
2015-2017 Ford F-150 Lariat
2015-2017 Ford F-150 XL
2015-2017 Ford F-150 XLT

Documents: Pipe Kit Tech Sheet and Bill of Materials (PDF)

Does it fit the 3.5L EcoBoost or the Raptor?

  • No. It is for the 2015-2017 F-150 with the 2.7L EcoBoost only; the 3.5L trucks use their own kits.

Is it street legal in California?

  • Yes. It is covered by CARB Executive Order D-759-6 for the 2015-2017 F-150 2.7L EcoBoost.

How much more volume do the pipes have?

  • 38% more total internal volume than the stock plastic intercooler pipes.

What torque should the clamps get?

  • 27 in-lbs (3 Nm), and no more than 35 in-lbs (4 Nm).

Is there a warranty?

  • Yes, the Mishimoto Lifetime Limited Warranty.
