Mishimoto Universal Single-Pass Air-to-Water Heat Exchanger - 500HP

Mishimoto SKU: MISMMRAD-HE-01
Price
9% OFF
/
In Stock – Ready to Ship
Shipping calculated at checkout.

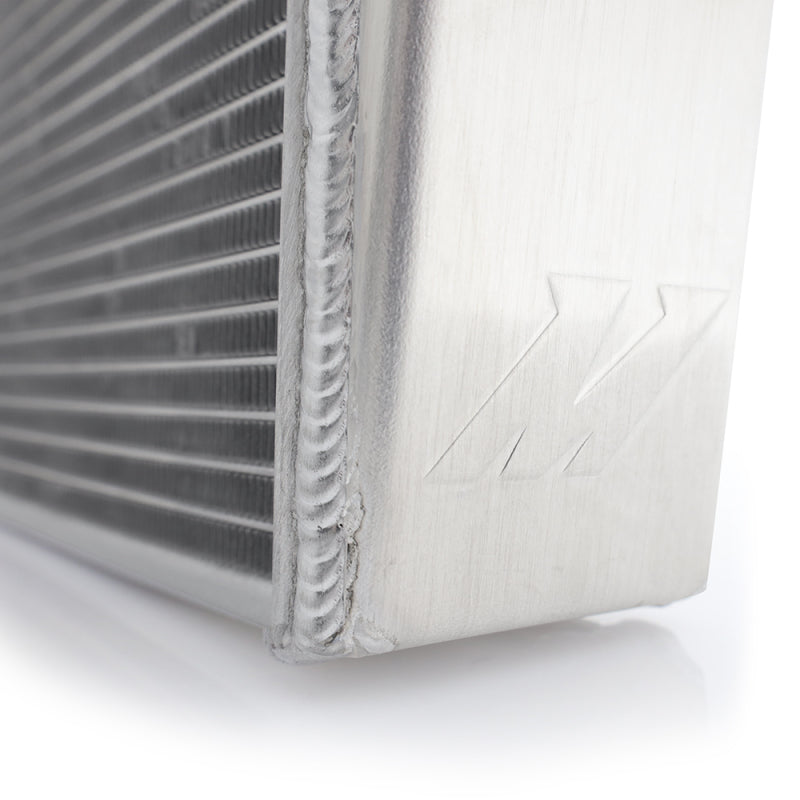

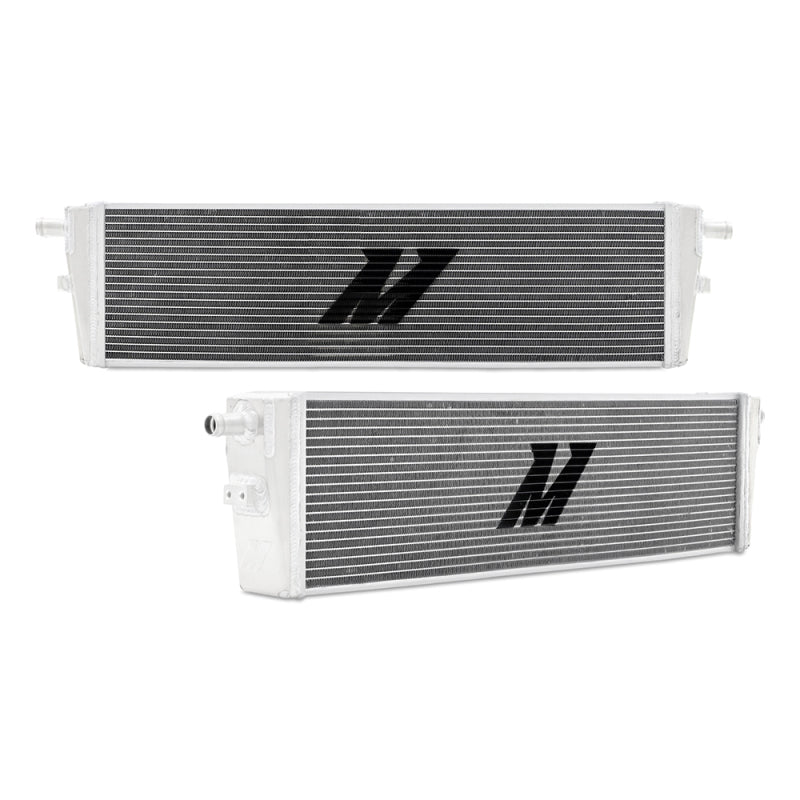

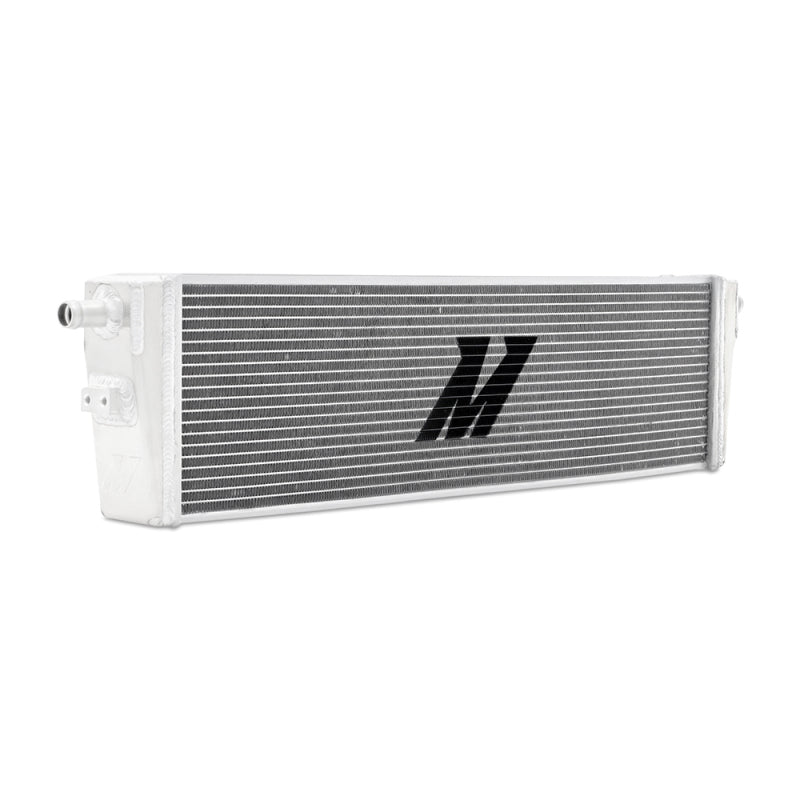

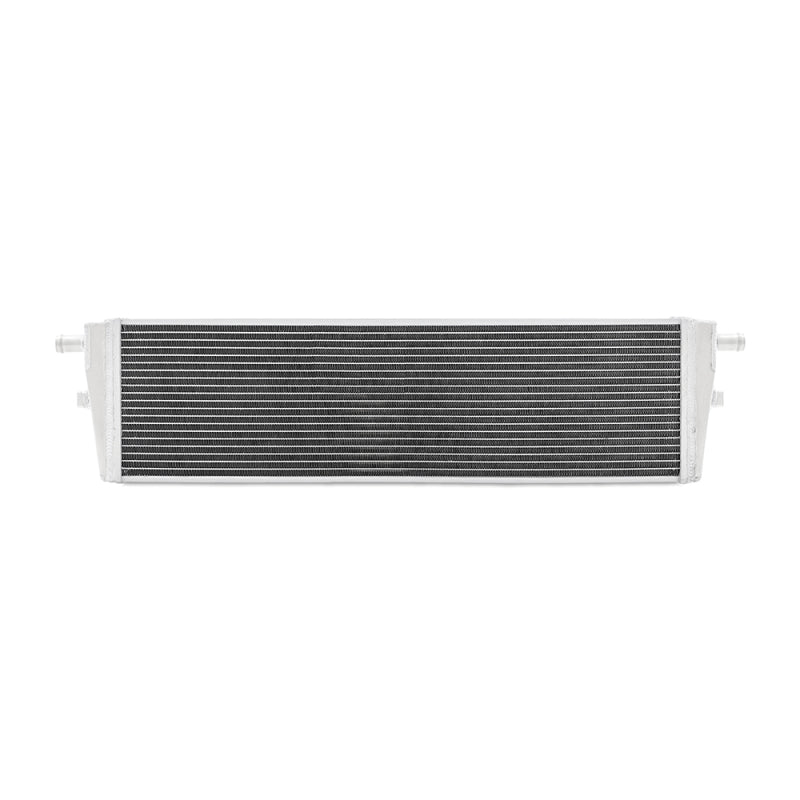

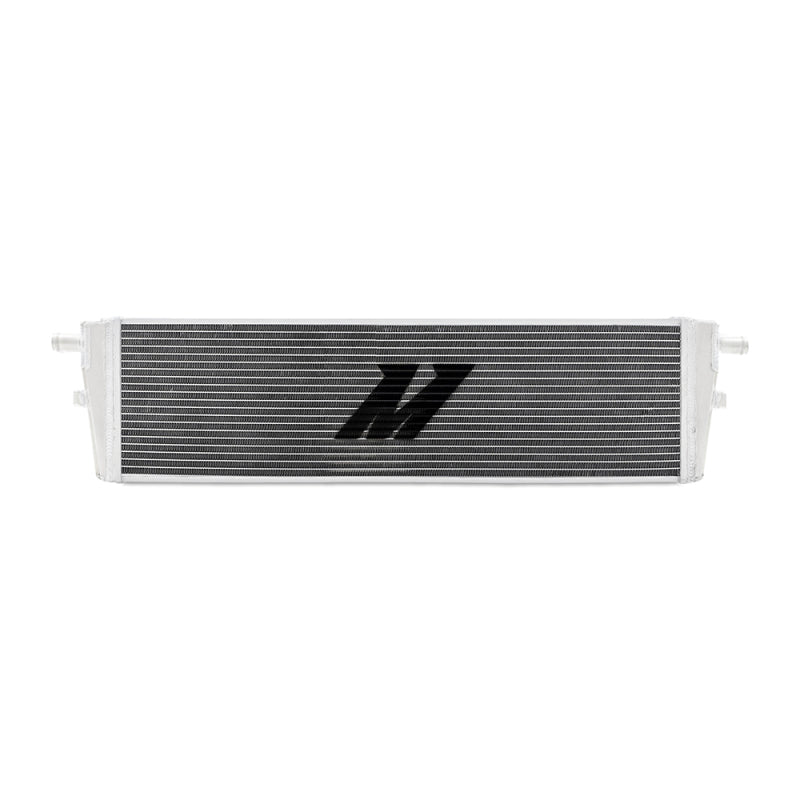

A universal single-pass air-to-water heat exchanger for liquid-to-air intercooling and charge-air cooling systems, rated to support builds up to 500 horsepower. It uses an all-aluminum, TIG-welded core measuring 23.62 in x 6.14 in x 2.04 in, with half-inch-thick threaded mounting bosses on each end tank for flexible installation in a custom setup.

Specifications

Type Single-pass air-to-water heat exchanger
Material All-aluminum, TIG-welded
Core 23.62 in x 6.14 in x 2.04 in
Rating Supports up to 500 HP
Mounting Half-inch-thick threaded bosses on each end tank

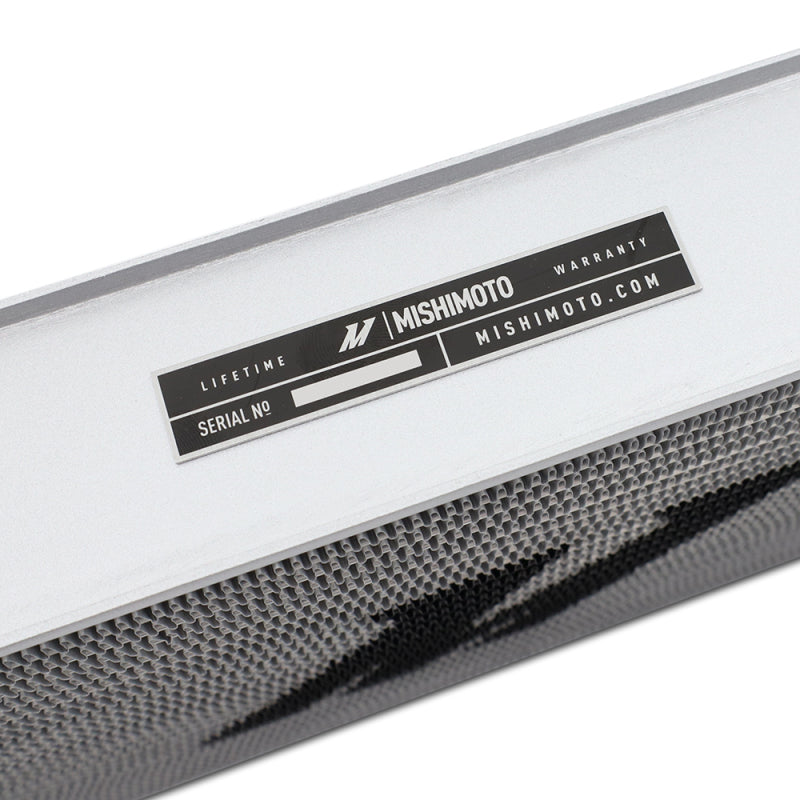

Warranty Mishimoto Lifetime Warranty
