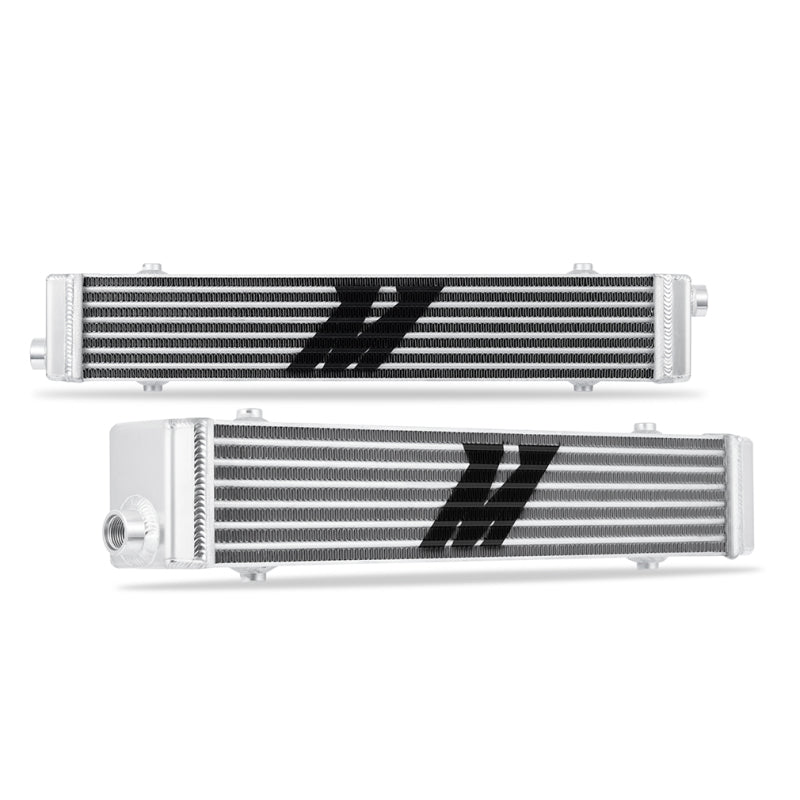

Mishimoto Universal Tube and Fin Oil Cooler, two cores, front view
Mishimoto Universal Tube and Fin Oil Cooler, core, angled view

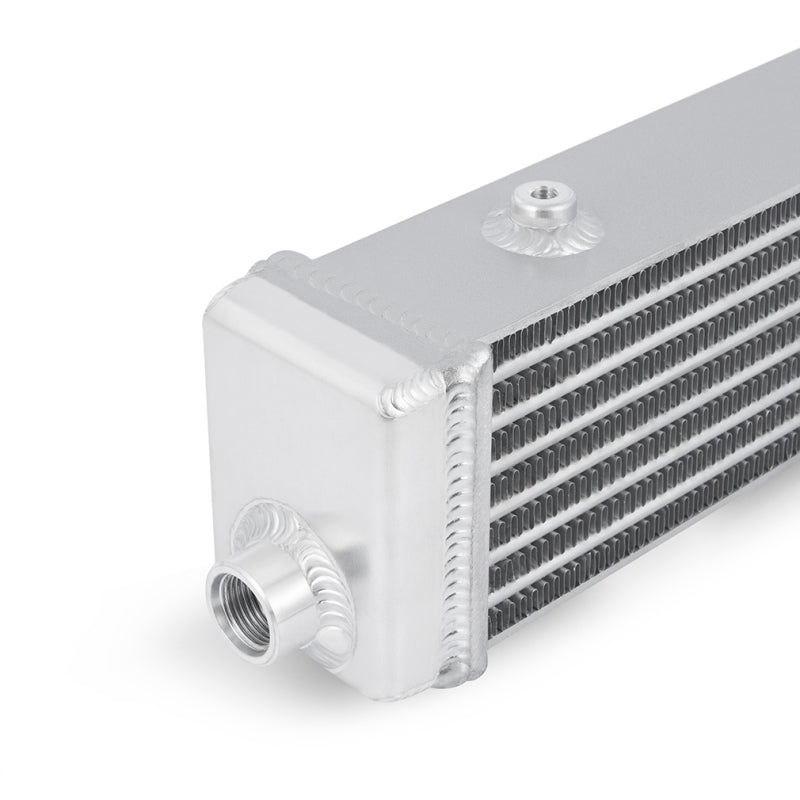

Mishimoto Universal Tube and Fin Oil Cooler, end tank, angled view

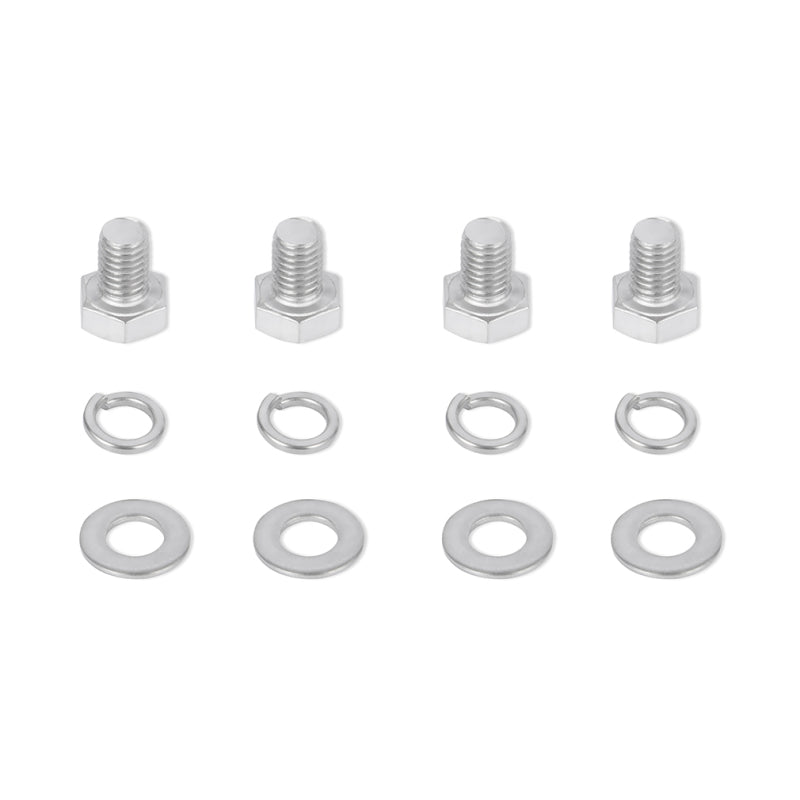

Mishimoto Universal Tube and Fin Oil Cooler, bolts and washers laid out
Mishimoto Universal Tube and Fin Oil Cooler, retail box, front view

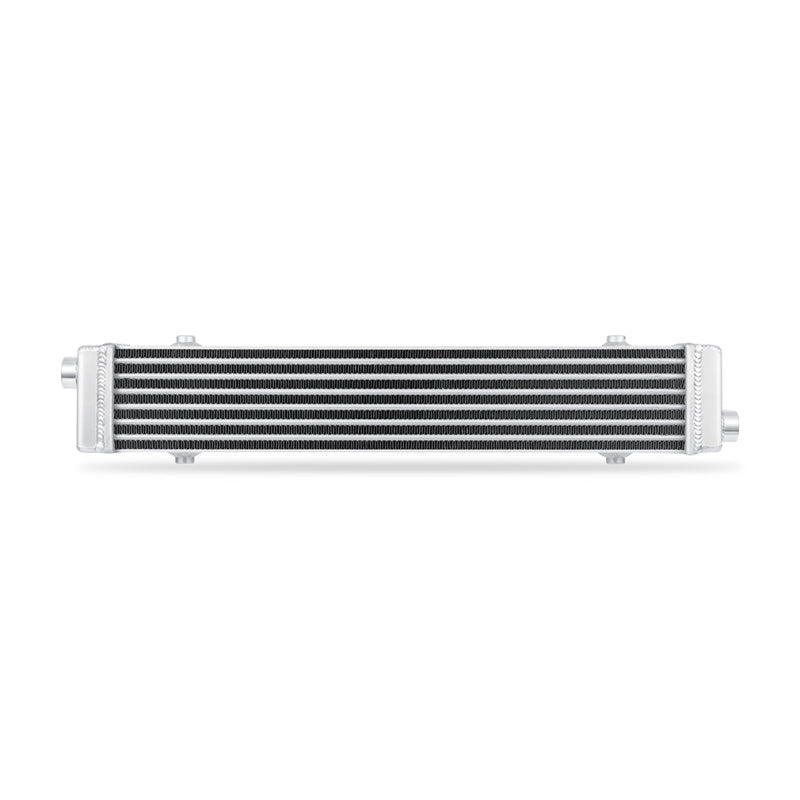

Mishimoto Universal Tube and Fin Oil Cooler, core, front view
Mishimoto Universal Tube and Fin Oil Cooler, retail box, angled view
Mishimoto Universal Tube and Fin Oil Cooler, retail box, front view, alternate shot

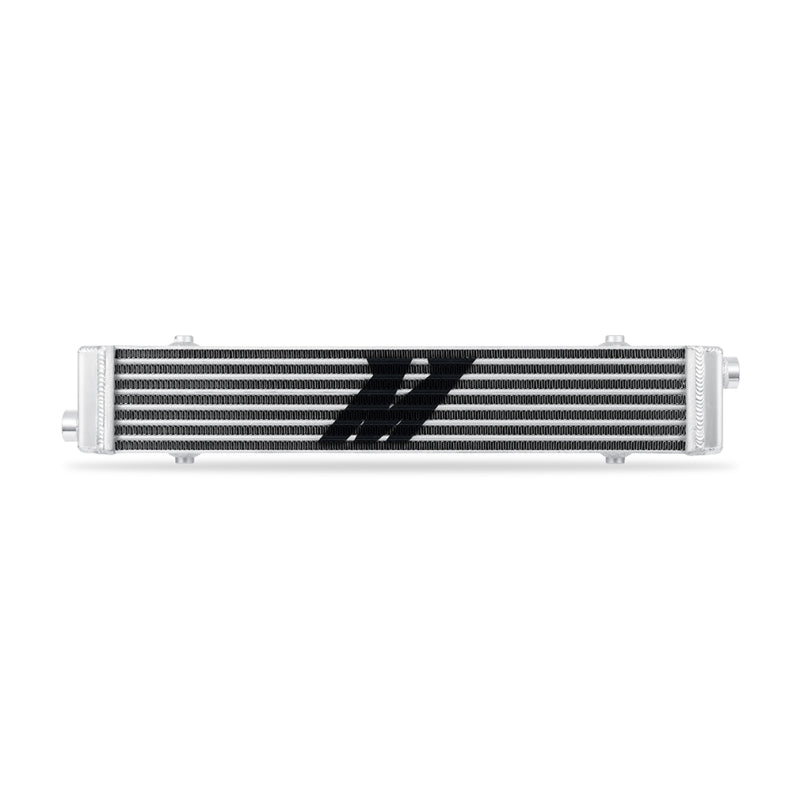

Mishimoto Universal Tube and Fin Oil Cooler, core, front view, alternate shot
Mishimoto Universal Tube and Fin Oil Cooler, retail box, front view, additional catalog shot
Mishimoto Universal Tube and Fin Oil Cooler, two cores, front view
Mishimoto Universal Tube and Fin Oil Cooler, core, angled view
Mishimoto Universal Tube and Fin Oil Cooler, end tank, angled view
Mishimoto Universal Tube and Fin Oil Cooler, bolts and washers laid out
Mishimoto Universal Tube and Fin Oil Cooler, retail box, front view
Mishimoto Universal Tube and Fin Oil Cooler, core, front view
Mishimoto Universal Tube and Fin Oil Cooler, retail box, angled view
Mishimoto Universal Tube and Fin Oil Cooler, retail box, front view, alternate shot
Mishimoto Universal Tube and Fin Oil Cooler, core, front view, alternate shot
Mishimoto Universal Tube and Fin Oil Cooler, retail box, front view, additional catalog shot

Mishimoto Universal Tube and Fin Oil Cooler - 23in -10 ORB

Mishimoto SKU: MISMMOC-TF589-N
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandMishimoto
SKUMISMMOC-TF589-N
GTIN / UPC840197710654
Manufacturer Part NumberMMOC-TF589-N

Product Information

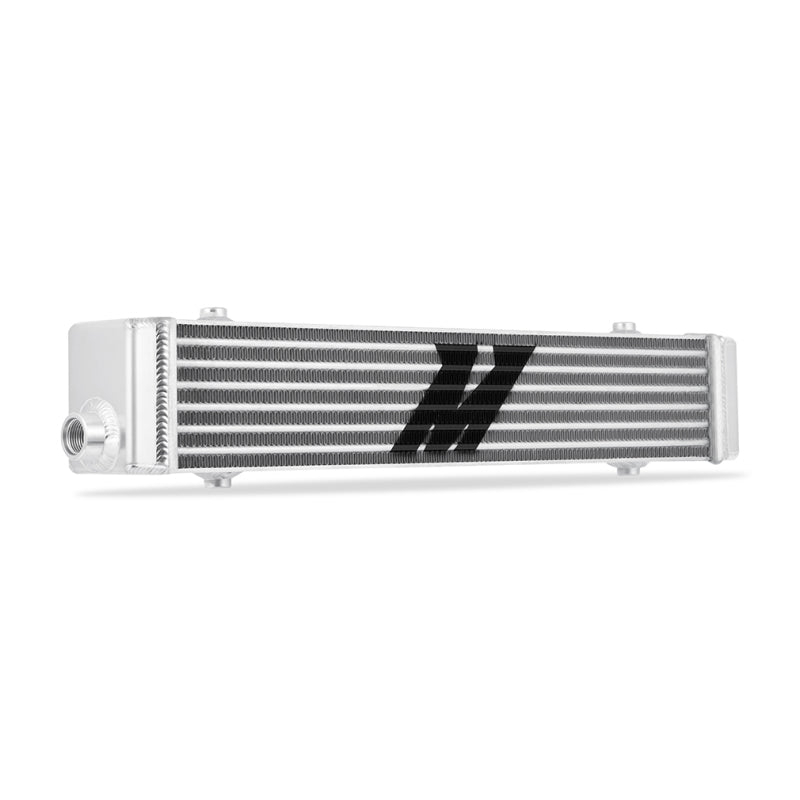

The Mishimoto Universal Tube and Fin Oil Cooler maintains optimal oil temperatures across a range of driving conditions and high-performance applications. Its lightweight tube-and-fin core uses rounded tube leading edges and louvered fins for smooth airflow and improved heat transfer, while internal turbulators agitate the oil for superior heat exchange. Full-aluminum TIG-welded end tanks ensure leak-free operation. The cooler measures 23in x 4in x 3in with universal M8x1.25 mounting bosses and -10 ORB inlet and outlet ports compatible with -AN adapters.

Specifications

Type Universal oil cooler
Core Tube and fin with internal turbulators
Dimensions 23in x 4in x 3in
Connections -10 ORB inlet and outlet
Mounting M8x1.25 bosses
Application Universal
Overall Length 24.61 in
Overall Height 4.72 in
Overall Width 3.15 in
Core Length 20.47 in
Rows 6
Fluid Capacity 1.24 qt
Mounting Hardware Included 0
Fitment Notes The logo is only painted on one side of the core to suit your taste; -10 ORB: 30 lb-ft
M8 Mounting Bolts: 16 lb-ft
Part Number MMOC-TF589-N
Warranty Mishimoto Lifetime Warranty
