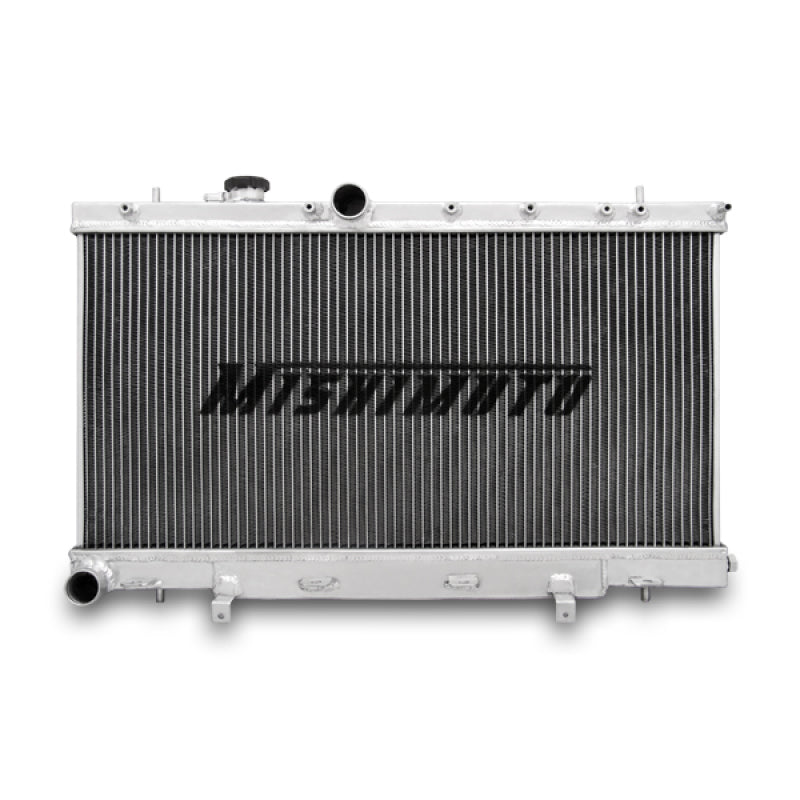

Mishimoto X-LINE Thicker-Core Aluminum Radiator - Subaru WRX/STI Manual & Saab 9-2X 2002-2007

Mishimoto SKU: MISMMRAD-WRX-01X
Price
9% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

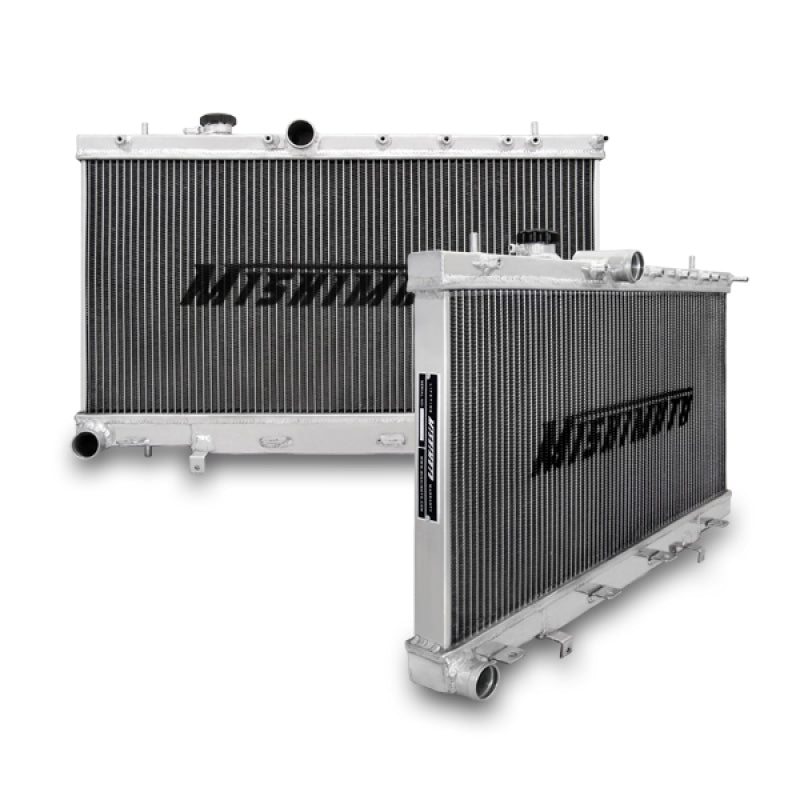

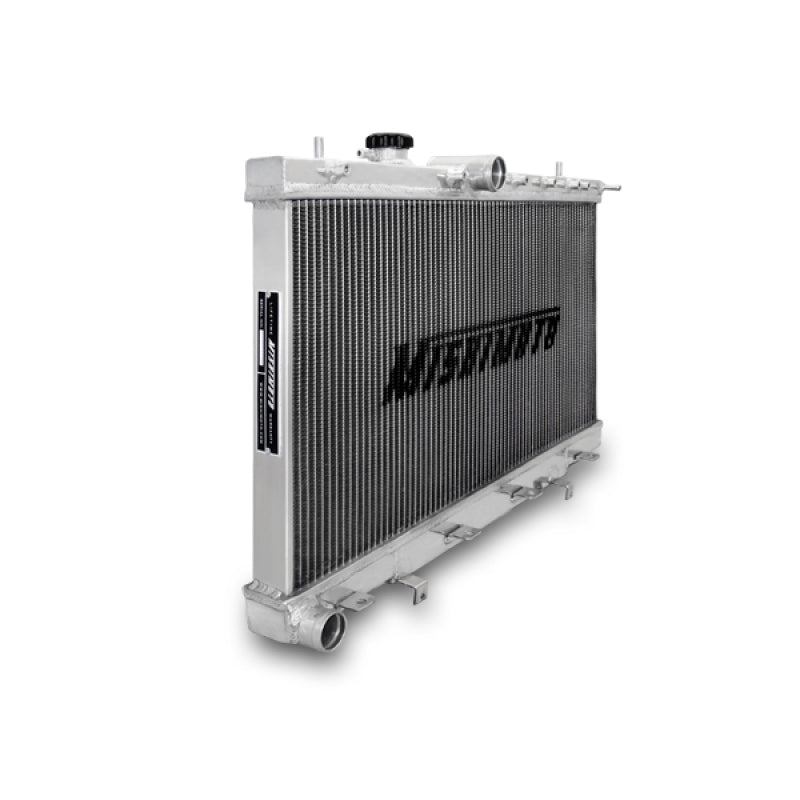

The Mishimoto X-Line Performance Aluminum Radiator is a thicker-core cooling upgrade engineered for the 2002-2007 Subaru WRX and STI (manual) and the 2005-2006 Saab 9-2X Aero. It uses a large three-row, 100% brazed aluminum core with TIG-welded end tanks for greater coolant capacity, durability and lower engine temperatures even under hard driving. The radiator includes a high-pressure 1.3-bar cap to raise the coolant boiling point, a second cap for the expansion tank, and a Mishimoto magnetic drain plug that captures metal fragments from the cooling system.

Specifications

Type Performance aluminum radiator (X-Line thicker core)
Material 100% brazed aluminum core, TIG-welded end tanks
Core Three-row core

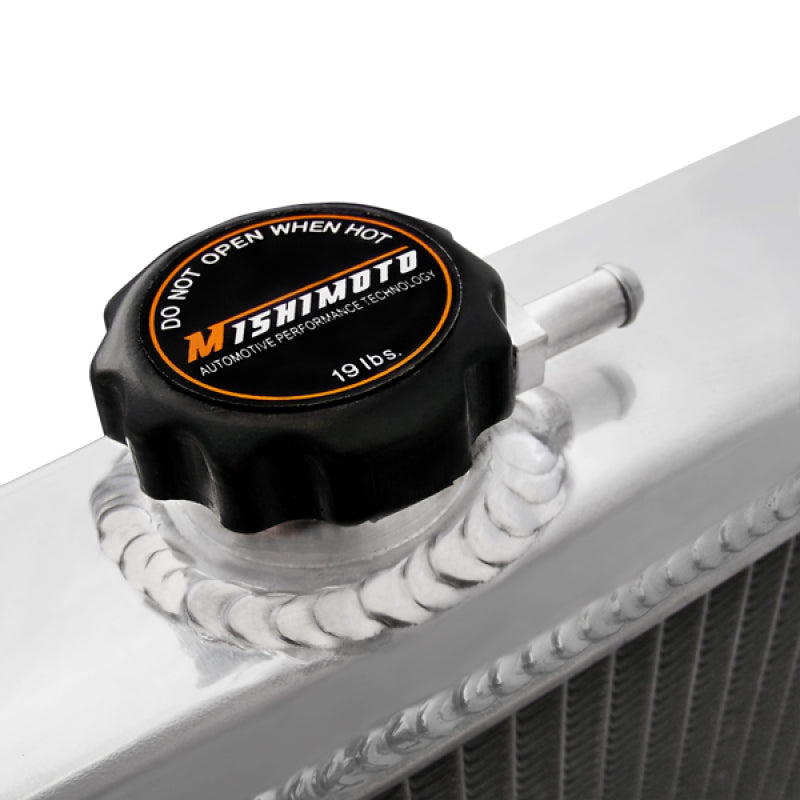

Radiator Cap 1.3-bar high-pressure cap (plus second cap for expansion tank)
Fit Direct fit; manual transmission
Included 1.3-bar radiator cap, expansion tank cap, magnetic drain plug
Overall Length 17.2 in
Overall Height 28.4 in
Overall Width 2.5 in
Core Length 13.54 in
Core Height 27.24 in
Core Thickness 2 in
Inlet 1.5 in
Outlet 1.5 in
Rows 3
Drain Plug Thread M12 x 1.5
Engine EJ205 EJ255 EJ257
Chassis Codes GD
Fitment Notes This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.; Caution; The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).; Due to the additional thickness of our 3-row X-Line radiator, trimming the upper hose may be necessary.
Part Number MMRAD-WRX-01X
Warranty Mishimoto Lifetime Warranty

This part fits:

Year Make Model Submodel
2005-2006 Saab 9-2X Aero
2002-2007 Subaru Impreza WRX
2006-2007 Subaru Impreza WRX Limited
2004-2007 Subaru Impreza WRX STI
2007 Subaru Impreza WRX STI Limited
2006-2007 Subaru Impreza WRX TR
2002-2007 Subaru Impreza WRX All
2002-2007 Subaru Impreza WRX Base
2002-2007 Subaru Impreza WRX GC8/GD (R160)
2002-2007 Subaru Impreza WRX GD (R160)
2002-2007 Subaru Impreza WRX GD (R180 conversion)
2002-2007 Subaru Impreza WRX GDA EJ205
2002-2007 Subaru Impreza WRX Non-STi (R180)
2004-2006 Subaru Impreza WRX STI
2004-2007 Subaru Impreza WRX STI Base
2002 Subaru Impreza WRX STI GDB (Applied A/B) EJ207
2005-2007 Subaru Impreza WRX STI GDB Applied E-G
2004-2006 Subaru Impreza WRX STI STI
2005-2007 Subaru Impreza WRX STi Rear position
2002-2007 Subaru WRX Base
2002-2007 Subaru WRX GD, GG, Sedan, Sport Wagon
2002-2007 Subaru WRX (VB)
2002-2007 Subaru WRX S4 (VBH) FA24 Turbo
2004-2007 Subaru WRX STI Base

Which vehicles does this fit?

  • It fits the Saab 9-2X 2005-2006, Subaru Impreza 2002-2007, Subaru Impreza WRX 2002-2007, Subaru Impreza WRX STI 2002-2007, Subaru Impreza WRX STi 2005-2007, Subaru WRX 2002-2007 and 3 more models. The full year, make, model and submodel list is in the fitment table on this page.

What comes in the box?

  • 1.3-bar radiator cap, expansion tank cap, magnetic drain plug.

Is there a warranty?

  • Mishimoto Lifetime Warranty.

What is it made of?

  • 100% brazed aluminum core, TIG-welded end tanks.
