Product Information

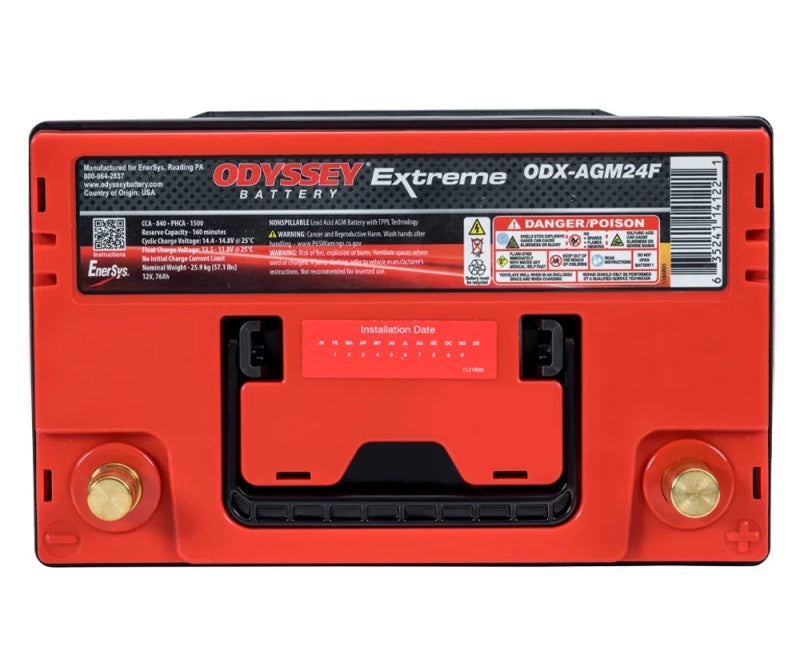

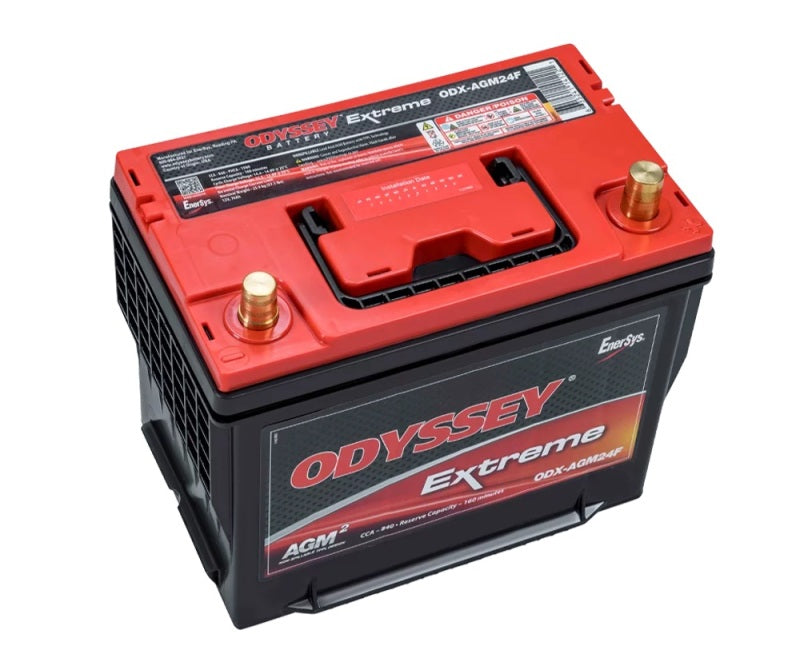

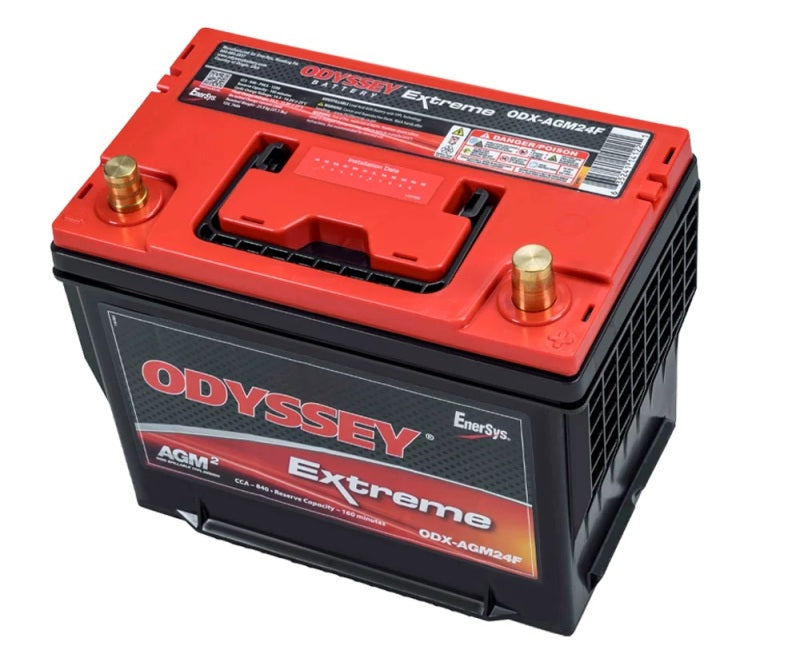

The ODX-AGM24F (NSB-AGM24F) is a Group 24F AGM battery from the Odyssey Extreme Series, built with pure lead plates for high cranking output and deep cycle capability. It is rated at 840 CCA and 1500 PHCA (5 second pulse), holds 76 Ah (20 hr) and delivers 160 minutes of reserve capacity, with a rating of up to 400 cycles at 80% depth of discharge. The sealed, non-spillable case measures 10.9 x 6.8 x 8.8 in and weighs 57.1 lb, with SAE top posts and the positive terminal on the right. Operating range is -40°F to 176°F.
Specifications
| Type | AGM Battery (Non-spillable) |
| Series | Extreme Series |
| BCI Group Size | 24F |
| Voltage | 12V |
| CCA | 840 |
| HCA | 1200 |
| MCA | 1000 |
| PHCA (5 second pulse) | 1500 |
| Reserve Capacity | 160 minutes |
| Capacity | 76 Ah (20 hr), 73 Ah (10 hr) |
| Terminal Type | SAE top posts |
| Terminal Layout | Positive terminal on the right (layout A) |
| Dimensions | 10.9 x 6.8 x 8.8 in (277 x 173 x 224 mm), L x W x H including terminals |
| Weight | 57.1 lb (25.9 kg) |
| Internal Resistance | 3 mΩ |
| Operating Temperature | -40°F to 176°F (-40°C to 80°C) |
| Cycle Life | Up to 400 cycles at 80% depth of discharge |
| Quantity | 1 |
| Warranty | Limited 4 year (North America) |
| Part Number | ODX-AGM24F (legacy NSB-AGM24F) |
Documents: Installation, Operation and Maintenance Manual (PDF) | 3D CAD Files (ZIP)
Will this battery fit my vehicle?
- Match the group size printed on your current battery (Group 24F), then confirm the dimensions (10.9 x 6.8 x 8.8 in), the terminal layout (positive terminal on the right) and the hold-down against this listing.
What warranty does it carry?
- A limited 4 year warranty in North America. Warranty claims require battery test results from a local auto parts store.
What charger should I use?
- For maintenance or trickle charging, use a charger with regulated output between 13.5V and 13.8V. Unregulated trickle chargers cause early battery failure.
How deep can it be cycled?
- It is rated for up to 400 cycles at 80% depth of discharge.
