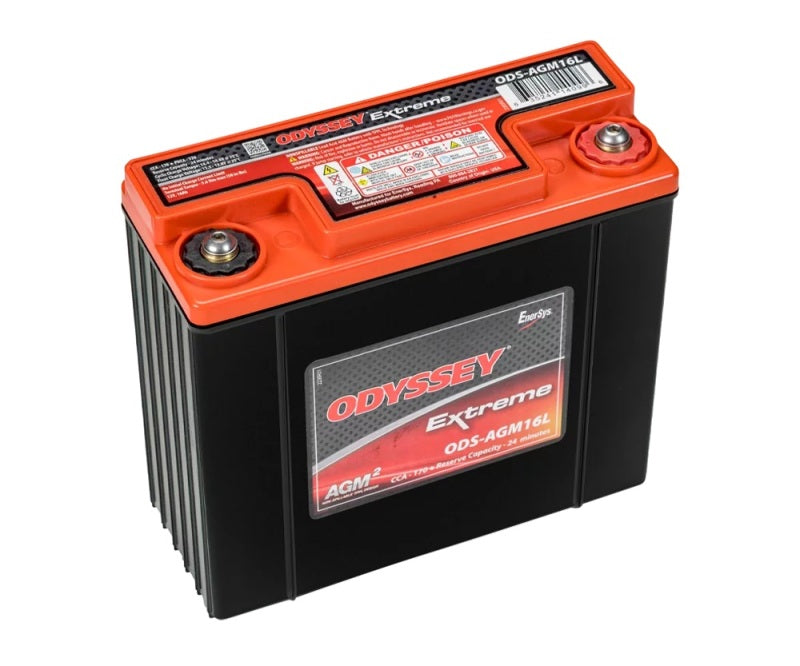

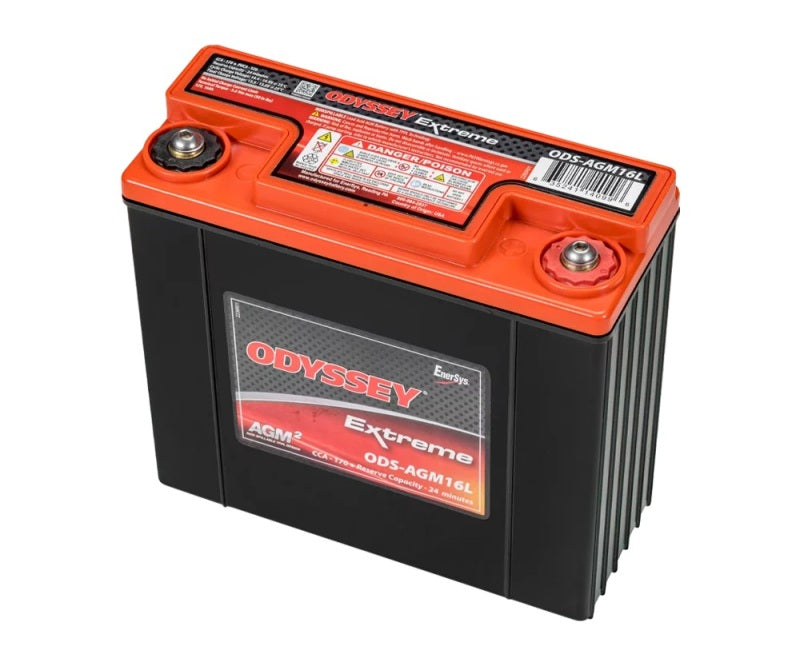

Odyssey Extreme Powersport AGM Battery ODS-AGM16L (PC680) - 170 CCA

Odyssey Battery SKU: ODYODS-AGM16L
Price
Regular price $178.70
Regular price $204.46 Sale price $178.70
13% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

The ODS-AGM16L (PC680) is an Odyssey Extreme powersport AGM battery built with pure lead plates to take the constant pounding of powersport use on land, sea or snow. It is rated at 170 CCA and 520 PHCA (5 second pulse), holds 16 Ah (20 hr) and delivers 24 minutes of reserve capacity, with a rating of up to 400 cycles at 80% depth of discharge. The sealed, non-spillable case measures 7.2 x 3 x 6.4 in and weighs 15.4 lb. Terminals are internal threaded brass M6 receptacles, with the positive terminal on the right. Operating range is -40°F to 113°F.

Specifications

Type AGM Battery (Non-spillable)
Series Extreme Series (powersport)
Voltage 12V
CCA 170
HCA 350
MCA 280
PHCA (5 second pulse) 520
Reserve Capacity 24 minutes
Capacity 16 Ah (20 hr), 16 Ah (10 hr)
Terminal Type Internal threaded brass M6 receptacle with M6 stainless bolts

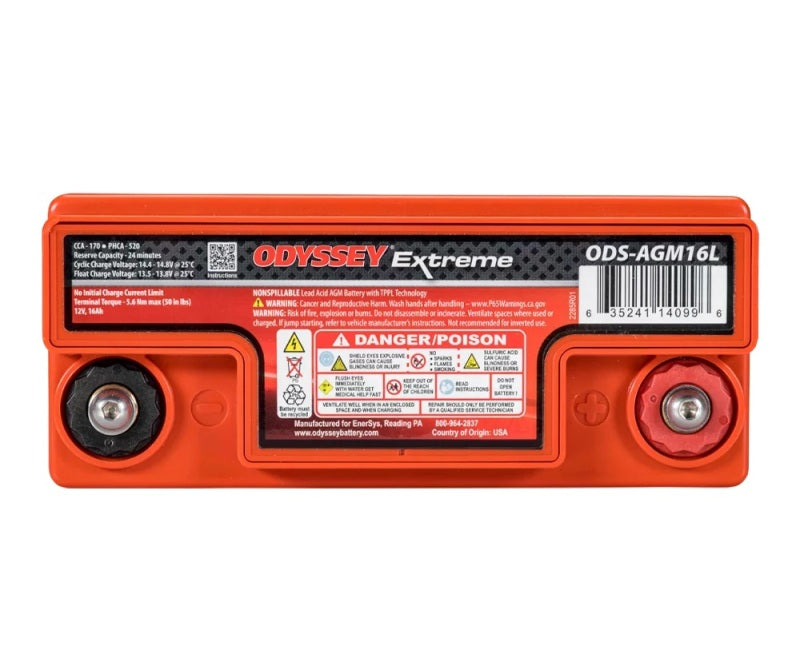

Terminal Layout Positive terminal on the right (layout A)
Terminal Torque 50 in-lb (5.6 Nm) max
Dimensions 7.2 x 3 x 6.4 in (183 x 76 x 163 mm), L x W x H including terminals
Weight 15.4 lb (7 kg)
Internal Resistance 7 mΩ
Operating Temperature -40°F to 113°F (-40°C to 45°C)
Cycle Life Up to 400 cycles at 80% depth of discharge
Hold-Down Accepts the Odyssey HK-PC680 brushed aluminum hold-down kit (batteries without a metal jacket)
Included Battery with M6 stainless terminal bolts
Quantity 1
Warranty Limited 2 year (North America)
Part Number ODS-AGM16L (legacy PC680)

Documents: Installation, Operation and Maintenance Manual (PDF) | 3D CAD Files (ZIP)

Will this battery fit my vehicle?

  • Match the model or part number on your current battery, then confirm the dimensions (7.2 x 3 x 6.4 in), the terminal type (internal threaded brass M6 receptacles) and the terminal layout (positive terminal on the right) against this listing.

What warranty does it carry?

  • A limited 2 year warranty in North America. Warranty claims require battery test results from a local auto parts store.

What charger should I use?

  • For maintenance or trickle charging, use a charger with regulated output between 13.5V and 13.8V. Unregulated trickle chargers cause early battery failure.

Is there a hold-down kit for this battery?

  • Yes. The Odyssey HK-PC680 brushed aluminum hold-down kit fits this battery. Hold-down kits fit only batteries without a metal jacket.

Is a metal jacket available?

  • Yes. Metal jacket 0207-9070 fits this battery and counteracts case expansion from high temperatures. In high temperature applications the battery warranty does not cover failures caused by not installing the metal jacket.
