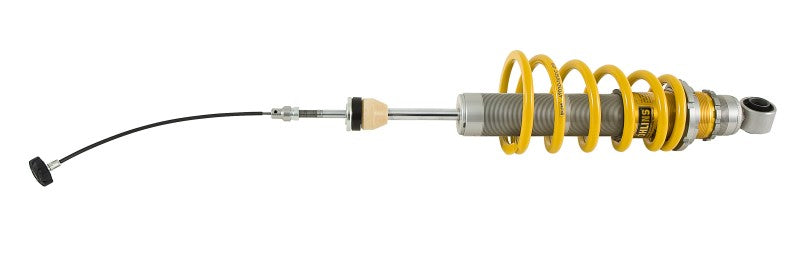

Ohlins Road & Track DFV Coilovers, yellow spring shock with cable, front view

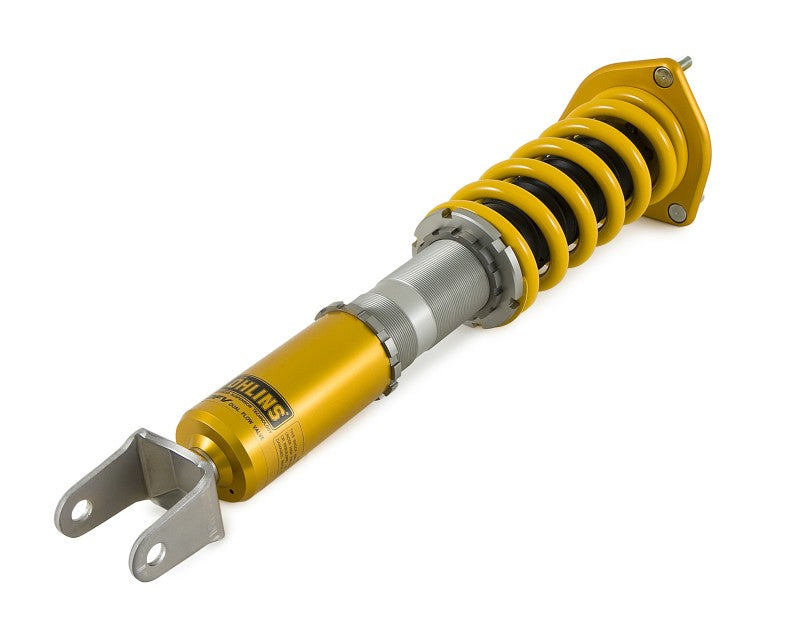

Ohlins Road & Track DFV Coilovers, yellow coilover with fork end, angled view

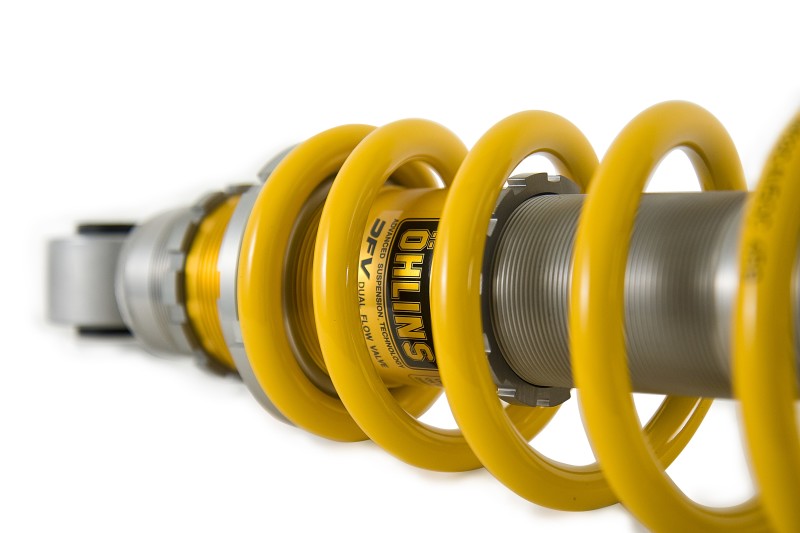

Ohlins Road & Track DFV Coilovers, yellow spring on coilover, close up

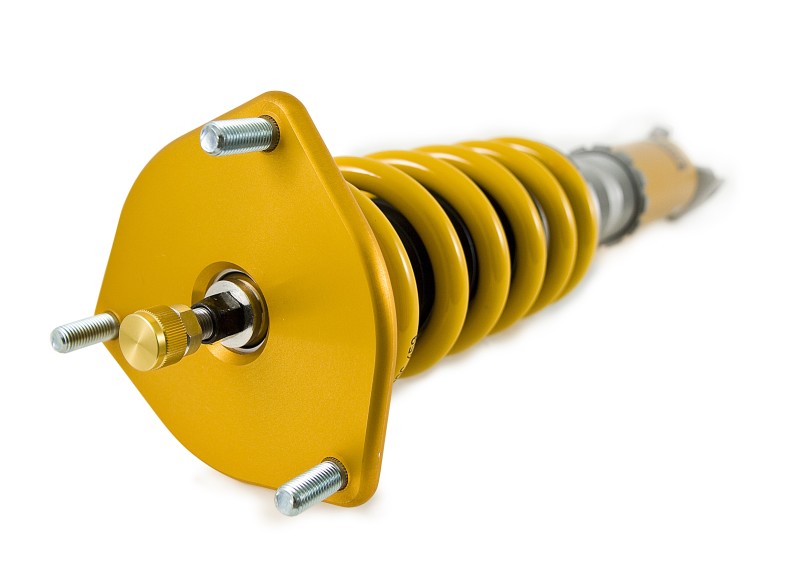

Ohlins Road & Track DFV Coilovers, yellow coilover with top mount, angled view

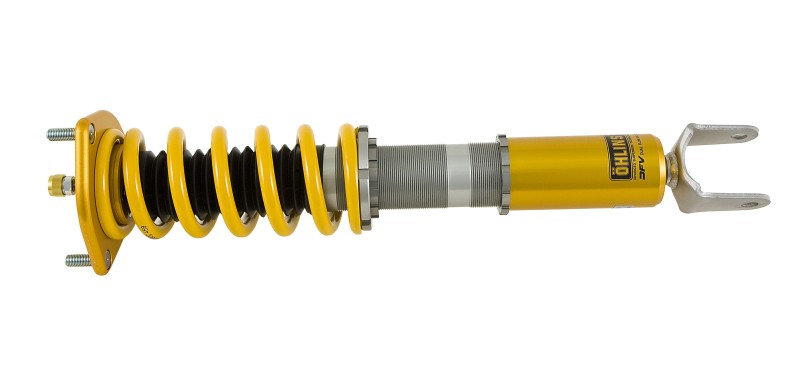

Ohlins Road & Track DFV Coilovers, yellow coilover with fork end, side view
Ohlins Road & Track DFV Coilovers, yellow spring shock with cable, front view
Ohlins Road & Track DFV Coilovers, yellow coilover with fork end, angled view
Ohlins Road & Track DFV Coilovers, yellow spring on coilover, close up
Ohlins Road & Track DFV Coilovers, yellow coilover with top mount, angled view
Ohlins Road & Track DFV Coilovers, yellow coilover with fork end, side view

Ohlins Road & Track DFV Coilovers - Mazda RX-8 2004-2011

Ohlins SKU: OHLMAS MI00S1
Price
On Backorder – Order Now or Contact Us for Availability
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandOhlins
SKUOHLMAS MI00S1
GTIN / UPC840153600159
Manufacturer Part NumberMAS MI00S1

Product Information

Ohlins Road & Track coilovers use Dual Flow Valve (DFV) dampers, so a single adjuster on each damper changes compression and rebound together while ride height and spring preload adjust separately. This kit runs 80 N/mm front and 40 N/mm rear springs and lowers the car by about 20 to 50 mm front and 25 to 50 mm rear with the recommended setup. Both ends use conventional shock absorbers, with aluminum top mounts at the front and the original mounts at the rear. The dampers are rebuildable and salt spray tested to ISO 9227.

Specifications

Type Coilover suspension kit (front and rear)
Series Road & Track (DFV)
Position Front and rear
Damping Adjustment One adjuster per damper sets compression and rebound together (Dual Flow Valve)
Adjustability Damping, ride height and spring preload
Front Spring Rate 80 N/mm (457 lb/in)
Rear Spring Rate 40 N/mm (228 lb/in)
Springs Included Yes
Lowering Range Approx. 20 to 50 mm front, 25 to 50 mm rear with the recommended setup
Top Mounts Aluminum top mounts front (not adjustable), original top mounts rear
Damper Layout Conventional shock absorbers front and rear
Rebuildable Yes
What's in the Box
  • Coilover kit with springs and mounting parts
  • C-spanner for spring preload
  • Owner's manual and mounting instruction
  • Sticker set
Fitment Notes SE3P chassis.
Intended Use Street and track days
Quantity 1 kit
Warranty 2 year limited (defects in materials or workmanship)
Part Number MAS MI00S1

This part fits:

Year Make Model Submodel
2004-2011 Mazda RX-8 Base

Documents: Installation Instructions (PDF) | Owner's Manual (PDF)

Are springs included?

  • Yes. The kit comes with springs and mounting parts, so it installs as a complete front and rear coilover set.

How is the damping adjusted?

  • Each damper has one adjuster that changes compression and rebound together through the Dual Flow Valve, so the setup stays balanced from soft road settings to firm track settings.

How much does it lower the car?

  • About 20 to 50 mm at the front and 25 to 50 mm at the rear with the recommended setup.

Are top mounts included?

  • Aluminum top mounts are included for the front. The rear reuses the original mounts.
