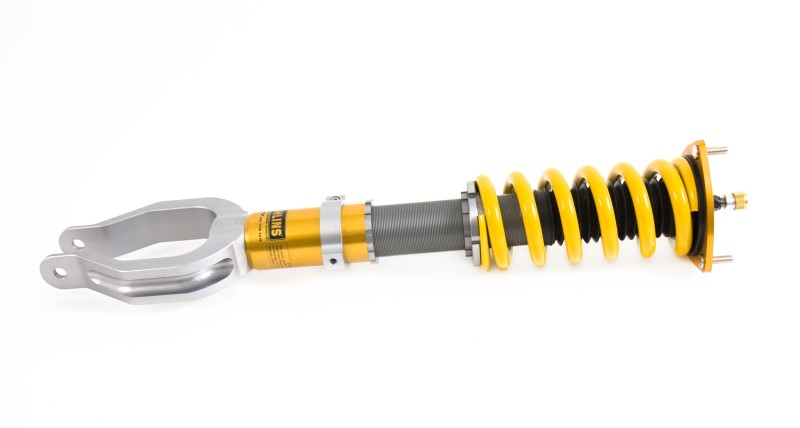

Ohlins Road & Track DFV Coilovers, shock and spring with lower mount, angled view

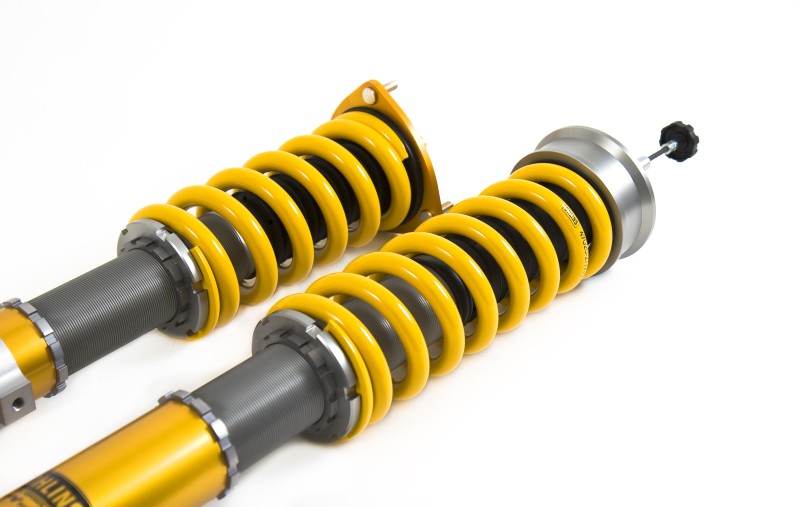

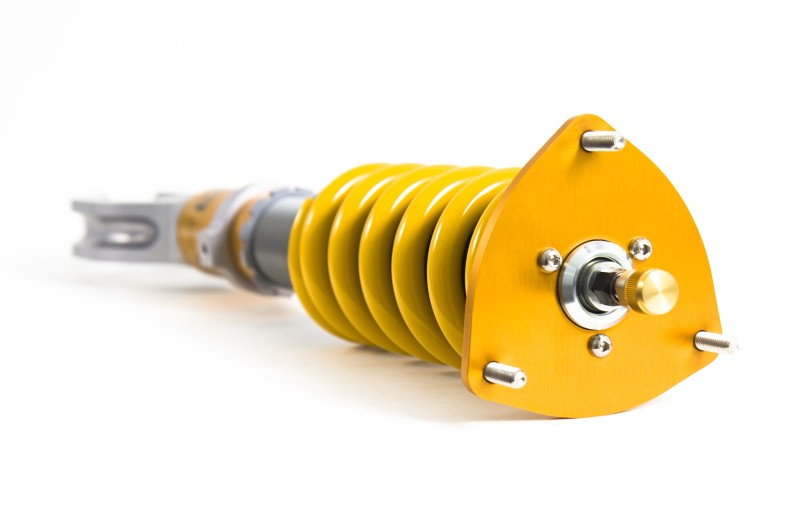

Ohlins Road & Track DFV Coilovers, yellow spring and top mount, angled view

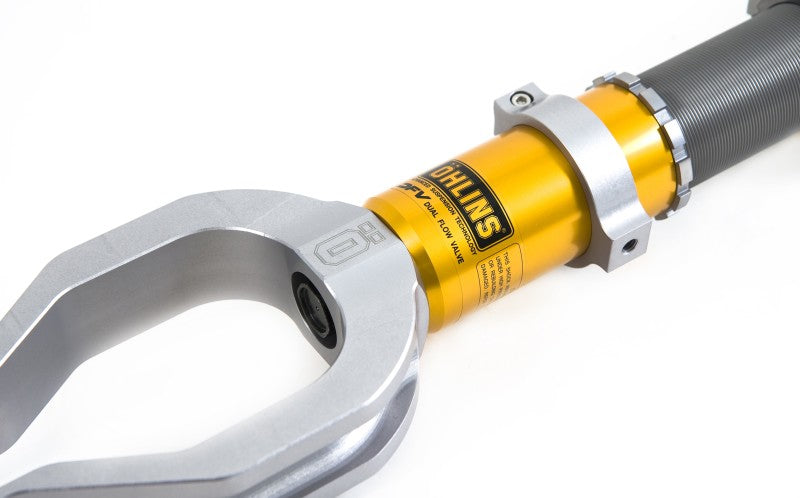

Ohlins Road & Track DFV Coilovers, silver lower mount and shock body, close up

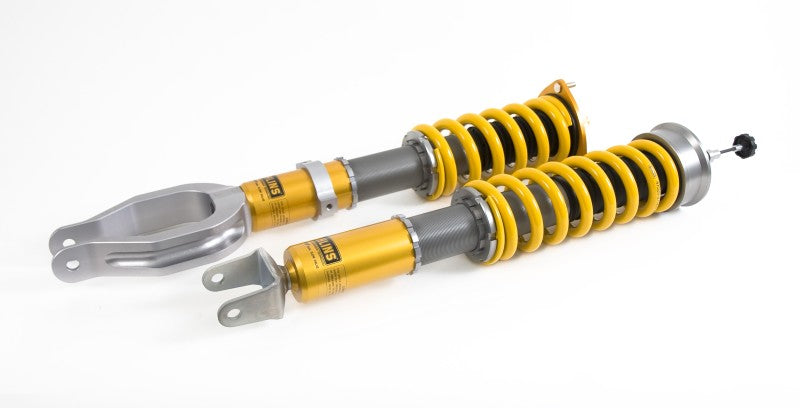

Ohlins Road & Track DFV Coilovers, pair of yellow springs and shocks, angled view

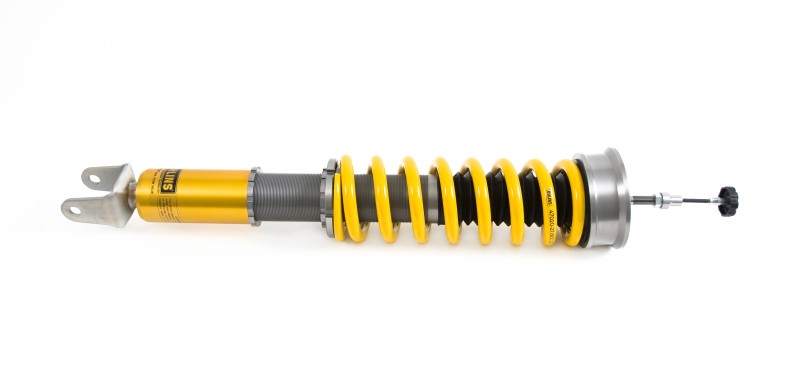

Ohlins Road & Track DFV Coilovers, shock and spring, side view

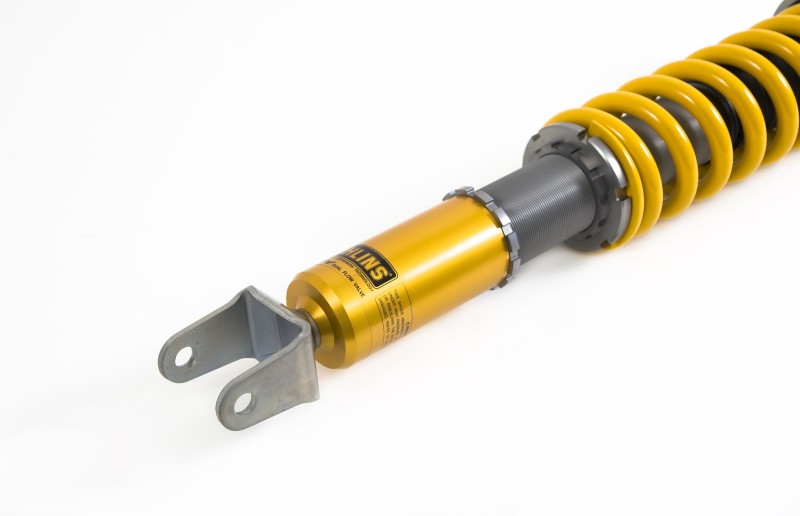

Ohlins Road & Track DFV Coilovers, yellow spring and shock body, angled view
Ohlins Road & Track DFV Coilovers, coilover pair, front view
Ohlins Road & Track DFV Coilovers, coilover, angled view
Ohlins Road & Track DFV Coilovers, coilover, angled view, mount end
Ohlins Road & Track DFV Coilovers, two yellow spring shocks, angled view
Ohlins Road & Track DFV Coilovers, shock and spring with lower mount, angled view
Ohlins Road & Track DFV Coilovers, yellow spring and top mount, angled view
Ohlins Road & Track DFV Coilovers, silver lower mount and shock body, close up
Ohlins Road & Track DFV Coilovers, pair of yellow springs and shocks, angled view
Ohlins Road & Track DFV Coilovers, shock and spring, side view
Ohlins Road & Track DFV Coilovers, yellow spring and shock body, angled view
Ohlins Road & Track DFV Coilovers, coilover pair, front view
Ohlins Road & Track DFV Coilovers, coilover, angled view
Ohlins Road & Track DFV Coilovers, coilover, angled view, mount end

Ohlins Road & Track DFV Coilovers - Nissan GT-R 2009-2024

Ohlins SKU: OHLNIS MI31S1
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandOhlins
SKUOHLNIS MI31S1
GTIN / UPC840153600418
Manufacturer Part NumberNIS MI31S1

Product Information

Ohlins Road & Track coilovers use Dual Flow Valve (DFV) dampers, so a single adjuster on each damper changes compression and rebound together while ride height and spring preload adjust separately. This kit runs 160 N/mm front and 90 N/mm rear springs and lowers the car by about 10 mm with the recommended setup. Both ends use conventional shock absorbers with separate length adjusters for ride height, aluminum top mounts at the front and the original mounts at the rear. The dampers are rebuildable and salt spray tested to ISO 9227.

Specifications

Type Coilover suspension kit (front and rear)
Series Road & Track (DFV)
Position Front and rear
Damping Adjustment One adjuster per damper sets compression and rebound together (Dual Flow Valve)
Adjustability Damping, ride height and spring preload
Front Spring Rate 160 N/mm (914 lb/in)
Rear Spring Rate 90 N/mm (514 lb/in)
Lowering Range Approx. 10 mm front and rear with the recommended setup
Top Mounts Aluminum top mounts front (not adjustable), original top mounts rear
Damper Layout Conventional shock absorbers front and rear
Rebuildable Yes
Electronic Damping Needs EDC cancellation kit 35020-06, sold separately
Fitment Notes R35 GT-R and GT-R Nismo.
Pairs With Ohlins EDC cancellation kit 35020-06
Intended Use Street and track days
Quantity 1 kit
Warranty 2 year limited (defects in materials or workmanship)
Part Number NIS MI31S1

This part fits:

Year Make Model Submodel
2020 Nissan GT-R 50th Anniversary Edition
2009-2010 Nissan GT-R Base
2012-2016 Nissan GT-R Black Edition
2015-2021, 2023-2024 Nissan GT-R Nismo
2009-2021, 2023-2024 Nissan GT-R Premium
2018-2019 Nissan GT-R Pure
2024 Nissan GT-R Skyline Edition
2021, 2024 Nissan GT-R T-spec
2024 Nissan GT-R T-spec Takumi Edition
2014-2015, 2018-2020 Nissan GT-R Track Edition

Documents: Installation Instructions (PDF) | Owner's Manual (PDF)

How is the damping adjusted?

  • Each damper has one adjuster that changes compression and rebound together through the Dual Flow Valve, so the setup stays balanced from soft road settings to firm track settings.

How much does it lower the car?

  • About 10 mm with the recommended setup, front and rear.

Does my car need a cancellation kit?

  • Yes. The GT-R electronic dampers need Ohlins EDC cancellation kit 35020-06, sold separately.
