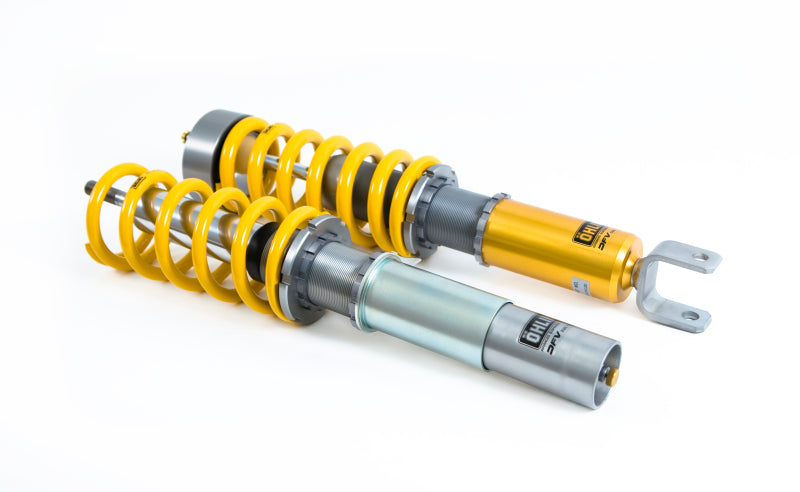

Ohlins Road & Track DFV Coilovers, yellow and silver pair, angled view

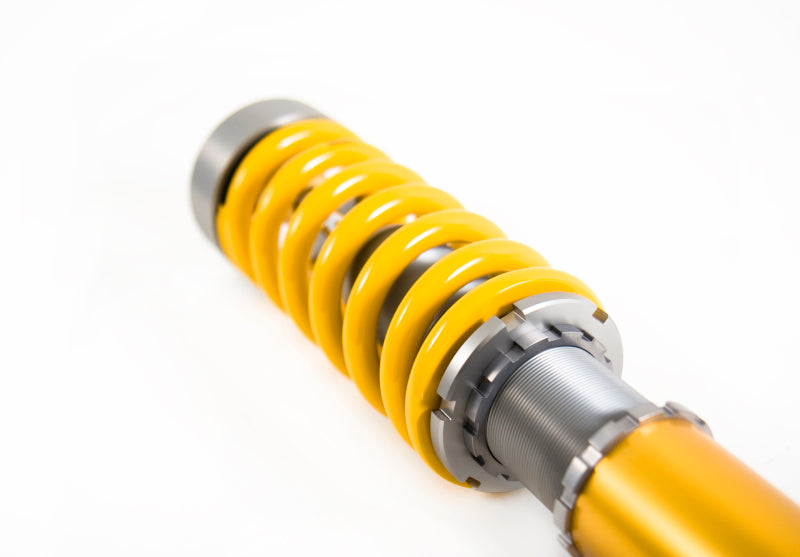

Ohlins Road & Track DFV Coilovers, yellow spring, close up

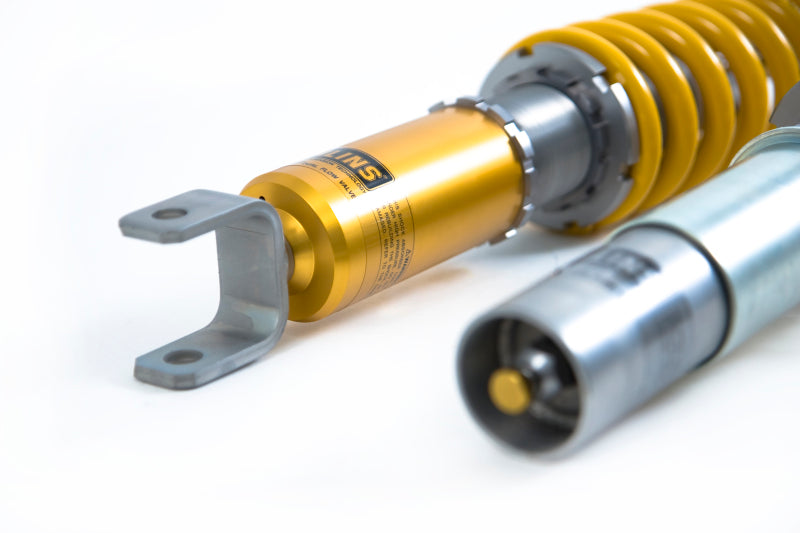

Ohlins Road & Track DFV Coilovers, gold bracket and canister, side view

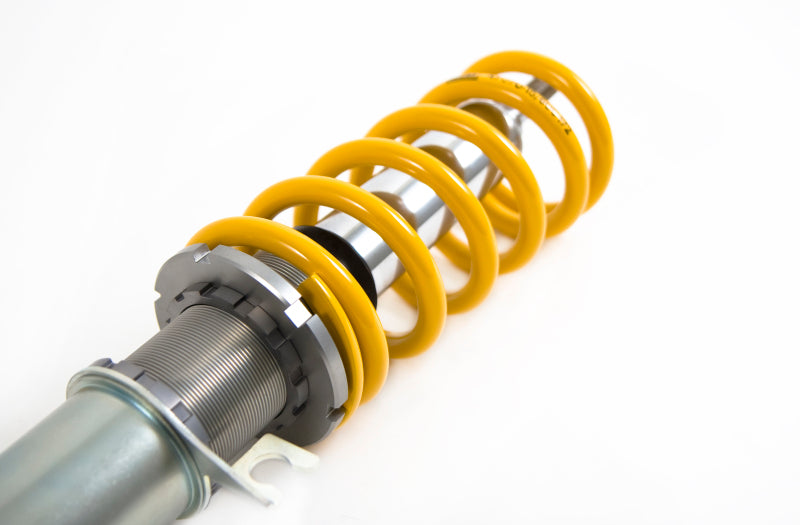

Ohlins Road & Track DFV Coilovers, yellow spring, angled view
Ohlins Road & Track DFV Coilovers, yellow spring with gold body, front view
Ohlins Road & Track DFV Coilovers, yellow spring with gold body, side view
Ohlins Road & Track DFV Coilovers, yellow spring with gold body, angled view
Ohlins Road & Track DFV Coilovers, yellow spring with gold body, close up
Ohlins Road & Track DFV Coilovers, yellow and silver pair, angled view
Ohlins Road & Track DFV Coilovers, yellow spring, close up
Ohlins Road & Track DFV Coilovers, gold bracket and canister, side view
Ohlins Road & Track DFV Coilovers, yellow spring, angled view
Ohlins Road & Track DFV Coilovers, yellow spring with gold body, front view
Ohlins Road & Track DFV Coilovers, yellow spring with gold body, side view
Ohlins Road & Track DFV Coilovers, yellow spring with gold body, angled view
Ohlins Road & Track DFV Coilovers, yellow spring with gold body, close up

Ohlins Road & Track DFV Coilovers - Porsche 911 Carrera / Carrera S 2005-2011

Ohlins SKU: OHLPOS MZ20S1
Price
Only 1 Left in Stock – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandOhlins
SKUOHLPOS MZ20S1
GTIN / UPC840153642272
Manufacturer Part NumberPOS MZ20S1

Product Information

Ohlins Road & Track coilovers use Dual Flow Valve (DFV) dampers, so a single adjuster on each damper changes compression and rebound together while ride height and spring preload adjust separately. This kit runs 60 N/mm front and 120 N/mm rear springs and lowers the car by about 20 mm with the recommended setup. The front uses an inverted (upside down) McPherson strut and the rear a conventional shock absorber. The kit reuses the original top mounts. The dampers are rebuildable and salt spray tested to ISO 9227.

Specifications

Type Coilover suspension kit (front and rear)
Series Road & Track (DFV)
Position Front and rear
Damping Adjustment One adjuster per damper sets compression and rebound together (Dual Flow Valve)
Adjustability Damping, ride height and spring preload
Front Spring Rate 60 N/mm (343 lb/in)
Rear Spring Rate 120 N/mm (685 lb/in)
Lowering Range Approx. 20 mm front and rear with the recommended setup
Top Mounts Reuses the original top mounts
Damper Layout Inverted McPherson strut front, conventional shock rear
Rebuildable Yes
Electronic Damping Cars with PASM need cancellation kit 35020-10 (coupe and Targa) or 35020-09 (cabriolet), sold separately
Fitment Notes 997 Carrera and Carrera S, rear-wheel drive. Not for the Carrera GTS with center-lock wheels. Porsche adjuster extension package G78055-01 for cars with the BOSE sound system, sold separately.
Pairs With Ohlins PASM cancellation kit 35020-10
Intended Use Street and track days
Quantity 1 kit
Warranty 2 year limited (defects in materials or workmanship)
Part Number POS MZ20S1

This part fits:

Year Make Model Submodel
2005-2011 Porsche 911 Carrera
2005-2011 Porsche 911 Carrera S

Documents: Installation Instructions (PDF) | Owner's Manual (PDF)

How is the damping adjusted?

  • Each damper has one adjuster that changes compression and rebound together through the Dual Flow Valve, so the setup stays balanced from soft road settings to firm track settings.

How much does it lower the car?

  • About 20 mm with the recommended setup, front and rear.

Does my car need a cancellation kit?

  • Only cars with PASM. Coupes use Ohlins kit 35020-10 and cabriolets use kit 35020-09, sold separately.

Do I need new top mounts?

  • No. The kit is designed to reuse the original top mounts.
