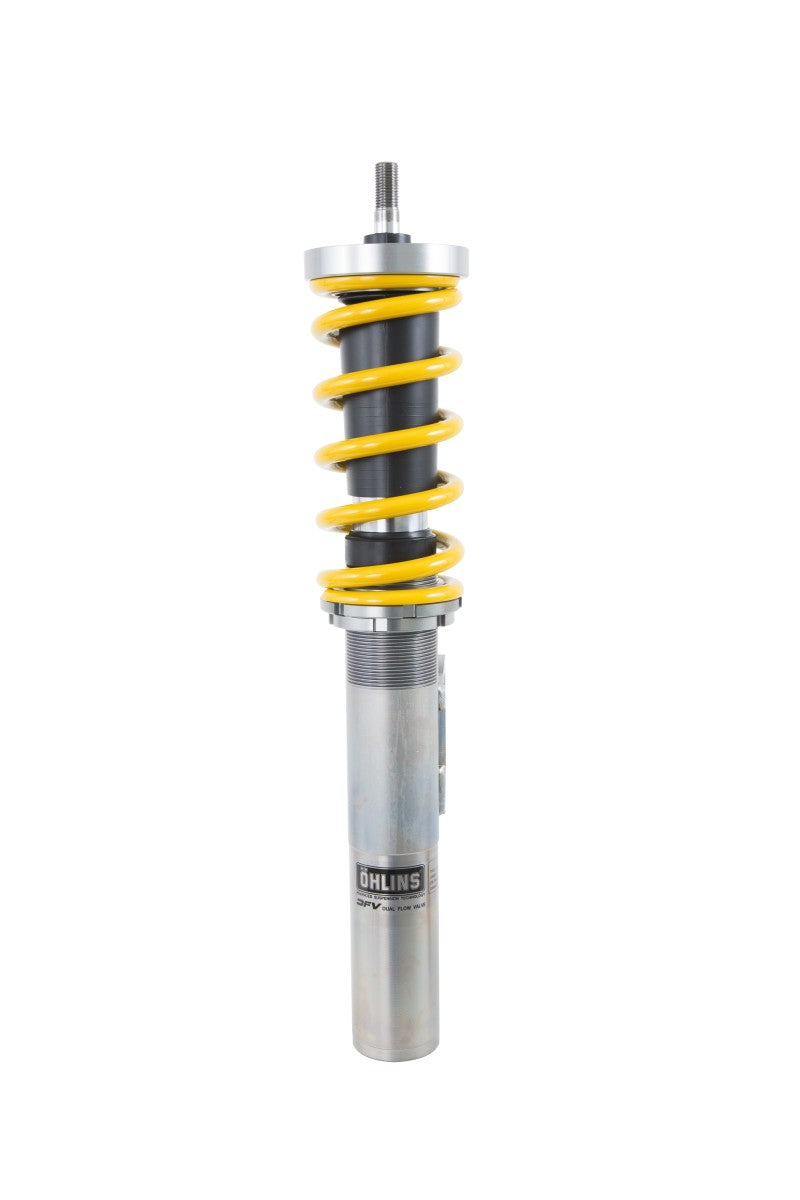

Ohlins Road & Track DFV Coilovers, awd, single unit, yellow spring, front view

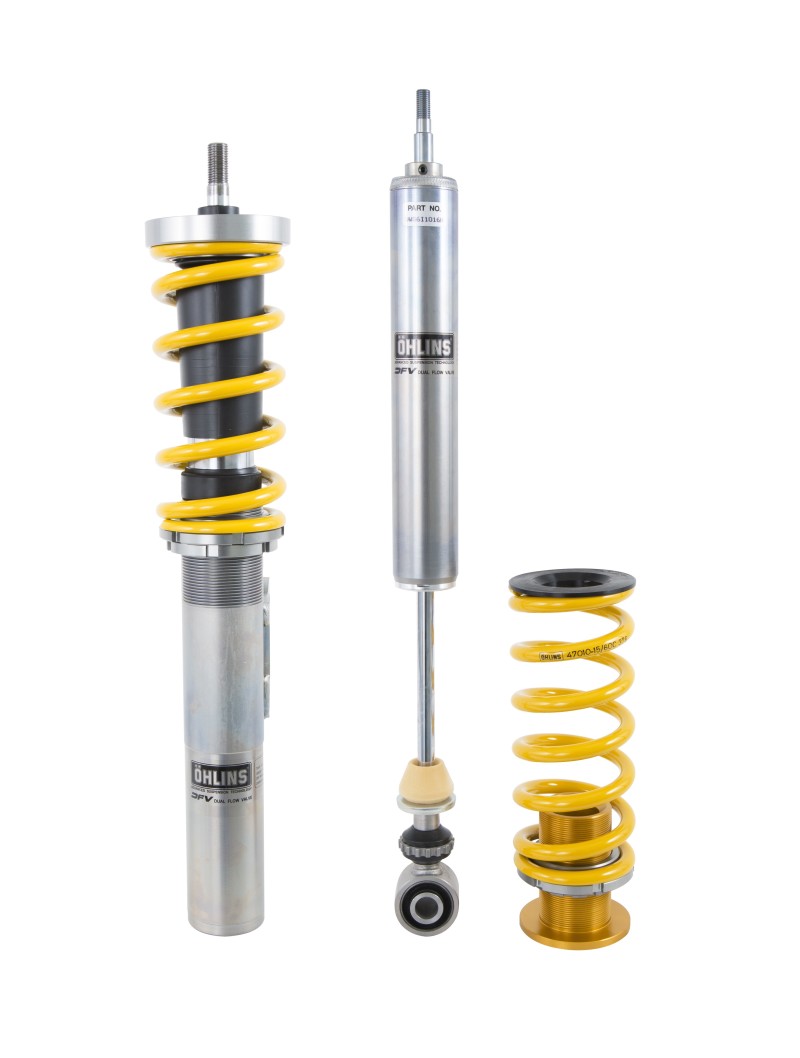

Ohlins Road & Track DFV Coilovers, awd, front unit and rear shock, yellow spring

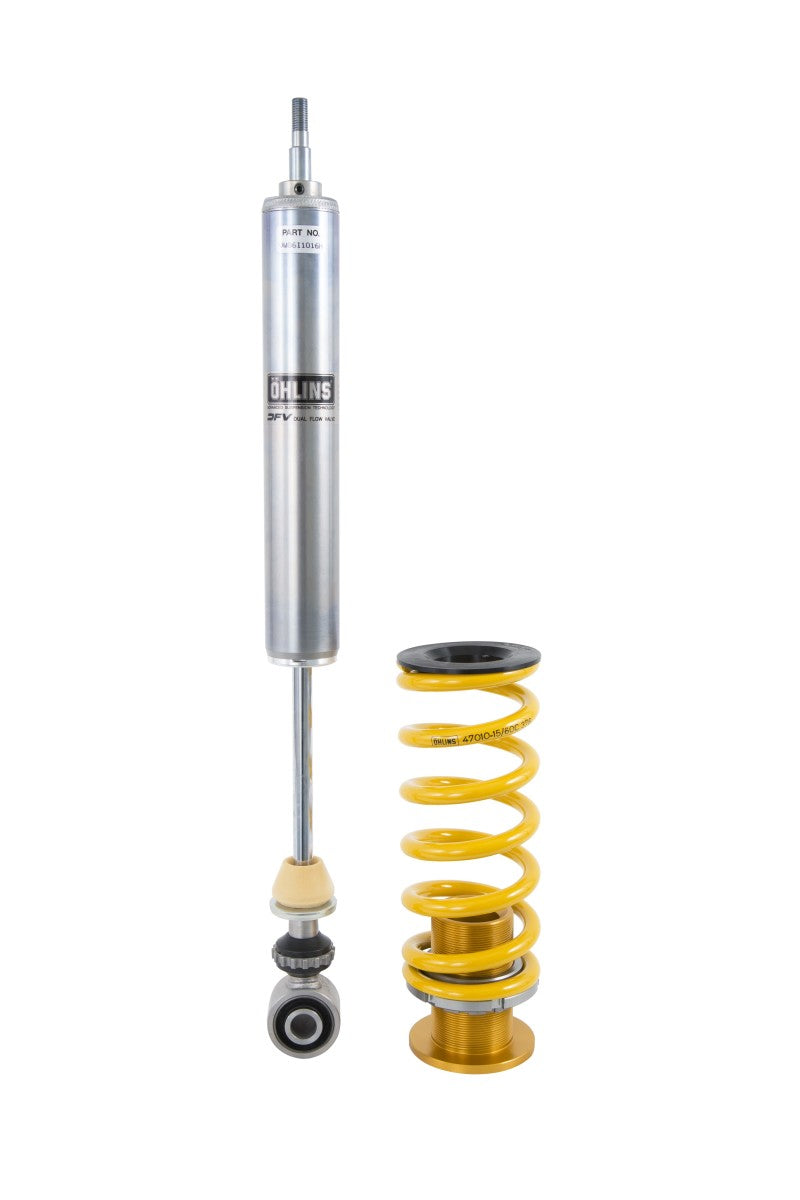

Ohlins Road & Track DFV Coilovers, awd, rear shock with yellow spring

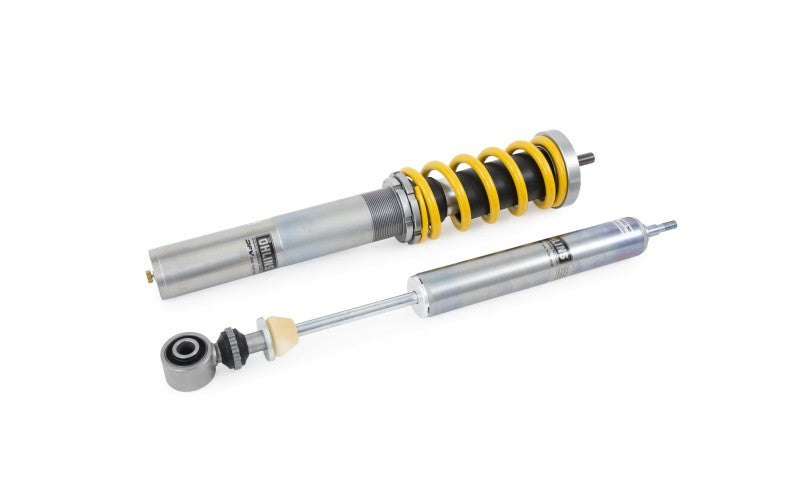

Ohlins Road & Track DFV Coilovers, awd, front and rear units, angled view
Ohlins Road & Track DFV Coilovers, awd, yellow spring and gray body, top close up
Ohlins Road & Track DFV Coilovers, awd, yellow spring and adjuster collar, close up
Ohlins Road & Track DFV Coilovers, awd, gray shock rod and bushing end, close up
Ohlins Road & Track DFV Coilovers, awd, yellow spring with black seat, front view
Ohlins Road & Track DFV Coilovers, awd, single unit, yellow spring, front view
Ohlins Road & Track DFV Coilovers, awd, front unit and rear shock, yellow spring
Ohlins Road & Track DFV Coilovers, awd, rear shock with yellow spring
Ohlins Road & Track DFV Coilovers, awd, front and rear units, angled view
Ohlins Road & Track DFV Coilovers, awd, yellow spring and gray body, top close up
Ohlins Road & Track DFV Coilovers, awd, yellow spring and adjuster collar, close up
Ohlins Road & Track DFV Coilovers, awd, gray shock rod and bushing end, close up
Ohlins Road & Track DFV Coilovers, awd, yellow spring with black seat, front view

Ohlins Road & Track DFV Coilovers - Audi TT / A3 / Volkswagen Golf R 2006-2015 - AWD

Ohlins SKU: OHLVWS MT10S2
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandOhlins
SKUOHLVWS MT10S2
GTIN / UPC840153600357
Manufacturer Part NumberVWS MT10S2

Product Information

Ohlins Road & Track coilovers use Dual Flow Valve (DFV) dampers, so a single adjuster on each damper changes compression and rebound together while ride height and spring preload adjust separately. This kit runs 70 N/mm front and 80 N/mm rear springs. The front uses an inverted (upside down) McPherson strut and the rear a conventional shock absorber. Lowering depends on the vehicle and is listed in the mounting instruction, and the kit reuses the original top mounts. The dampers are rebuildable and salt spray tested to ISO 9227.

Specifications

Type Coilover suspension kit (front and rear)
Series Road & Track (DFV)
Position Front and rear
Damping Adjustment One adjuster per damper sets compression and rebound together (Dual Flow Valve)
Adjustability Damping, ride height and spring preload
Front Spring Rate 70 N/mm (400 lb/in)
Rear Spring Rate 80 N/mm (457 lb/in)
Springs Included Yes
Lowering Range See the mounting instruction for each vehicle
Top Mounts Reuses the original top mounts
Damper Layout Inverted McPherson strut front, conventional shock rear
Rebuildable Yes
Electronic Damping Cars with DCC or magnetic ride need cancellation kit 35020-22 (Audi) or 35020-14 (VW), sold separately
What's in the Box
  • Coilover kit with springs and mounting parts
  • C-spanner for spring preload
  • Owner's manual and mounting instruction
  • Sticker set
Fitment Notes All-wheel-drive 8J TT, TTS and TT RS, 8P A3 quattro, Mk6 Golf R and Mk5 R32. Front-wheel-drive cars use VWS MT10S1.
Pairs With Ohlins cancellation kits 35020-22 and 35020-14
Intended Use Street and track days
Quantity 1 kit
Warranty 2 year limited (defects in materials or workmanship)
Part Number VWS MT10S2

This part fits:

Year Make Model Submodel
2006-2013 Audi A3 Quattro Base
2008-2011, 2014-2015 Audi TT Quattro Base
2012-2013 Audi TT Quattro Premium Plus
2012-2013 Audi TT Quattro Prestige
2012-2013 Audi TT RS Quattro Base
2009-2015 Audi TTS Quattro Base
2012-2013 Volkswagen Golf R Base
2008 Volkswagen R32 Base

Documents: Installation Instructions (PDF) | Owner's Manual (PDF)

Are springs included?

  • Yes. The kit comes with springs and mounting parts, so it installs as a complete front and rear coilover set.

How is the damping adjusted?

  • Each damper has one adjuster that changes compression and rebound together through the Dual Flow Valve, so the setup stays balanced from soft road settings to firm track settings.

Does my car need a cancellation kit?

  • Only cars with factory adaptive dampers. Audi models use kit 35020-22 and Volkswagen models use kit 35020-14, sold separately.

Does it fit front-wheel-drive models?

  • No. This kit is for quattro and 4Motion cars. Front-wheel-drive models use Ohlins VWS MT10S1.

Do I need new top mounts?

  • No. The kit is designed to reuse the original top mounts.
