Ohlins Road & Track DFV Coilovers - Porsche 911 Carrera / Carrera 4 / Turbo 2012-2019

Ohlins SKU: OHLPOS MU00S1
Price
Regular price $4,500.00
Regular price Sale price $4,500.00
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandOhlins
SKUOHLPOS MU00S1
GTIN / UPC840153600425
Manufacturer Part NumberPOS MU00S1

Product Information

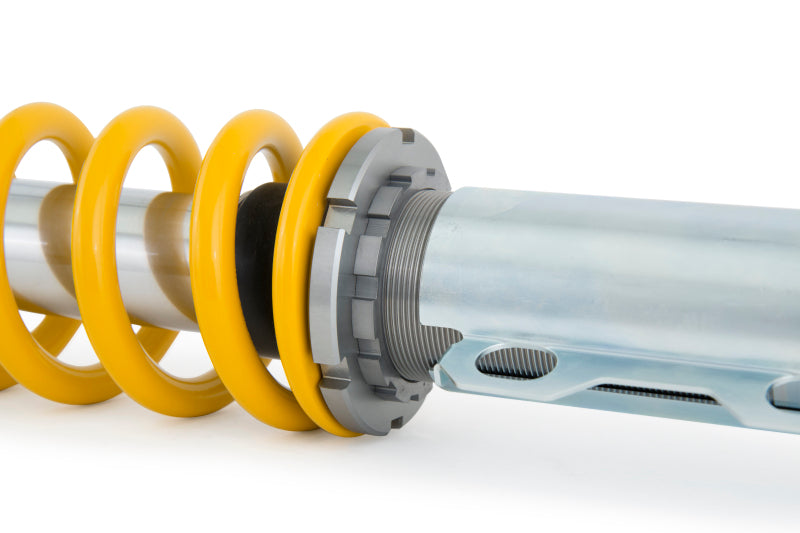

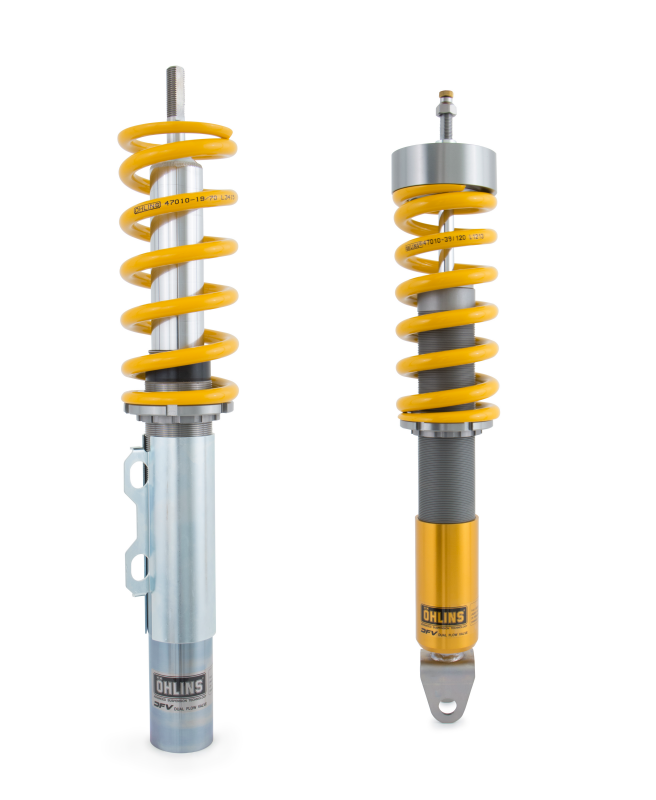

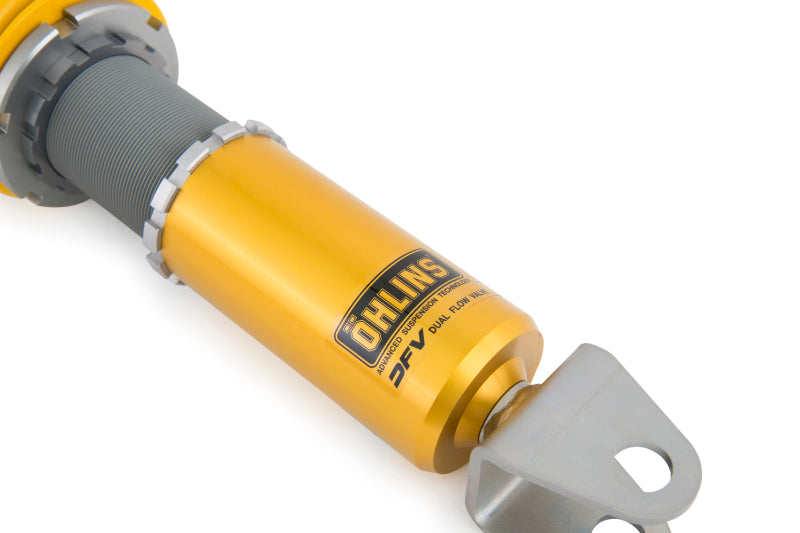

Ohlins Road & Track coilovers use Dual Flow Valve (DFV) dampers, so a single adjuster on each damper changes compression and rebound together while ride height and spring preload adjust separately. This kit runs 70 N/mm front and 140 N/mm rear springs and lowers the car by about 10 to 20 mm with the recommended setup. The front uses an inverted (upside down) McPherson strut and the rear a conventional shock absorber. The kit reuses the original top mounts. The dampers are rebuildable and salt spray tested to ISO 9227.

Specifications

Type Coilover suspension kit (front and rear)
Series Road & Track (DFV)
Position Front and rear
Damping Adjustment One adjuster per damper sets compression and rebound together (Dual Flow Valve)
Adjustability Damping, ride height and spring preload
Front Spring Rate 70 N/mm (400 lb/in)
Rear Spring Rate 140 N/mm (799 lb/in)
Lowering Range Approx. 10 to 20 mm front and rear with the recommended setup
Top Mounts Reuses the original top mounts

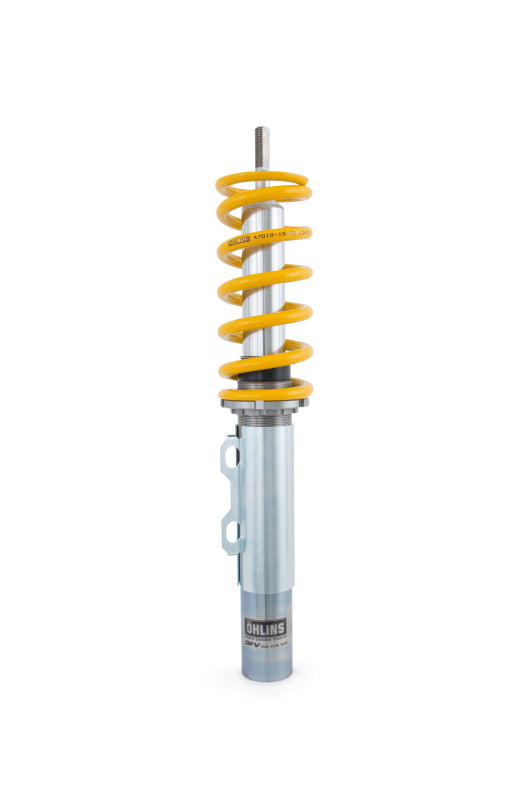

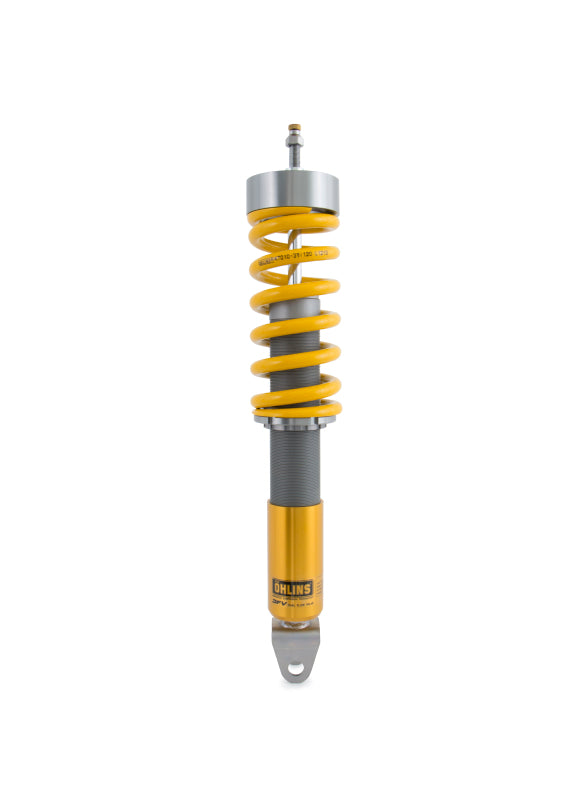

Damper Layout Inverted McPherson strut front, conventional shock rear
Rebuildable Yes
Electronic Damping Cars with PASM need cancellation kit 35020-07, sold separately
Fitment Notes 991.1 and 991.2 Carrera, Carrera S, Carrera 4, 4S, GTS, Carrera T, Turbo and Turbo S. Cars with PDCC need PDCC brackets 25616-13 and 25616-14, not included. Not for GT2, GT3 or GT3 RS.
Pairs With Ohlins PASM cancellation kit 35020-07
Intended Use Street and track days
Quantity 1 kit
Warranty 2 year limited (defects in materials or workmanship)
Part Number POS MU00S1

This part fits:

Year Make Model Submodel
2012-2019 Porsche 911 Carrera
2013-2019 Porsche 911 Carrera 4
2015-2016, 2018-2019 Porsche 911 Carrera 4 GTS
2013-2019 Porsche 911 Carrera 4S
2015-2016, 2018-2019 Porsche 911 Carrera GTS
2012-2019 Porsche 911 Carrera S
2018-2019 Porsche 911 Carrera T
2014-2019 Porsche 911 Turbo
2014-2019 Porsche 911 Turbo S

Documents: Installation Instructions (PDF) | Owner's Manual (PDF)

How is the damping adjusted?

  • Each damper has one adjuster that changes compression and rebound together through the Dual Flow Valve, so the setup stays balanced from soft road settings to firm track settings.

How much does it lower the car?

  • About 10 to 20 mm with the recommended setup, front and rear.

Does my car need a cancellation kit?

  • Cars with PASM need Ohlins cancellation kit 35020-07, sold separately.

Does it fit a car with PDCC?

  • Yes, with PDCC brackets 25616-13 and 25616-14, which are not included.

Do I need new top mounts?

  • No. The kit is designed to reuse the original top mounts.
