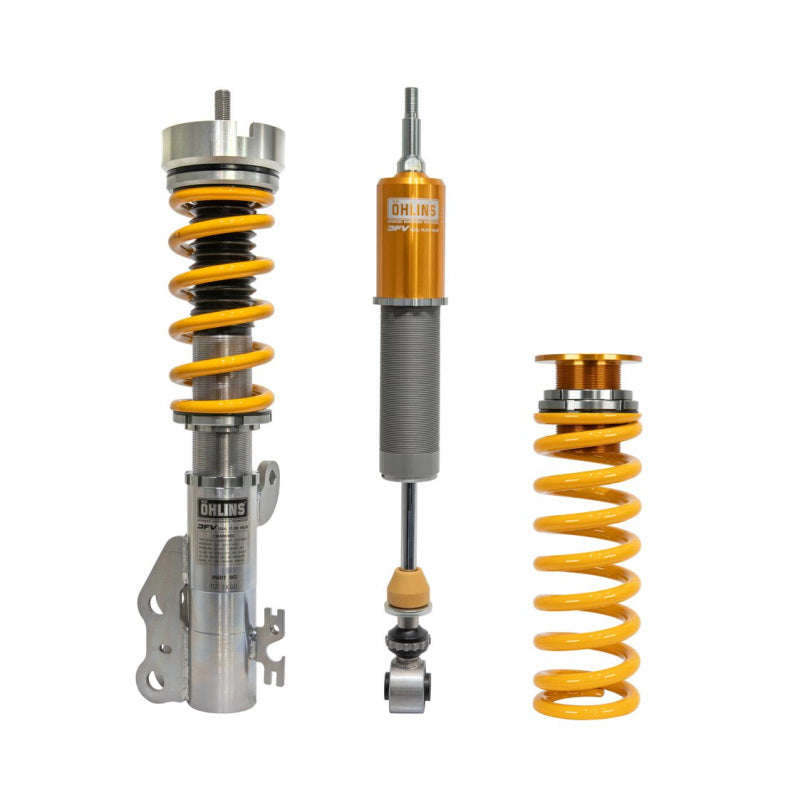

Ohlins Road & Track DFV Coilovers, front strut with spring, side view

Ohlins Road & Track DFV Coilovers - Toyota GR Corolla 2023-2025

Ohlins SKU: OHLTOS MX00S1
Price
Out of Stock – Order Now, Ships the Week of Jan 18
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandOhlins
SKUOHLTOS MX00S1
GTIN / UPC840153632815
Manufacturer Part NumberTOS MX00S1

Product Information

Ohlins Road & Track coilovers use Dual Flow Valve (DFV) dampers, so a single adjuster on each damper changes compression and rebound together while ride height and spring preload adjust separately. This kit runs 90 N/mm front and 90 N/mm rear springs and lowers the car by about 25 mm with the recommended setup. The dampers offer 20 clicks of adjustment, length adjusters allow other ride heights, and the kit reuses the original upper mounts. The dampers are rebuildable and salt spray tested to ISO 9227.

Specifications

Type Coilover suspension kit (front and rear)
Series Road & Track (DFV)
Position Front and rear
Damping Adjustment One adjuster per damper sets compression and rebound together (Dual Flow Valve)
Adjustability Damping, ride height and spring preload
Front Spring Rate 90 N/mm (514 lb/in)
Rear Spring Rate 90 N/mm (514 lb/in)
Lowering Range Approx. 25 mm front and rear with the recommended setup
Top Mounts Reuses the original top mounts
Rebuildable Yes
Fitment Notes GR Corolla hatchback.
Intended Use Street and track days
Quantity 1 kit
Warranty 2 year limited (defects in materials or workmanship)
Part Number TOS MX00S1

This part fits:

Year Make Model Submodel
2023-2024 Toyota GR Corolla Circuit Edition
2023-2025 Toyota GR Corolla Core
2024-2025 Toyota GR Corolla Premium
2025 Toyota GR Corolla Premium Plus

Documents: Owner's Manual (PDF)

How is the damping adjusted?

  • Each damper has one adjuster that changes compression and rebound together through the Dual Flow Valve, so the setup stays balanced from soft road settings to firm track settings.

How much does it lower the car?

  • About 25 mm with the recommended setup, and the damper length adjusters allow other heights.

Do I need new top mounts?

  • No. The kit is designed to reuse the original top mounts.
